RJ-TJ0001-101 - RockJock Pro Edition TJ Wrangler Suspension System (4 in. Lift)

SKU RJ-TJ0001-101
$3,984.00
Back

Details

RockJock's Pro Edition Johnny Joint Suspension System for TJ Wranglers provides 4 inches of lift and allows for efficient clearance of up to 35 in. tall tires (w/ the use of a 1 in. Body Lift and a 1 in. Motor Mount Lift or aftermarket fenders)! This kit is comprised of only the highest end components in the areas of strength, fit, finish, function, and the engineering to back them, delivering a smooth, comfortable on-road ride with the ultimate in off-road capability – all in a complete, direct bolt-on kit. This kit is designed specifically for the serious off-roader who not only wants to lift their vehicle and install big tires, but also wants to tackle the toughest trails in the country with confidence and ease.
Premium shock packages from Rancho and King are offered here as options so that you can select the shock brand and performance level that matches your driving style. We always recommend adjustable shocks, as they allow the ride to be tuned to match the terrain and driver’s preference.


Kit Fits:

  • TJ Wrangler – All Models

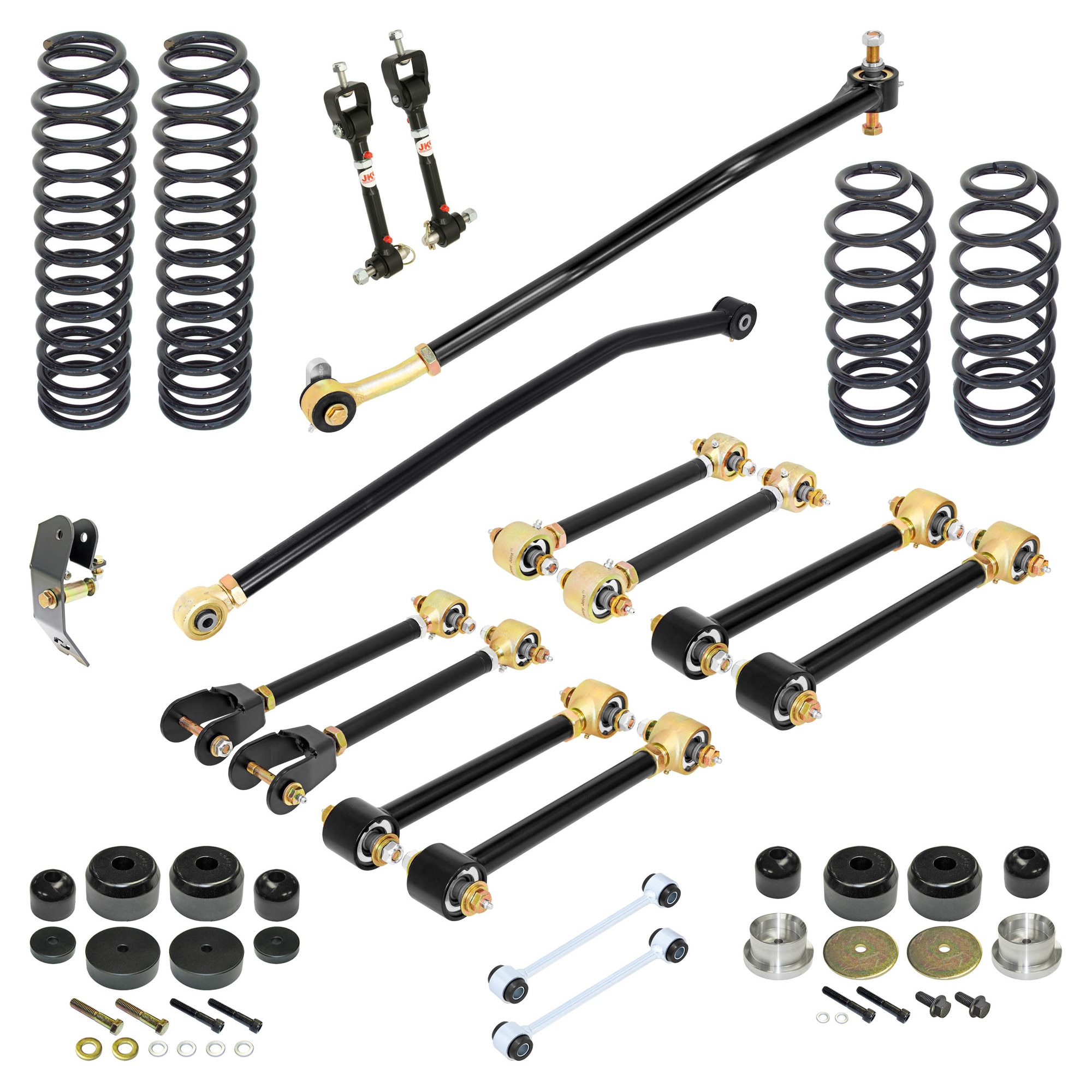

Kit Includes:

  • 4 in. Lift Dual-Rate Front And Rear Springs
  • 8 Johnny Joint Adjustable Control Arms (double adjustable uppers)
  • Johnny Joint Adjustable Front Trac Bar
  • Johnny Joint Adjustable Rear Trac Bar
  • Rear Trac Bar Geometry Correction Bracket
  • Front and Rear Bump Stop Kits
  • Front Sway Bar Disconnects
  • Rear Sway Bar Extended Links
  • All Required Hardware

Kit Features:

  • RockJock Spec. Dual-Rate Springs - Feature a soft initial rate that absorbs small bumps and trail chop, to deliver a smooth, comfortable ride, while a firmer secondary rate helps soak up larger impacts and reduce bottoming. A key differentiator of RockJock spec. dual-rate springs is the positioning of the crossover point between the initial and secondary spring rates so that a portion of the softer initial rate is available and active at ride height before crossing over to the firmer secondary rate deeper into the travel.
  • Bump Stop Spacers - Proper bump stop extensions are a must and our heavy duty kits stand up to hard use while keeping the tires off of your TJ’s fenders!
  • Johnny Joint Control Arms – Heavy duty adjustable upper control arms feature RockJock Johnny Joints, the original and most durable high-articulation urethane suspension joint on the market. Johnny Joints feature a smooth steel ball that pivots inside a proprietary urethane shell to provide over 30 degrees (per joint) of quiet, shock dampening articulation - without the excessive deflection found in soft rubber-based flex joints. Johnny Joints are so trusted, that they are used by multiple commercial suspension companies, for both street and off-road suspension systems. Learn more here.
  • Johnny Joint Trac Bars - Heavy duty trac bars included are our adjustable length chromoly front and rear units. Our trac bars combine a precise fit with increased strength and adjustable length to perfectly center front and rear axles under the vehicle. High-articulation Johnny Joint ends provide maximum durability and suspension flex.

Optional Add-On Components - Add-on components enable the RockJock Pro Edition Suspension Lift to be customized for increased off-road capabilities and tuning.

  • Antirock Sway Bars - Antirocks allow for maximum suspension articulation while providing maximum 4 wheel traction.
  • Currectlync Steering System - For maximum strength, reliability and confidence off-road, upgrade your steering!
  • Axle Housing Johnny Joints - Adding this simple kit to your Pro Edition Suspension System converts 2 more pivoting points in your suspension to high articulation Johnny Joint rod ends.
  • Shock Packages - Select from a range of performance shocks with race-proven technology from Rancho and King to meet your requirements.
  • Rear Shock Relocation Brackets - Mandatory when using this suspension kit in conjunction with a factory differential to push the lower shock mounting location back outward to an accessible location.

Lift Details - The RockJock Suspension System provides 4 in. of suspension lift.

  • Actual lift height may vary due to factory build specs. and added equipment and accessories.

Tire Fitment:

  • 33 in. tires – no other vehicle modification necessary

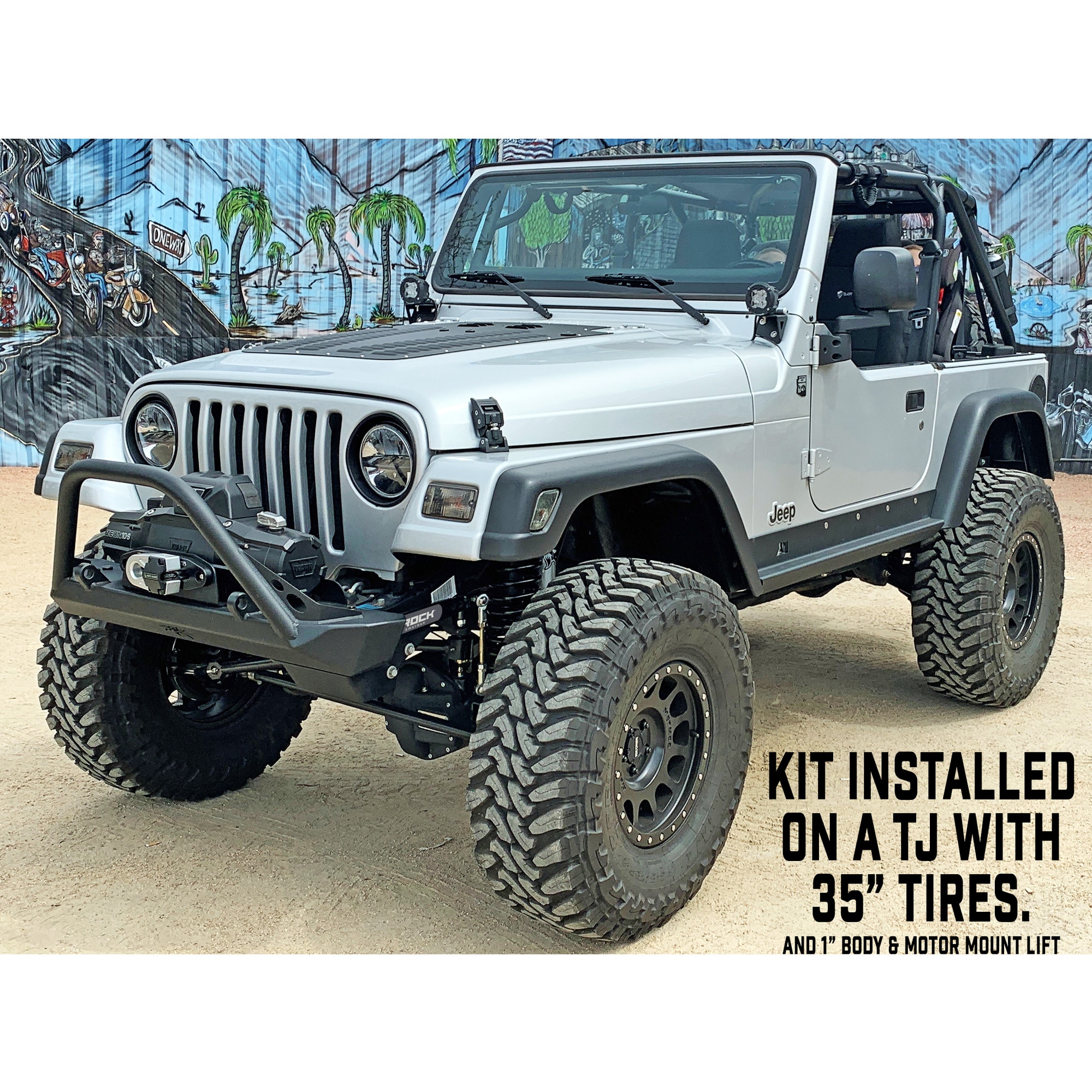

  • 35 in. tires – 1 in. Body Lift and a 1 in. Motor Mount Lift or aftermarket fenders, high-clearance fenders required
  • Larger Than 35 in. Tires – we have found provide diminishing return without dramatic modifications to the vehicle

Wheel Backspace:

  • 4.5 in. wheel backspace is recommended for all tire sizes

**IMPORTANT**:

  • This amount of lift on a TJ makes a transfer case tail shaft slip yoke eliminator kit mandatory. The kit we recommend is from Tom Wood’s Driveline and can be found here.

Instruction Manual:


Parts List:
