CE-9141 - TJ/LJ/XJ/MJ/ZJ Front Sway Bar Disconnects

SKU CE-9141
$177.00
Back

Details

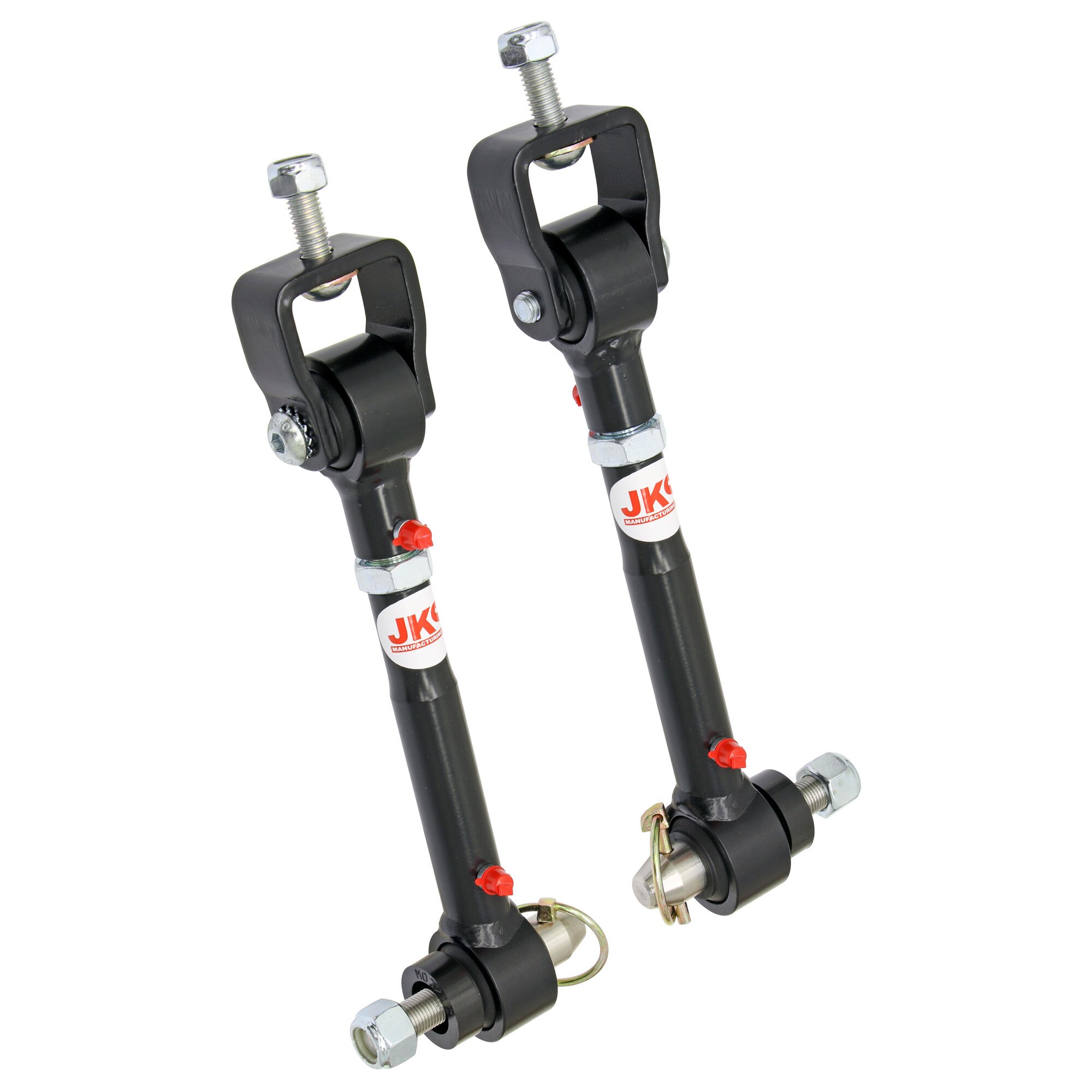

JKS Quicker Disconnect sway bar end links fit lifted TJ, LJ, XJ, MJ and ZJ vehicles and provide up to 30 percent better articulation on uneven terrain!
The ability to disconnect your factory sway bar allows increased articulation, thus keeping all four tires on the ground for maximum traction. To disconnect simply pull the lynch pin and swing each disconnect up and out of the way.
The main bodies of these disconnects are machined from 7/8 in. solid steel stock and then MIG welded. They feature stainless steel lynch pins and fluted Dura-Thane (greasable) bushings. The adjustable length design attaches to your sway bar and axle housing and in most cases requires welding of the lower mounting tab.
Made in the USA, JKS Quicker Disconnects are powder-coated and built to last. Sold in pairs.


Kit Fits:

  • TJ Wrangler – w/ 2 1/2 in. to 6 in. of lift
  • TJ Wrangler Unlimited (LJ) – w/ 2 1/2 in. to 6 in. of lift
  • XJ Cherokee – w/ 4 in. to 6 in. of lift
  • MJ Comanche – w/ 4 in. to 6 in. of lift
  • ZJ Grand Cherokee – w/ 4 1/2 in. to 6 in. of lift

Kit Includes:

  • 7/8 in. Solid Steel Body, MIG Welded
  • U-Strap Brackets
  • Stainless Steel Mounting Posts
  • Stainless Steel Lynch Pins
  • Spherical Dura-Thane Greasable Bushings
  • Zerk Fittings for Greasing
  • All Necessary Hardware

Adjustment Range:

  • Closed – C-C is 8 in.
  • Extended – C-C is 11 5/8 in.

Notes:

  • Fits lifted vehicles only (see above)
  • Using Sway Bar Disconnects the front axle will gain up to 30 percent more articulation
  • Adjustable length design adapts to your vehicle and future modifications
  • Convenient grease fittings ensure easy bushing lubrication for smooth, silent operation
  • Stainless steel tapered mounting posts and self-aligning bushings allow you to connect or disconnect on unlevel surfaces
  • Spherical bushings provide unrestricted 360 degrees of rotation and 11 degrees of misalignment capability
  • Not compatible with aftermarket sway bars
  • Some vehicles may require extended front brake hoses or other modifications to compensate for additional suspension travel
