CE-9601 - TJ/LJ Rear Lower Shock Mount Extensions
Details
RockJock's Rear Shock Relocator Kit for the rear of TJ Wrangler and Unlimited (LJ) vehicles is designed for use in conjunction with factory differential housings and a lift amount that has required the rear pinion angle to be raised dramatically.

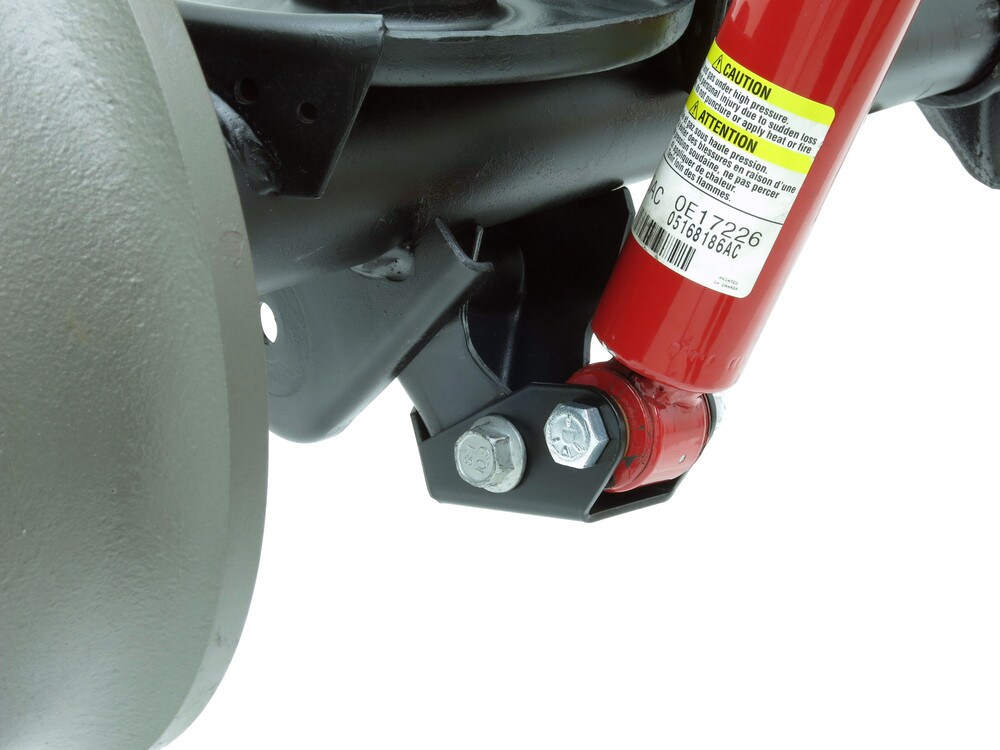

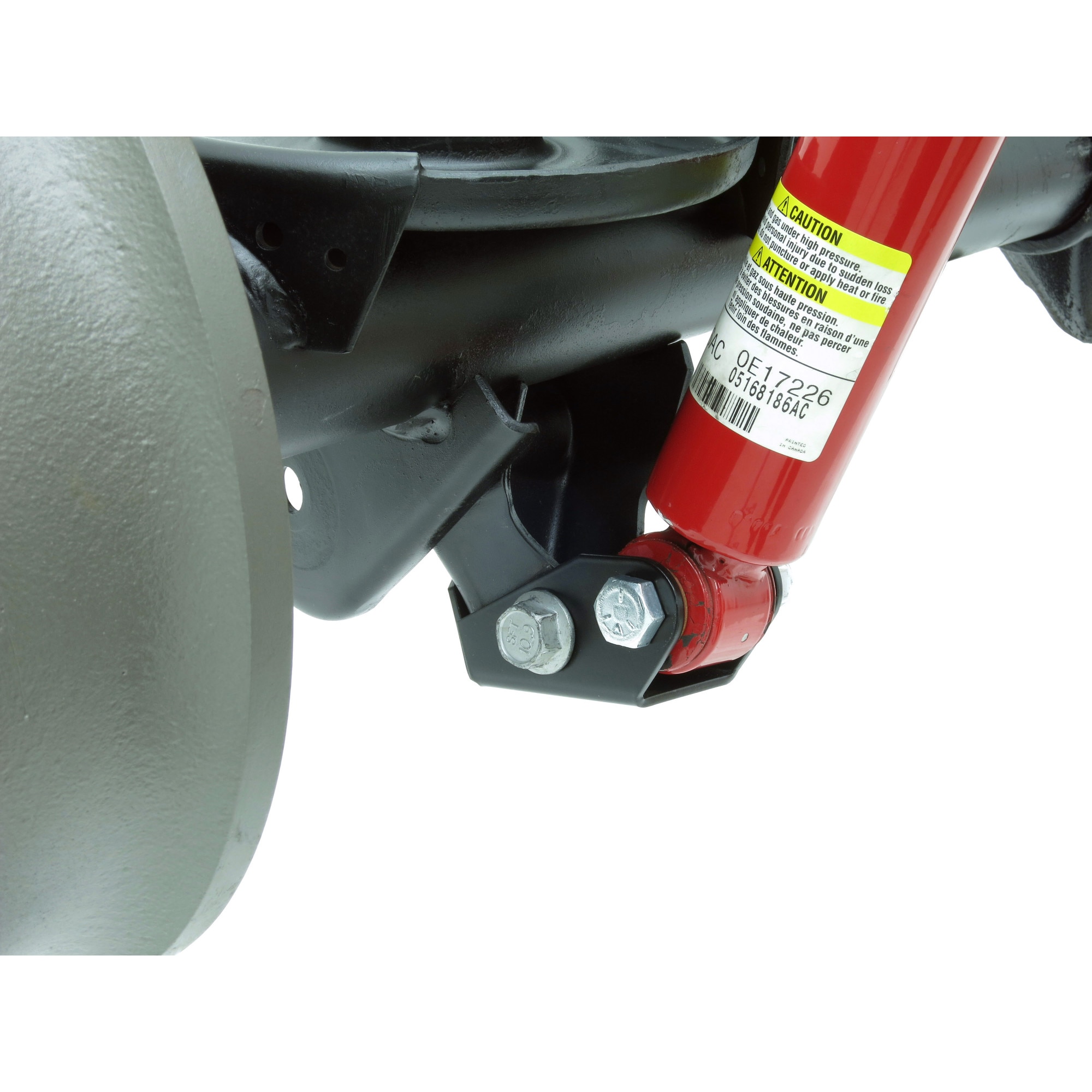

The issue that these brackets solves is, when the pinion angle on the stock differential is rotated up, the stock shock mount rotates under the axle tube, causing the shock to collide with the coil spring bucket, preventing the shock from being bolted up. Installing this simple kit moves the bottom shock mounting location outward and upward to mimic the original shock mounting location
This easy to install kit does require the drilling of 2 holes, as outlined in it’s instruction manual. Finish on metal components is semi-gloss black powder coat and zinc plating on the hardware.
Kit Fits:
- TJ Wrangler – All Models
- TJ Wrangler Unlimited (LJ) – All Models
Kit Includes:
Notes:
- This kit is intended for use on factory TJ/LJ Dana 35 and Dana 44 rear differential housings only.
Instruction Manual:
Installation Video:

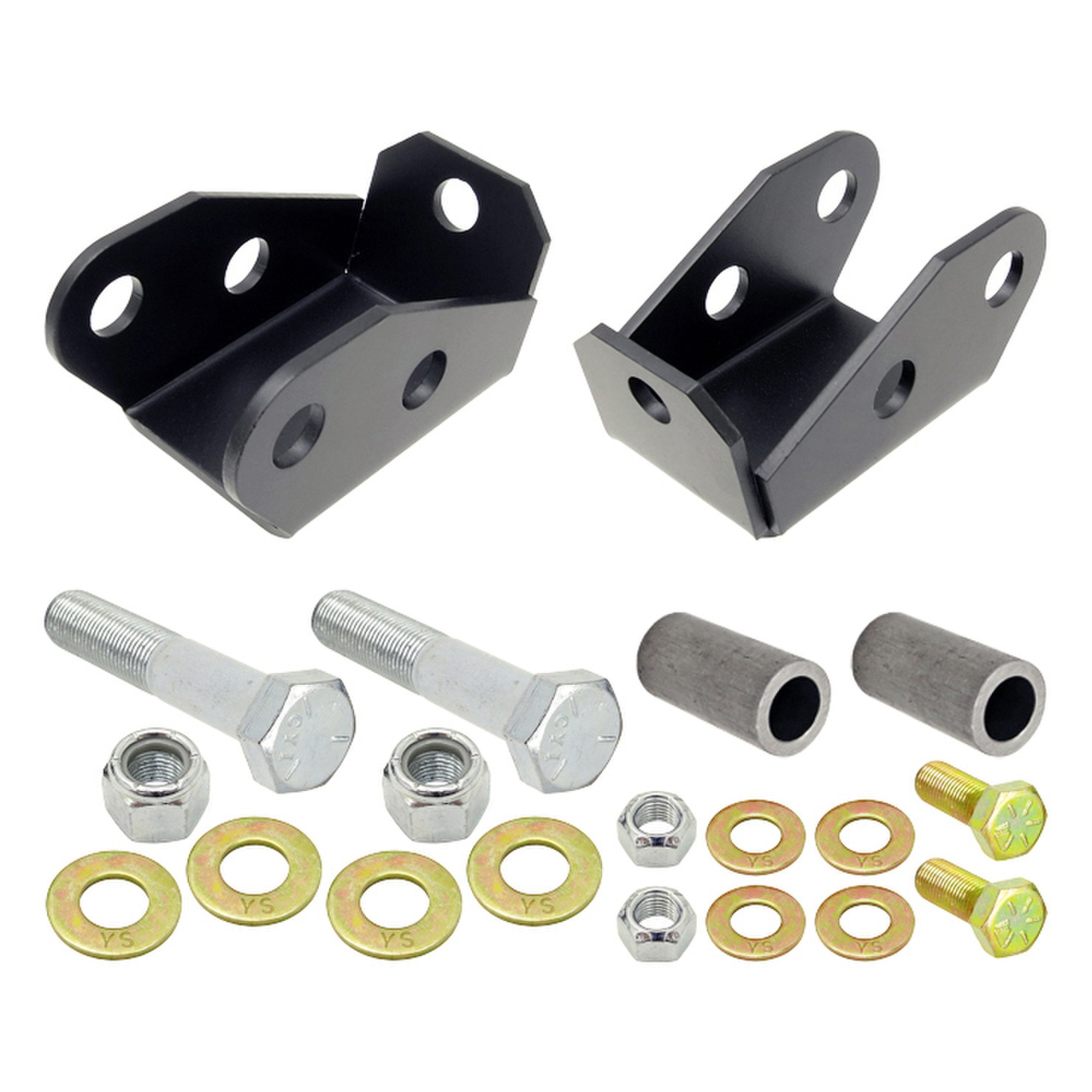

Parts List:
- Shock Relocator Bracket: CE-9601B
- Steel Spacer Sleeve: CE-9601S
- 1/2 in.-20 x 2 3/4 in. Long Hex Bolt: CE-91247A359
- 1/2 in. Flat Washer: CE-H0014
- 1/2 in.-20 Nyloc Nut: CE-95615A220
- 3/8 in.-24 x 1 in. Long Hex Bolt: CE-92620A655
- 3/8 in. Flat Washer: CE-90108A415
- 3/8 in. Stover Nut: CE-92501A430
