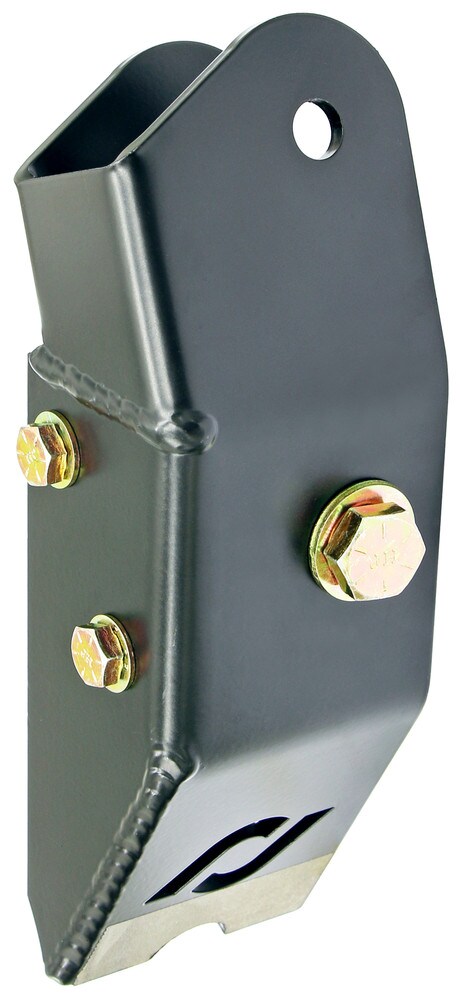

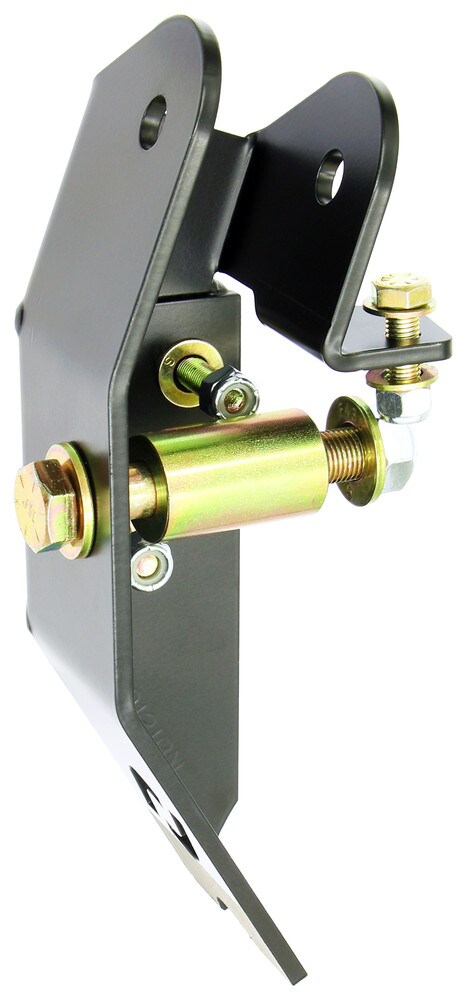

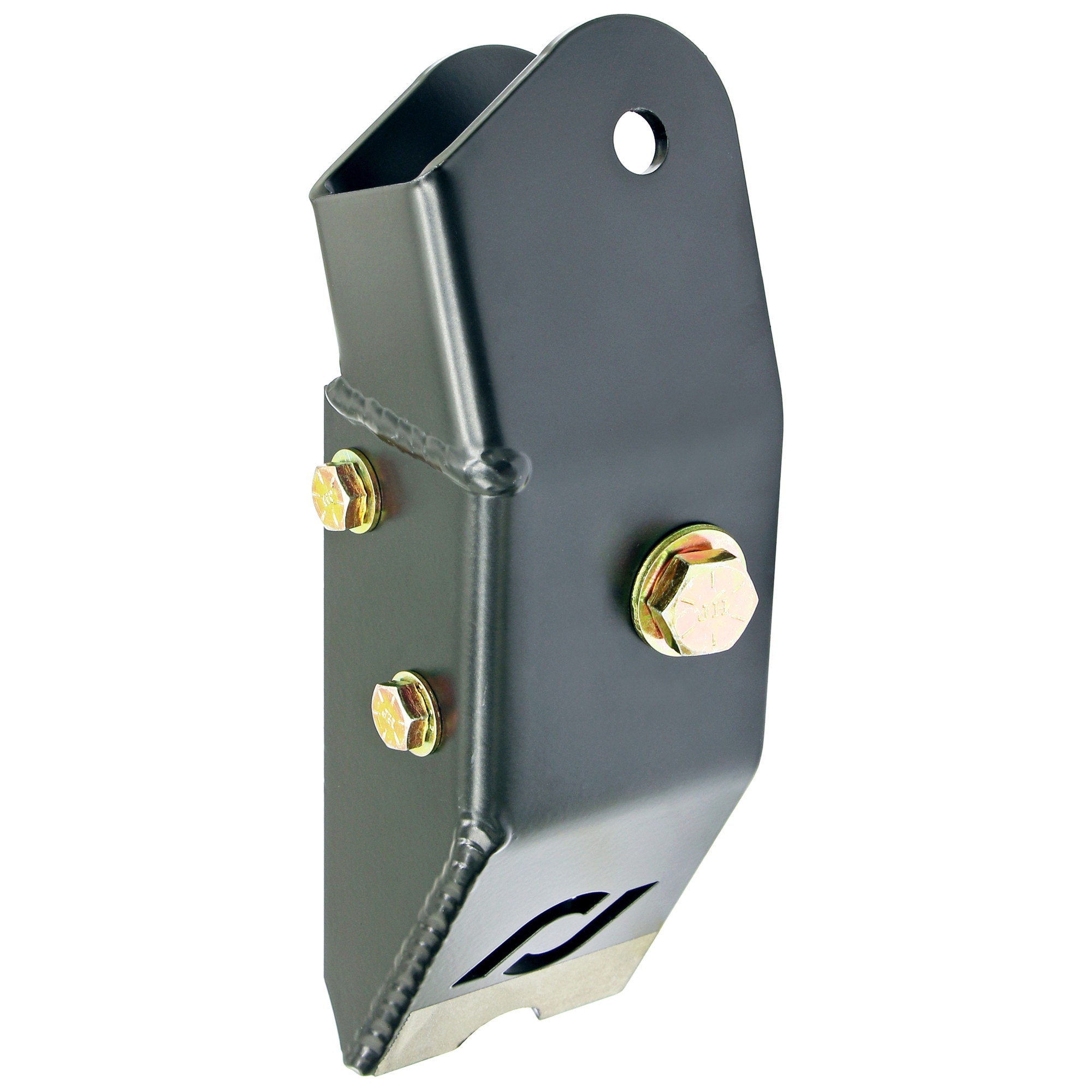

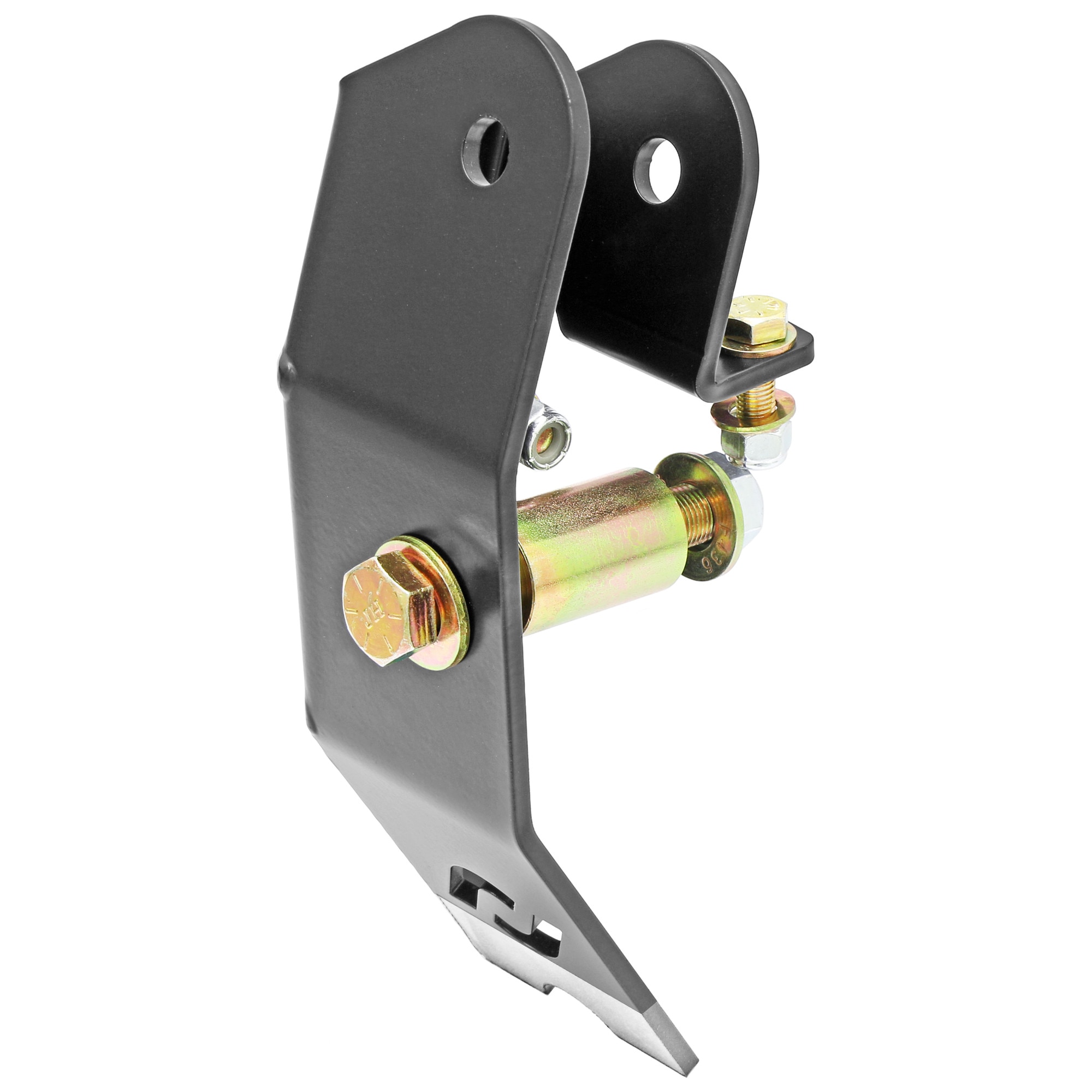

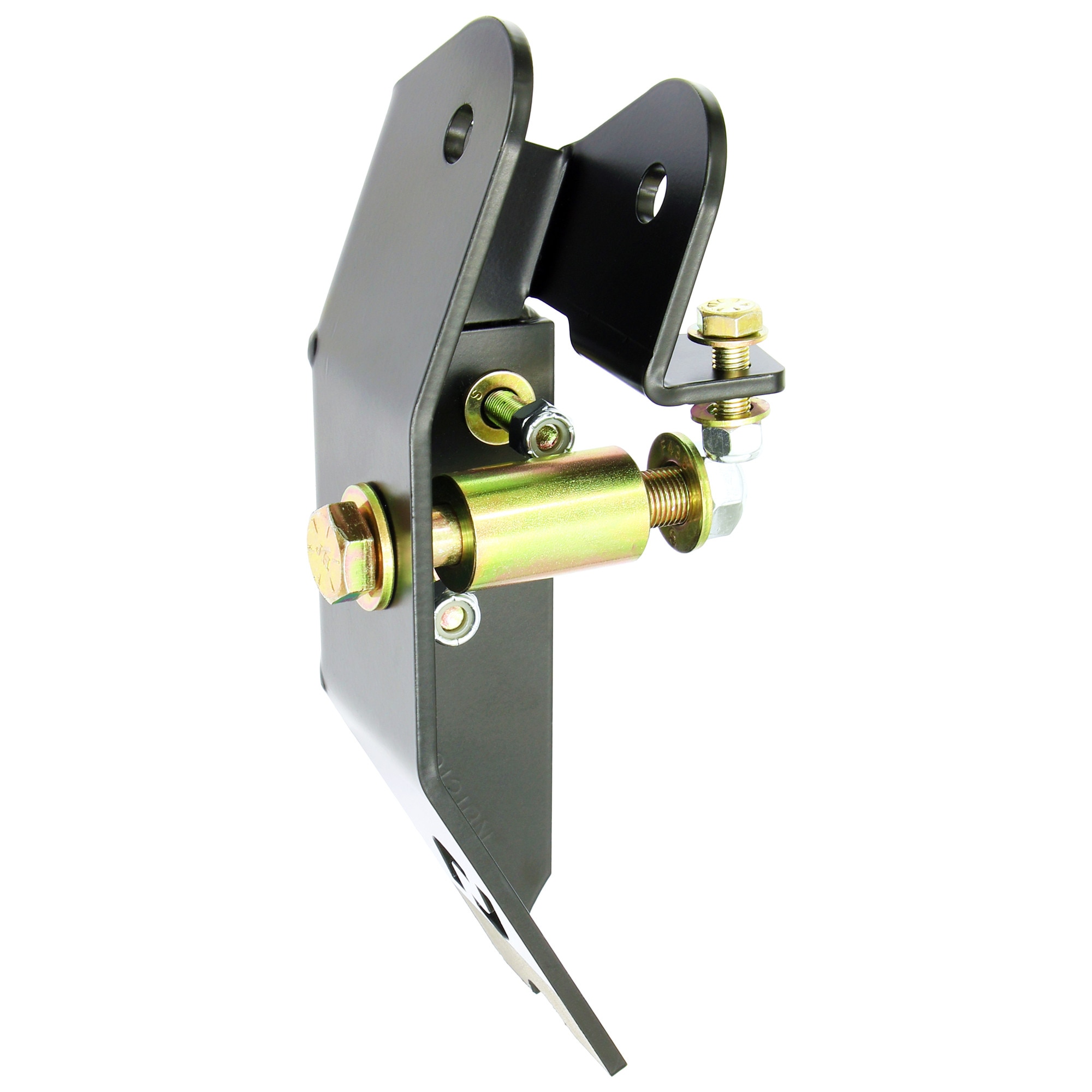

CE-9121N - TJ/LJ Rear Trac Bar Geometry Correction Bracket Kit

SKU: CE-9121N
$115.00

In Stock

Current Stock: 19

Details

Details

The RockJock Johnny Joint Rear Trac Bar Relocation Bracket Kit for TJ Wrangler and Unlimited (LJ) vehicles installs onto any factory TJ or LJ Dana 35 or 44 rear differential housing. The extended height of this bracket, combined with it’s compound bends, allow it to place the Trac Bar mounting point back at the proper height to replicate factory geometry, even after your rear pinion angle has been raised dramatically. The upper bend in the bracket also keeps it away from the gas tank in your TJ so you don’t run into any interference issues.
Finish is semi-gloss black powder coat on the bracket and gold zinc plating on the hardware.
If you are currently in the market for an Adjustable Rear Trac Bar as well, see our CE-9123N Kit that includes this bracket as well as our CE-9120RS Johnny Joint Adjustable Trac Bar.
Additionally, see our RJ-510100-101 Rear Trac Bar Replacement Bolt Kit to finish off your install with all new hardware!


Kit Fits:

  • TJ Wrangler – All Models
  • TJ Wrangler Unlimited (LJ) – All Models

Kit Includes:

  • Rear Trac Bar Relocation Bracket
  • All necessary hardware

Fitment Specs.:

  • Intended to be used with 2 in.– 4 1/2 in. of lift
  • Intended to be used with a minimum of an additional 2 1/2 in. of bump stop over stock

Notes:

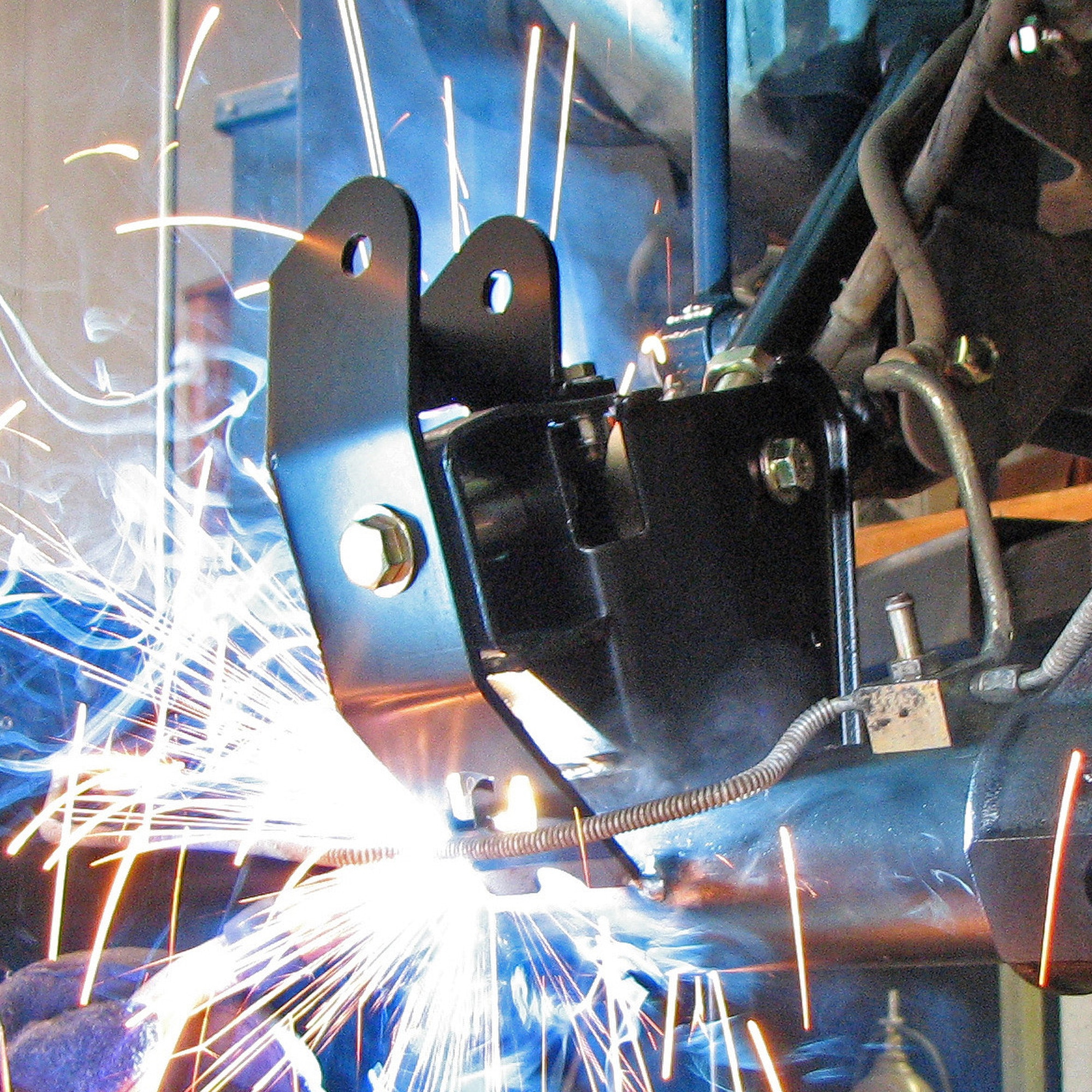

  • Welding required! The Rear Trac Bar Relocation Bracket has 2 tabs that anchor it to the axle housing that need to be welded (see instructions). If you do not have the facilities to do the welding, be advised that once the bracket is bolted on, it is secure enough that you may drive the vehicle to someone to do the welding for you.
  • Factory Trac Bar hardware may be used with this bracket, however, consider replacing your rusty old original rear Trac Bar hardware with our RJ-510100-101 replacement bolt kit.
  • Bracket is fabricated from laser cut and formed 3/16 in. steel.

**IMPORTANT**:

  • This bracket is intended for use in conjunction with a transfer case tail shaft slip yoke eliminator kit and a double cardan driveshaft.,
  • The tail shaft slip yoke eliminator kit we recommend is from Tom Wood’s Driveline and can be found here. They can also supply the double cardan driveshaft!
  • If you’ll be retaining your stock driveshaft, our CE-9120RS Johnny Joint rear trac bar becomes mandatory for a successful installation of this bracket.

Parts List:


Media Hub


  • Installation Instruction Manual:  CE-9121N Kit
  • Watch: whats and whys of our trac bar geometry correction brackets here
