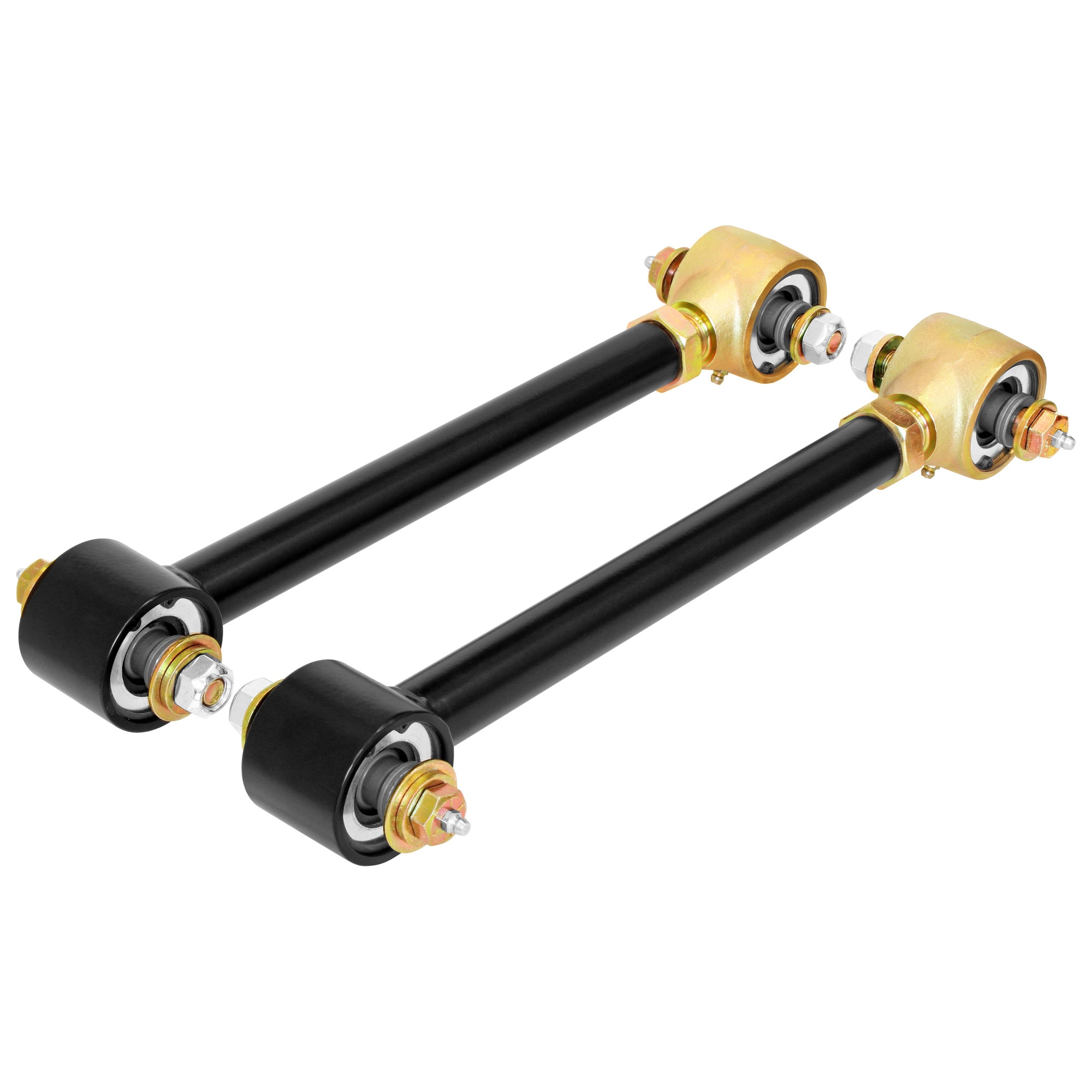

CE-9106 - TJ/LJ/XJ/MJ/ZJ Front and TJ/LJ Rear Johnny Joint Lower Control Arms (Adjustable)
Details
The RockJock Johnny Joint Control Arm Set for the front and rear of all TJ Wrangler and Unlimited (LJ) models and the front only on all XJ, MJ and ZJ models provides you with extremely heavy duty, adjustable length control arms to replace your factory control arms. Adjustable arms are a must for aligning lifted vehicles to get your caster and pinion angle specs. in check!
These arms feature RockJock’s 2 1/2 in. Johnny Joints on the both ends.
Johnny Joints, the original and most durable high-articulation urethane suspension joint on the market, feature a smooth steel ball that pivots inside a proprietary urethane shell to provide over 30 degrees (per joint) of quiet, shock dampening articulation - without the excessive deflection found in soft rubber-based “flex joints”. Johnny Joints deliver a smooth, comfortable on-road ride with the ultimate in off-road capability. They are so trusted, that they are used by multiple commercial suspension companies, for both street and off-road suspension systems. Learn more here.

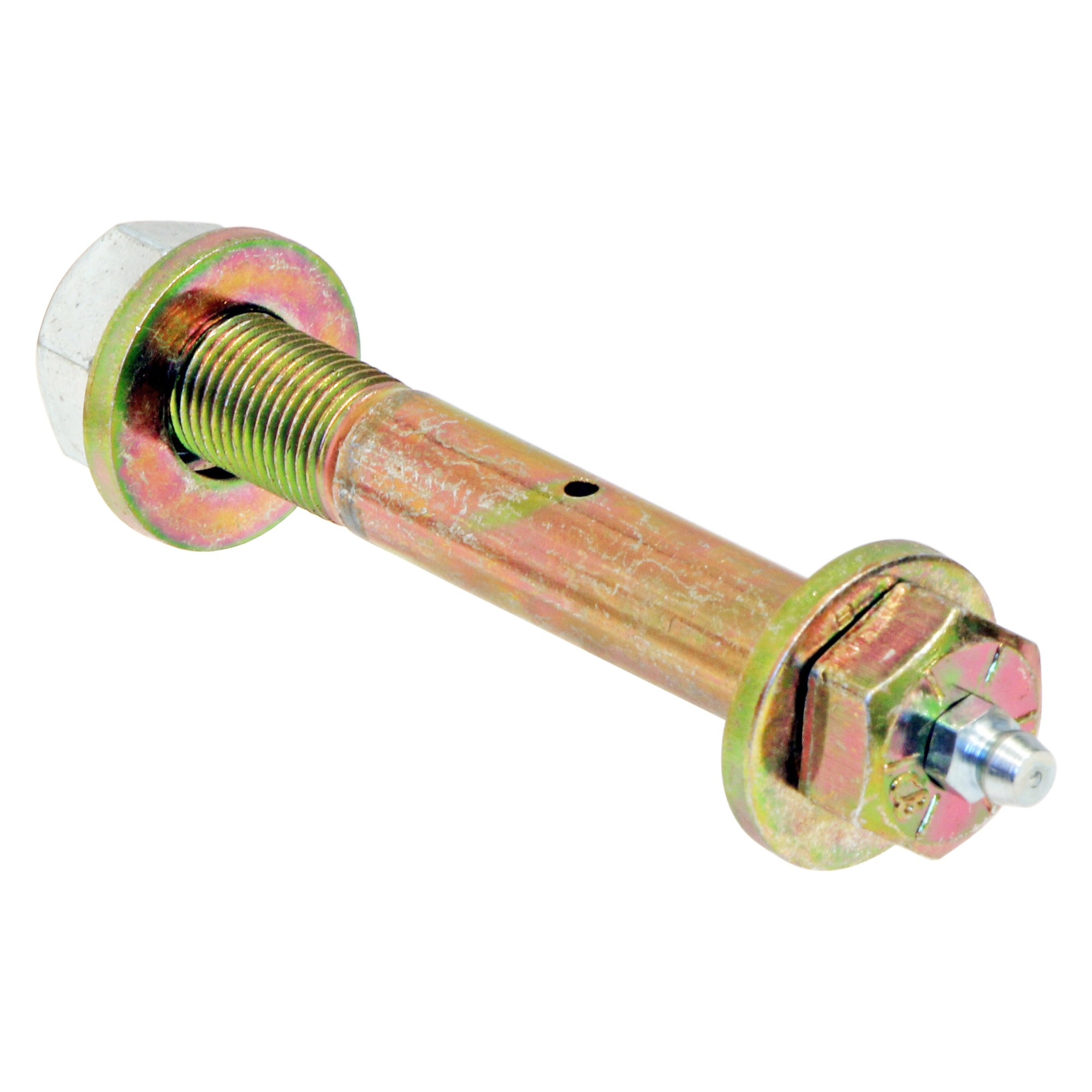

Arms are fully greasable via zerk fitted Grade 8 bolts. Finish is semi-gloss black powder coat on the arms and gold zinc plating on the Johnny Joint adjuster ends.
Kit Fits:
- TJ Wrangler – All Models (front or rear)
- TJ Wrangler Unlimited (LJ) – All Models (front or rear)
- XJ Cherokee – All Models (front only)
- MJ Comanche – All Models (front only)
- ZJ Grand Cherokee – All Models (front only)
Kit Includes:
- Johnny Joint Lower Control Arms (Pair)
- (4) 9/16 in. Greasable Bolt w/ Hardware
- (4) Large Diameter Flat Washers
Adjustment Range:
- Closed – 15.292 in.
- Extended – 16.882 in.
Notes:
- Arms are fabricated from 1 1/4 in. x .188 in. wall DOM steel tubing.
- Johnny Joint adjuster ends feature 1 in.–14 RH threads.
- Greasable Bolts with hardware are included for all 4 mounting points
- Large Diameter Flat Washers are included to eliminate cam bolts (where applicable) on factory front axle housings (see photo in gallery). If your vehicle does not have this cam bolt situation – these washers may be discarded
- Johnny Joints require non-synthetic, hi-moly lube grease such as our CE-9013G
- Applicable Johnny Joint Tool for these Control Arms: CE-9110T
Instruction Manual:
Parts List:
