CE-9110RK - Johnny Joint Rebuild Kit (2 1/2 in. Standard)

SKU CE-9110RK
$21.00

Details

RockJock's Johnny Joint Rod Ends have been a staple in the off road industry since 1996! Available universally for builders or found in our RockJock suspension components, John Currie’s proven formula provides a reliable, greasable, rebuildable joint that is capable of dramatic articulation in off-road applications, while still providing smooth, cushioned, quiet performance during on-road use.
Johnny Joints are available as a forged rod end with various RH and LH thread sizes from 3/4 in. up to a massive 1 1/2 in. thread! Additionally, weld-on versions of all Johnny Joints are available for fabricators.
Specialty joints, such as polished stainless steel, long body and bent forgings and application specific machined joints are all available for custom builder use.
All sizes of joints offer a standard or a narrow width joint body which provide different levels of overall articulation range (30 plus degrees on a standard body and up to 40 plus degrees on a narrow body). The narrow body’s 1 piece bushing will provide a slightly firmer ride.

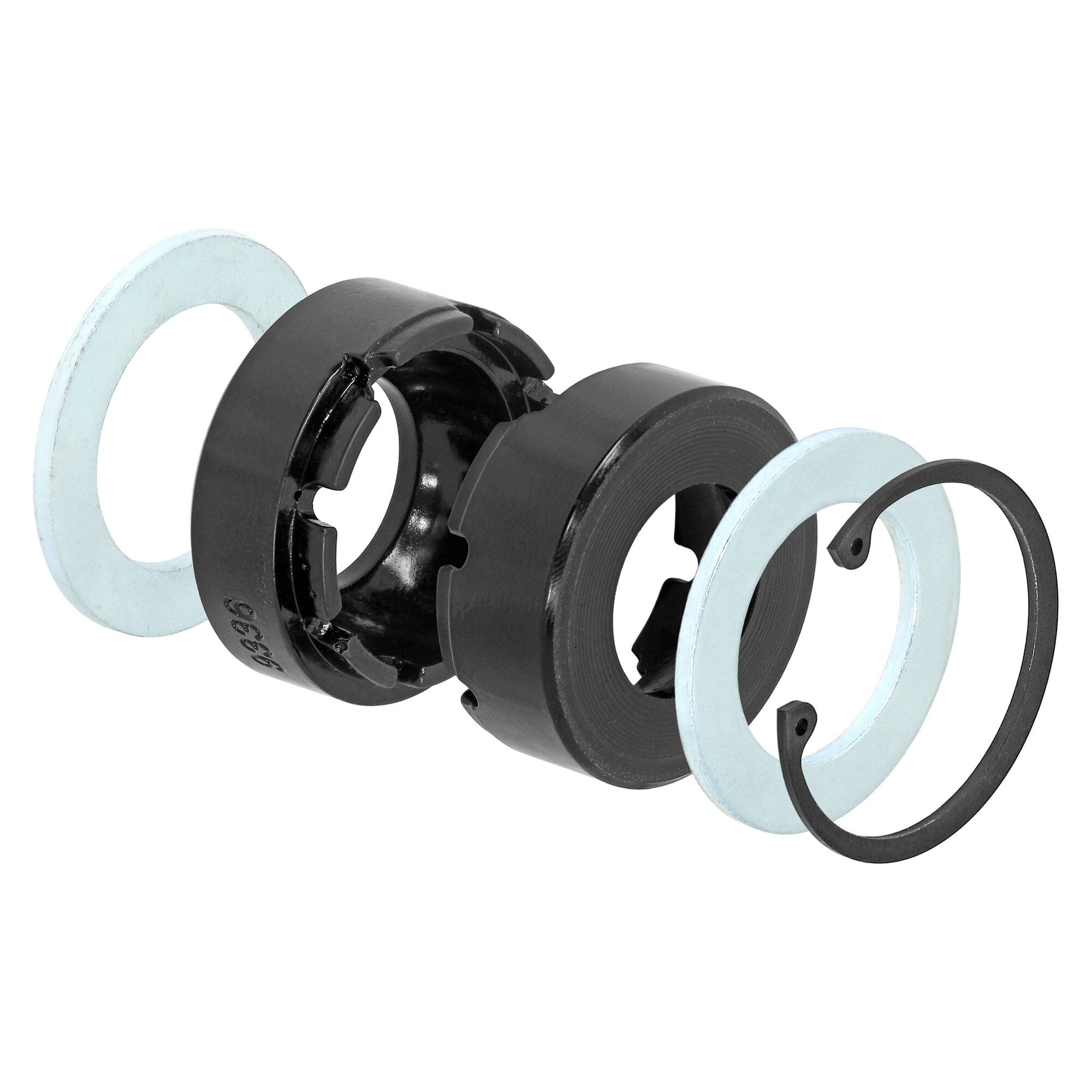

This Johnny Joint Internal Kit for use in any standard width (2 in. wide) 2 1/2 in. Johnny Joint outer body includes 2 urethane bushing halves, 2 bushing side retaining washers and 1 snap ring to retain the internals into the Johnny Joint body.
The 2 bushing halves are identical and interlock into one another. At the seam where they interlock, they provide a channel for grease to flow and a series of holes around the channel allowing grease to adequately distribute.



Kit Fits:

  • Any standard width 2 1/2 in. Johnny Joint body (2 in. wide body)

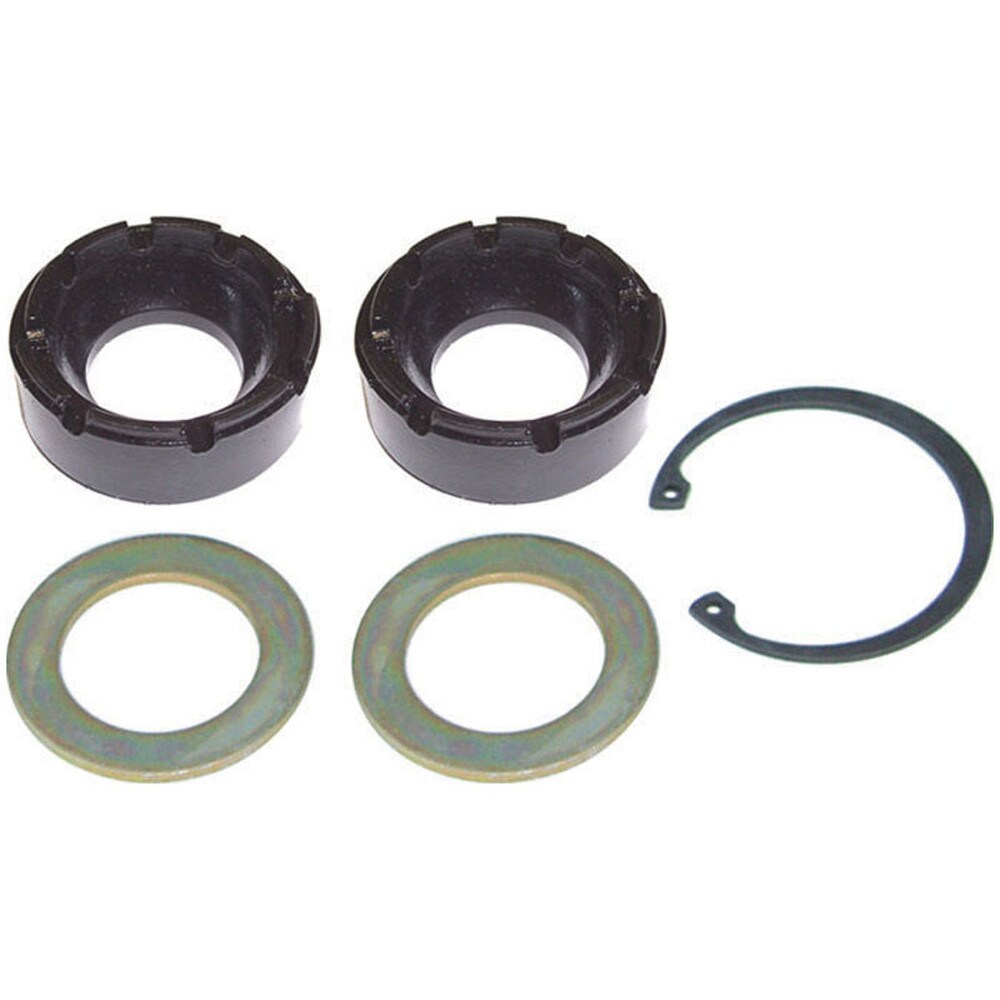

Kit Includes:

  • (2) Urethane Johnny Joint Bushing Halves (2.188 in. O.D.)
  • (2) Side Retaining Washer (.118 in. thick)
  • (1) Snap Ring


Kit Features:

  • For use in any standard width 2 1/2 in. Johnny Joint body, weld-on or forged
  • Bushing halves are identical and interlock into one another
  • Bushings provide a channel for grease to flow and a series of holes around the channel allowing grease to adequately distribute.

Notes:

  • Johnny Joints require non-synthetic, hi-moly lube grease such as our CE-9013G
  • Applicable Johnny Joint tool for these components: CE-9110T
  • *** IMPORTANT *** - joints require greasing at normal intervals, but they do not hold a lot of grease! Over greasing can cause damage to the joint. To prevent damage, use only a hand pump grease gun, do not expect the joint to take a lot of grease and DO NOT use pneumatic or electric grease guns!

Instruction Manual:



Parts List:
