CE-9102 - TJ/LJ/XJ/MJ/ZJ Johnny Joint Front Upper Control Arms (Adjustable)

SKU CE-9102
$410.00

Details

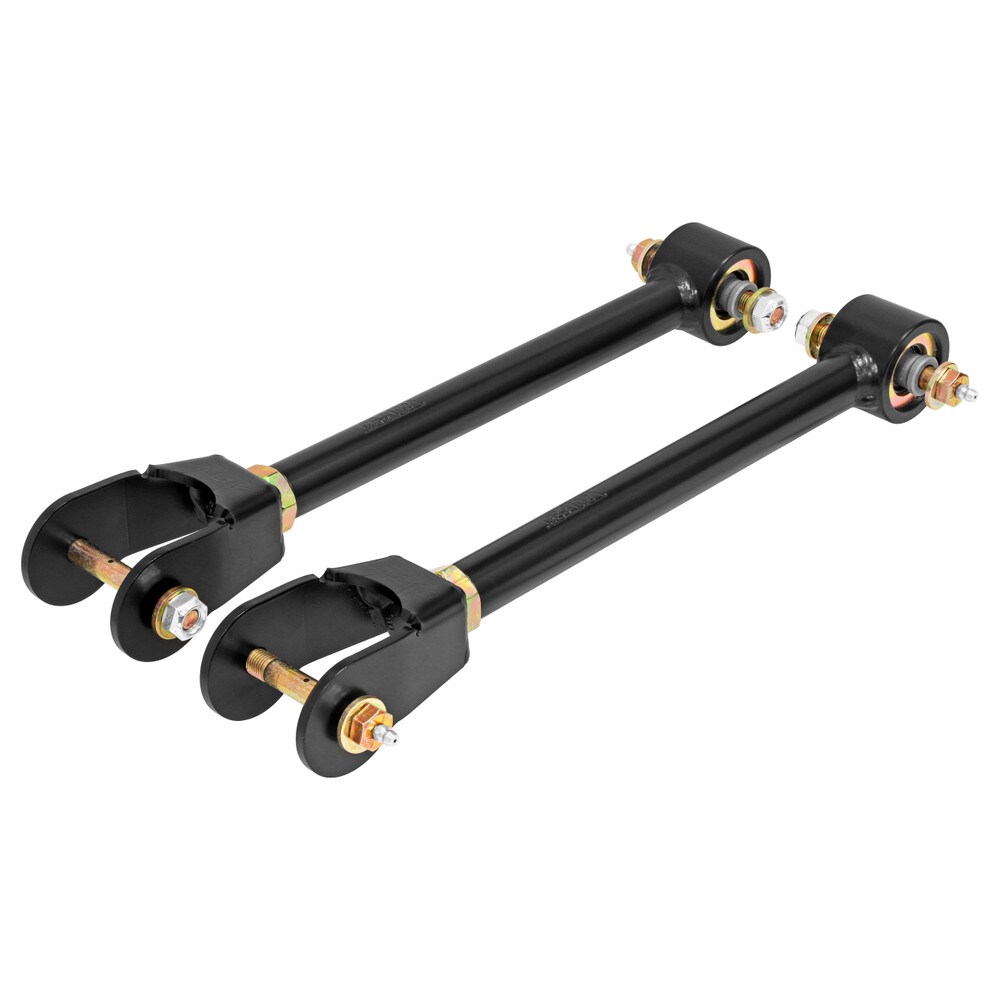

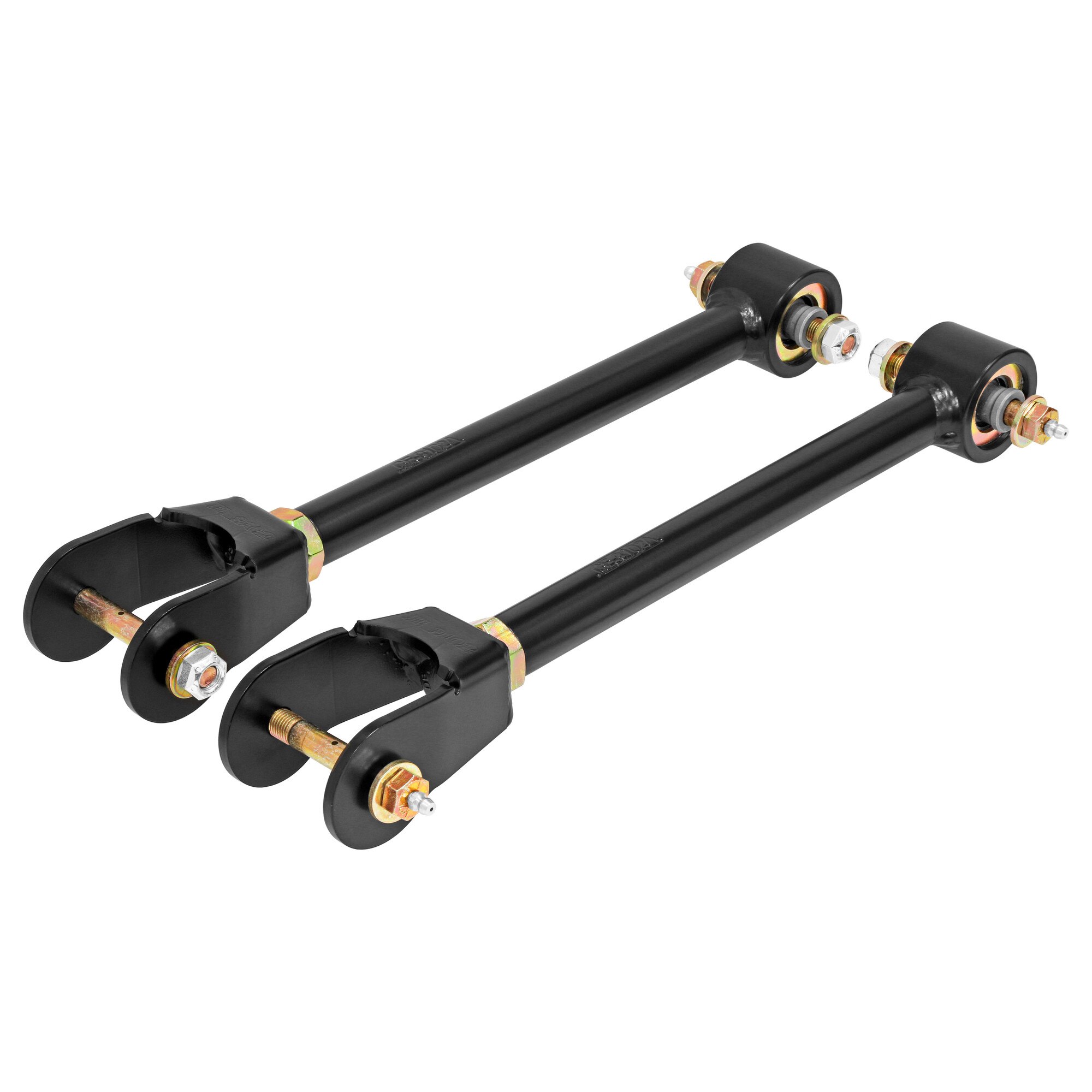

RockJock's Johnny Joint Front Upper Control Arm Set for all TJ, LJ, XJ, MJ and ZJ models provides you with extremely heavy duty, adjustable length control arms to replace your factory control arms. Adjustable arms are a must for aligning lifted vehicles to get your caster specs. in check!
These arms feature a heavy duty steel fork on the differential end, and RockJock’s 2 in. Johnny Joints on the frame end.
Johnny Joints, the original and most durable high-articulation urethane suspension joint on the market, feature a smooth steel ball that pivots inside a proprietary urethane shell to provide over 30 degrees (per joint) of quiet, shock dampening articulation - without the excessive deflection found in soft rubber-based flex joints. Johnny Joints deliver a smooth, comfortable on-road ride with the ultimate in off-road capability. They are so trusted, that they are used by multiple commercial suspension companies, for both street and off-road suspension systems. Learn more here.
Arms are fully greasable via zerk fitted Grade 8 bolts. Finish is semi-gloss black powder coat.


Kit Fits:

  • TJ Wrangler – All Models
  • TJ Wrangler Unlimited (LJ) – All Models
  • XJ Cherokee – All Models
  • MJ Comanche – All Models
  • ZJ Grand Cherokee – All Models

Kit Includes:

  • Johnny Joint Front Upper Control Arms (Pair)
  • (4) 7/16 in. Greasable Bolts w/ Hardware

Adjustment Range:

  • Closed – 14.405 in.
  • Extended – 15.500 in.

Notes:

  • Arms are fabricated from 1 in. x .156 in. wall DOM steel tubing.
  • Adjuster Forks feature 3/4”-16 RH threads.
  • Installation requires reaming the front differential housing bushings out to 7/16 in.
  • Greasable Bolts with hardware are included for all 4 mounting points
  • Johnny Joints require non-synthetic, hi-moly lube grease such as our CE-9013G
  • Applicable Johnny Joint Tool for these Control Arms: CE-9112T
