CE-9300 - TJ/LJ 1 in. Body Lift
Details
Details
The RockJock 1 Inch Body Lift Kit for TJ Wrangler and Unlimited (LJ) vehicles allows you to clear a bigger tires without increasing your suspension lift.

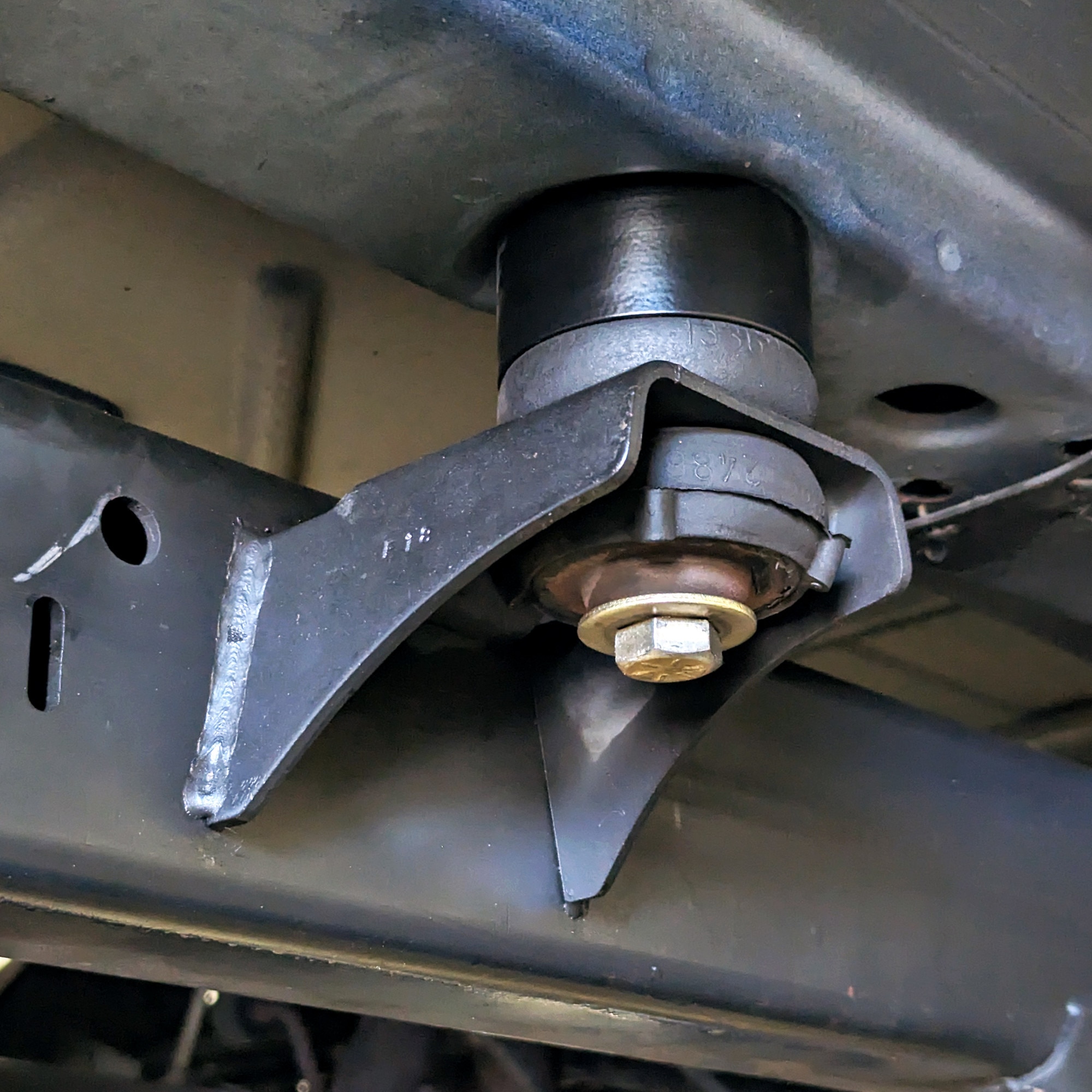

This completely bolt-in, easy to install kit provides you with our billet aluminum bump stop pucks that are concave on the bottom, allowing them to stack on top of the existing factory rubber body pucks. This lifts your body, but by keeping the factory rubber as well, the ride inside the cab does not change at all, like it would if you replaced the rubber with solid urethane body lift pucks.
Kit also includes urethane spacers for the grille and all new, longer Grade 8 hardware for reattaching the body after lifting.
Ideally this kit is intended to be used in conjunction with our 1 in. Lifted Motor Mounts. When used together, the body and the motor move up simultaneously, which keeps the fan lined up in the fan shroud properly, the a/c lines out of a bind situation and the shifter linkage in stock relation to the floor pan.
Finished is semi-gloss black powder coat on the Body Lift pucks and hardware is zinc plated.
Kit Fits:
- TJ Wrangler – All Models
- TJ Wrangler Unlimited (LJ) – All Models

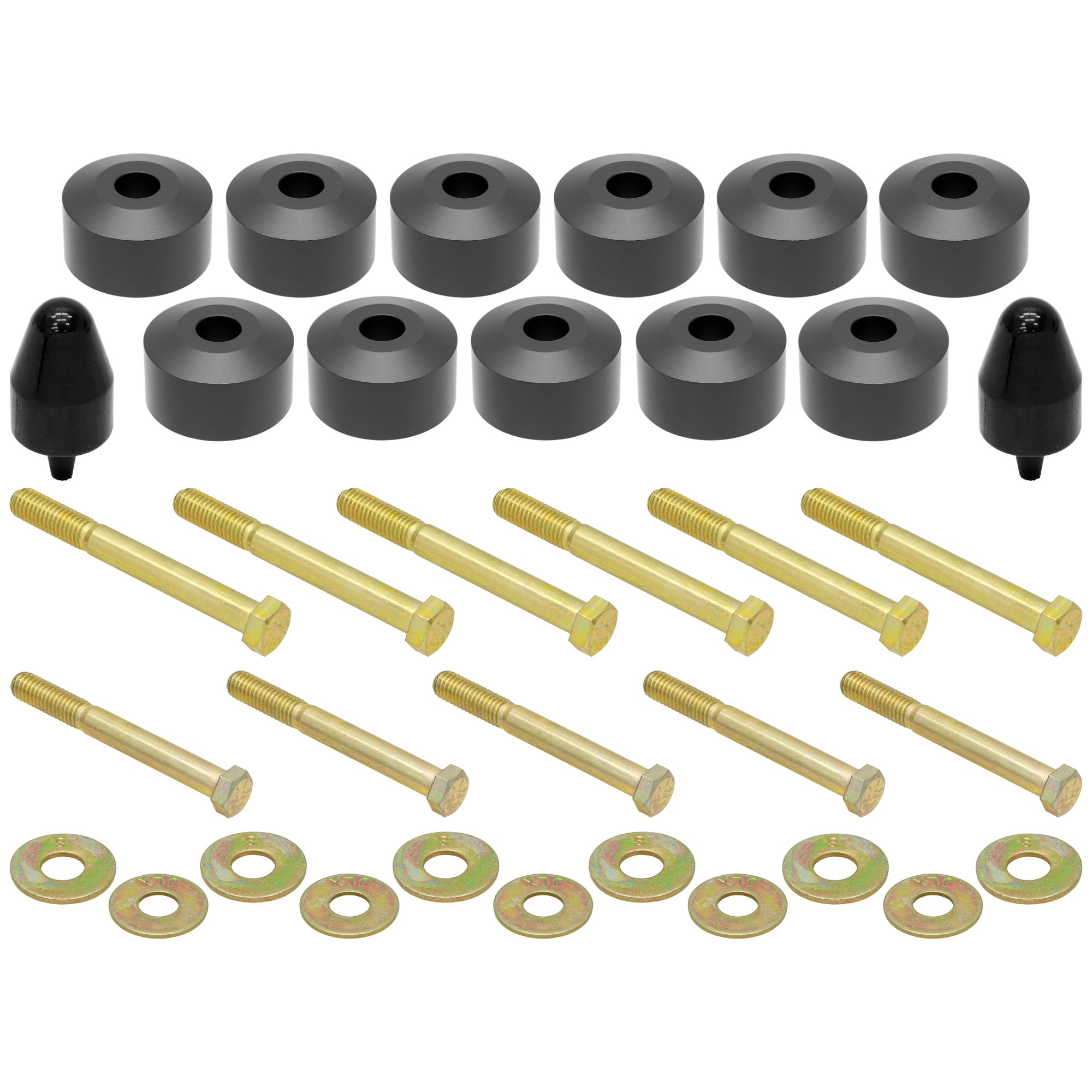

Kit Includes:
- (11) 1 in. Aluminum Body Lift Pucks
- (2) Urethane Grille Spacers
- All necessary hardware
Notes:
- Intended to be used in conjunction with our 1 in. Lifted Motor Mounts.
- Everything in this kit will also work on a YJ Wrangler, with the exception of the grille spacers as YJs have thread in spacers from the factory. We do not have a solution for spacing a YJ grille.
Parts List:
- Body Lift Puck:
- Urethane Grille Spacer:
- 1/2 in.-13 x 4 1/2 in. Long Hex Bolt:
- 1/2 in. Flat Washer:
- 7/16 in.-14 x 3 3/4 in. Long Hex Bolt:
- 7/16 in. Flat Washer:
Media Hub
- Installation Instruction Manual:
- Installation Instruction Video:
- Watch: whats and whys of our body lift kit
