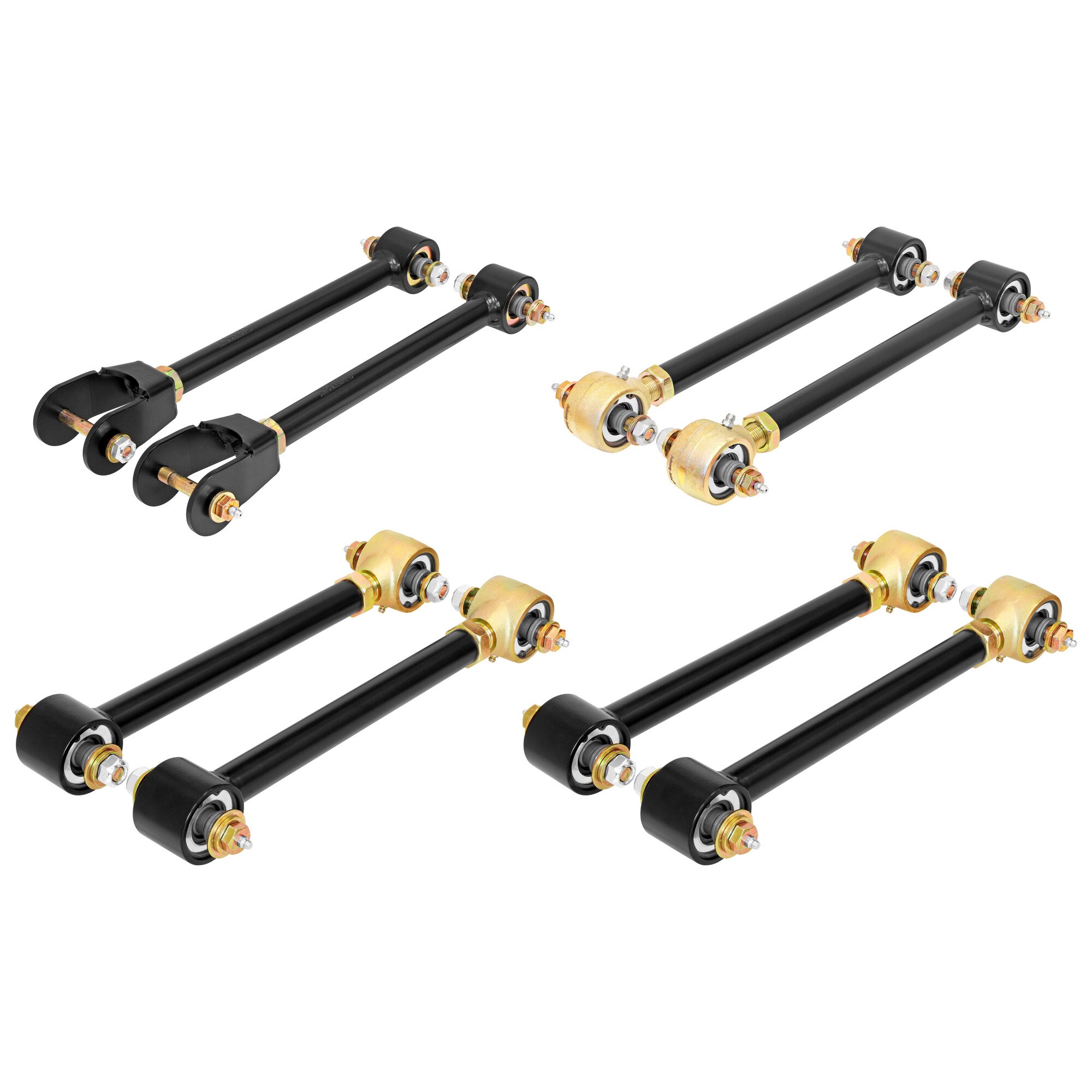

CE-9100 - TJ/LJ Johnny Joint Control Arm Set (Adjustable)

SKU CE-9100
$1,788.00
Back

Details

RockJock's Johnny Joint Control Arm Set for all TJ Wrangler and Unlimited (LJ) models provides you with extremely heavy duty, adjustable length control arms to replace all 8 of your factory control arms. Adjustable control arms are an absolute must after your lifting your vehicle to get your caster & pinion angles back in check!
Arms feature RockJock’s Johnny Joints, the original and most durable high-articulation urethane suspension joint on the market. Johnny Joints feature a smooth steel ball that pivots inside a proprietary urethane shell to provide over 30 degrees (per joint) of quiet, shock dampening articulation - without the excessive deflection found in soft rubber-based flex joints. Johnny Joints deliver a smooth, comfortable on-road ride with the ultimate in off-road capability. They are so trusted, that they are used by multiple commercial suspension companies, for both street and off-road suspension systems. Learn more here.
Arms are fully greasable via zerk fitted Grade 8 hardware. Finish is semi-gloss black powder coat on the arms & front forks and gold zinc plating on the Johnny Joint adjuster ends.


Kit Fits:

  • TJ Wrangler – All Models
  • TJ Wrangler Unlimited (LJ) – All Models

Kit Includes:

  • Johnny Joint Front Upper Control Arms (CE-9102)
  • Johnny Joint Front Lower Control Arms (CE-9106)
  • Johnny Joint Rear Upper Control Arms (CE-9103)
  • Johnny Joint Rear Lower Control Arms (CE-9106)

Adjustment Range:

  • Front Upper = 14.405 in. Closed / 15.500 in. Extended
  • Front Lower = 15.292 in. Closed / 16.882 in. Extended
  • Rear Upper = 12.834 in. Closed / 14.000 in. Extended
  • Rear Lower = 15.292 in. Closed / 16.882 in. Extended

Notes:

  • Upper Arms include CE-91127 Greasable Bolts & Lower Arms include CE-91107 Greasable Bolts.
  • Upper arms are fabricated from 1 in. x .156 in. wall D.O.M. steel tubing, lower arms are 1 1/4 in. x .188. in. wall D.O.M. steel tubing.
  • Upper arms feature 3/4 in.-16 RH threads, lower arms feature 1 in.-14 RH threads.
  • Installation of the front upper arms may require reaming the front differential housing bushing inner sleeve out to 7/16 in.
  • We highly recommend the use of our CE-9102K kit in conjunction with this arm set.
  • Johnny Joints require non-synthetic, hi-moly lube grease such as our CE-9013G

Instruction Manual:


Rebuild Parts:

  • See each individual arm set’s page for information here.
