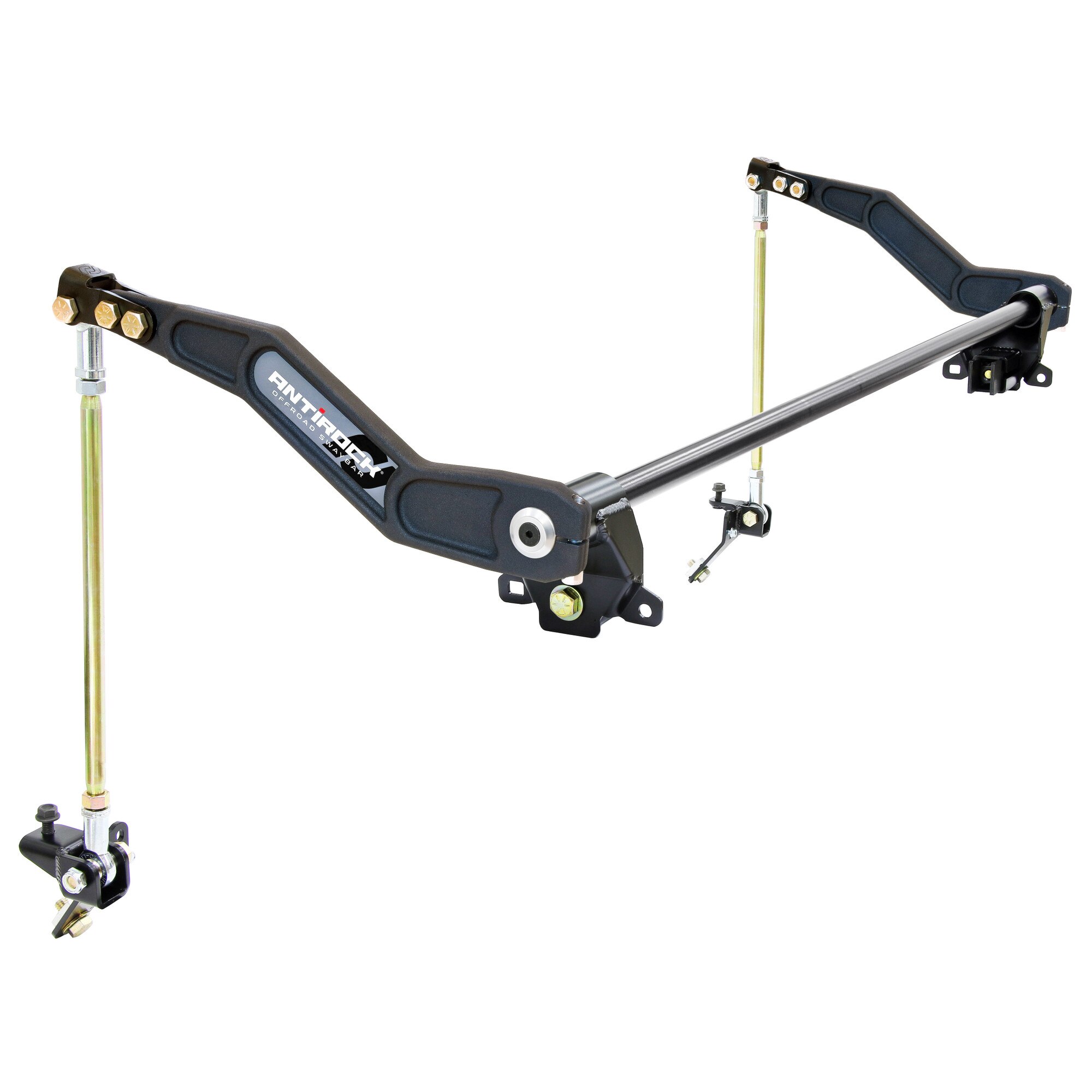

RJ-256200-103 - JT Gladiator (Heavy) Antirock Rear Sway Bar Kit (forged arms, 1 1/8 in. bar)
Details
Overlanders and Racers! We heard you and the wait is over! Our heavy rear bar Antirock Sway Bar Kit for the rear of all JT Gladiator vehicles features a 1 1/8 in. diameter, 28 spline bar! This heavier bar considerably increases the rate of the rear sway bar for vehicles that will be heavily loaded with overlanding racks and/or rooftop tent, etc. – or those that compete in desert racing applications.
Installing the rear Anitrock helps free up suspension articulation to increase off-road traction, 4 wheel footing and overall vehicle stability. Additionally, the Antirock attempts to keep the vehicle cabin level in off-camber situations to minimize that tipping feeling that the wife is generally opposed to!
The Antirock sway bar easily bolts on with hand tools and is designed to directly replace the vehicle’s stock front sway bar and not require disconnecting for off-road use!
The sway bar is made of 4130 heat treated chromoly for ultimate strength, which is the same quality used in professional off-road competition sway bars.

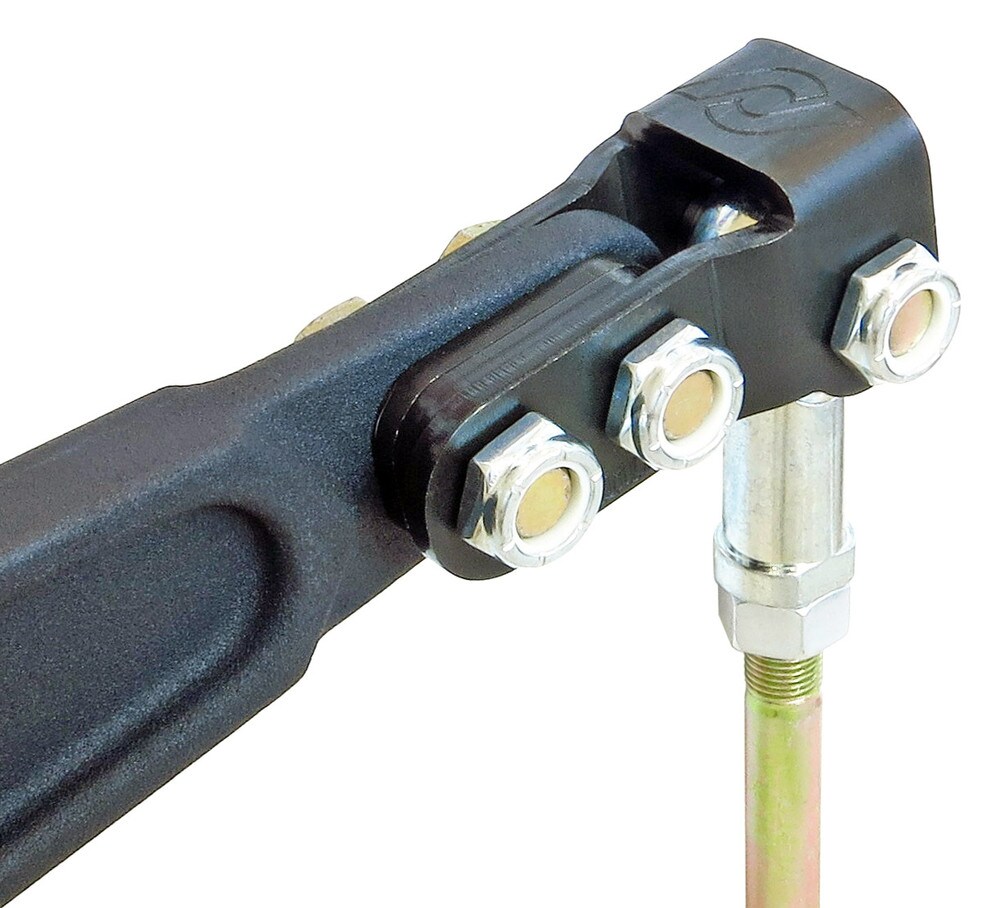

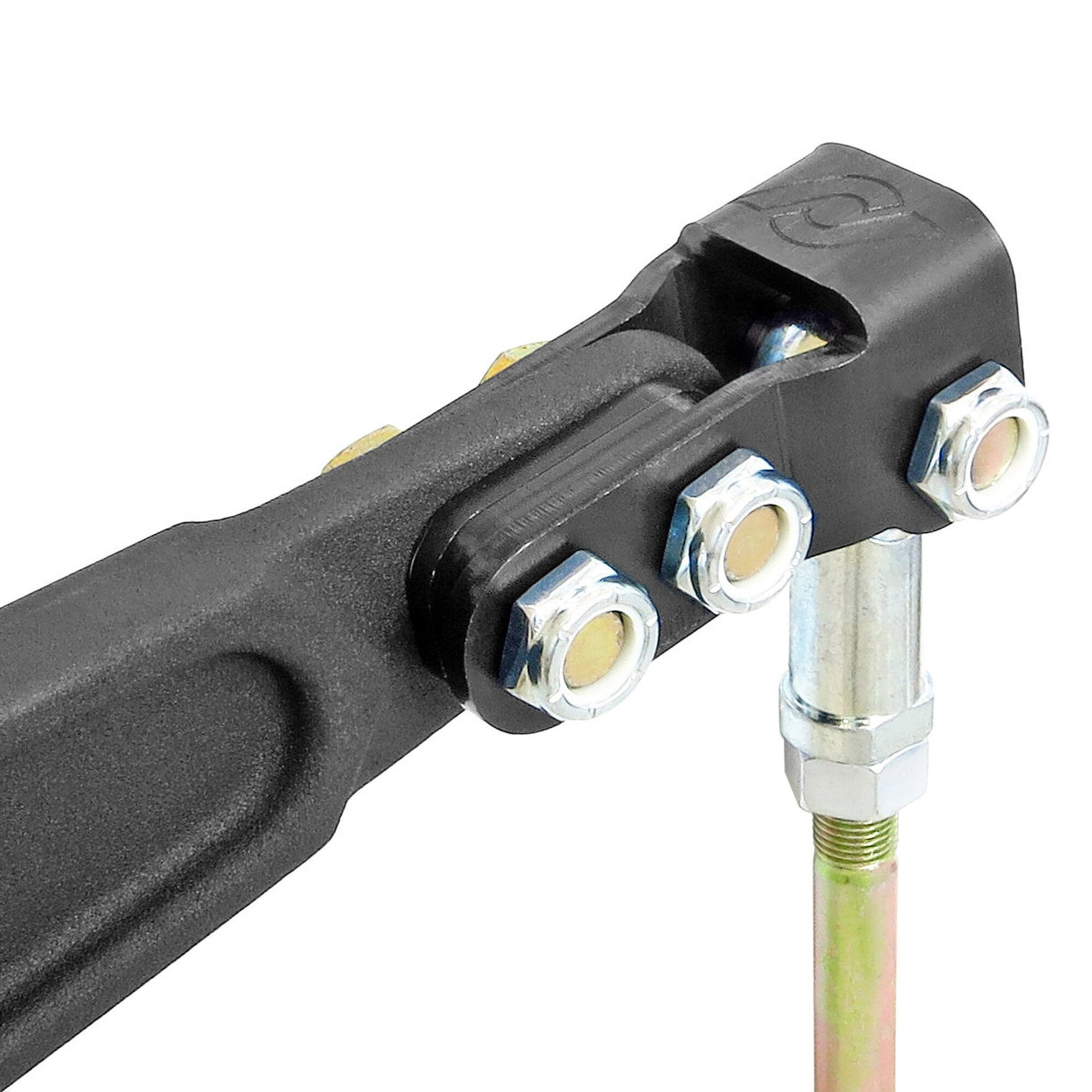

For those looking for maximum strength for their rig, the forged 4340 sway bar arms in this kit feature a vertical offset to allow for maximum suspension up travel and provide incredible strength and rigidity via their I-beam cross section design. These arms feature 2 adjustable sway bar link mounting holes where the included RJ-201000-101 Double Sheer End Link Bracket Kit installs. These brackets add 1 1/2 in. in arm length and the ability to offset the end link side to side up to 1 1/4 in. to maximize clearance and fine tune the kit’s overall fitment to your application.
Kit Fits:
- JT Gladiator – All Models
Kit Includes:
- Sway Bar Torsion Bar (1 1/8 in. diameter)

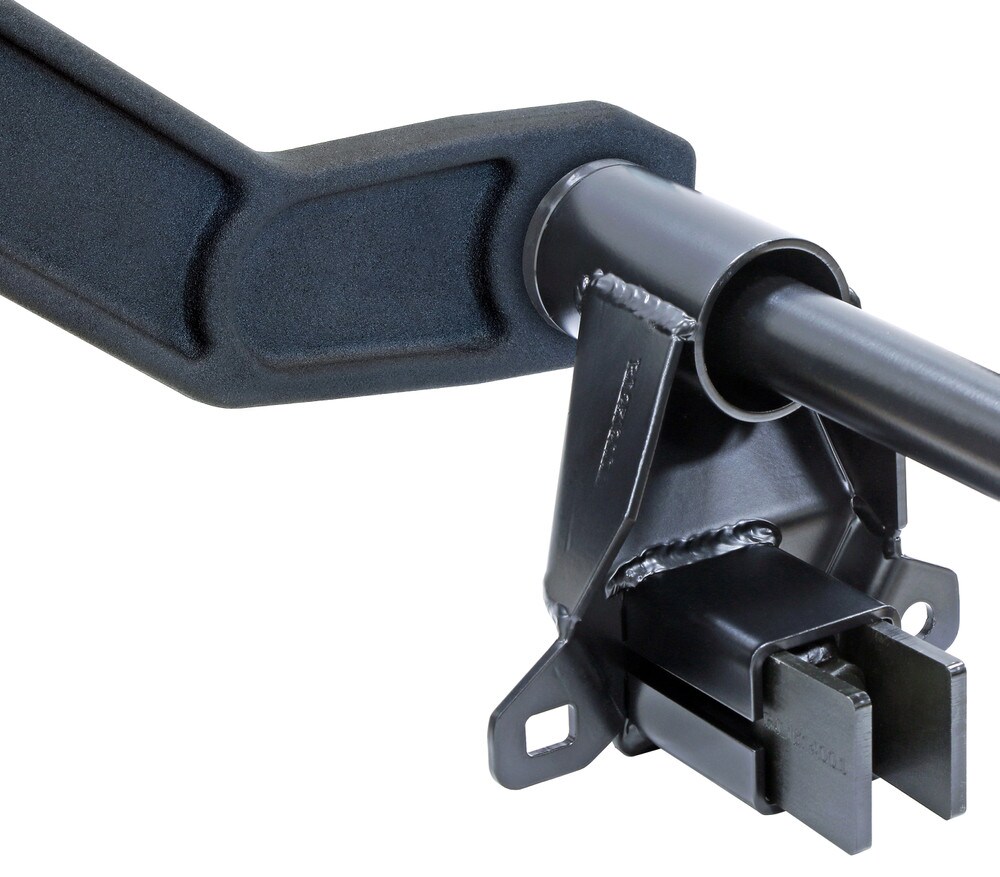

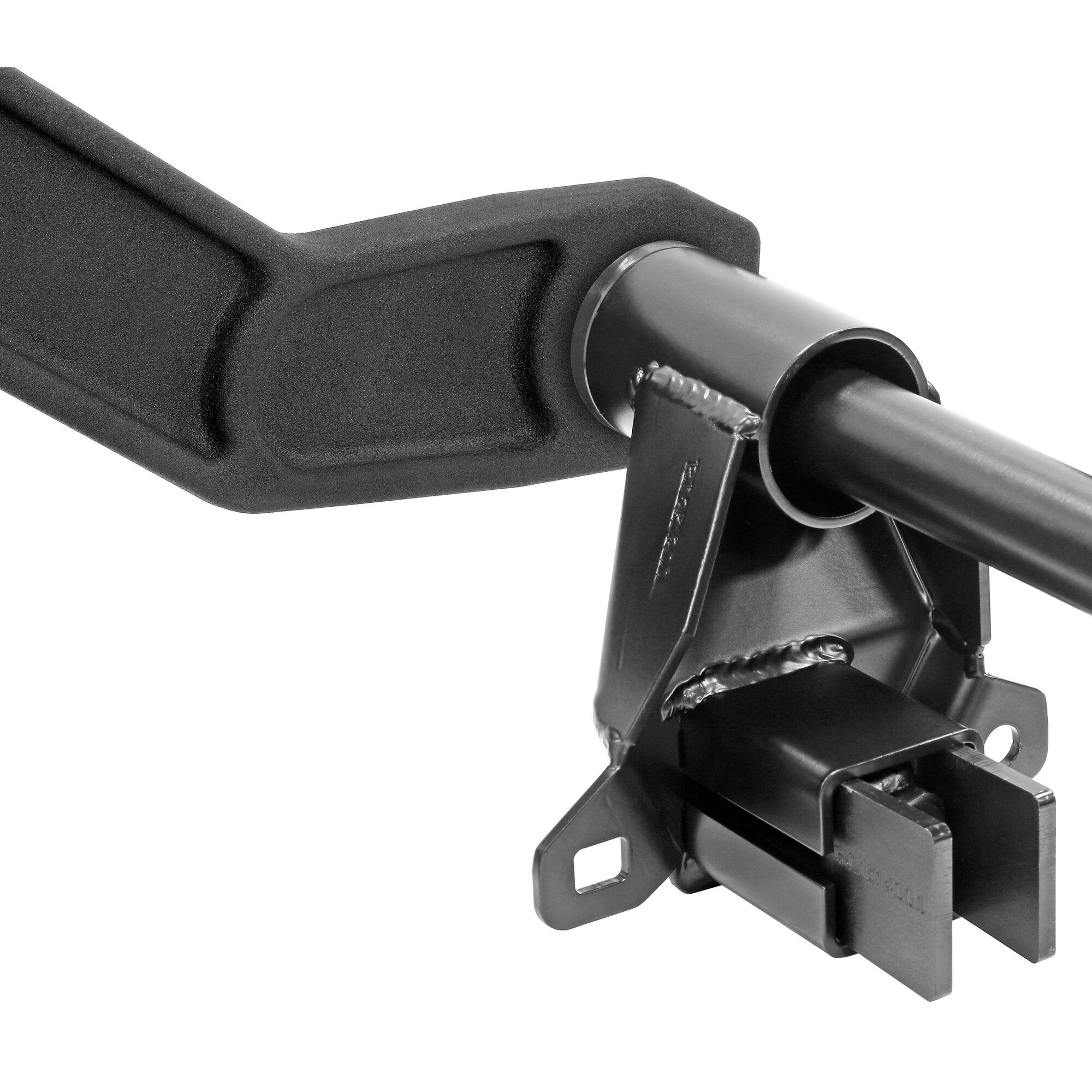

- Fabricated steel frame brackets (pair)
- Fabricated steel axle brackets (pair)

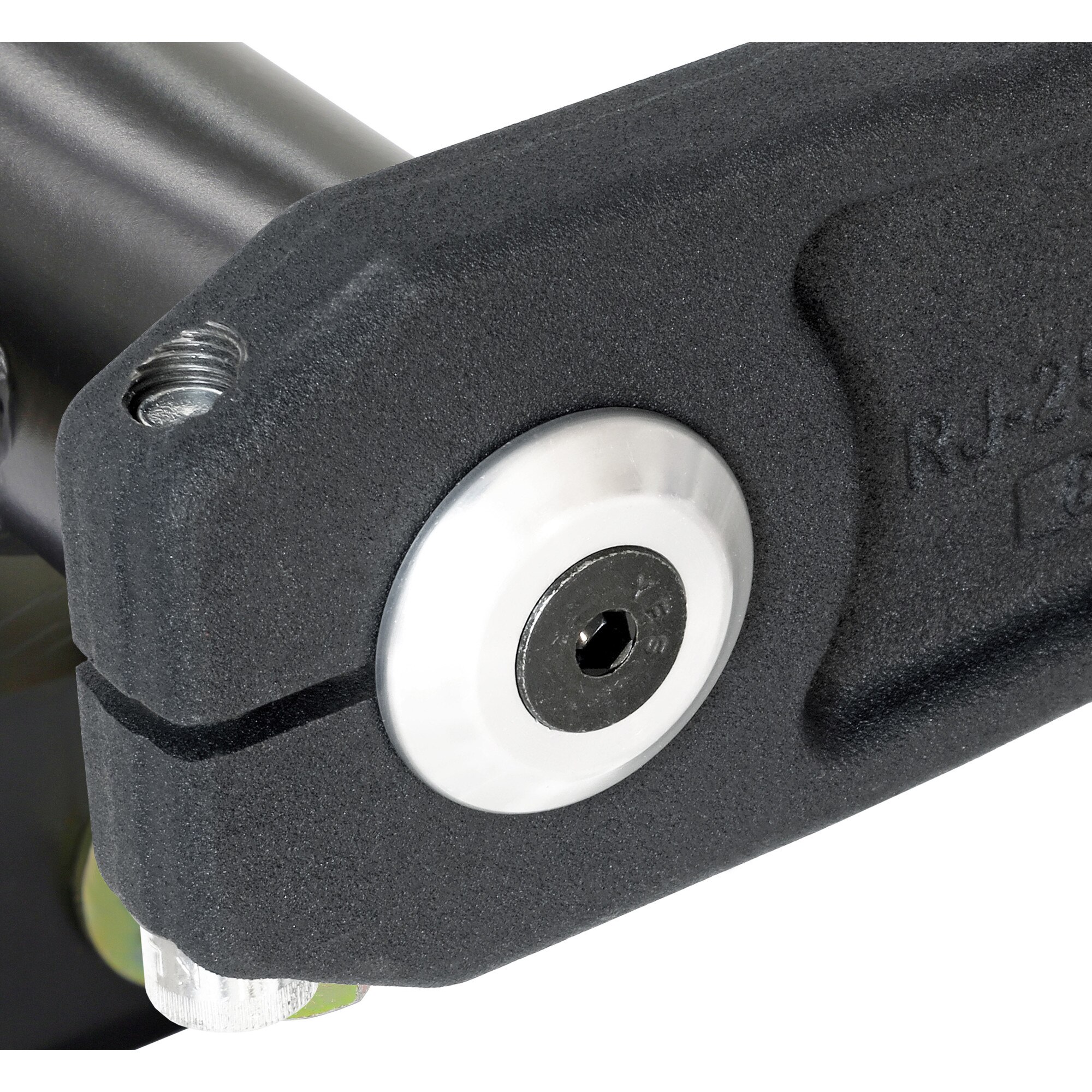

- Forged chromoly sway bar arms (pair)

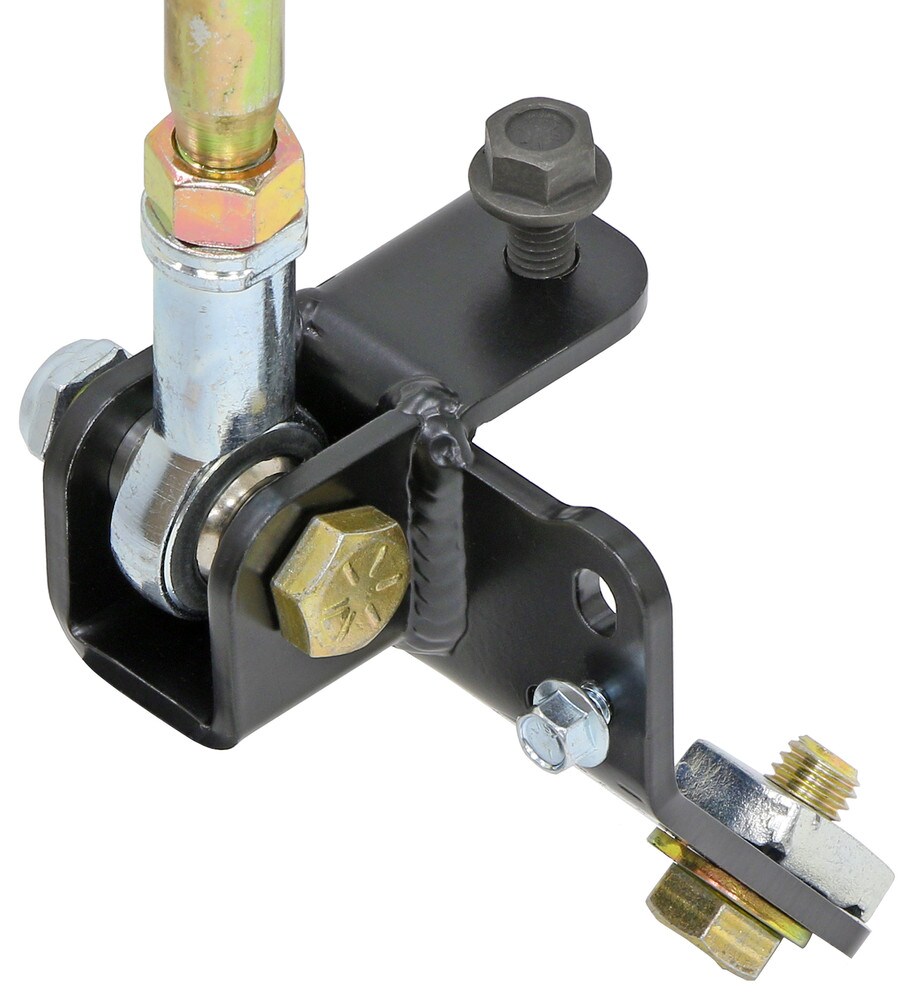

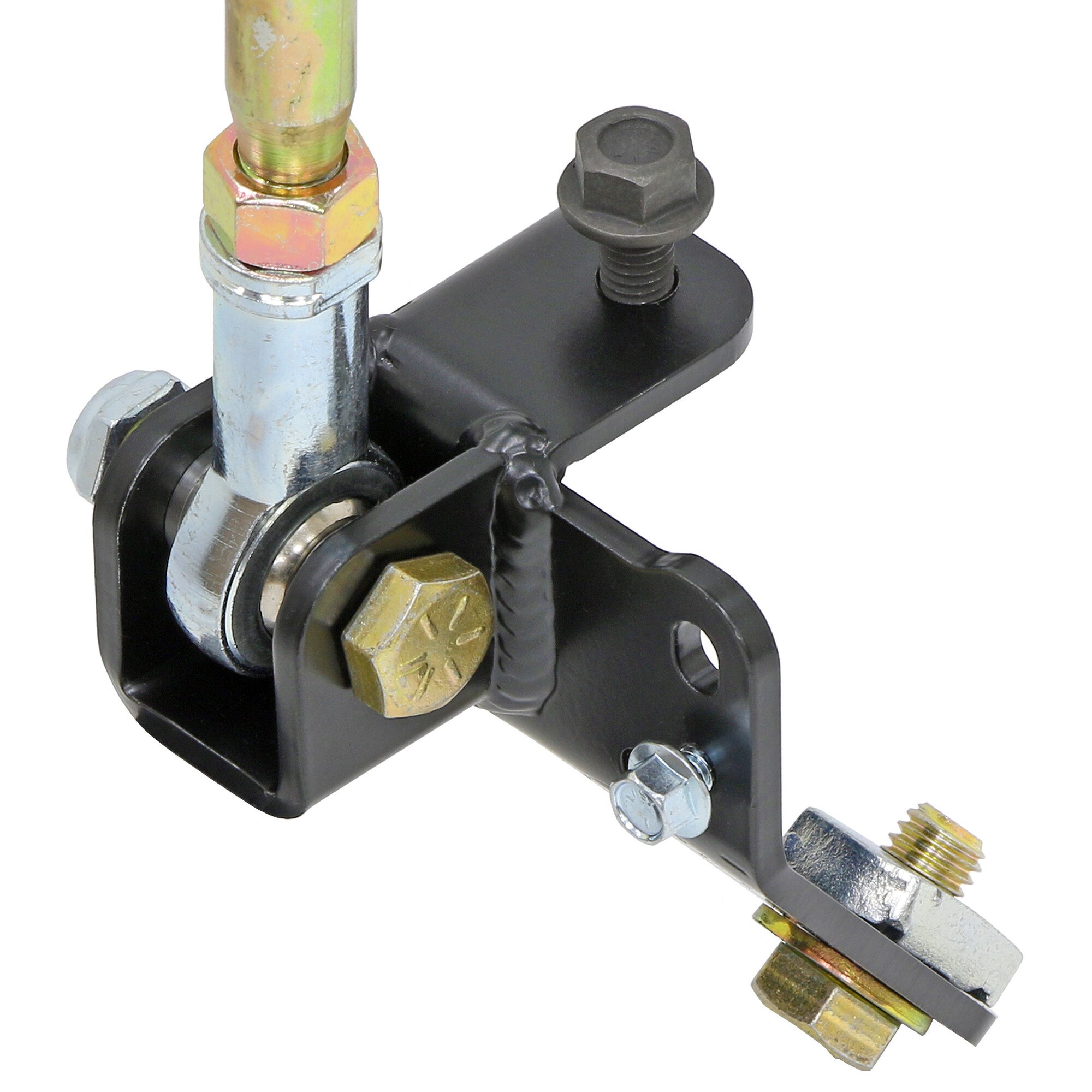

- Double sheer end link bracket kit
- Adjustable Sway Bar End Links (pair)
- (2) Delrin sway bar bushings (large ID for 28 spline bar)
- All Required Hardware and step-by-step instructions
Notes:
- Body Roll - Being that this is our heavy, overlanding/racing rate bar, if this kit is used on an unloaded vehicle on the street, expect it to be stout!
- End Links - Out of the box, the length of the sway bar’s vertical links that are included in this kit are intended for use with our suspension systems (4 in. lift). Depending upon your specific vehicle’s lift, you may obtain shorter links to suit less lift, here. If you require longer links than this kit includes, for more lift, you may either modify the links in the kit or new links may have to be fabricated.
- Fitment - This bolt-on kit is designed to bolt to the vehicle’s factory frame and any factory JT rear axle option. If your vehicle build features an aftermarket rear axle, you will have to address the end link mounting point at the axle by modifying the brackets in the kit or fabricating new mounting tabs to suite. See our universal link mounting tab offerings here.
Instruction Manual:
Parts List:
- Sway Bar Torsion Bar: RJ-204001-1
- Forged Sway Bar Arms (pair): RJ-252201-103
- Steel Frame Bracket (LH): RJ-251200-1
- Steel Frame Bracket (RH): RJ-251200-2
- Steel Axle Bracket (RH): RJ-251201-1
- Steel Axle Bracket (LH): RJ-251201-2
- Double Sheer End Link Bracket Kit: RJ-201000-101
- Adjustable Sway Bar Links: RJ-253200-101
- Delrin Sway Bar Bushing: RJ-207001-1
- Sway Bar Arm Hardware Pack: RJ-520201-101
- Kit Installation Hardware Pack: RJ-255200-101
