RJ-201000-101 - Antirock Double Shear End Link Bracket Kit
Details

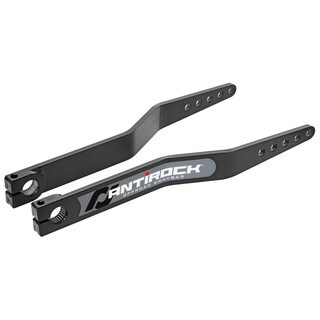

RockJock's Double Sheer End Link Bracket Kit is used in conjunction with any of our Antirock Sway Bar Arms that feature 3/8 in. thick ends and a minimum of 2 end link holes.

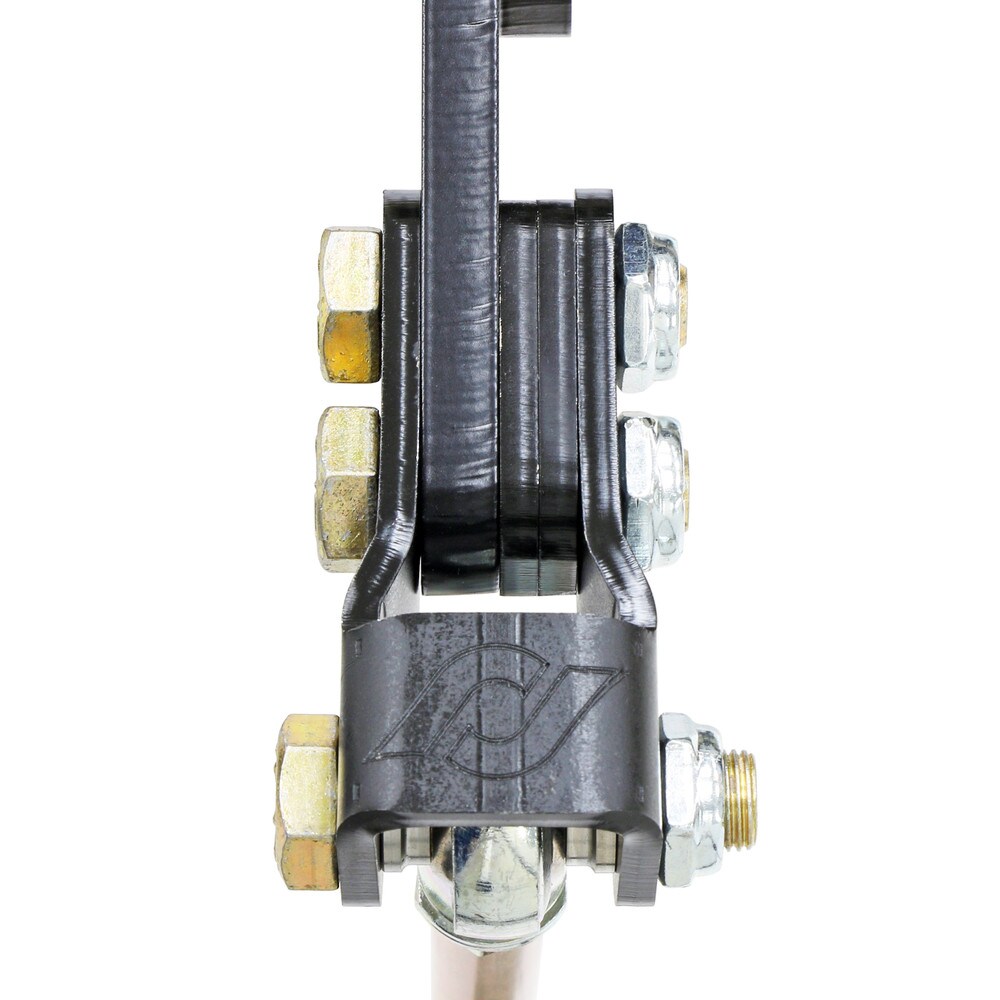

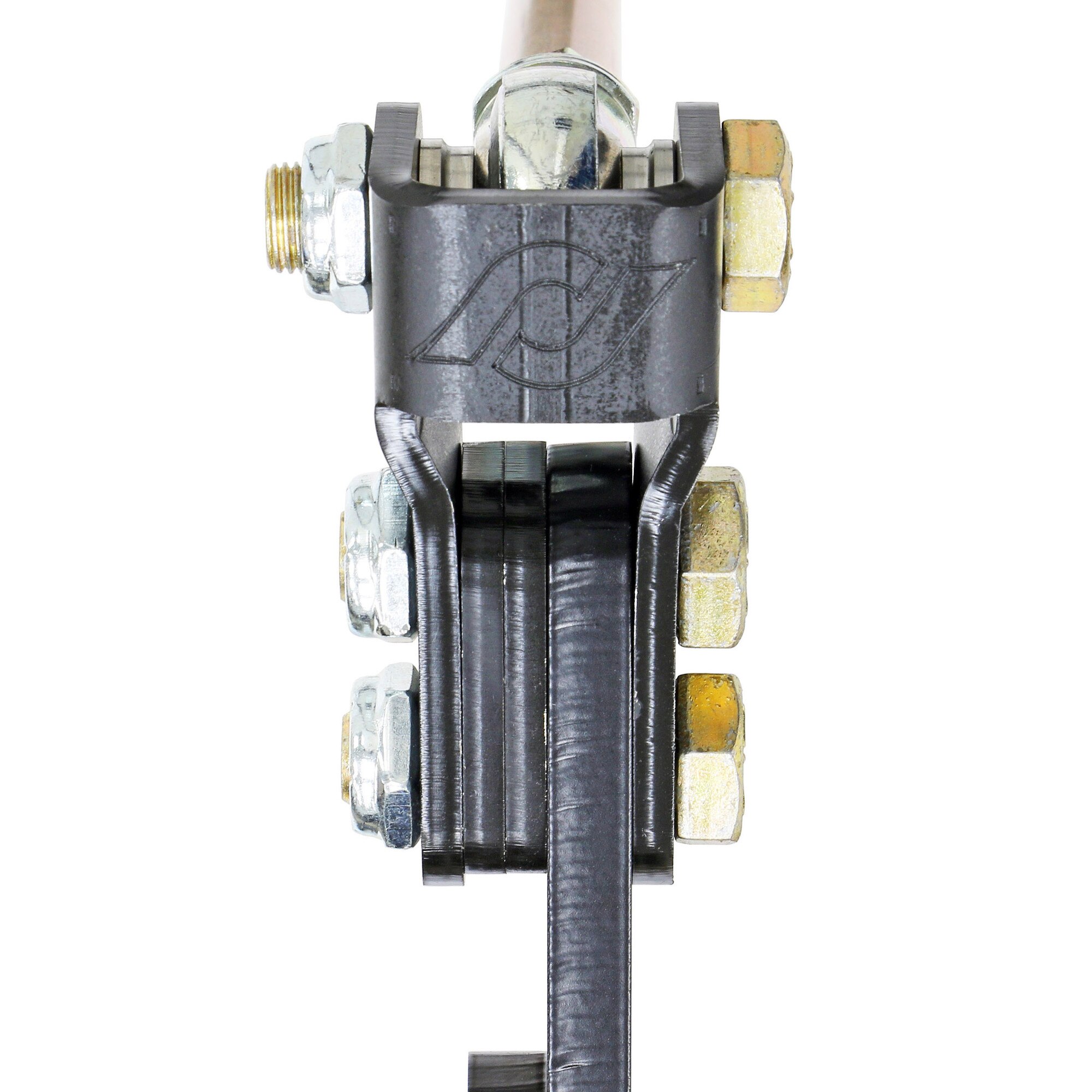

This kit allows you to add 1 1/2 in. of length to your Antirock Sway Bar Arms, as well as the ability to address end link clearance and geometry issues. With these brackets installed, by simply rearranging the included shims, you are able to move the end link heim joints from outboard of the sway bar arm to inline with the arm, or slightly offset in inboard or outboard of inline with the arm. The end link heim joint, when installed in these brackets is able to be moved a total span of 1 1/4 in. side to side.
Grade 8 hardware and misalignment spacers are included, but all heim joint and sway bar end link hardware are not included.
Kit Fits:
- Any/All Antirock Sway Bar Arms that feature 3/8 in. thick ends and a minimum of 2 end link holes
Kit Includes:

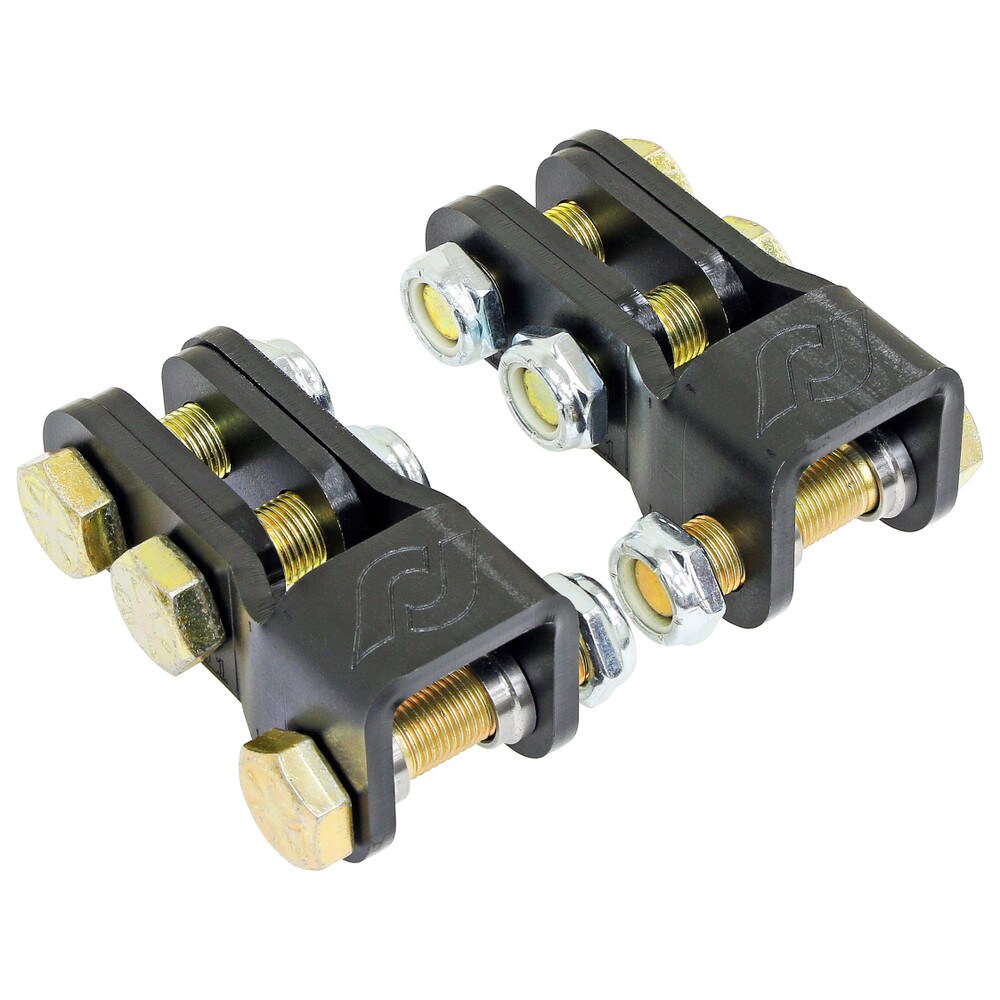

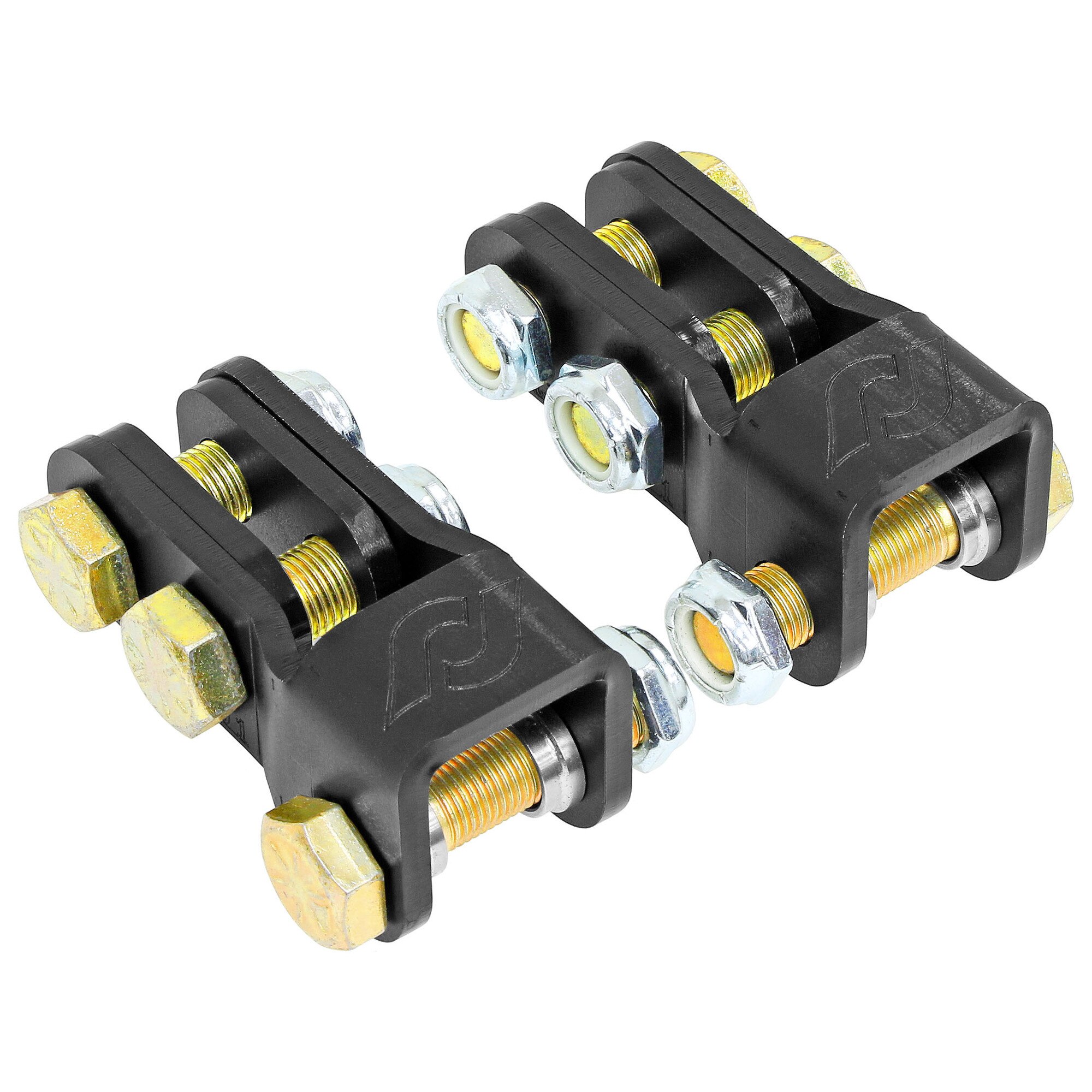

- (2) Double Sheer End Link Brackets
- (4) 3/16 in. Thick End Link Bracket Spacers
- (2) 1/2 in.-20 x 2 in. Long Grade 8 Bolts
- (4) 1/2 in.-20 x 1 1/2 in. Long Grade 8 Bolts
- (6) 1/2 in. Thin Nyloc Nuts
- (4) Heim Joint Misalignment Spacers
Notes:
- Function - With these brackets installed, you are able to move the end link heim joints from outboard of the sway bar arm to inline with the arm, or slightly offset in inboard or outboard of inline with the arm.
- Adjustment - The end link heim joint, when installed in these brackets is able to be moved a total span of 1 1/4 in. side to side.

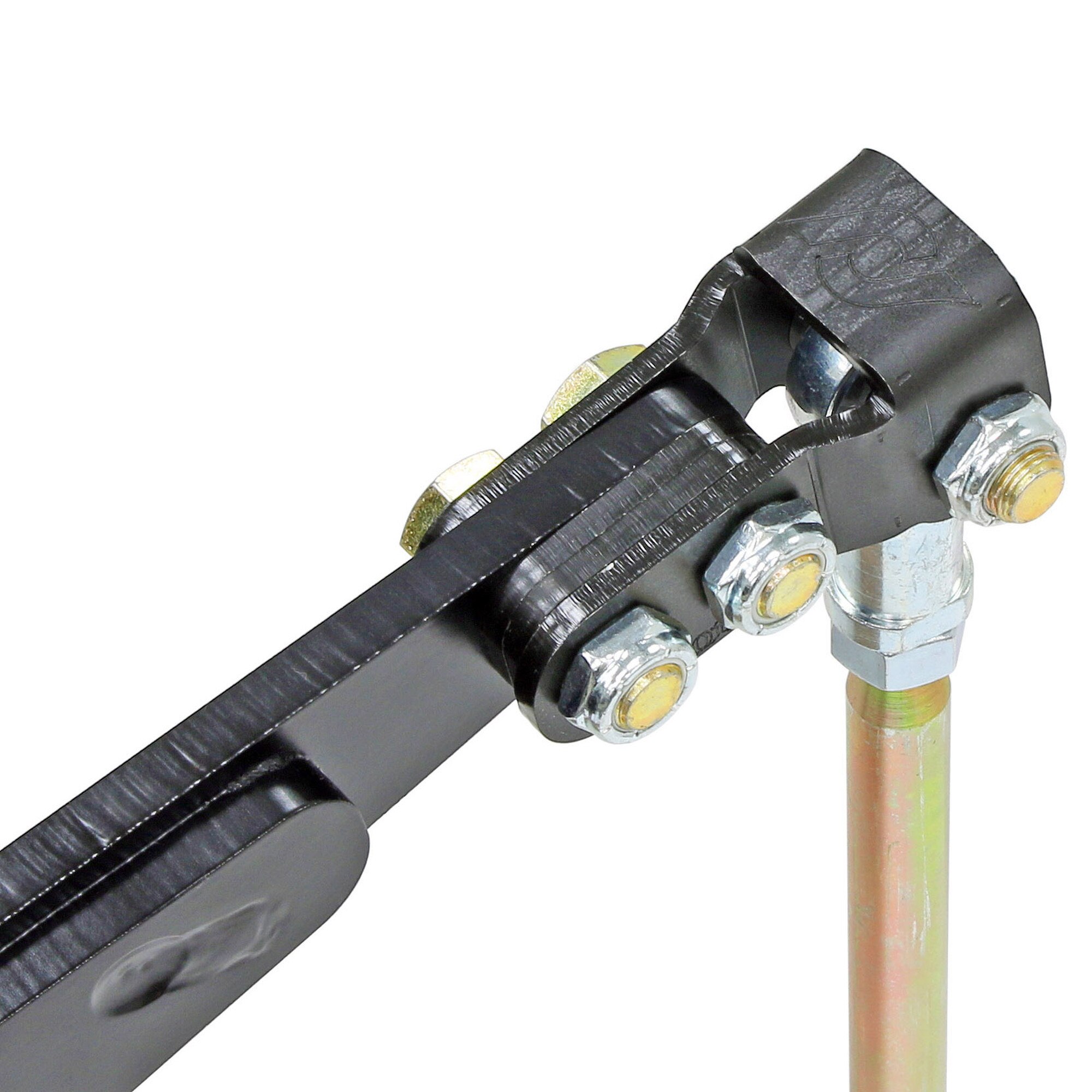

- Installation - These brackets bolt to any Antirock Sway Bar Arms that are 3/8 in. thick at their end and feature 2 holes for the brackets to bolt to. Some arms that only feature one hole may be able to have the additional hole drilled for mounting of these brackets.

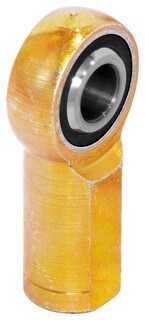

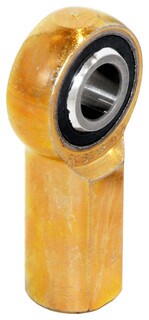

- End Links - If you are adding this bracket kit to an existing Antirock kit, you will need to swap out your upper heim joints on the end links to a thru-bolt style. Be mindful when you are purchasing the thru-bolt heim joints that you get the correct thread for what you need, RH or LH. You’ll need either CE-99006B or CE-99006BL
Parts List:

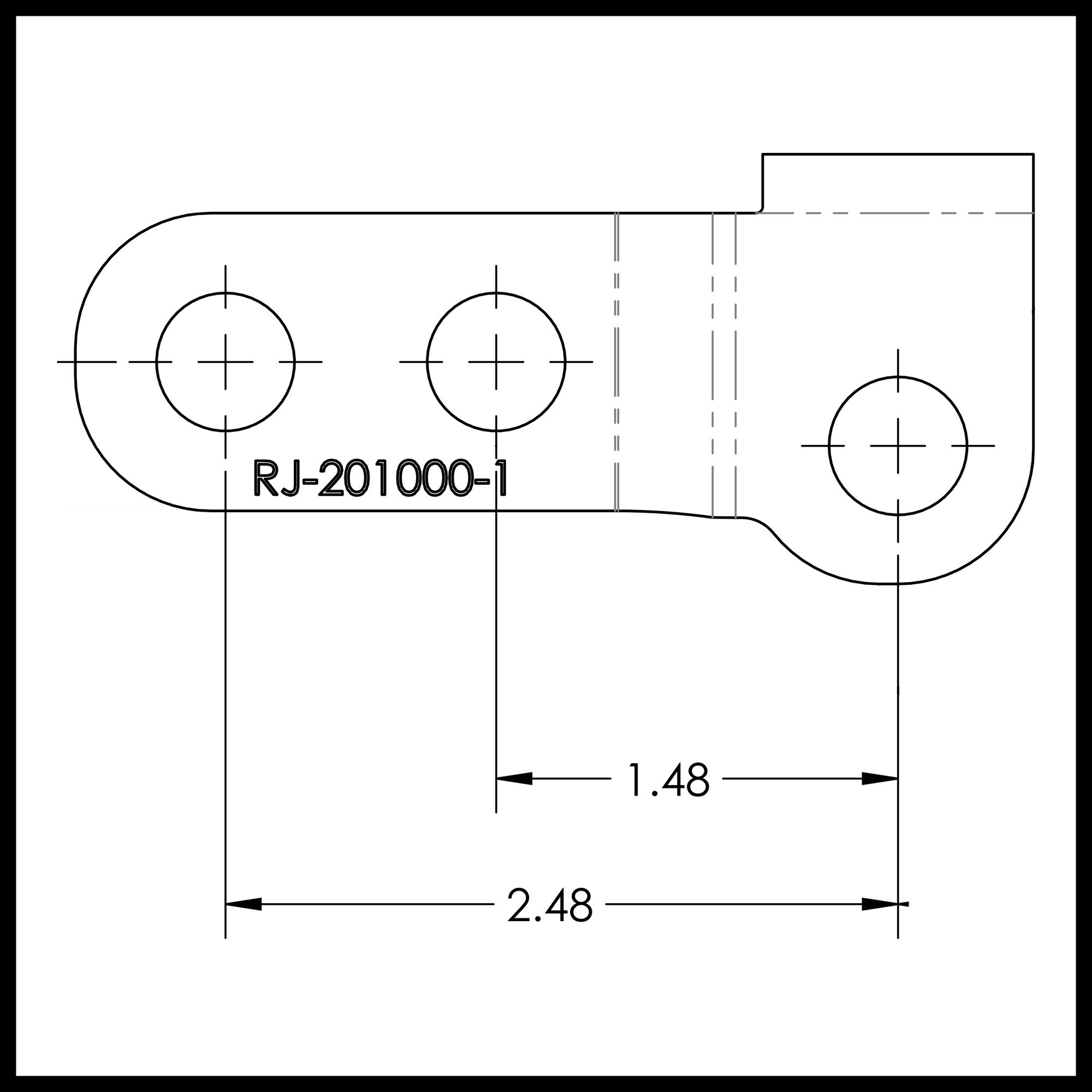

- Double Sheer End Link Bracket: RJ-201000-1
- 3/16 in. Thick Spacers: RJ-200000-1
- 1/2 in.-20 x 2 in. Long Hex Bolt: RJ-501200-1
- 1/2 in.-20 x 1 1/2 in. Long Hex Bolt: RJ-501201-1
- 1/2 in. Thin Nyloc Nut: CE-90566A230
- Heim Joint Misalignment Spacer: RJ-524200-1
