CE-9901RD4 - Antirock® Sway Bar End Link Rod (8 1/2")

Previous productCE-9901RD5 - Antirock® Sway...

Next productCE-9901RD3 - Antirock® Sway...

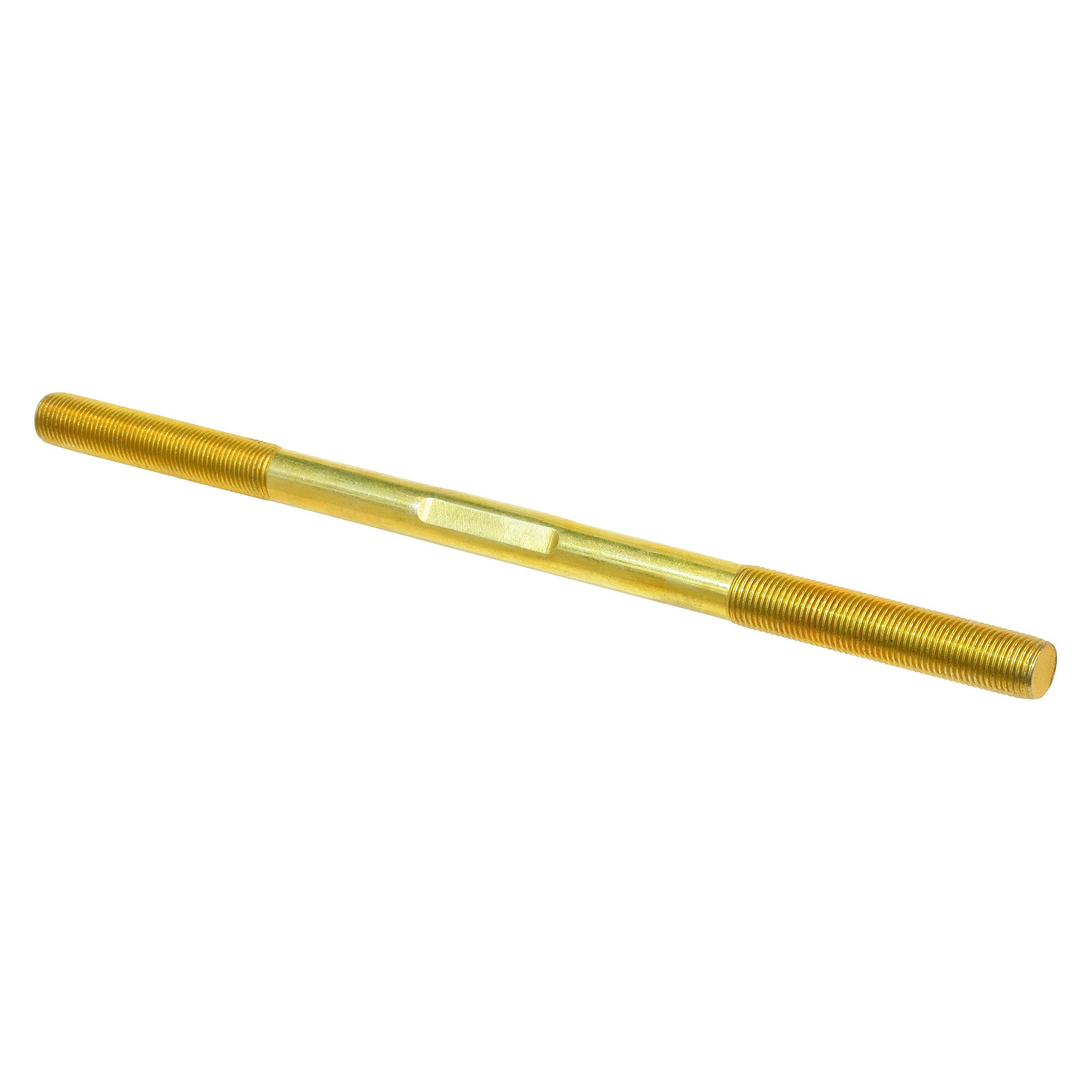

8 1/2" long Antirock® sway bar end link threaded rod

1/2" in diameter
Features 1/2"-20 RH and LH threads
Rod length may be trimmed to accommodate custom applications
These are the links that are included in our JL, JT, JK and TJ front Antirock® kits as well as JL, JT and JK basic suspension kits
Sold each
Thread and adjustment specs. shown below

SKU: CE-9901RD4

$20.60

Qty:

Notes:

Rod features 2 5/8" of RH thread, 2 5/8" of LH thread and 3 1/4" of smooth area in the center
Rod with heims installed, screwed all the way on until they are bottomed out, is 10.25" C-C
Rod with heims installed will safely adjust out to 12" C-C
At maximum trimming of this rod (1/2" of thread left on each side, heims screwed on til they meet smooth area of the rod), C-C would be 7 3/4"

Overview

Notes:

Rod features 2 5/8" of RH thread, 2 5/8" of LH thread and 3 1/4" of smooth area in the center
Rod with heims installed, screwed all the way on until they are bottomed out, is 10.25" C-C
Rod with heims installed will safely adjust out to 12" C-C
At maximum trimming of this rod (1/2" of thread left on each side, heims screwed on til they meet smooth area of the rod), C-C would be 7 3/4"

JK (95)
,
BAR (115)
,
end (77)
,
JK (92)
,
kit (109)
,
LINK (24)
,
REAR (74)
,
ROD (71)
,
SWAY (56)
,
8 1/2" (1)
,
JK (92)
,
rear (68)
,
SWAY (56)

Related Products

CE-99006 - Heim Joint (1/2"-20 RH)

CE-99006

$43.26

CE-99006L - Heim Joint (1/2"-20 LH)

CE-99006L

$43.26

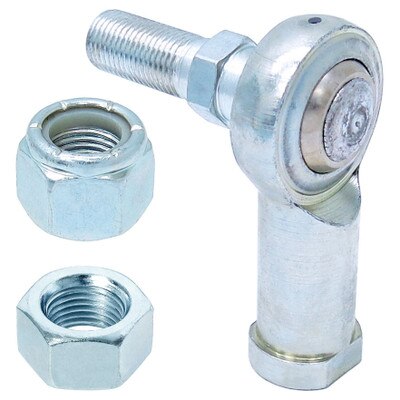

CE-99006K - Heim Joint Kit (1/2"-20 RH)

CE-99006K

$50.47

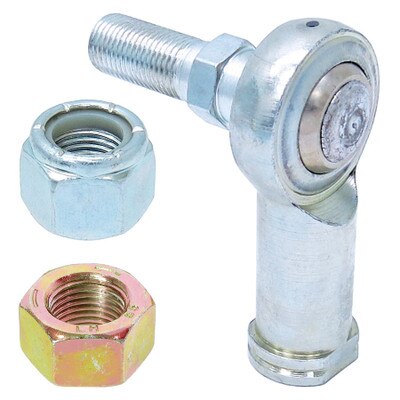

CE-99006LK - Heim Joint Kit (1/2"-20 LH)
