CE-9901RD3 - Antirock Sway Bar End Link Rod (6 1/2 in.)

SKU CE-9901RD3
$24.00

Details

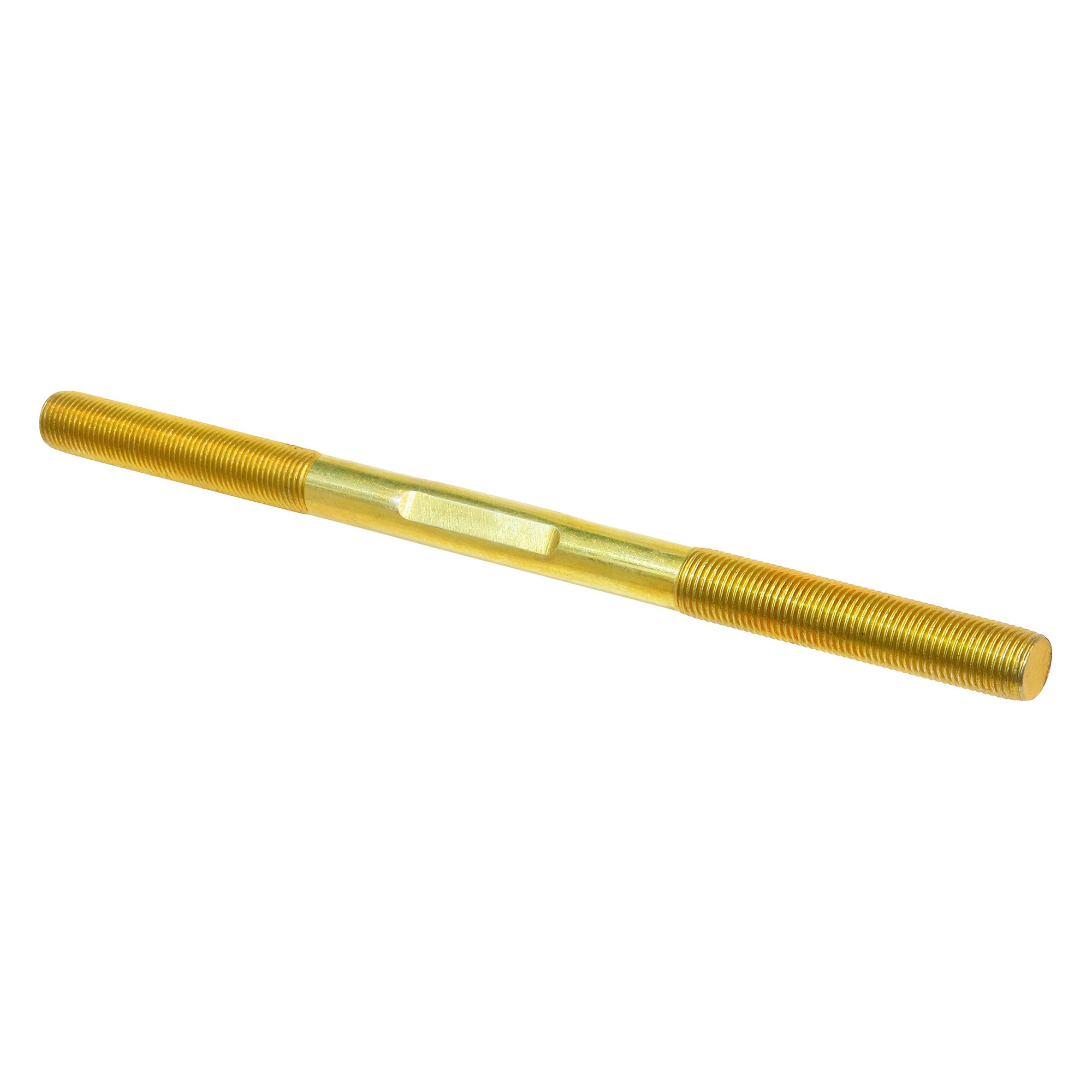

This RockJock Sway Bar End Link Stud is 6 1/4 in. long and features 2 in. of 1/2 in.-20 LH thread and 2 in. of 1/2 in.-20 RH thread, providing adjustment as-is and extra thread, allowing you to cut it shorter as deemed necessary by your application.
This rod is included in some Antirock Sway Bar Kits, but is able to be purchased individually as a replacement for a bent rod, or universal usages you may find for it.
Additionally, if you have changed the lift amount on your vehicle you may need a different length of end link rod to accommodate your new lift. You can simply buy new link rods to accommodate your needs and install them without having to replace all of your existing hardware.


Rod Fits:

  • (Included in) XJ Cherokee Front Antirock Sway Bar Kits
  • (Included in) MJ Comanche Front Antirock Sway Bar Kits
  • Universal Use

Kit Includes:

  • (1) 6 1/4 in. Link Rod (gold)

Rod Specs.:

  • 6 1/4 in. Long
  • 1/2 in. Diameter
  • 1/2 in.-20 LH Threads – 2 in. Long
  • 1/2 in.-20 RH Threads – 2 in. Long
  • Center Smooth Area – 2 1/4 in. Long

Adjustment Range (w/ Heim Joints Installed):

  • Closed – At maximum trimming of this rod (15/16 in. of thread left on each side and the heims & jam nuts screwed on til they meet the smooth area of the rod), C-C is 7 3/8 in.
  • Extended – Uncut rods with heims installed safely adjust out to 9 1/2 in. C-C

Notes:

  • These is the link rod that we include in our Jeep XJ Cherokee and MJ Comanche front Antirock Sway Bar Kits
