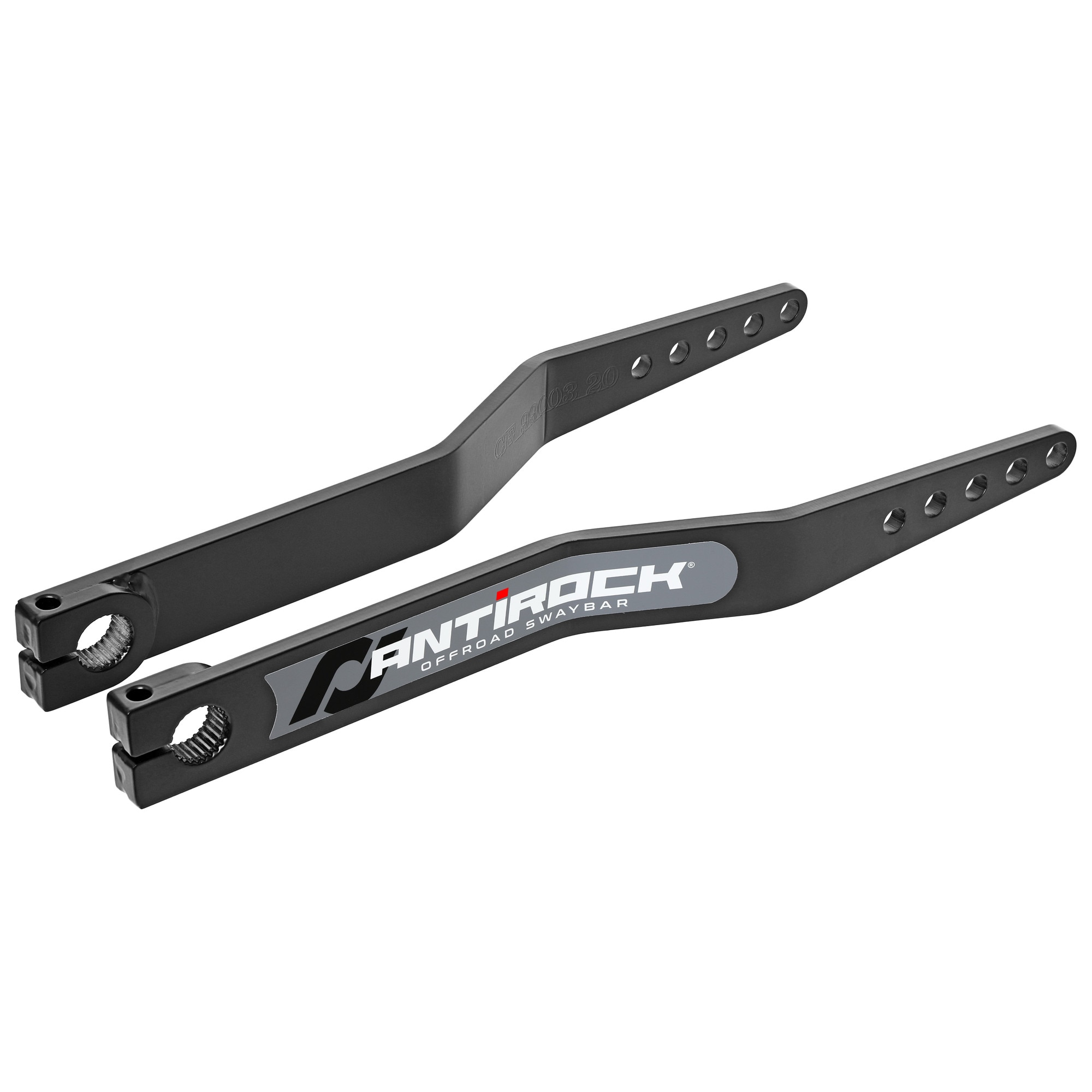

19.25 in. Fabricated Steel Antirock Sway Bar Arms are available separately for custom builders or as replacement parts for existing kits.

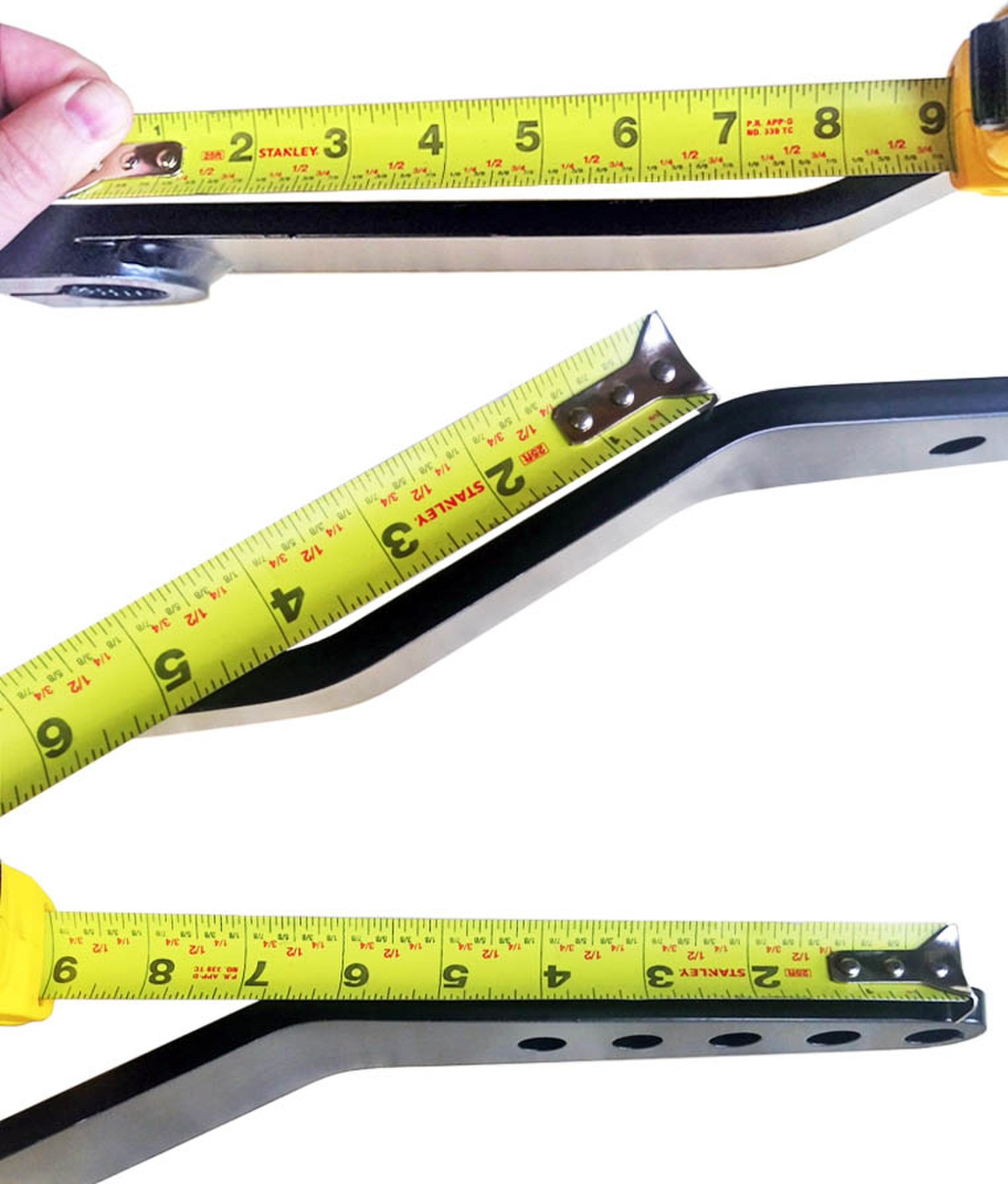

Arms are laser cut & welded steel, 19.25 in. long, 3/8 in. thick and feature a 1.70 in. offset bend.
The 5 adjustable sway bar end link mounting holes at the end of the arm also allow for the use of our RJ-201000-101 Double Sheer End Link Bracket Kit.

Kit Fits:

• Universal Applications

Kit Includes:

• 19.25 in. Antirock Sway Bar Arms (pair)
• Arm Stickers (pair)

Component Specs.:

• Overall length  =  19.25 in.
• Thickness  =  3/8 in.
• Material  =  laser cut steel
• Offset Bend  =  1.70 in.
• Spline count  =  25
• Center of splined hole to center of 1/2 in. hole #1 (nearest)  =  13.95 in.
• Center of splined hole to center of 1/2 in. hole #2  =  14.95 in.
• Center of splined hole to center of 1/2 in. hole #3 (middle)  =  15.95 in.
• Center of splined hole to center of 1/2 in. hole #4  =  16.95 in.
• Center of splined hole to center of 1/2 in. hole #5 (farthest)  =  17.95 in.
• Weight  =  9lbs. (for the pair)

Notes:

• For use with any 25 spline sway bar torsion bars that we offer, however, these arms are NOT for use with our 36 in. x 1 in. sway bar or our 40 in x 1 in. sway bar.
• Arms may be used in conjunction with our RJ-201000-101 Double Sheer End Link Bracket Kit. This bracket kit adds 1 1/2 in. in arm length and the ability to offset the end link up to 1 1/4 in.
• See CE-99005A for arm hardware kit.
