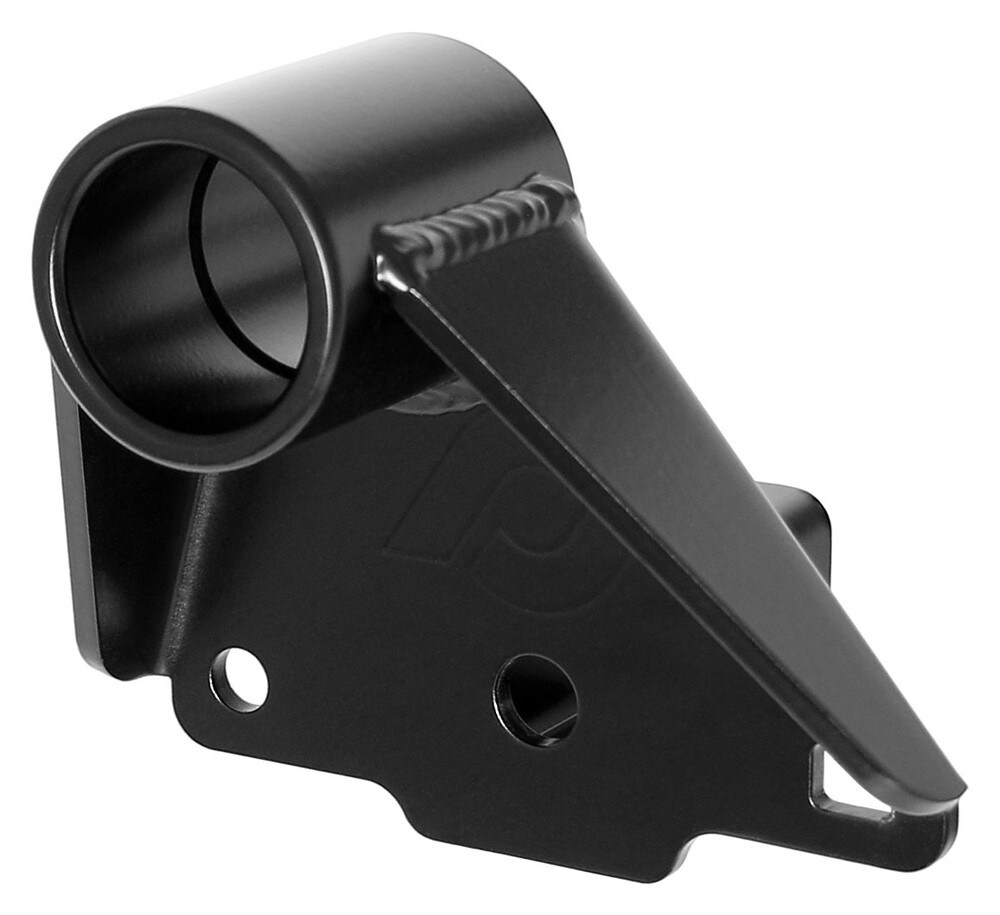

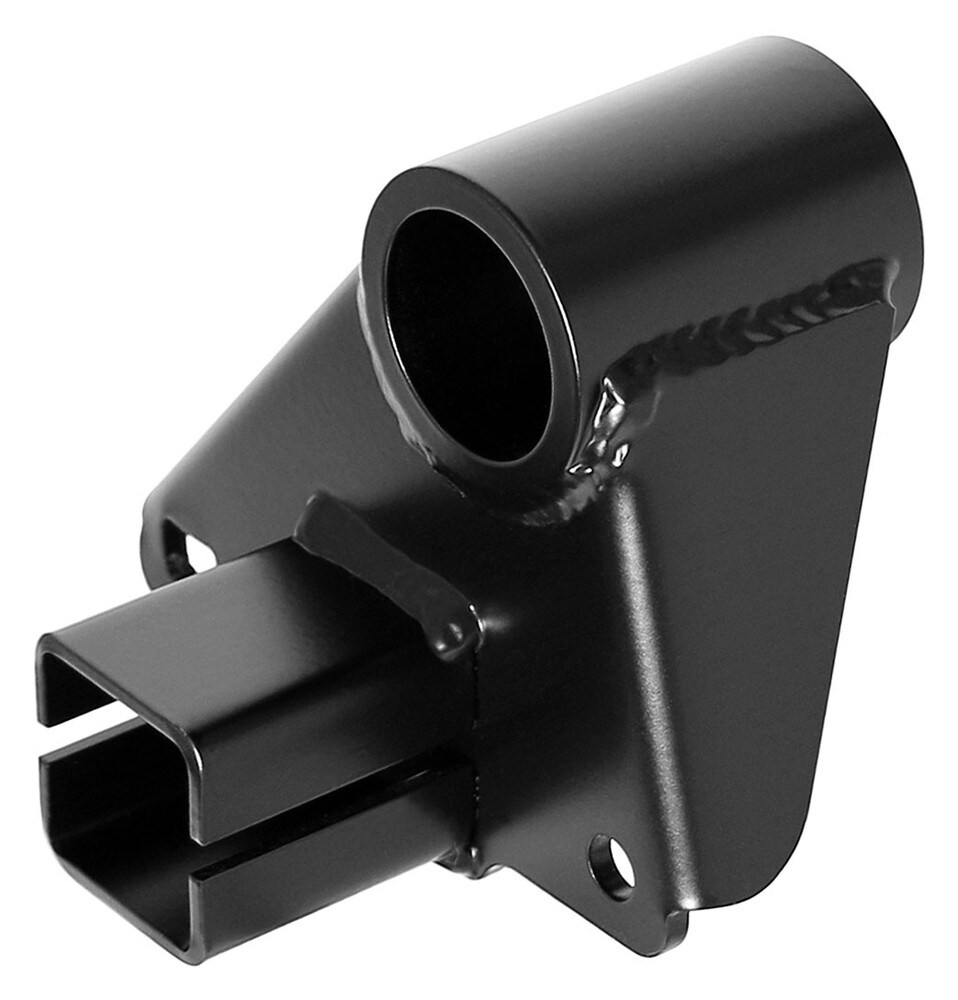

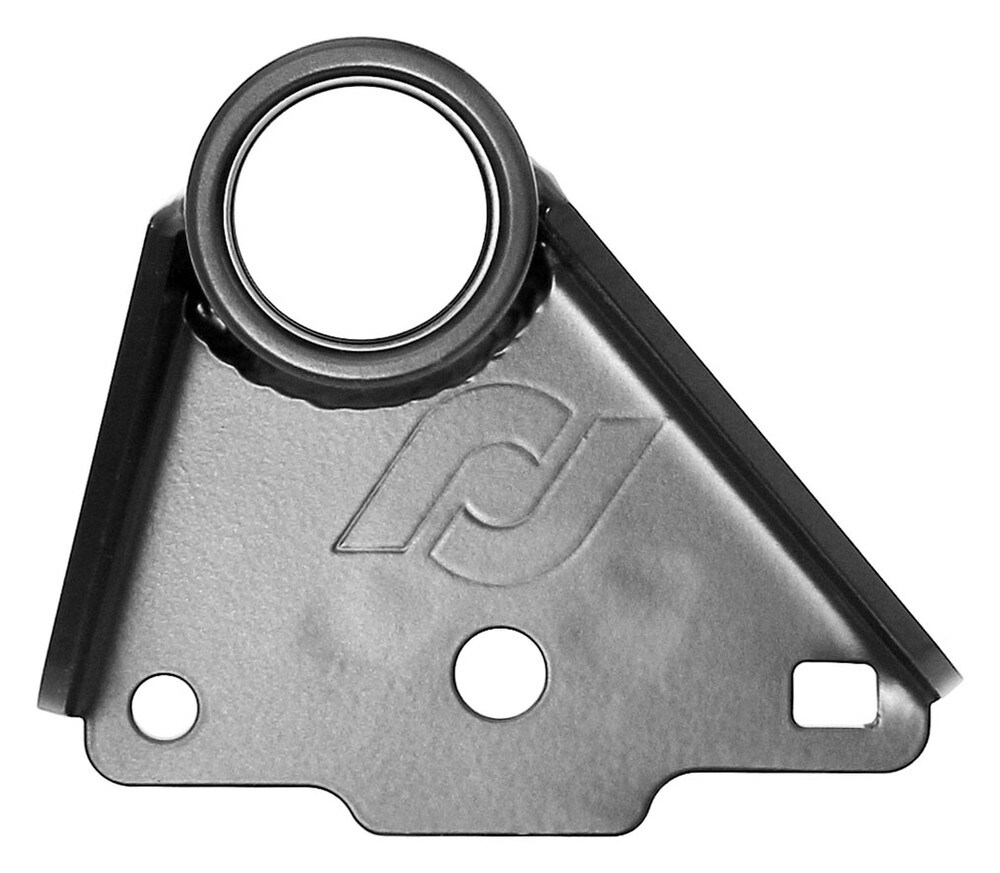

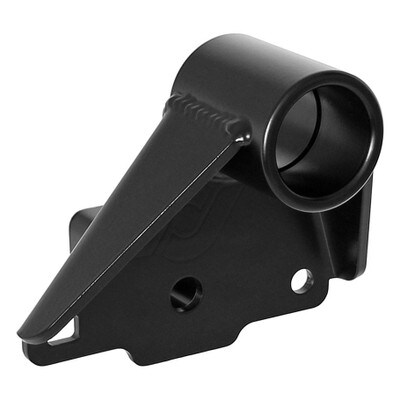

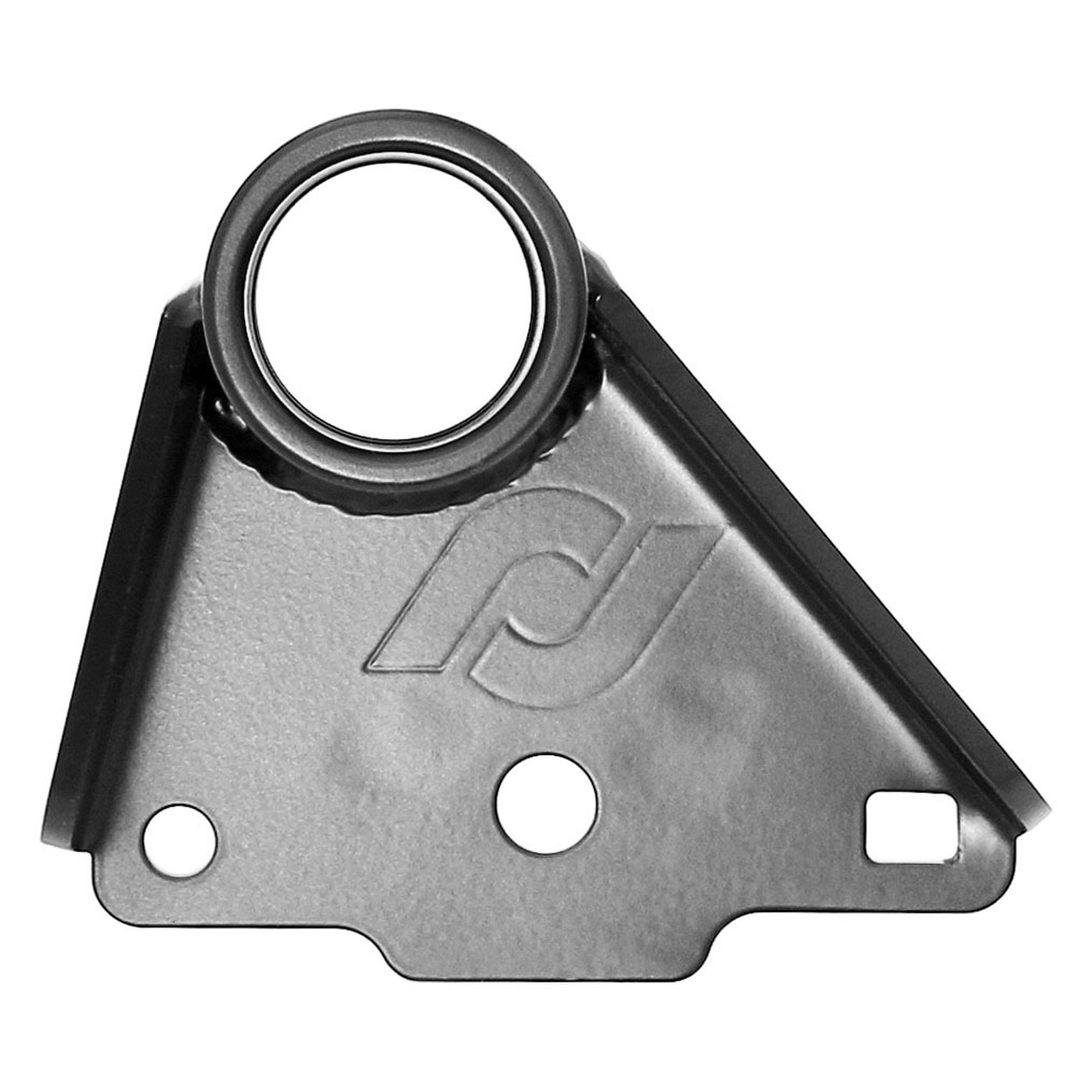

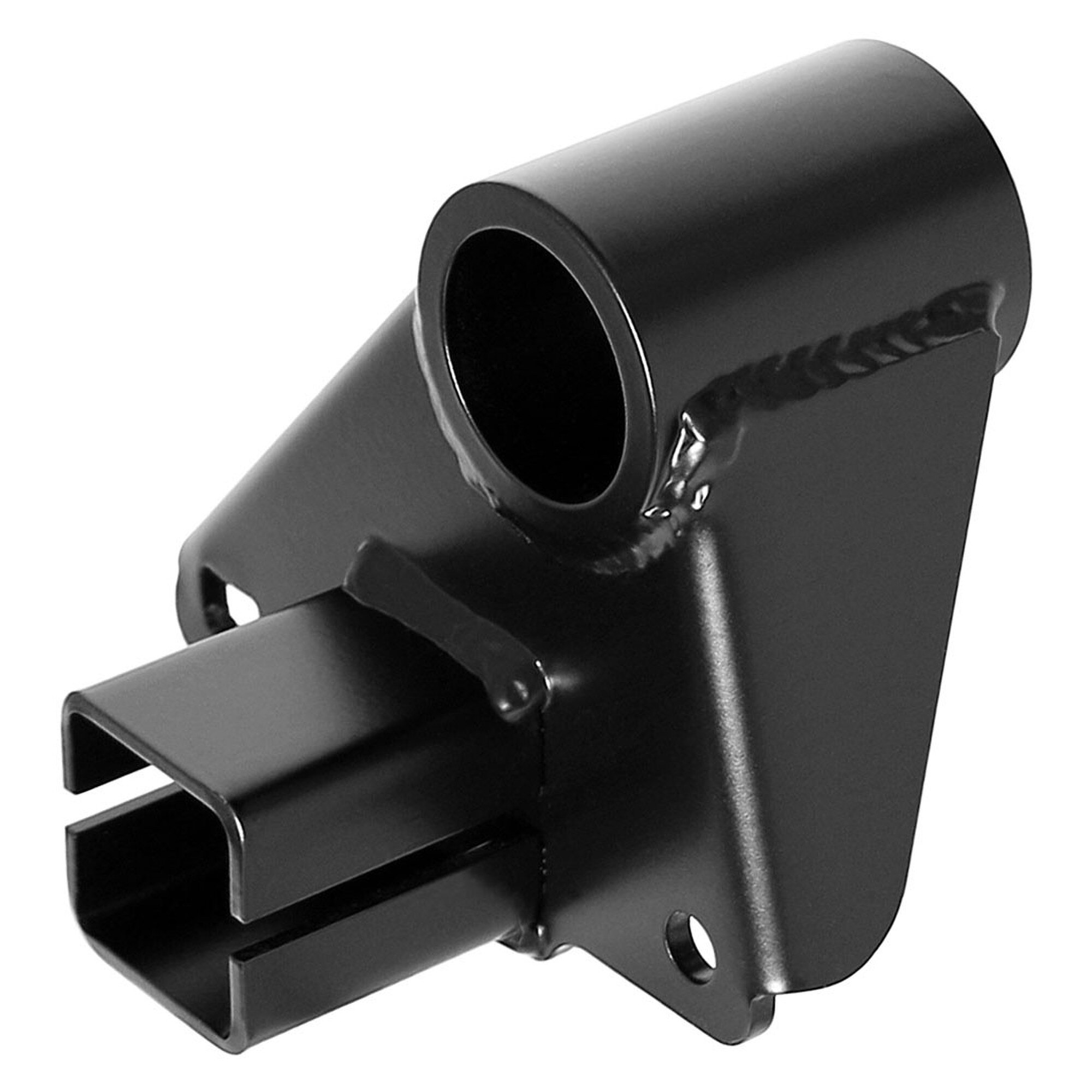

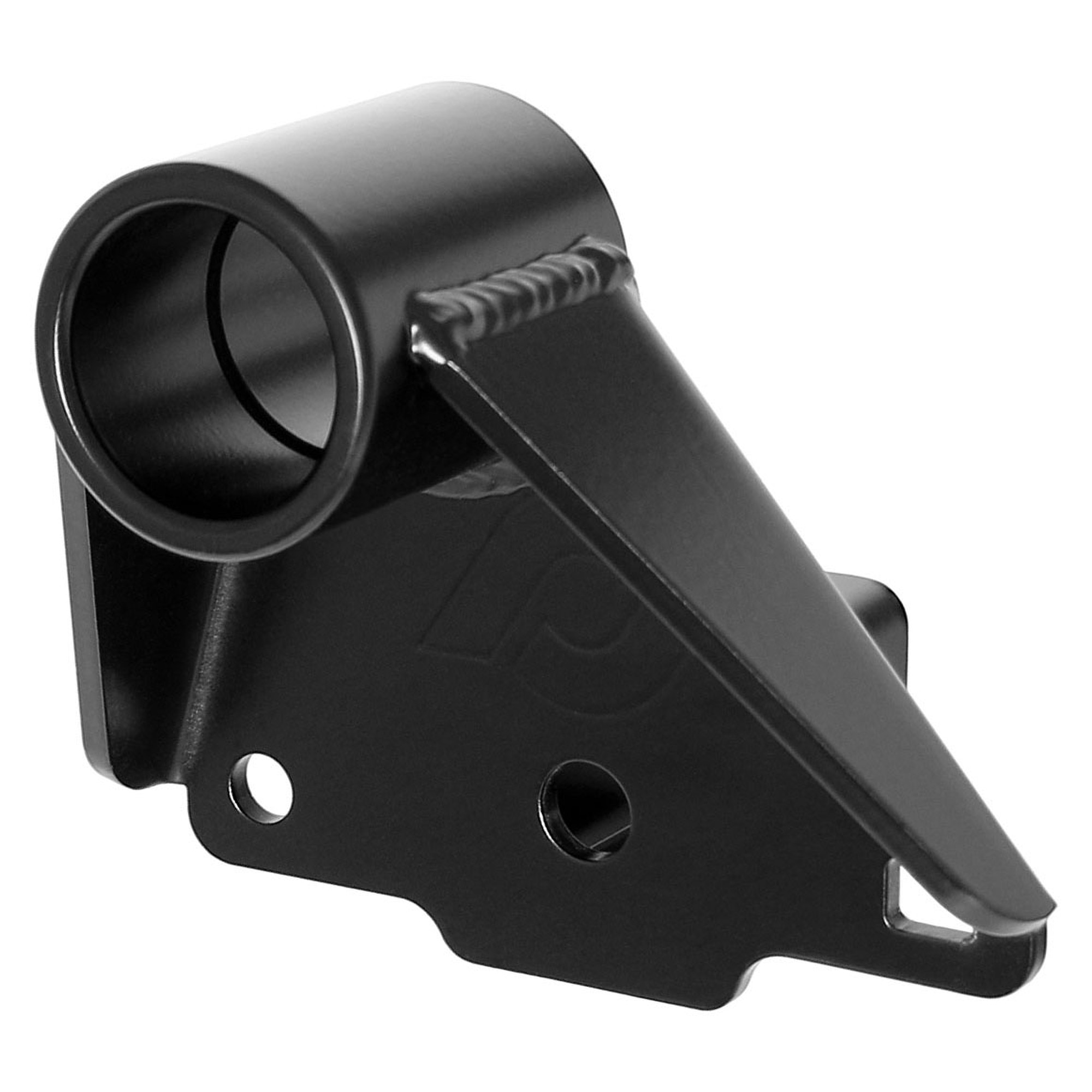

RJ-251200-2 - JT Right Rear Antirock Sway Bar Frame Bracket (Steel)

RockJock right rear JT Gladiator Antirock Sway Bar Frame Bracket is found in our complete JT Rear Antirock Kits, or may be purchased separately.
Bracket is fabricated from laser cut and formed 3/16 in. steel, welded and finished in semi-gloss black powder coat.

Bracket Fits:

• (Included in) RJ-256200-101 JT Gladiator rear Antirock Kit
• (Included in) RJ-256200-103 JT Gladiator rear Antirock Kit

Kit Includes:

• (1) JT Gladiator right rear Antirock Sway Bar Frame Bracket

Component Specs.:

• Construction = laser cut, formed and welded 3/16 in. steel
• Bushing Bore = for use with CE-9901D or RJ-207001-1 bushings
• Fitment = bolts into square crossmember, behind rear axle centerline, in the stock JT frame (see note below)
• Finish = semi-gloss black powder coat

Notes:

• This bracket is only intended for use with the balance of the components included in our RJ-256200-101 or our RJ-256200-103 JT Gladiator rear Antirock Sway Bar Kits

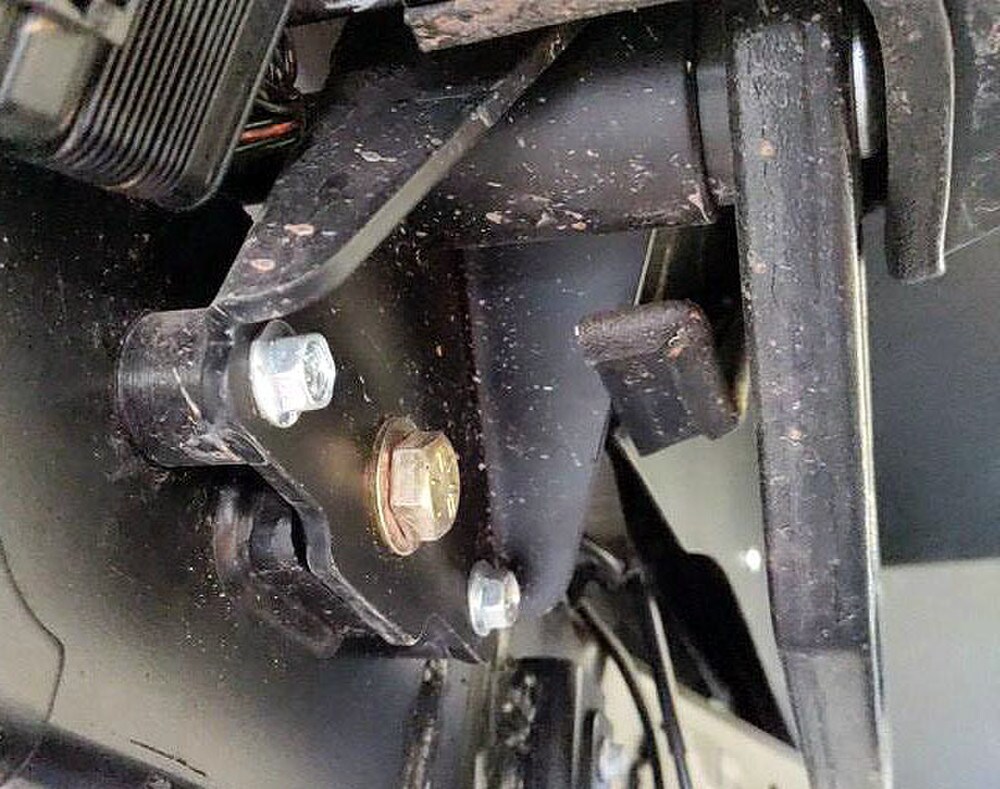

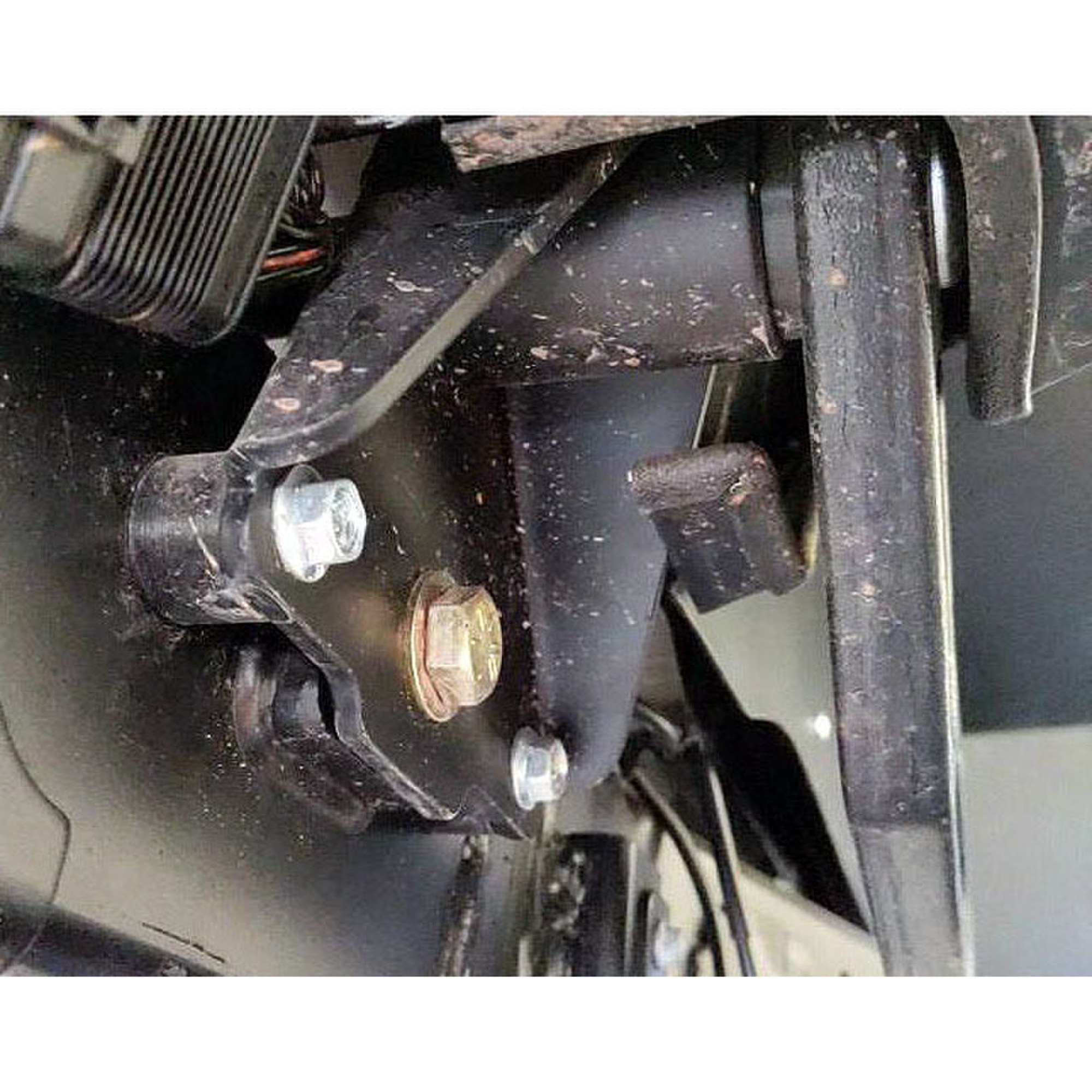

• Bracket fits into the square hole in the back of the frame as per the complete sway bar kit’s instruction manual. This hole generally requires some sanding of it’s opening, to remove a slight swedge, allowing the bracket to slide in.

Mandatory Installation Components:

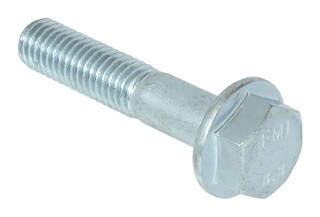

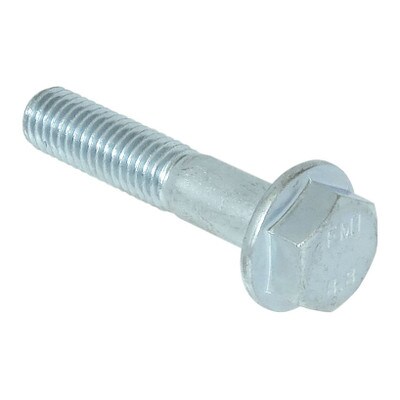

• (2) 8mm-1.25 x 40mm Flanged Head Hex Bolt: RJ-501108-1

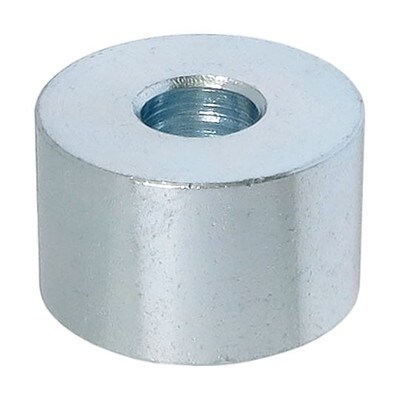

• (2) Steel Spacer: RJ-524100-1

Associated Components:

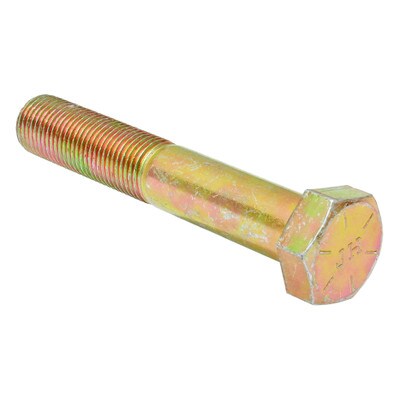

• (1) 1/2 in.-20 x 2 1/4 in. Long Hex Head Bolt: RJ-501202-1
• (1) 1/2 in. Flat Washer: CE-H0014

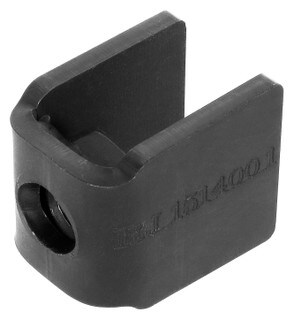

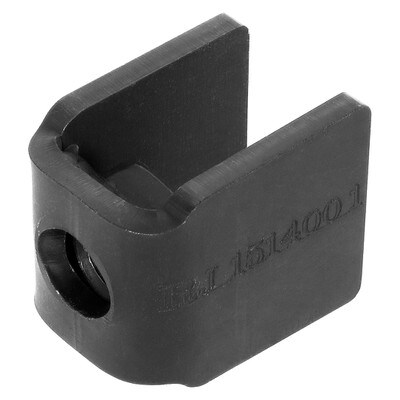

• (1) 1/2 in.-20 Wedge Nut: RJ-151400-1
