RJ-253200-101 - Antirock Sway Bar End Links w/ Heims (15 1/2 in. Rods)

SKU RJ-253200-101
$193.00
Back

Details

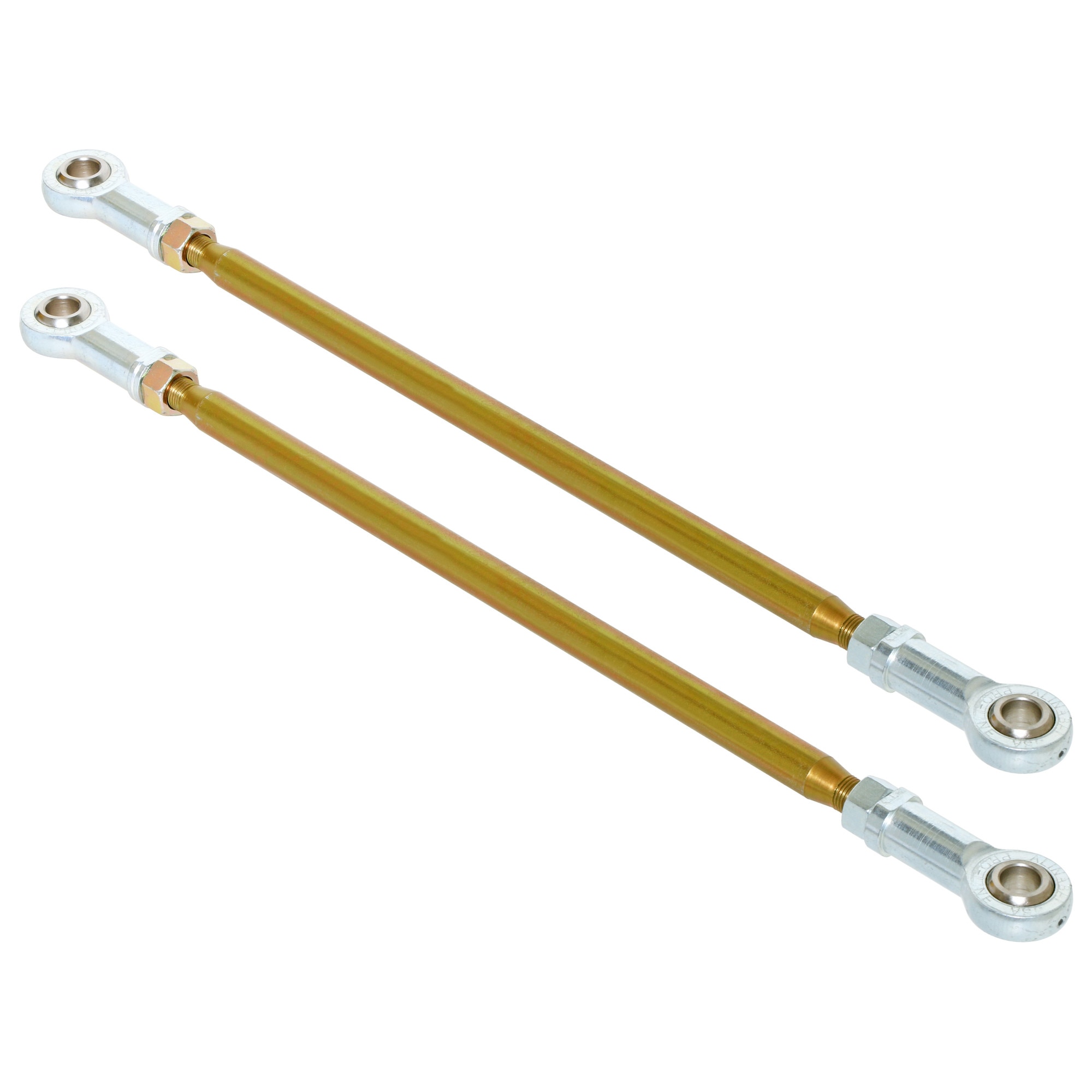

RockJock's Adjustable Sway Bar End Link Set features 15 1/2 in. long link rods with a 5/8 in. diameter body (to maintain rigidity at this length) and 1 1/2 in. of 1/2 in.-20 LH thread and 1 1/2 in. of 1/2 in.-20 RH thread to provide adjustment.
Link sets are included in our Antirock Sway Bar Kits, but are able to be used universally in many applications to replace non-adjustable sway bar links.
Additionally, if you have changed the lift amount on your vehicle you may need a different length of sway bar links to accommodate your new lift. You can simply buy a complete new link set to accommodate your needs.
The heim joints in this kit feature 1/2 in. thru holes and nyloc nuts and jam nuts are included.


Kit Fits:

  • Universal Use
  • Included in JT Gladiator Rear Antirock Sway Bar Kits

Kit Includes:

  • (2) 15 1/2 in. Link Rod (gold)

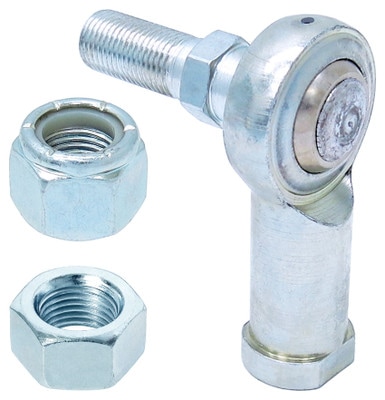

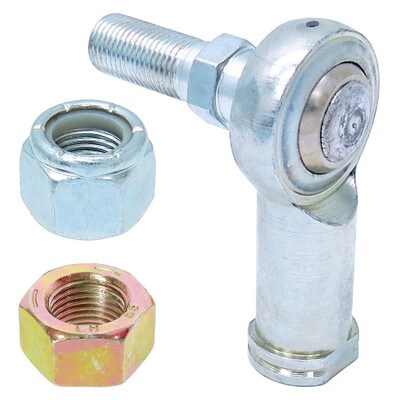

  • (2) 1/2 in.-20 LH Thru-Bolt Heim Joint
  • (2) 1/2 in.-20 RH Thru Bolt Heim Joint
  • (2) 1/2 in.-20 LH Jam Nut
  • (2) 1/2 in.-20 RH Jam Nut

Adjustment Range:

  • Closed – 17 11/16 in.C-C
  • Extended – 18 7/8 in.C-C

Component Specs.:

  • Gold Rod Length = 15 1/2 in. Long
  • Gold Rod Diameter = 5/8 in.
  • Gold Rod LH Threads = 1/2 in.-20 x 1 1/2 in. Long
  • Gold Rod RH Threads = 1/2 in.-20 x 1 1/2 in. Long
  • Gold Rod Center Smooth Area = 12 1/2 in. Long
  • Heim Joints = req. 19mm wrench
  • Jam Nuts = req. 3/4 in. wrench

Notes:

  • These are the links that we include in our JT rear Antirock kits,

Parts List:
