RJ-251201-2 - JT Left Rear Antirock Sway Bar Axle Bracket (Steel)

RockJock’s left rear JT Gladiator Antirock Sway Bar Axle Bracket is found in our complete JT Rear Antirock Kits, or may be purchased separately. For use with stock differentials only.

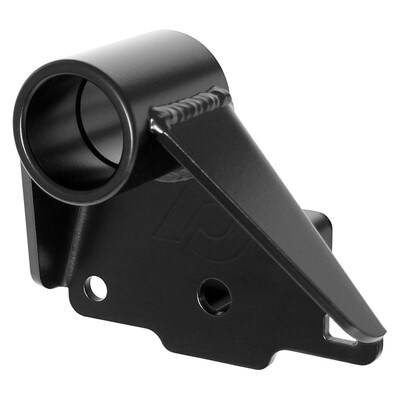

Bracket is fabricated from laser cut and formed 3/16 in. steel, welded and finished in semi-gloss black powder coat.

Bracket Fits:

• (Included in) RJ-256200-101 JT Gladiator rear Antirock Kit (for use w/ factory axle)
• (Included in) RJ-256200-103 JT Gladiator rear Antirock Kit (for use w/ factory axle)

Kit Includes:

• (1) Left Rear JT Gladiator Antirock Sway Bar Axle Bracket

Notes:

• This bracket is only intended for use with the balance of the components included in our RJ-256200-101 or our RJ-256200-103 JT Gladiator Rear Antirock Sway Bar Kits

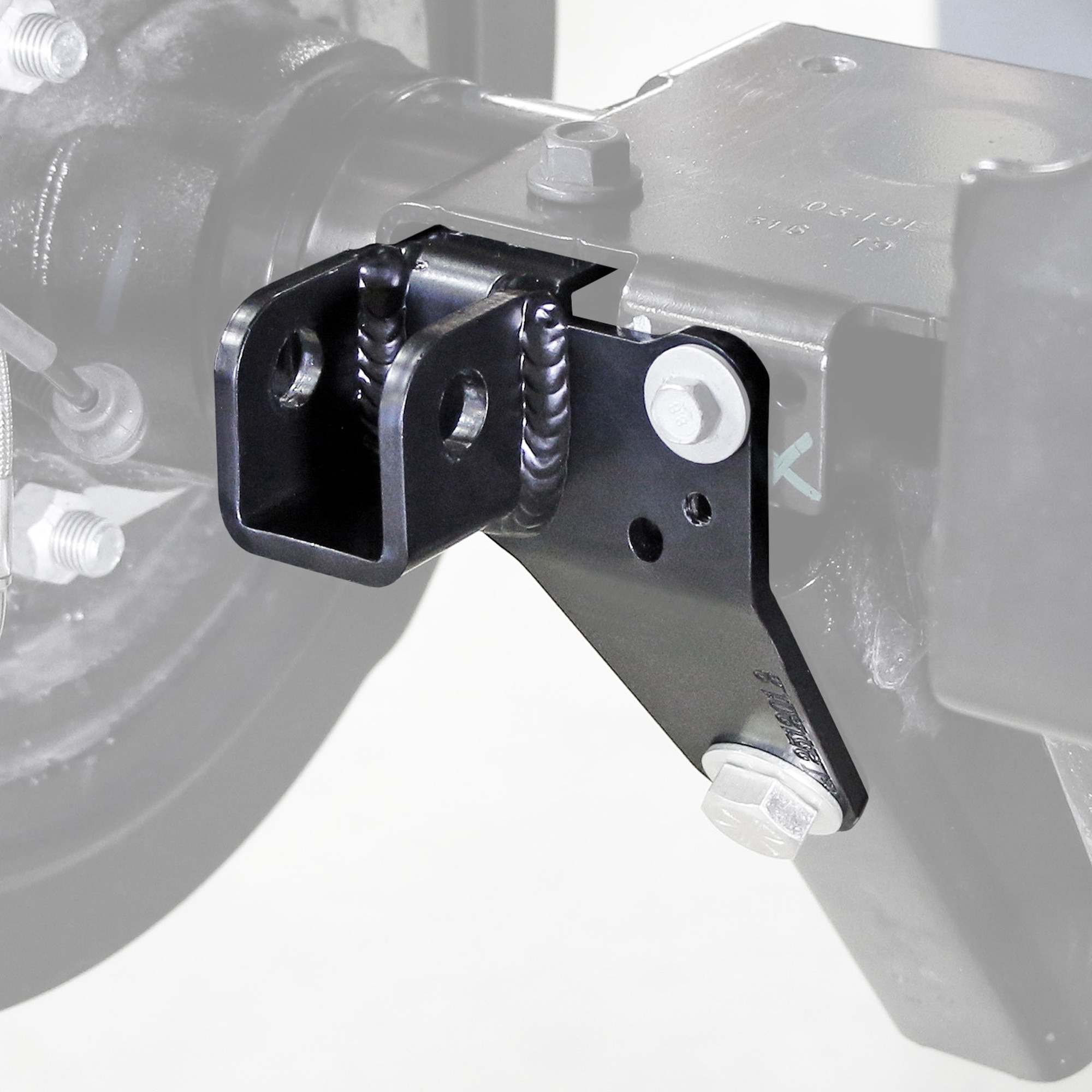

• Bracket bolts to the stock rear differential’s bump stop pad and shock mount, as per the complete sway bar kit’s instruction manual
• Nut welded into the top of the bracket is 3/8 in.-16 (coarse) thread

Mandatory Installation Components:

• (1) 1/2 in.-13 x 1 in. Head Hex Bolt: RJ-501203-1
• (1) 1/2 in. Flat Washer: CE-H0014
• (1) 1/2 in.-13 Strut Channel Nut: RJ-502201-1
• (1) 3/8 in.-16 x 1 in. Long Flanged Hex Head Bolt: CE-92316A624
• (1) 1/4 in.-20 x 3/8 in. Long Serrated Flanged Hex Head Bolt: RJ-501204-1

Associated Components:

• (1) 1/2 in.-20 x 2 1/4 in. Long Hex Bolt: RJ-501202-1
• (1) 1/2 in. Flat Washer: CE-H0014
• (2) Heim Joint Misalignment Spacer: RJ-524200-1
• (1) 1/2 in.-20 Nyloc Nut: CE-95615A220
