RJ-255200-101 - Antirock Sway Bar Kit Mounting Hardware Pack (JT Rear)
Details
RockJock JT Gladiator Rear Antirock Sway Bar Kit Hardware Pack is the complete bolt kit for standard rate or (heavy bar) overlanding kits.
Kit includes all necessary installation hardware with the exception of the RJ-520201-101 sway bar arm hardware pack, and the hardware that is included in the RJ-253200-101 End Link Kit and the RJ-201000-101 Double Sheer End Link Bracket Kit.
Kit Fits:
- RJ-256200-101 JT Gladiator rear Antirock Sway Bar Kit (25 spline bar)
- RJ-256200-103 JT Gladiator rear Antirock Sway Bar Kit (28 spline heavy bar)

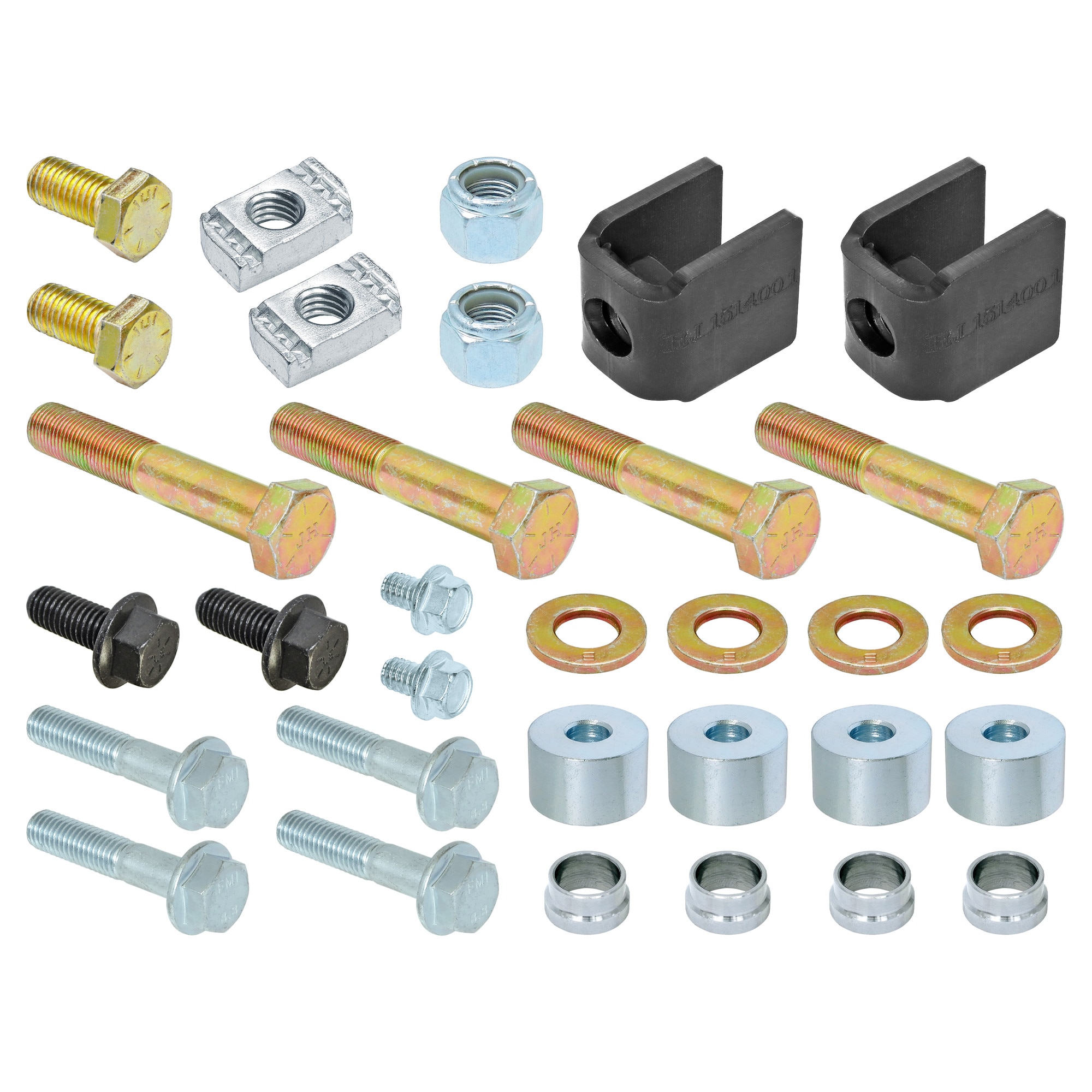

Kit Includes:
- (4) 1/2 in.-20 x 2 1/4 in. Long Hex Bolt: RJ-501202-1
- (2) 1/2 in.-13 x 1 in. Long Hex Bolt: RJ-501203-1
- (4) Heim Joint Misalignment Spacer (1/2 in. ID): RJ-524200-1
- (4) 1/2 in. Flat Washer: CE-H0014
- (2) 1/2 in.-20 Wedge Nut: RJ-151400-1
- (2) 1/2 in.-20 Nyloc Nut: CE-95615A220
- (2) 1/2 in.-13 Strut Channel Nut: RJ-502201-1
- (4) 8mm-1.25 x 40mm Long Flanged Hex Bolt: RJ-501108-1
- (4) Steel Spacer: RJ-524100-1
- (2) 3/8 in.-16 x 1 in. Long Flanged Hex Head Bolt: CE-92316A624
- (2) 1/4 in.-20 x 3/8 in. Long Serrated Flanged Hex Bolt: RJ-501204-1
Instruction Manual:
