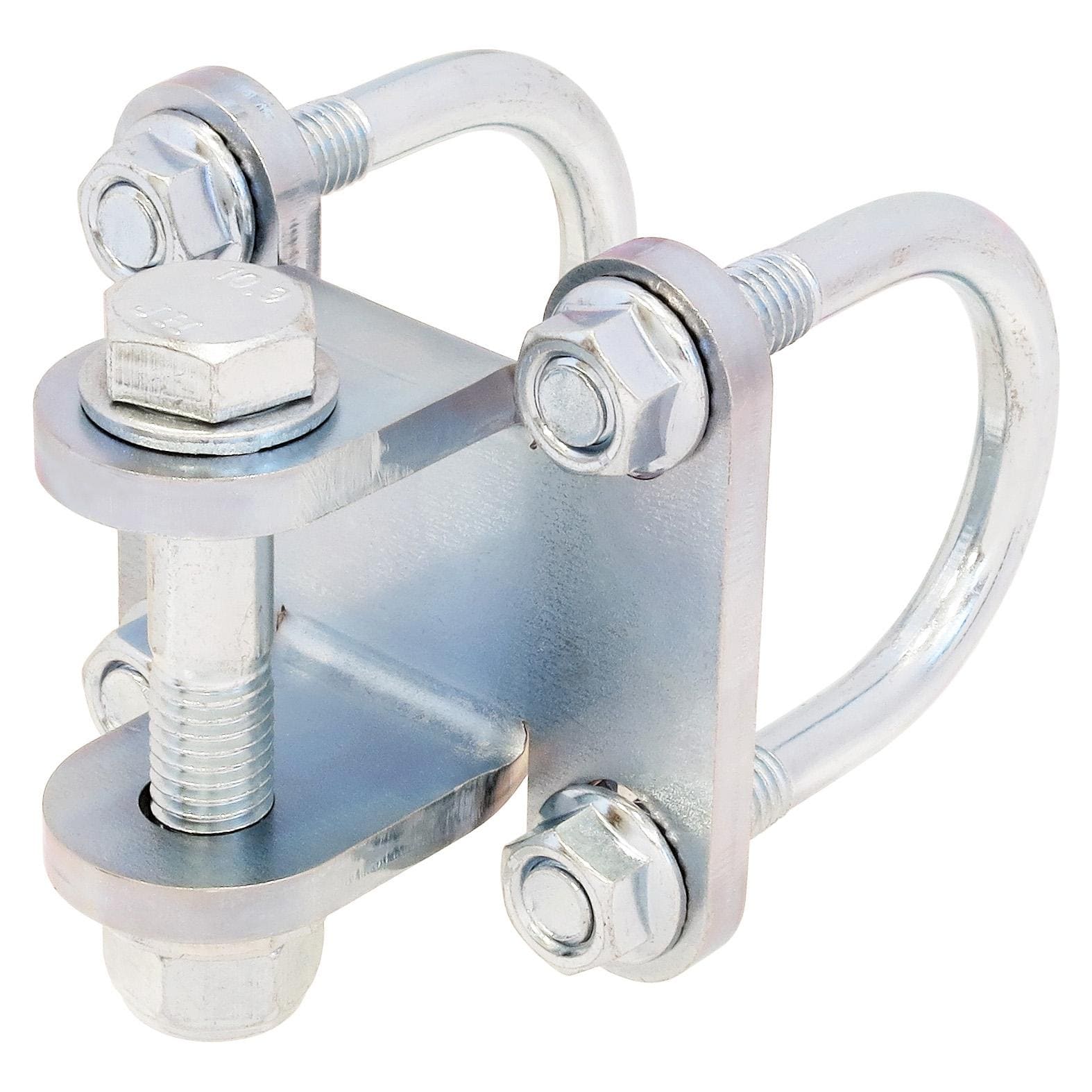

JK-9703SB - Steering Stabilizer Shock Bracket Kit (fits 1 5/8 in. Rod)

SKU JK-9703SB
$70.00
Back

Details

When installing heavy duty steering with larger than stock rods or aftermarket differentials, you’ll likely encounter the need to relocate your steering stabilizer shock, or the need for a new bracket that fits a larger tie rod.
This Steering Stabilizer Shock Relocation Bracket from RockJock should do the trick! Designed to fit common 1 5/8 in./42mm tie rods, this U-bolt style bracket kit is an easy, bolt-on solution for remounting your stabilizer shock to keep your vehicle handling as it should!
Bracket is designed to fit most aftermarket shocks that feature a 1.405 in. mounting width, as well as factory JK and TJ shocks. Does not work with factory JL and JT shocks as the inboard end of those shocks features a 1.5 in. mounting width (see RJ-441108-101 for this same bracket that is compatible with the stock JL and JT shock).


Kit Fits:

  • RockJock Currectlync JL, JT and JK Tie Rods
  • All other 1 5/8 in./40-42mm tube size Tie Rods
  • JK Wrangler and Unlimited Factory Stabilizer Shock
  • TJ Wrangler and Unlimited (LJ) Factory Stabilizer Shock
  • All other traditional width spec. stabilizer shocks w/ 1.405 in. mounting width

Kit Includes:

  • Laser cut and formed 1/4 in. steel bracket
  • All required hardware and step-by-step instructions

Kit Features:

  • Laser cut and formed 1/4 in. steel bracket
  • Clear zinc plate finish
  • 2-year warranty

Notes:

  • Fits 1 5/8 in./40-42 mm tie rods only!
  • Bracket accepts 1.405 in. wide (common, standard) mounting width shocks.
  • Does not work with factory JL and JT shocks. See our RJ-441105-101 or RJ-441108-101 bracket kit offerings.
  • In JL and JT applications, usage of this bracket will require you to relocate the other end of the stabilizer shock as well.
  • If you are using this bracket on a JL or JT, you will need our RJ-441102-101 bracket kit for the other end of the shock.
  • For use with traditional style stabilizer shocks only – not for use with ram assist!
  • This is the bracket that is included in our JK-9703 JK Currectlync Modular Extreme Duty Steering System

Instruction Manual:
