JK-9703C - Currectlync Modular Extreme Steering Cartridge (JK Taper)

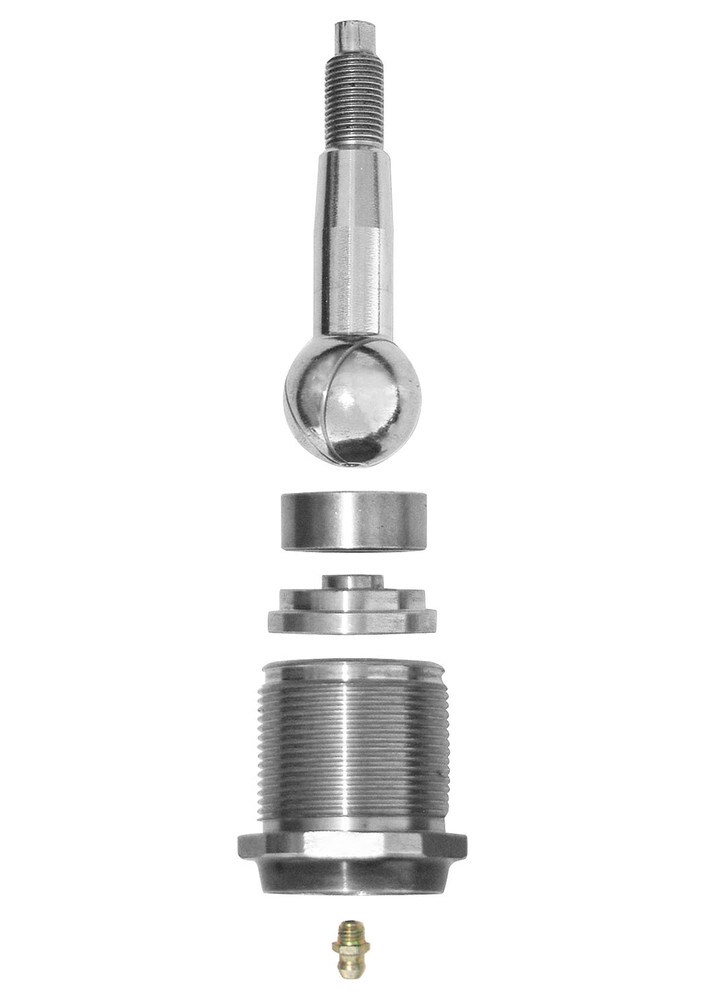

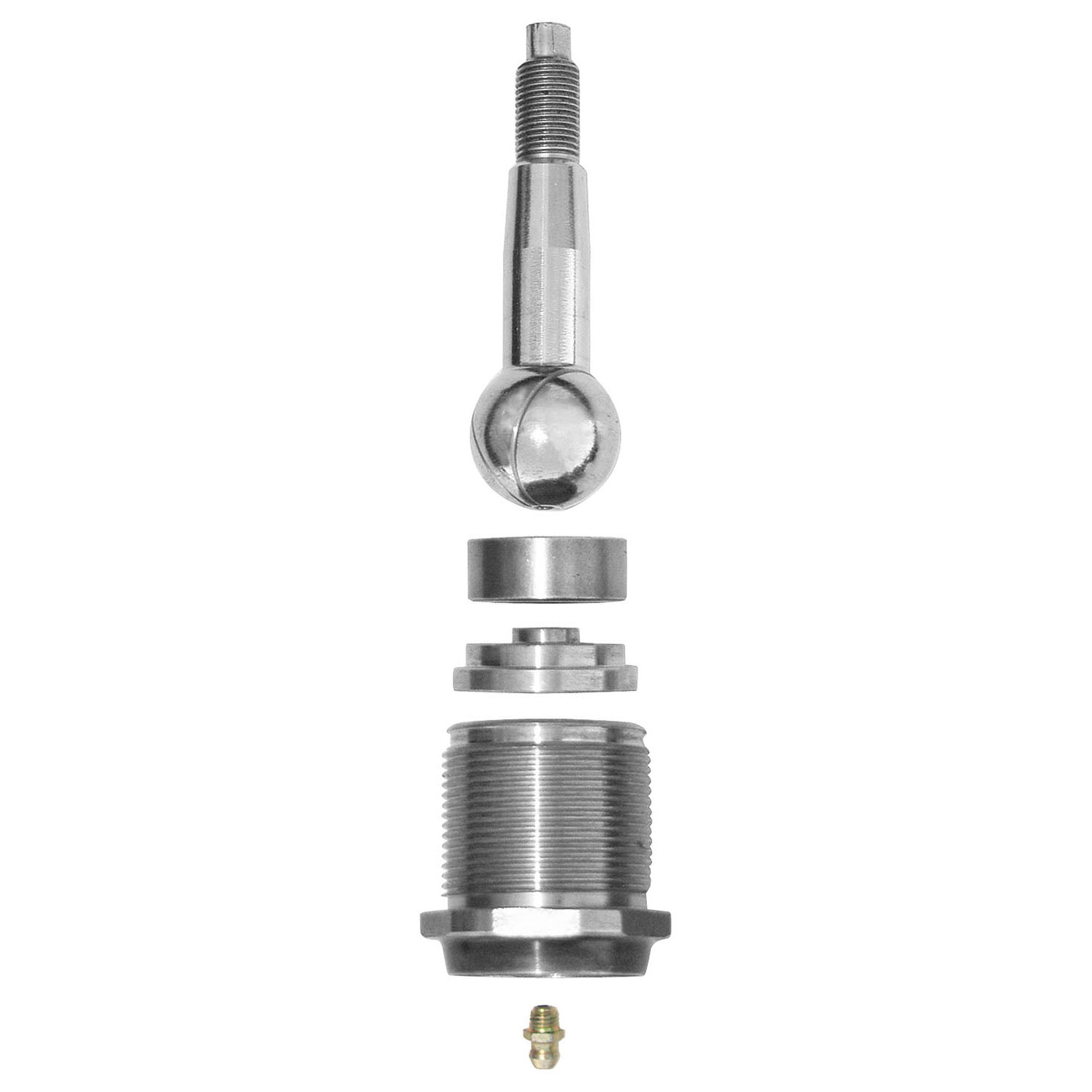

RockJock's Modular Extreme Duty JK Rod End Cartridge features a tapered pin that installs into the tapered tie rod and drag link holes of JK Wrangler and Unlimited vehicles (only).
This cartridge is used in conjunction with our various Modular Extreme Duty rod end forgings.

Kit Fits:

• Universal Application
• JK Wrangler Unlimited (4-door) - All Models (with factory tapers at all 4 steering attachment points)
• JK Wrangler (2-door) - All Models (with factory tapers at all 4 steering attachment points)

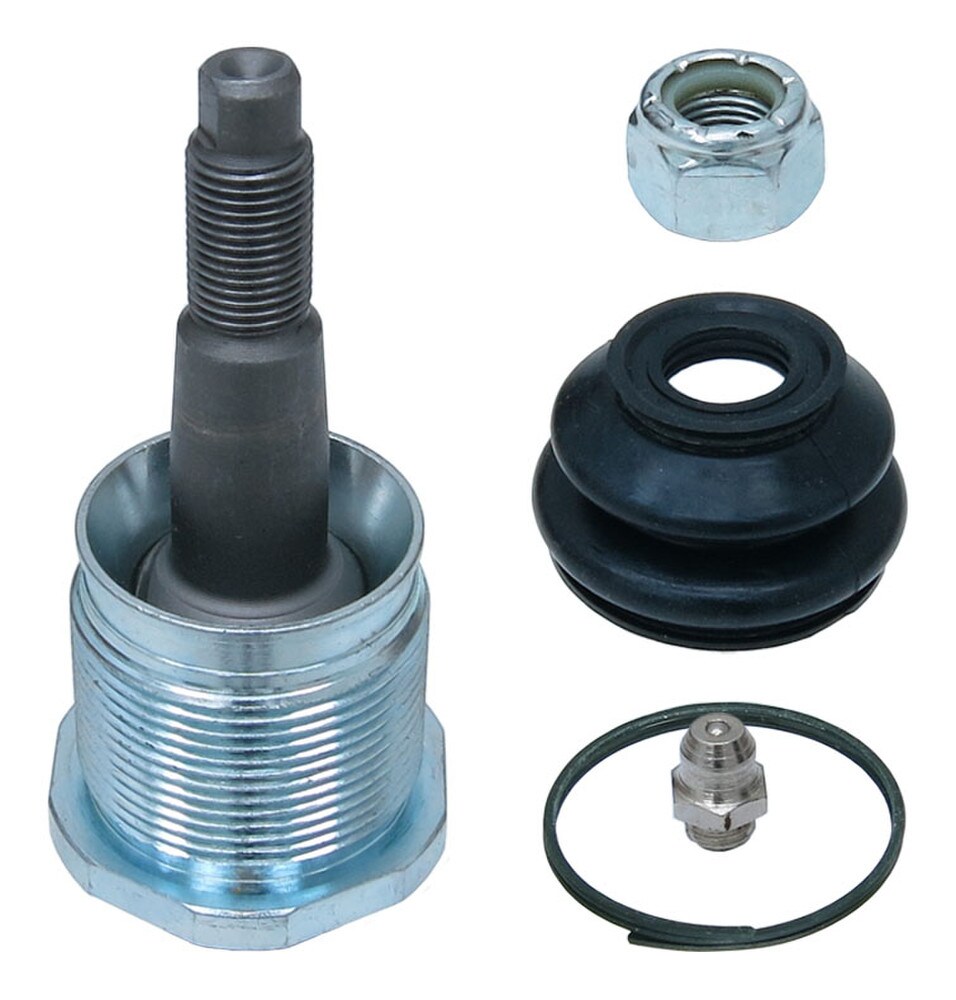

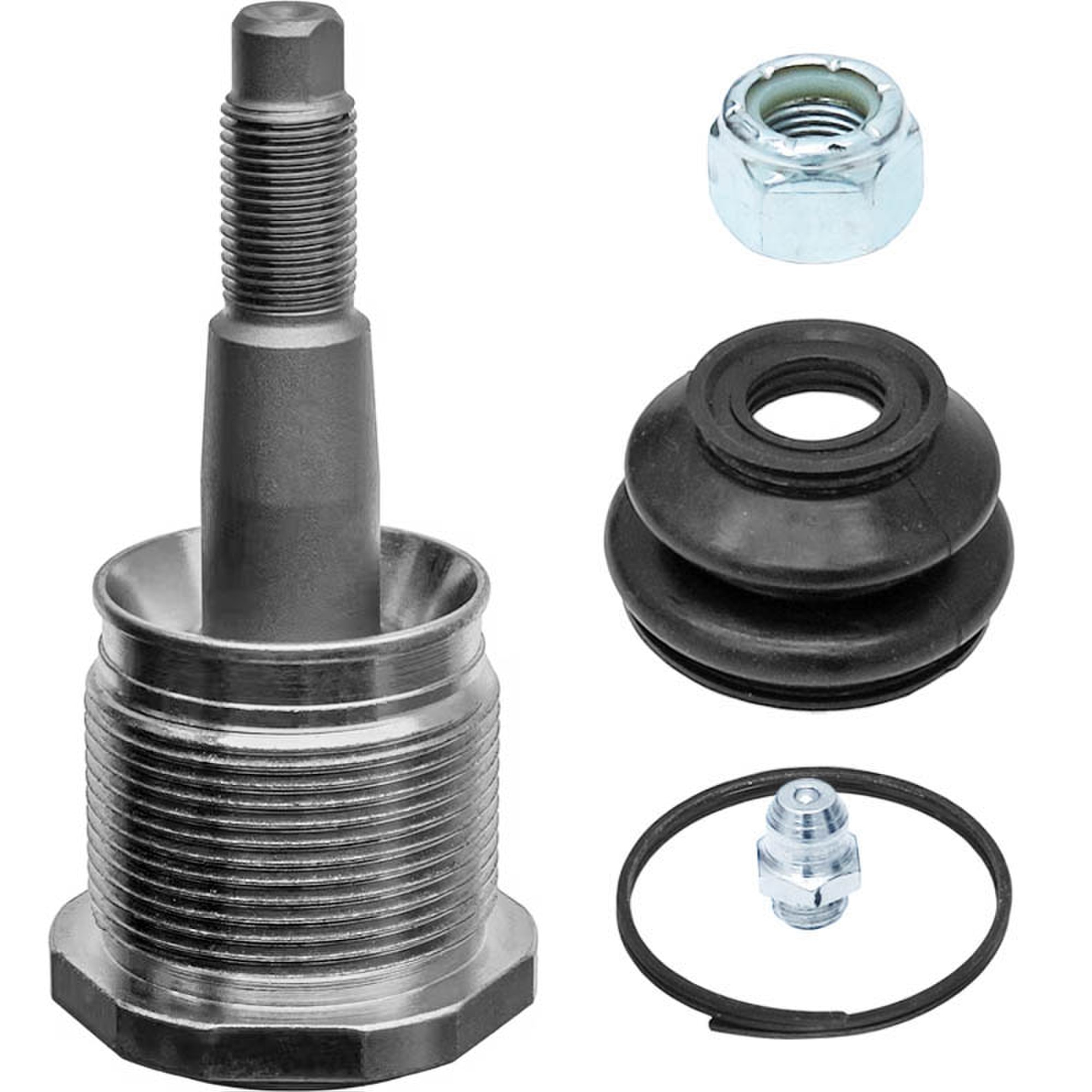

Kit Includes:

• (1) Rod End Cartridge

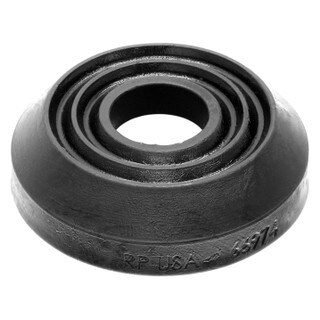

• (1) Articulating Style Boot
• (1) Boot Retaining Ring
• (1) 9/16 in.-18 Thread Nyloc Nut
• (1) Zerk Fitting

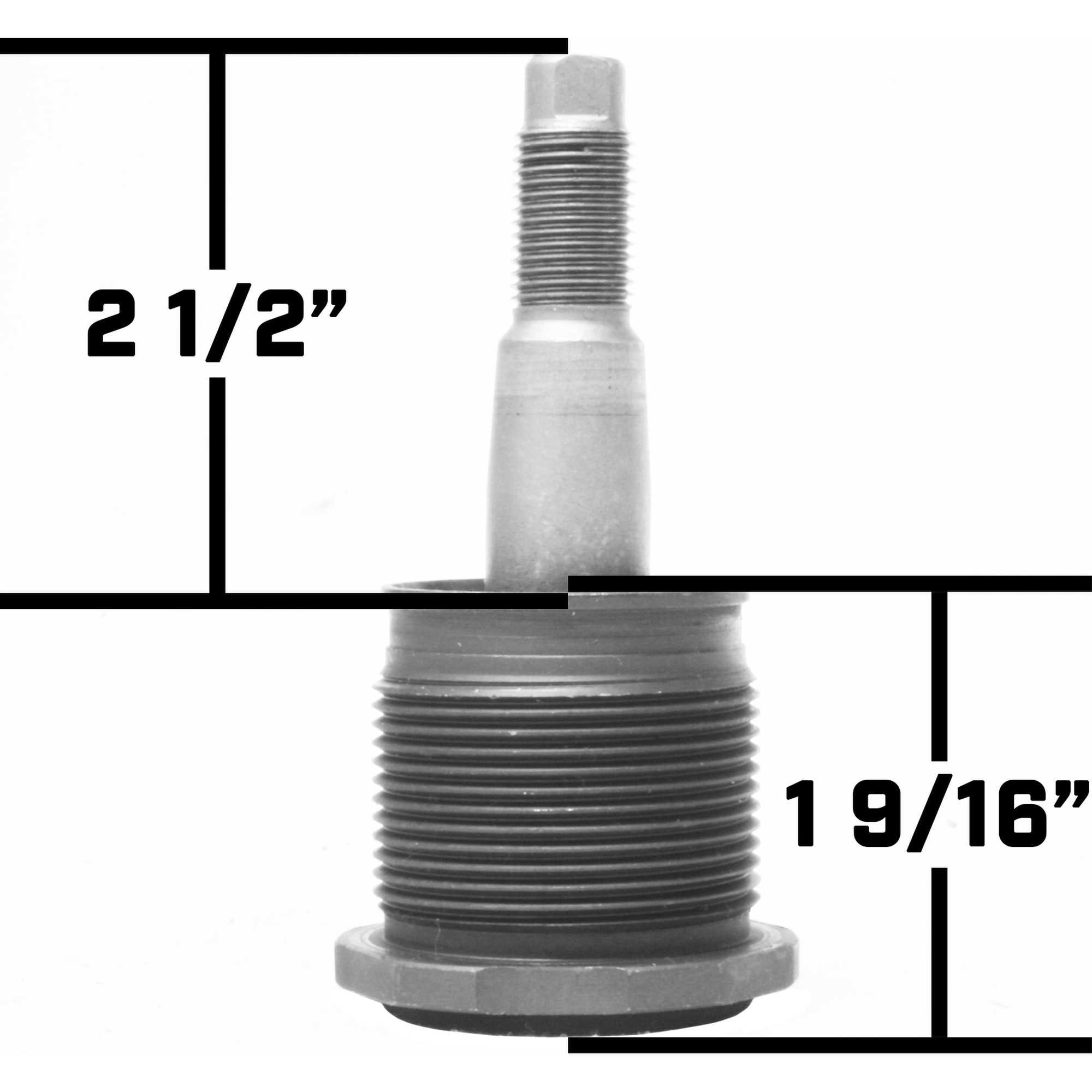

Cartridge Specs.:

• Taper = factory JK knuckle and pitman arm taper (only)
• Thread on the body = 1 3/4 in.-12
• Thread on the stud = 9/16 in.-18
• Hex Size (on the body) = 2 in.
• Installation Torque = 250 ft. lbs.

Notes:

• Taper fits all 4 tapers on JK vehicles (knuckles and pitman arm) only
• Requires the use of our JK-9703W wrench or a 2 in. socket for removal or installation
• May be installed into the rod end forgings from from the top or the bottom
