CE-9701TR - TJ/LJ/XJ/MJ/ZJ Currectlync Tie Rod (Complete)

SKU CE-9701TR
$352.00
Back

Details

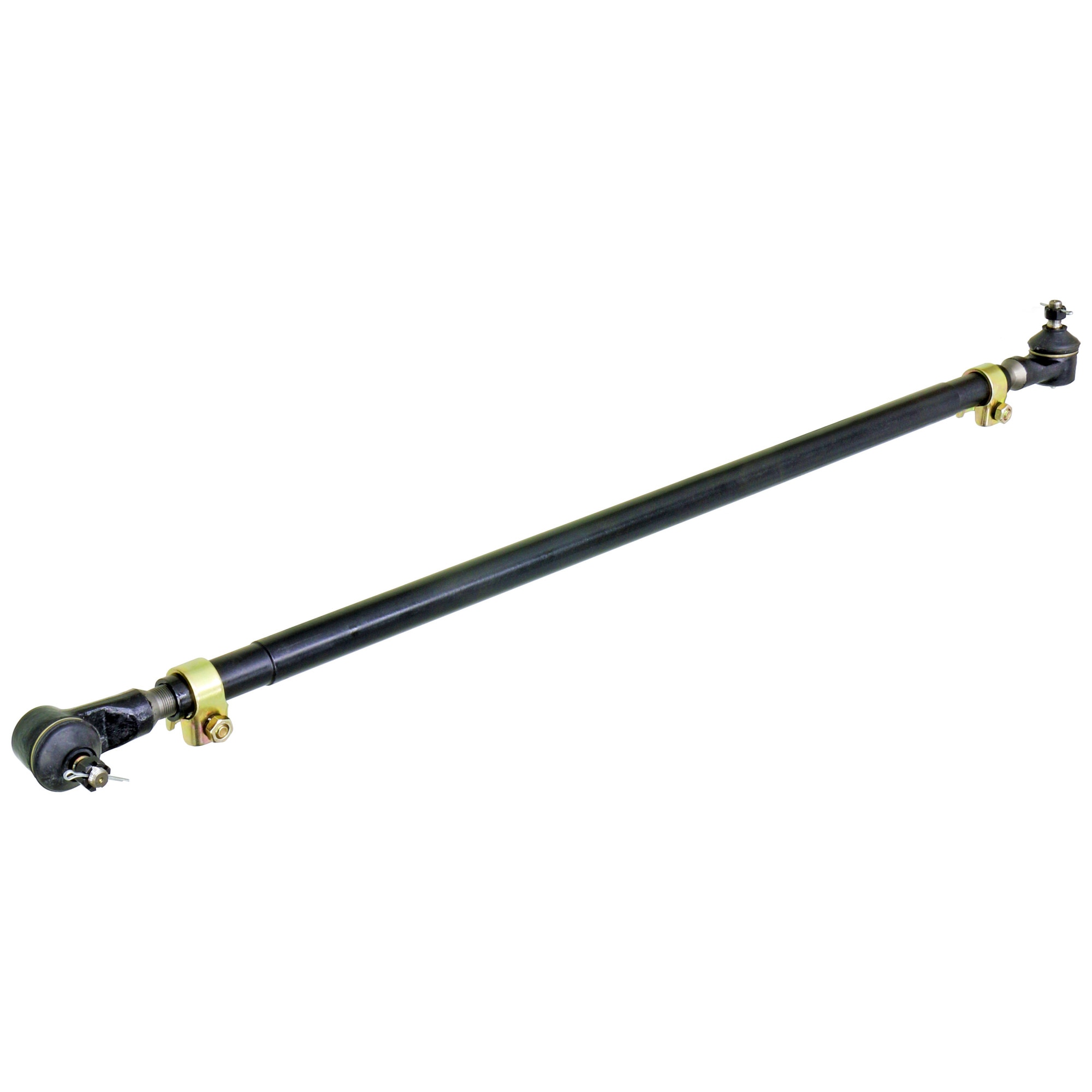

Have you seen the size of the Tie Rod on your TJ, LJ, XJ, MJ or ZJ? Big tires and aggressive usage of your vehicle will cause the factory steering components to bend or break. For those who get out in the dirt and rocks, RockJock's Currectlync Steering System is must-have! Being pro-active, so you don't get stranded in the wilderness is the smart thing to do for your family's safety.
RockJock's Tie Rod is rated at 200 percent stronger than the stock components! Features include a solid alloy steel 1 1/4 in. diameter Tie Rod bar, larger forged 22mm thread, greasable tie rod ends that feature the vehicle’s stock taper on the pins for an easy install with no modifications to the vehicle necessary, heavy duty clamps and it's painted black, so it's ready for install right out of the box!
This Tie Rod is sold as a replacement part for an existing RockJock Currectlync Tie Rod – this component is NOT compatible with stock components!


Kit Fits:

  • TJ Wrangler - All Models (equipped with RockJock’s Currectlync Steering)
  • TJ Wrangler Unlimited (LJ) - All Models (equipped with RockJock’s Currectlync Steering)
  • XJ Cherokee - All Models (equipped with RockJock’s Currectlync Steering)
  • MJ Comanche - All Models (equipped with RockJock’s Currectlync Steering)
  • ZJ Grand Cherokee - All Models (equipped with RockJock’s Currectlync Steering)

Kit Includes:

  • (1) Tie Rod Bar
  • (1) Tie Rod Rod End – RH Thread
  • (1) Tie Rod Rod End – LH Thread
  • (2) Pinch Clamps

Fitment Specs.:

  • For use on factory Dana 30 and Dana 44 differentials – or aftermarket axles that retain the factory outer steering knuckles.
  • Rod end tapers are designed to fit the vehicles stock, original taper for ease of installation. If your tapers have been enlarged or drilled out – this will no longer be a bolt-on piece.

Component Specs.:

  • Tie Rod = 1 1/4 in. dia. solid alloy steel
  • Tie Rod Ends = 22mm x 1.5 RH/LH threads, forged steel
  • Pinch Clamps = oversized heavy duty steel

Notes:

  • Sold as a replacement part for an existing RockJock Currectlync Tie Rod – this component is NOT compatible with stock components!
  • You must grease rod ends via their zerk fittings before use. Familiarize yourself with the greasing instructions before greasing!
  • Grease unit with non-synthetic, hi-moly lube grease, such as our CE-9013G
  • Finish is gloss black paint.

Instruction Manual:


Parts List:
