CE-9701TRR - TJ/LJ/XJ/MJ/ZJ Currectlync Tie Rod End (RH)

SKU CE-9701TRR
$94.00
Back

Details

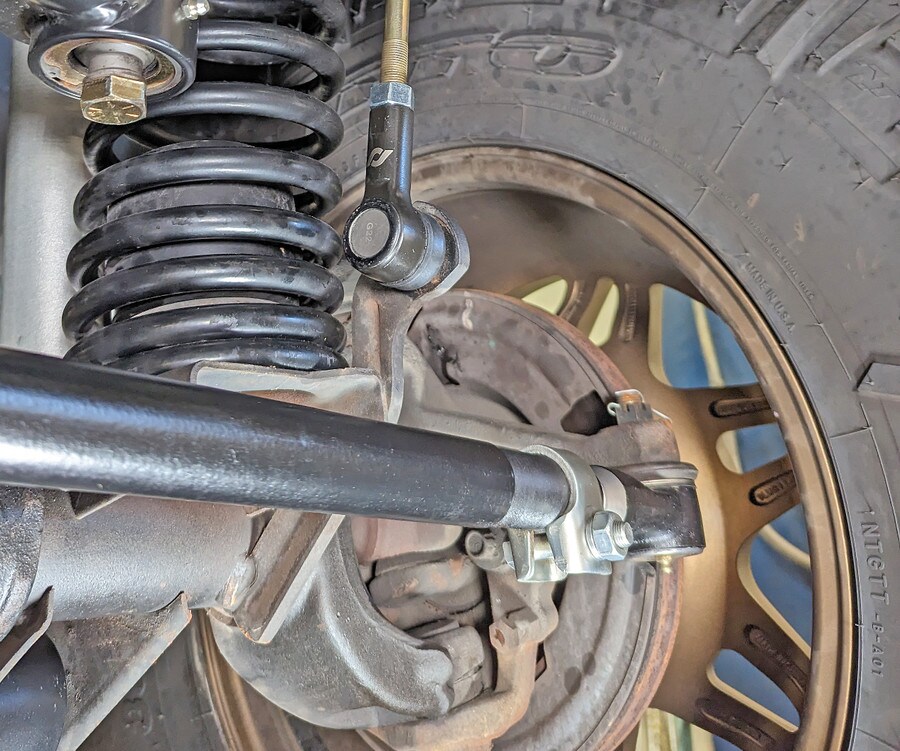

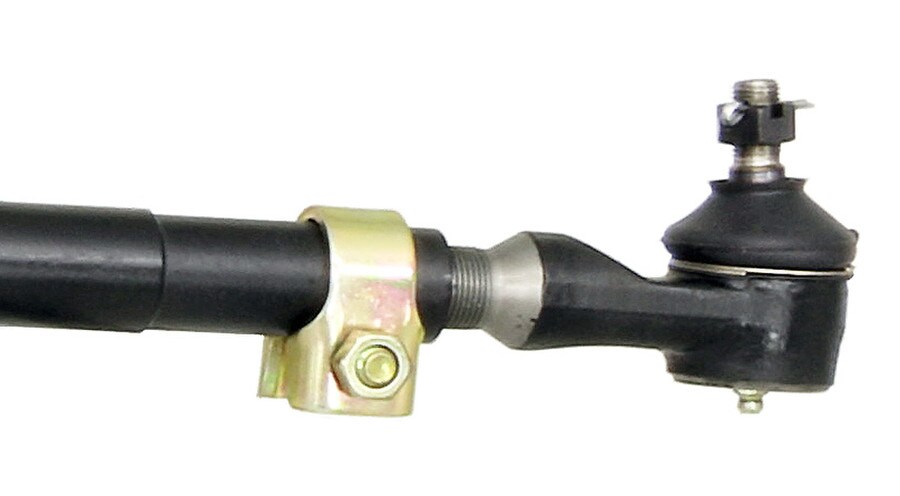

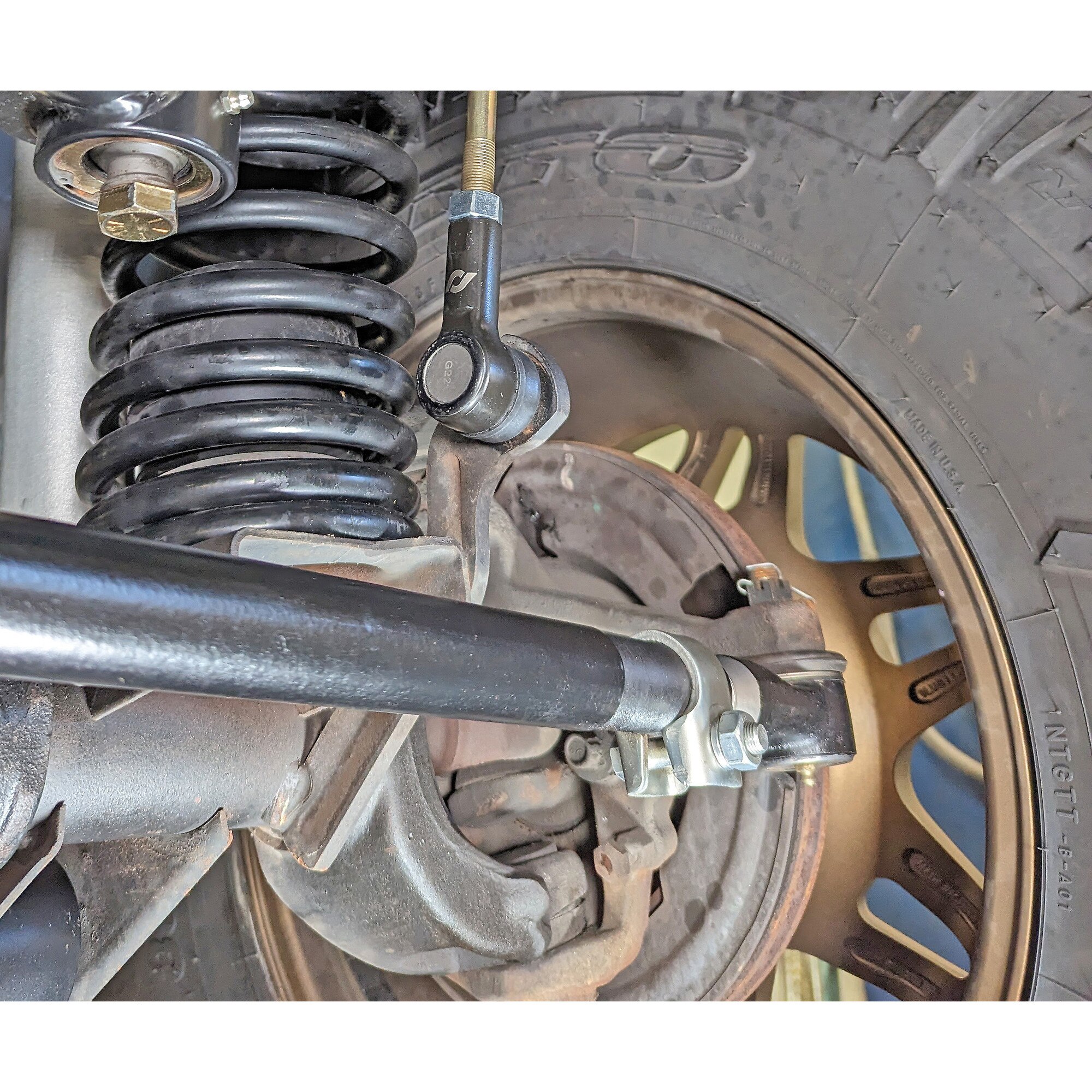

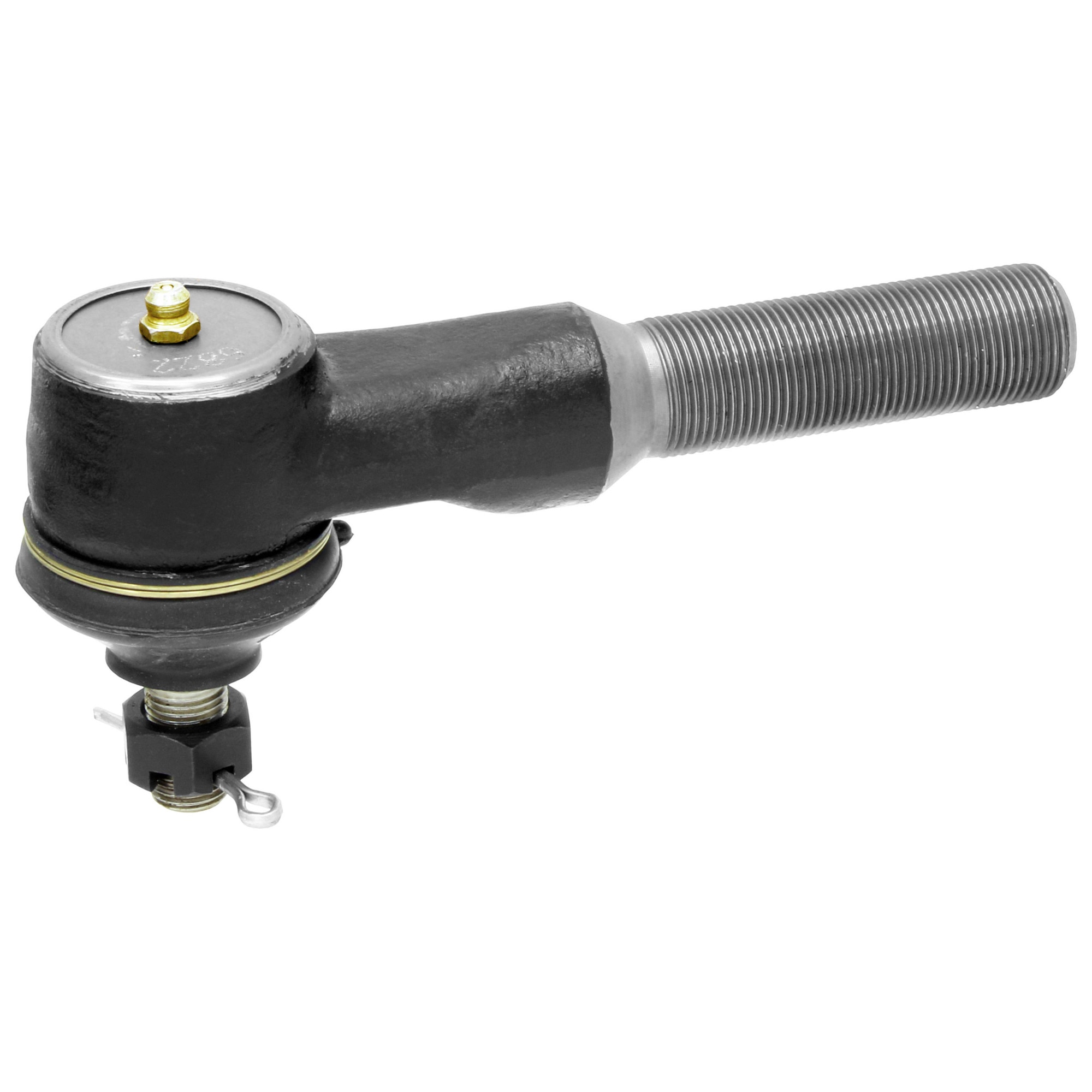

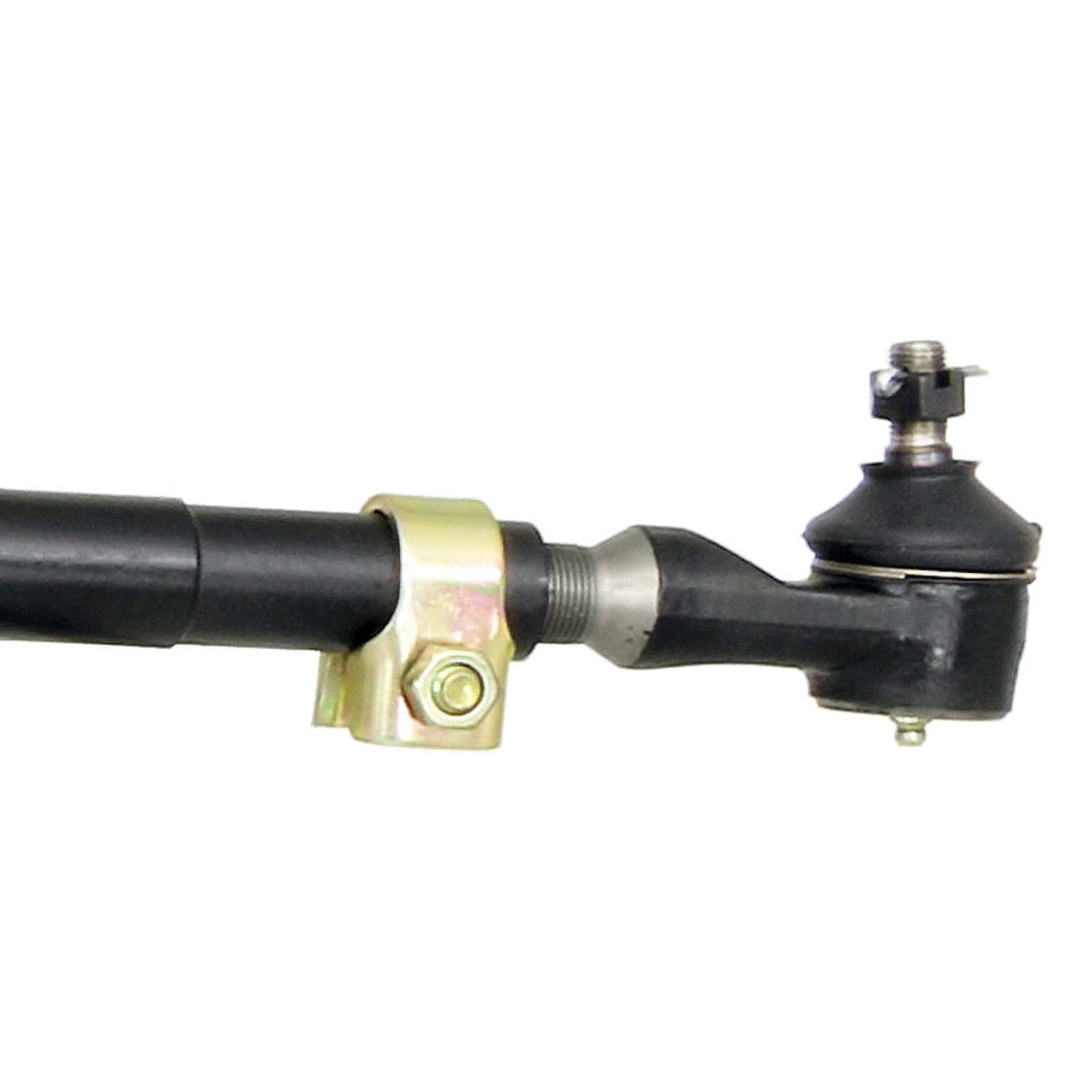

This RockJock Currectlync Tie Rod End for our TJ, LJ, XJ, MJ and ZJ steering system features Forged steel construction, an articulating tapered pin that installs into the vehicle’s driver’s side steering knuckle and it’s 22mm-1.5 RH threads thread into our CE-9701TRN Tie Rod Bar.
This Tie Rod End is sold as a replacement part for an existing RockJock Currectlync Tie Rod End – this component is NOT compatible with stock components!

Kit Fits:

  • TJ Wrangler - All Models (equipped with RockJock’s Currectlync Steering)
  • TJ Wrangler Unlimited (LJ) - All Models (equipped with RockJock’s Currectlync Steering)
  • XJ Cherokee - All Models (equipped with RockJock’s Currectlync Steering)
  • MJ Comanche - All Models (equipped with RockJock’s Currectlync Steering)
  • ZJ Grand Cherokee - All Models (equipped with RockJock’s Currectlync Steering)

Kit Includes:

  • (1) Tie Rod End – RH Thread

Fitment Specs.:

  • For use on factory Dana 30 and Dana 44 differentials – or aftermarket axles that retain the factory outer steering knuckles
  • Rod end tapers are designed to fit the vehicles stock, original taper for ease of installation. If your tapers have been enlarged or drilled out – this will no longer be a bolt-on piece.

Rod End Specs.:

  • 22mm-1.5-18 RH Threads
  • Threads are 2.638 in. Long

Notes:

  • For use as a replacement part for RockJock Currectlync Steering Systems only – NOT compatible with stock steering components.
  • This end features the zerk on the cap and installs into the driver’s side knuckle ONLY.
  • You must grease rod ends via their zerk fittings before use. Familiarize yourself with the greasing instructions before greasing!
  • Grease unit with non-synthetic, hi-moly lube grease, such as our CE-9013G
  • Finish is gloss black paint.
