CE-9112SP - 2" Johnny Joint®, Forged, 3/4" RH Thread (2.000" x .4375" Ball)

Previous productCE-9112S - 2" Johnny Joint®...
Next productCE-9112SP-11 - 2" Johnny Jo...
2" Johnny Joint®, Forged, 3/4" RH Thread (2.000" x .4375" Ball)
SKU: CE-9112SP
$58.00
PROP 65 WARNING:

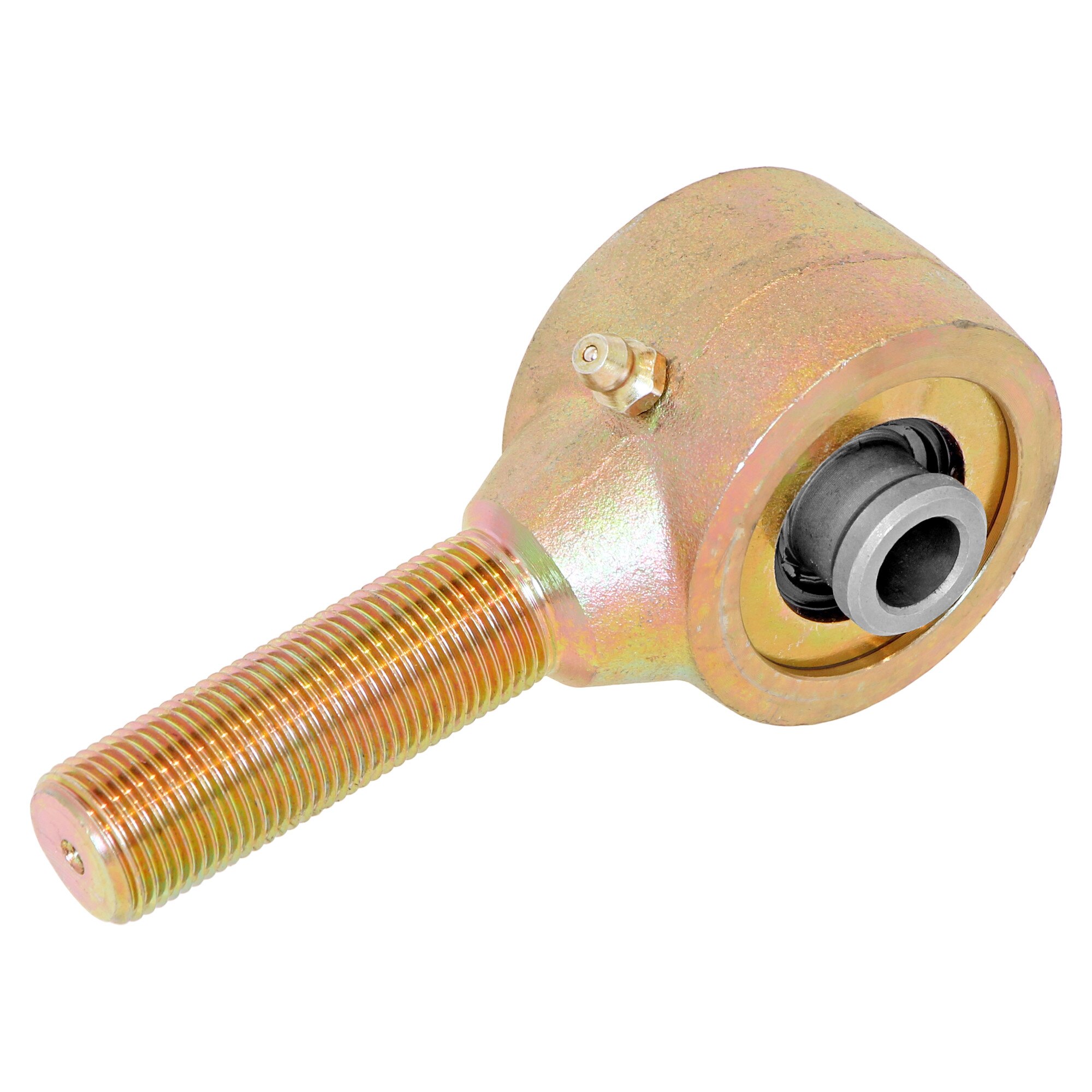

This forged 2" Johnny Joint® rod end from RockJock features a 7/16" thru bolt hole, a 2" mounting width, 2 1/4" of 3/4"-16 right hand threads on the shank and is greasable through the outer shell. Finished in gold zinc plating.

This forged 2" Johnny Joint® rod end from RockJock features a 7/16" thru bolt hole, a 2" mounting width, 2 1/4" of 3/4"-16 right hand threads on the shank and is greasable through the outer shell. Finished in gold zinc plating.

Products specifications
Body Type Forged Steel (Threaded)
Body Series 2.0 inch OD, Standard Body
Body Width 1.450 inches
Thread Size 3/4 inch, 16 TPI
Thread Direction Right hand
Shank Length 2 1/4 inch
Mount Width 2.000 inches
Hole Diameter .4375 inch (7/16)
Misalignment 32° Total
Lubrication Method External zerk fitting located on joint body
Body Finish Yellow zinc plating
Products specifications
Body Type Forged Steel (Threaded)
Body Series 2.0 inch OD, Standard Body
Body Width 1.450 inches
Thread Size 3/4 inch, 16 TPI
Thread Direction Right hand
Shank Length 2 1/4 inch
Mount Width 2.000 inches
Hole Diameter .4375 inch (7/16)
Misalignment 32° Total
Lubrication Method External zerk fitting located on joint body
Body Finish Yellow zinc plating
Related Products
Picture of CE-9112SPL - 2" Johnny Joint®, Forged, 3/4" LH Thread (2.000" x .4375" Ball)

CE-9112SPL - 2" Johnny Joint®, Forged, 3/4" LH Thread (2.000" x .4375" Ball)

CE-9112SPL
$58.00
2" Johnny Joint®, Forged, 3/4" LH Thread (2.000" x .4375" Ball)
Picture of CE-91127 - 7/16" Greasable Bolt w/ Hardware

CE-91127 - 7/16" Greasable Bolt w/ Hardware

CE-91127
$12.00
7/16" Greasable Bolt w/ Hardware
Picture of CE-9112 - 2" Johnny Joint® Rod End w/ Greasable Bolt (2" x .4375" Ball)

CE-9112 - 2" Johnny Joint® Rod End w/ Greasable Bolt (2" x .4375" Ball)

CE-9112
$55.00
2" Johnny Joint® Rod End w/ Greasable Bolt (2" x .4375" Ball)
Picture of CE-91122 - 2" Johnny Joint® Ball Center (2" x .4375" Hole - Cross-Drilled)

CE-91122 - 2" Johnny Joint® Ball Center (2" x .4375" Hole - Cross-Drilled)

CE-91122
$26.00
2" Johnny Joint® Ball Center (2" x .4375" Hole - Cross-Drilled)

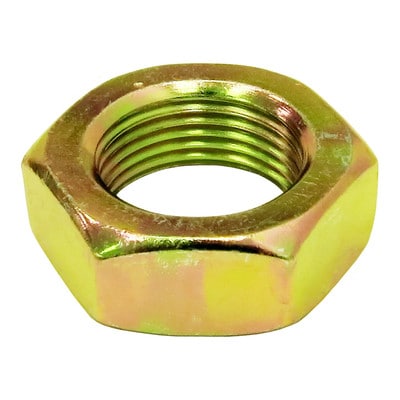

Picture of CE-9112JN - 3/4"-16 Jam Nut (RH)

CE-9112JN - 3/4"-16 Jam Nut (RH)

CE-9112JN
$2.29
3/4"-16 Jam Nut (RH)
Picture of CE-91107Z - 1/4"-28 Zerk Fitting

CE-91107Z - 1/4"-28 Zerk Fitting

CE-91107Z
$1.99
1/4"-28 Zerk Fitting
Picture of CE-91125 - 2" Johnny Joint® Snap Ring

CE-91125 - 2" Johnny Joint® Snap Ring

CE-91125
$1.89
2" Johnny Joint® Snap Ring
Customers Also Purchased
CE-9114

CE-9114 - 2 1/2" Johnny Joint®, Forged, 1 1/4" RH Thread (2.625" x .5625" Ball)

CE-9114
$58.00
2 1/2" Johnny Joint®, Forged, 1 1/4" RH Thread (2.625" x .5625" Ball)
Picture of CE-9112JN - 3/4"-16 Jam Nut (RH)

CE-9112JN - 3/4"-16 Jam Nut (RH)

CE-9112JN
$2.29
3/4"-16 Jam Nut (RH)
Picture of CE-9112LJN - 3/4"-16 Jam Nut (LH)

CE-9112LJN - 3/4"-16 Jam Nut (LH)

CE-9112LJN
$2.29
3/4"-16 Jam Nut (LH)
Picture of CE-91127 - 7/16" Greasable Bolt w/ Hardware

CE-91127 - 7/16" Greasable Bolt w/ Hardware

CE-91127
$12.00
7/16" Greasable Bolt w/ Hardware
Picture of CE-9114L - 2 1/2" Johnny Joint®, Forged, 1 1/4" LH Thread (2.625" x .5625" Ball)

CE-9114L - 2 1/2" Johnny Joint®, Forged, 1 1/4" LH Thread (2.625" x .5625" Ball)

CE-9114L
$58.00
2 1/2" Johnny Joint®, Forged, 1 1/4" LH Thread (2.625" x .5625" Ball)

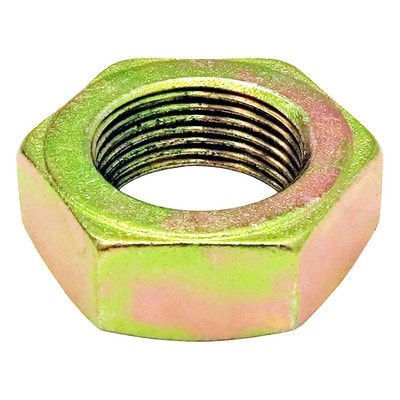

Picture of CE-9114JN - 1 1/4"-12 RH Jam Nut
