RJ-202001-103 - Antirock Sway Bar Forged Chromoly Arms (15 in., 2.5 in. offset)

SKU: RJ-202001-103
$230.00

In Stock

Current Stock: 43

Details

Details

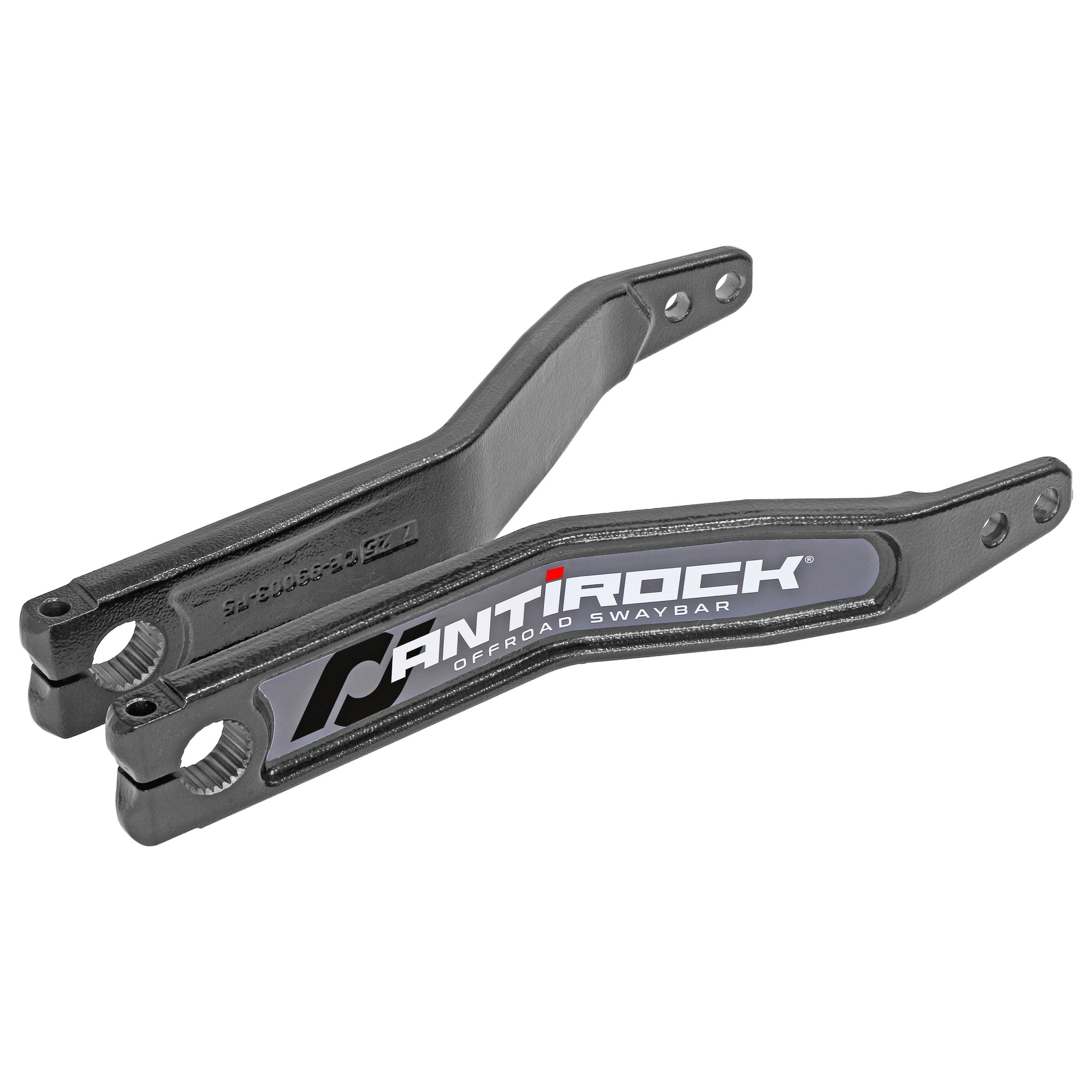

For those looking for maximum strength and cool factor for their off-road or rock crawling rig, RockJock’s Forged 4140 Chromoly Antirock Sway Bar Arms have got you covered!
Available in various lengths and shapes to suite different builds and applications, the forged I-beam construction provides dramatic strength and rigidity.
These specific arms are 15 in. long from tip to tip, 3/4 in. thick and feature a 2 1/2 in. offset bend to provide clearance in applications where it’s needed. At the arm mounting end, you’ll find our standard 25 spline that fits all common Antirock torsion bars as well as the vertical pinch bolt hole for attaching the arm to the bar.
At the end link mounting end, the arm forging trims down to 3/8 in. thick and you’ll find three 1/2 in. Sway Bar End Link mounting holes that allow you to adjust end link mounting position to increase or decrease leverage on the torsion bar.
Arms are sold as a pair only, are finished in a textured gloss black powder coat and include stickers.


Arms Fit:


Kit Includes:

  • (1)  Pair of 15 in. long Forged Antirock Sway Bar Arms
  • (1)  Pair of Sway Bar Arm Stickers

Component Specs.:

  • Overall length  =  14.65 in. (measured on a flat plane)
  • Material  =  4140 chromoly, forged
  • Thickness  =  3/4 in. (3/8 in. at the tip where end links mount)
  • Offset  =  2 1/2 in.
  • Spline count  =  25
  • Center of splined hole to center of nearest 1/2 in. hole  =  11.75 in.
  • Center of splined hole to center of farthest 1/2 in. hole  =  12.75 in.
  • Weight  =  7 lbs. (for the pair)

Notes:

  • These arms are found in many of our bolt-in Antirock Sway Bar Kits for JL/JT, JK, TJ/LJ and G6 Bronco vehicles.
  • Arms may be used in conjunction with our RJ-201000-101 Double Sheer End Link Bracket Kit. This bracket kit adds 1 1/2 in. in arm length and the ability to offset the end link up to 1 1/4 in.
  • See CE-99005A for sway bar arm hardware kit.
