RJ-527001-101 - Antirock Sway Bar End Link Hardware Pack (JL/JT Front)
Details

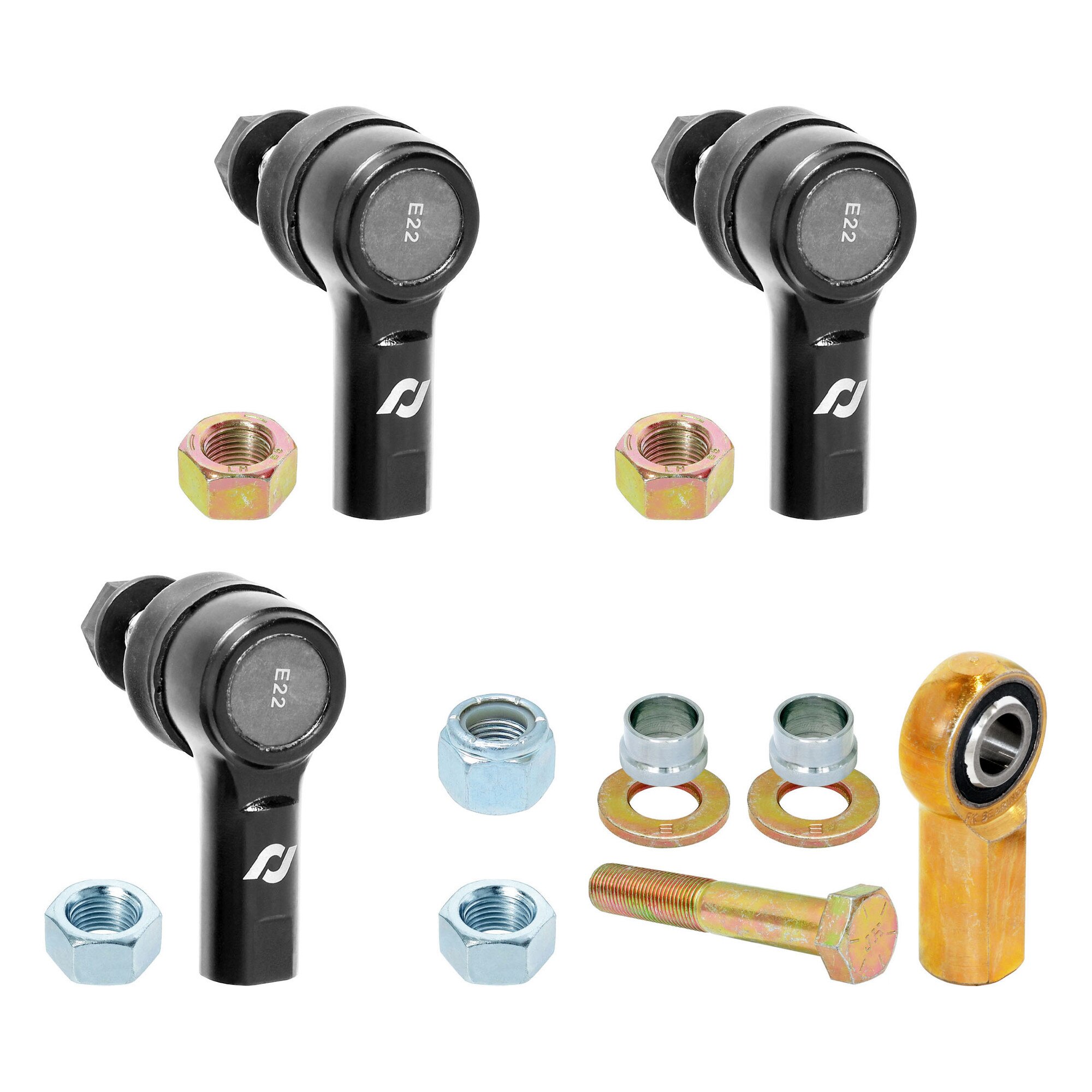

Antirock Sway Bar End Link Hardware Pack for JL and JT front Antirock kits (only) includes 2 left hand thread sealed rod ends with locking nuts, 1 right hand thread sealed rod end with locking nut, 1 right hand thread thru-bolt heim joint for the lower passenger's side, 2 right hand and 2 left hand jam nuts and all hardware to attach the thru-bolt heim to the axle housing.
Component Specs.:
- Sealed Rod End Female Threads = 1/2 in.-20 RH/LH
- Sealed Rod End Stud Threads = 12mm-1.75 RH
- Heim Joint Female Threads = 1/2 in.-20 RH
- Heim Joint Thru-Hole = 1/2 in. ID
- Misalignment Spacer = .515 in. ID x .690 in. OD x .427 in. tall
- Jam Nut Threads = 1/2 in.-20 RH/LH
Notes:
- Threaded stud length: = 1in. (making the sealed ends incompatible with 3/4 in. thick aluminum Antirock arms)
- Wrench flat: = 18mm wrench on sealed ends, 19mm wrench on heim joint
Parts List:
- Sealed Rod End (RH thread): RJ-527000-101
- Sealed Rod End (LH thread): RJ-527000-102
- Thru-Bolt Heim Joint (RH thread): CE-99006B
- 1/2 in.-20 Jam Nut (RH thread): CE-99002JN
- 1/2 in.-20 Jam Nut (LH thread): CE-H0020
- 1/2 in.-20 x 3 in. Long Hex Bolt: CE-91257A751
- 1/2 in. Flat Washer: CE-H0014
- 1/2 in. ID Heim Misalignment Spacer: CE-9900JLFS
- 1/2 in. Nyloc Nut: CE-95615A220
