RJ-527002-101 - Antirock Sway Bar End Link Sealed Rod End Pack
Details

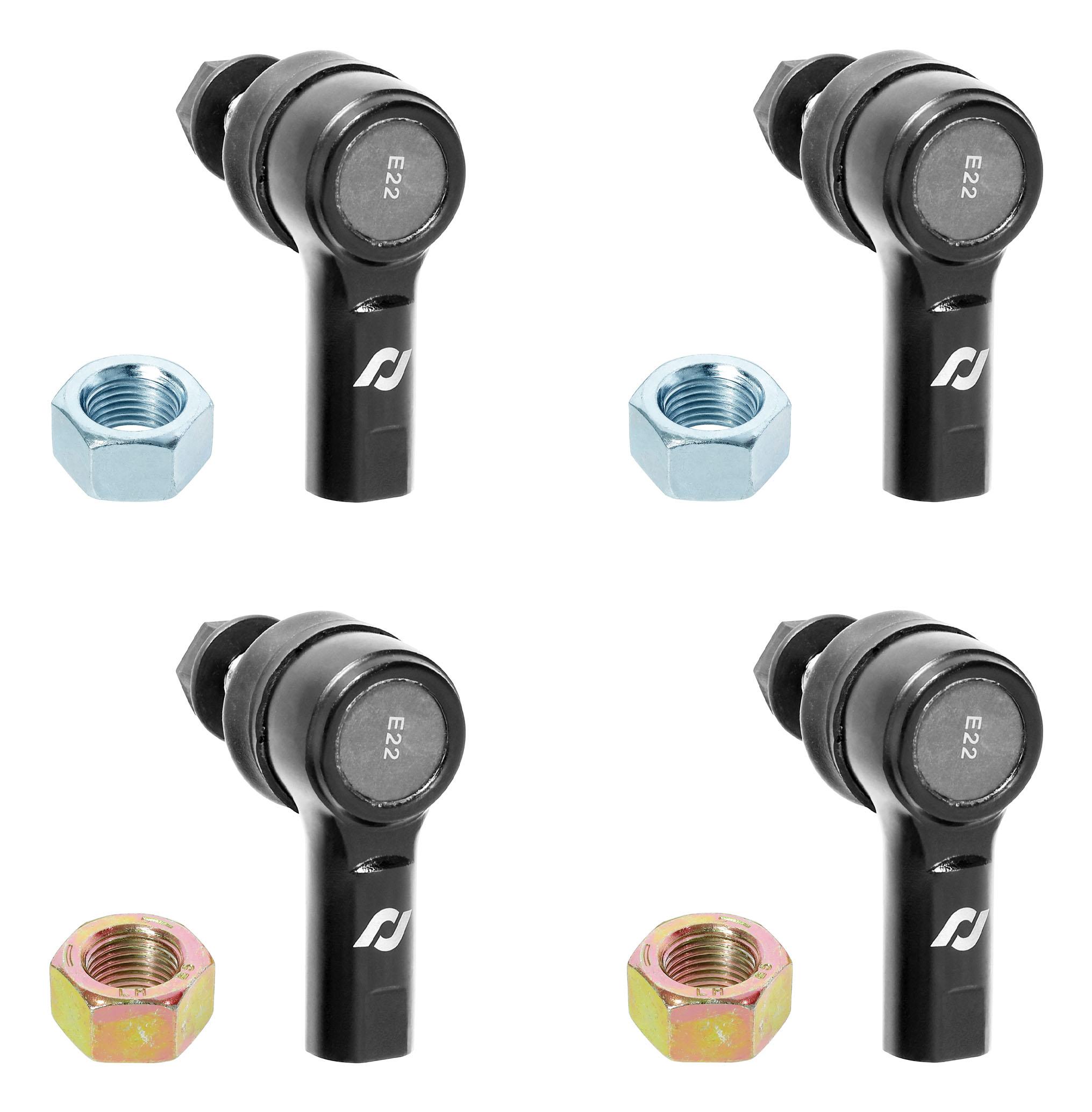

Antirock Sway Bar End Link Hardware Pack includes 2 right and 2 left hand sealed rod ends with locking nuts and 2 right hand and 2 left hand jam nuts.
Component Specs.:
- Rod End Female Threads = 1/2 in.-20 RH/LH
- Rod End Stud Threads = 12mm-1.75 RH
- Jam Nut Threads = 1/2 in.-20 RH/LH
Notes:
- Threaded stud length: = 1in. (making the sealed ends incompatible with 3/4 in. thick aluminum Antirock arms)
- Wrench flat: = 18mm wrench
Parts List:
- Sealed Rod End (RH thread): RJ-527000-101
- Sealed Rod End (LH thread): RJ-527000-102
- 1/2 in.-20 Jam Nut (RH thread): CE-95462A525
- 1/2 in.-20 Jam Nut (LH thread): CE-H0020
