RJ-641100-101 - JL/JT Winch Plate Kit (Steel Bumper)

SKU RJ-641100-101
$295.00
Back

Details

RockJock’s Winch Plate Kit for all factory steel bumper equipped JL Wrangler, JL Unlimited and JT Gladiator models provides a clean solution for mounting your winch, and is also compatible with our CE-9033JLS Tow Kit!
Compatible with common winches and fairleads, this plate mounts the winch low and tight to keep the vehicle’s radiator airway free of obstruction.
This easy to install, completely bolt on kit has you do some minor disassembly of the vehicle, by removing the front bumper. You then install this plate into the frame rails, insert your winch, reinstall the bumper and finish all the details! See the component’s photo gallery as well as it’s instruction manual here for more details!


Kit Fits:

*Fits all listed vehicles below, granted they retain the factory front steel bumper.
  • JL Wrangler Unlimited (4-door) – All Steel Bumper Models
  • JL Wrangler (2-door) – All Steel Bumper Models
  • JT Gladiator – All Steel Bumper Models

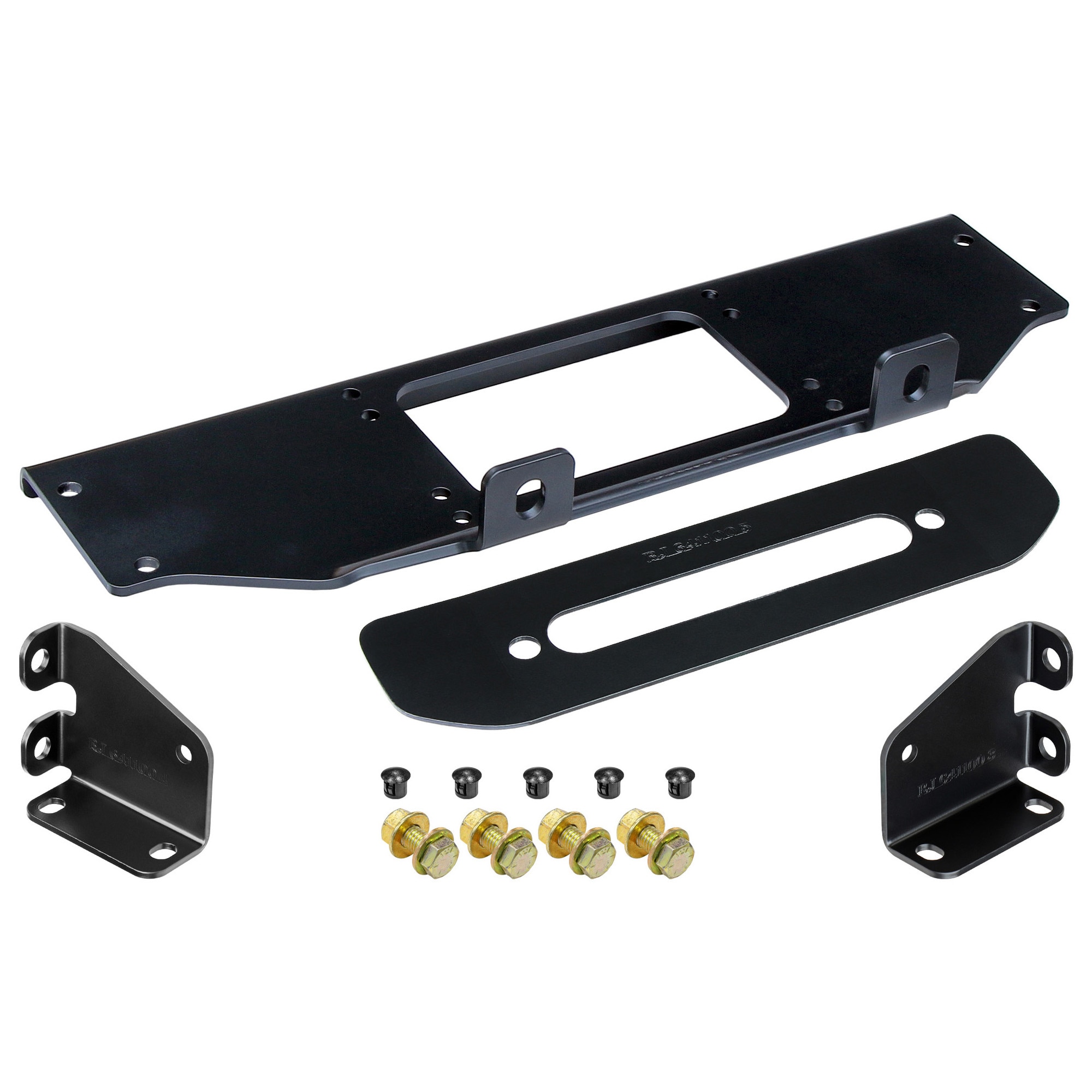

Kit Includes:

  • (1) Winch Mount Base Plate
  • (1) LH Frame Bracket
  • (1) RH Frame Bracket
  • (1) Fairlead Backing Plate
  • All necessary hardware and complete instructions

Fitment Specs.:

  • For use on any factory JL or JT equipped with the factory steel front bumper (see 2024 notes below).
  • Compatible with most popular winches and fairleads on the market

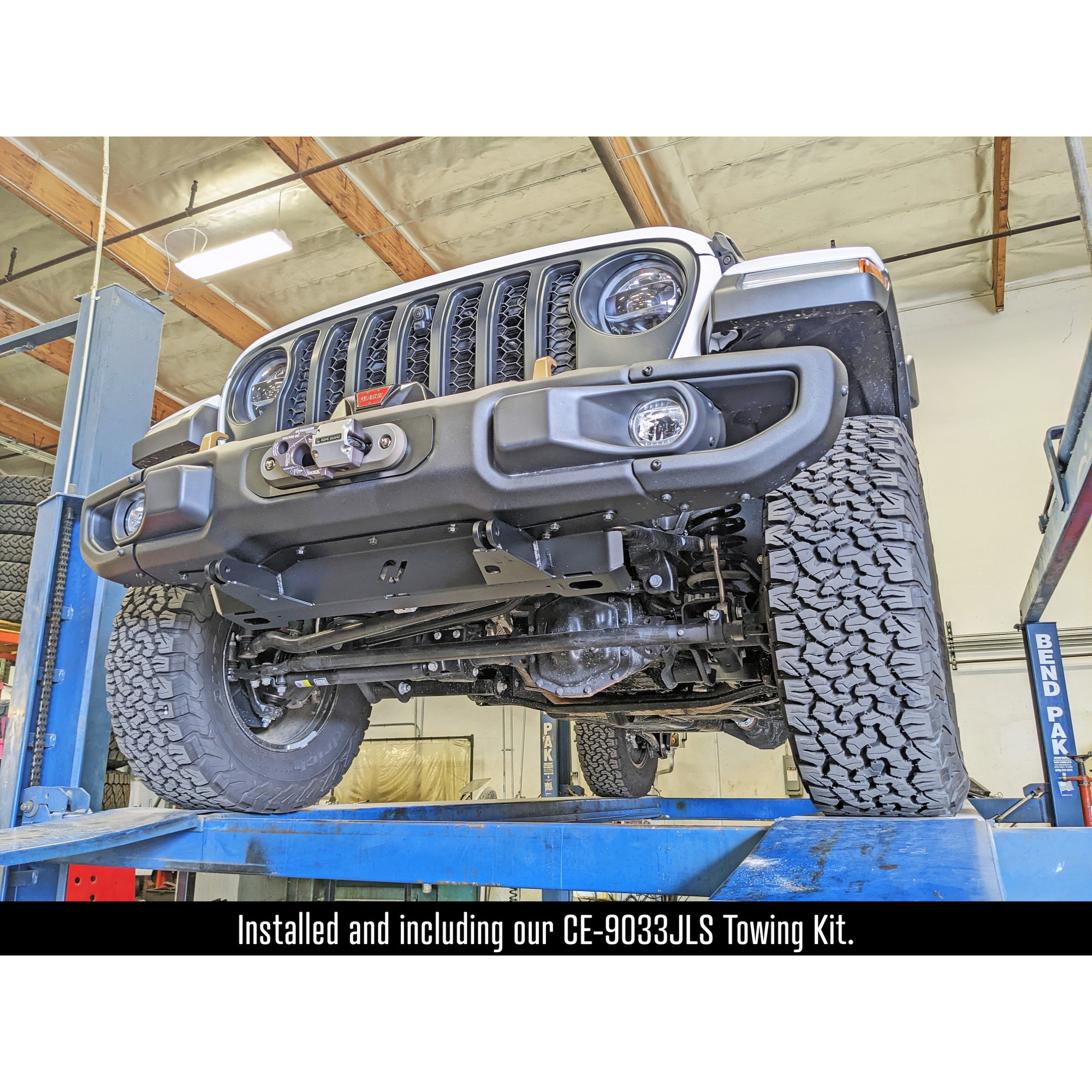

  • Designed to work in conjunction with our CE-9033JLS Towing Kit.

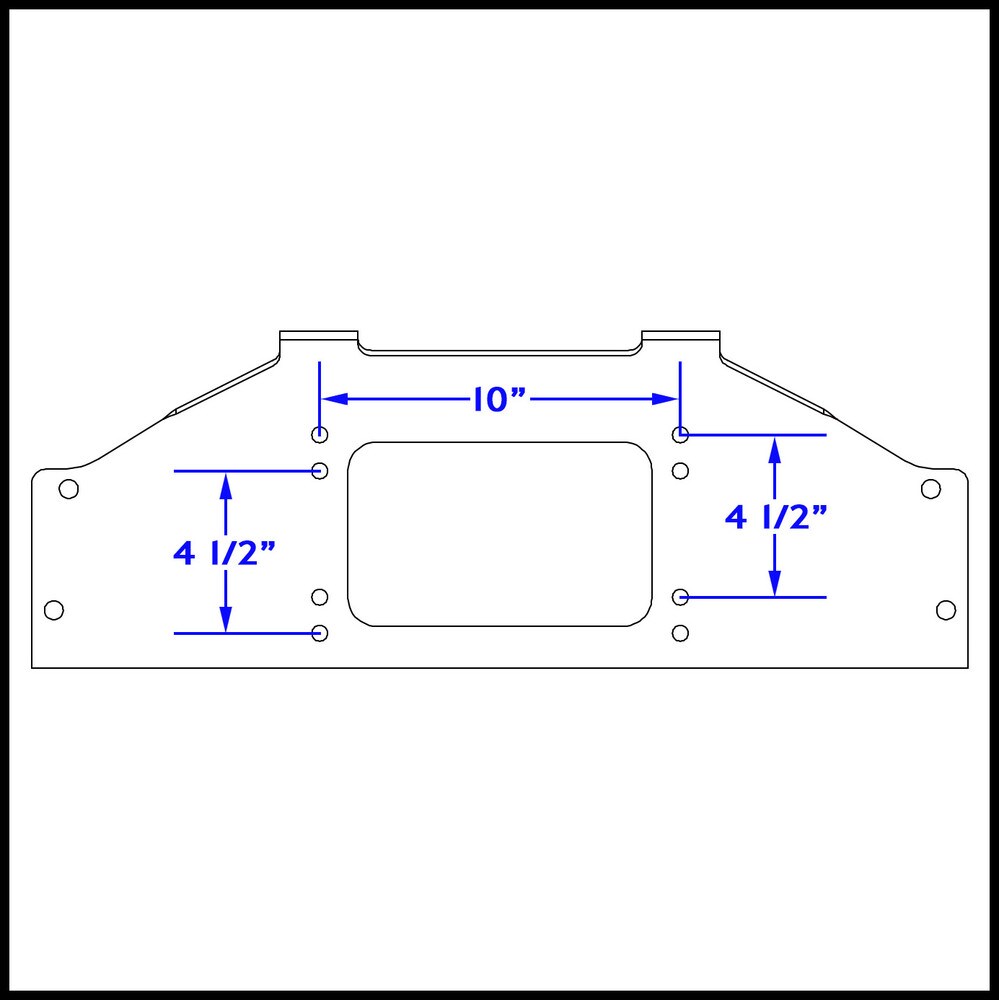

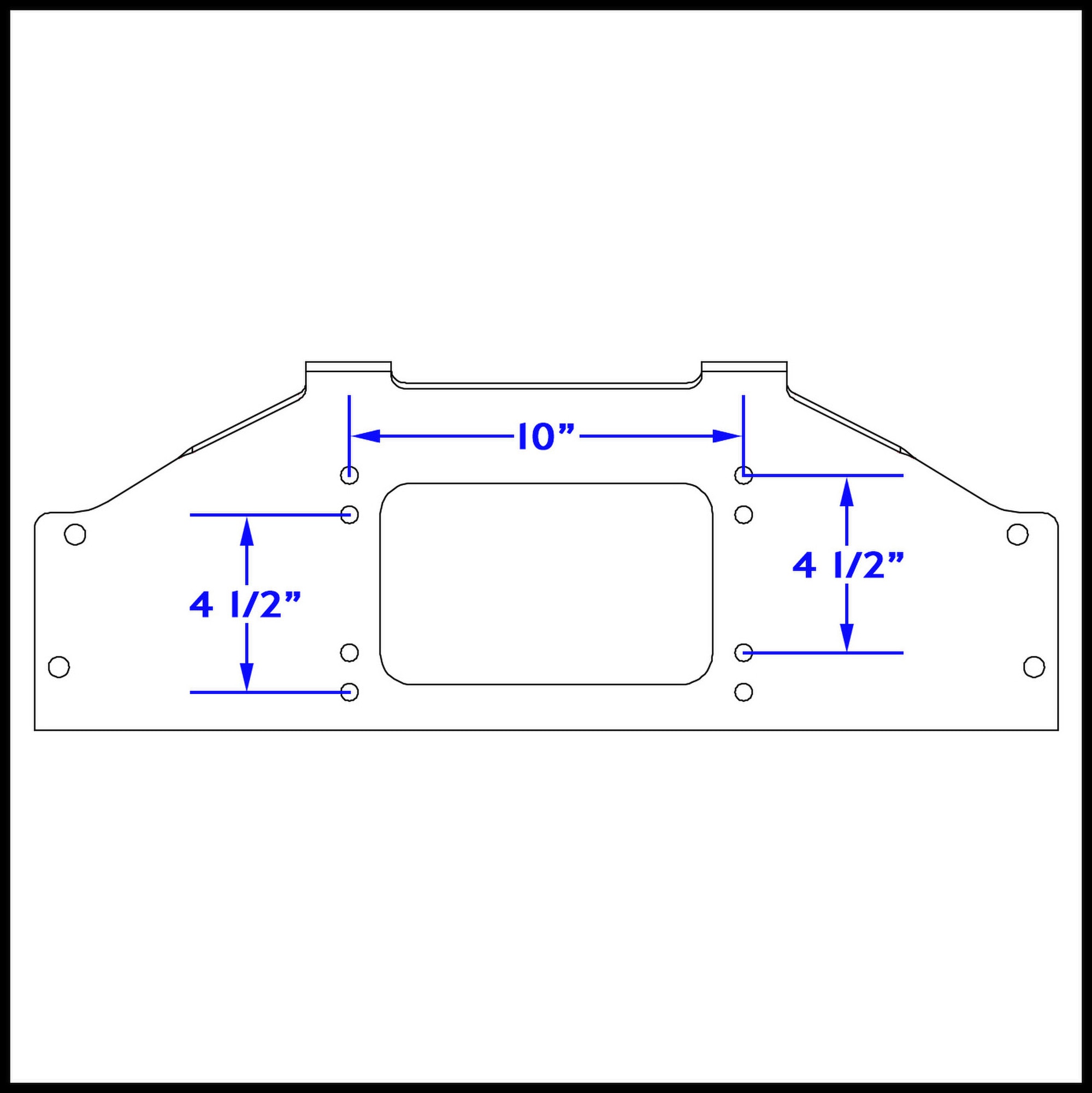

  • For use with winches that feature a 10 in. x 4 1/2 in. bolt pattern (see photo gallery). NOT for use with factory installed winches on 2024 models (8 in. x 4 1/2 in. bolt pattern).

Notes:

  • In our application, illustrated in this kit’s instruction manual, kit was completely bolt on and required no drilling, grinding, etc. However, we have not tested with every variation of winch out there!
  • 2024 Year Model Note: this plate may be used on 2024 vehicles with aftermarket winches. This plate is NOT for use with the factory installed winches on 2024 vehicles as the winch mounting hole spacing is not compatible!

Instruction Manual:


Parts List:
