RJ-202004-101 - Antirock Sway Bar Forged Chromoly Arms (21 in.)

SKU RJ-202004-101
$193.00

Details

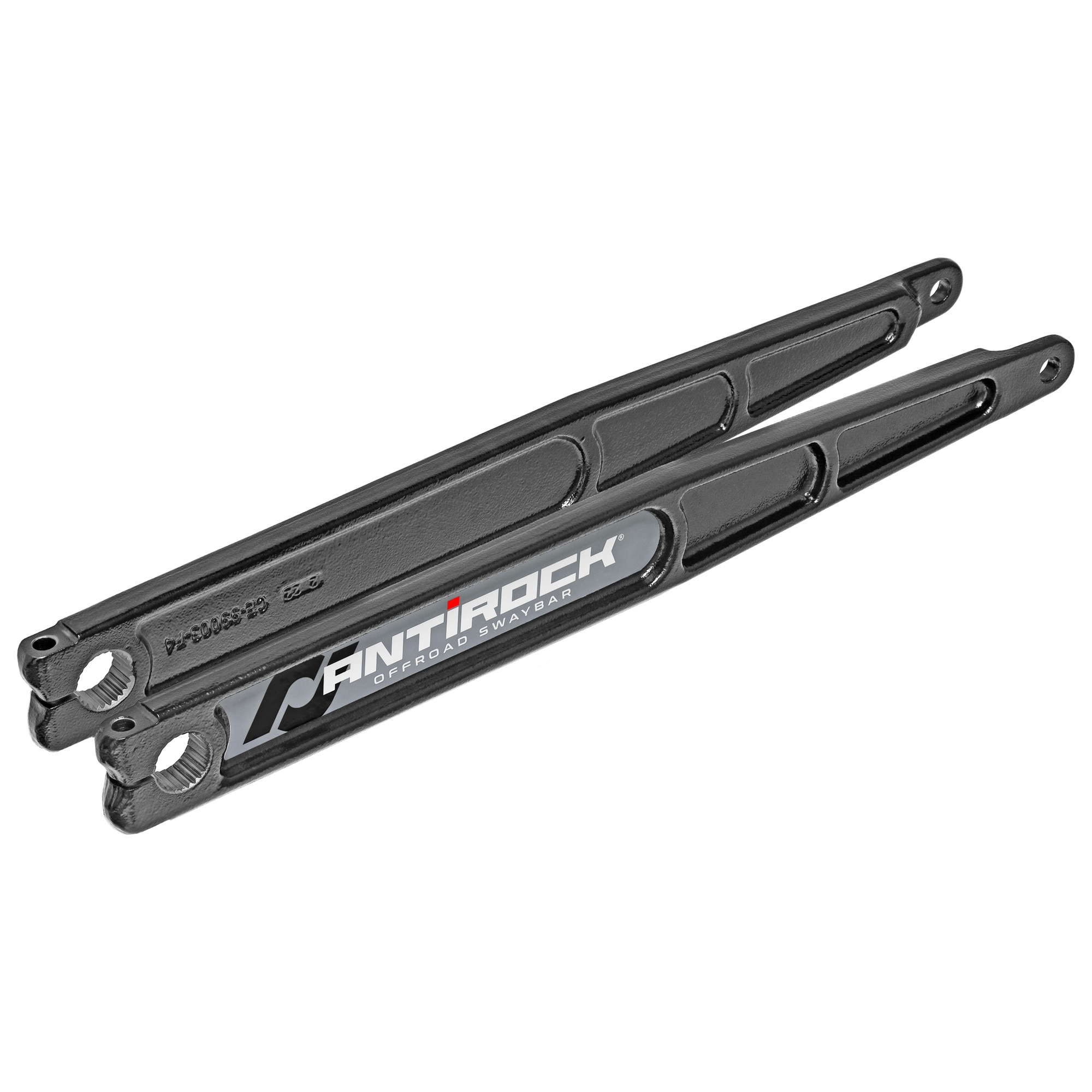

For those looking for maximum strength and cool factor for their off-road or rock crawling rig, RockJock’s Forged 4140 Chromoly Antirock Sway Bar Arms have got you covered!
Available in various lengths and shapes to suite different builds and applications, the forged I-beam construction provides dramatic strength and rigidity.
These specific arms are 21 in. long from tip to tip, 3/4 in. thick (with the exception of the tip being machined to 3/8 in. thick for end link mounting). At the mounting end, you’ll find our standard 25 spline that fits all common Antirock torsion bars as well as the vertical pinch bolt hole for attaching the arm to the bar. At the opposite end, you’ll find a 1/2 in. hole for Sway Bar End Link mounting.
Arms are sold as a pair only, are finished in a textured gloss black powder coat and include stickers.


Arms Fit:

  • Universal Application (in 25 spline torsion bar applications)
  • Included in CE-9900JKR4 JK Wrangler Unlimited (4-door) rear Antirock Kits
  • Included in CE-9900JKR JK Wrangler (2-door) rear Antirock Kits

Kit Includes:

  • (1) Pair of 21 in. long Forged Antirock Sway Bar Arms
  • (1) Pair of Arm Stickers

Component Specs.:

  • Overall length = 21 in.
  • Thickness = 3/4 in. (with the exception of the tip being machined to 3/8 in. thick for end link mounting)
  • Material = 4140 chromoly, forged
  • Spline count = 25
  • Center of splined hole to center of 1/2 in. hole = 19.500 in.
  • Weight = 11 lbs. (for the pair)

Notes:

  • These arms are found in our CE-9900JKR4 JK Wrangler Unlimited (4-door) rear Antirock Sway Bar Kits as well as our CE-9900JKR JK Wrangler (2-door) front Antirock Sway Bar Kits
  • See CE-99005A for sway bar arm hardware kit.
