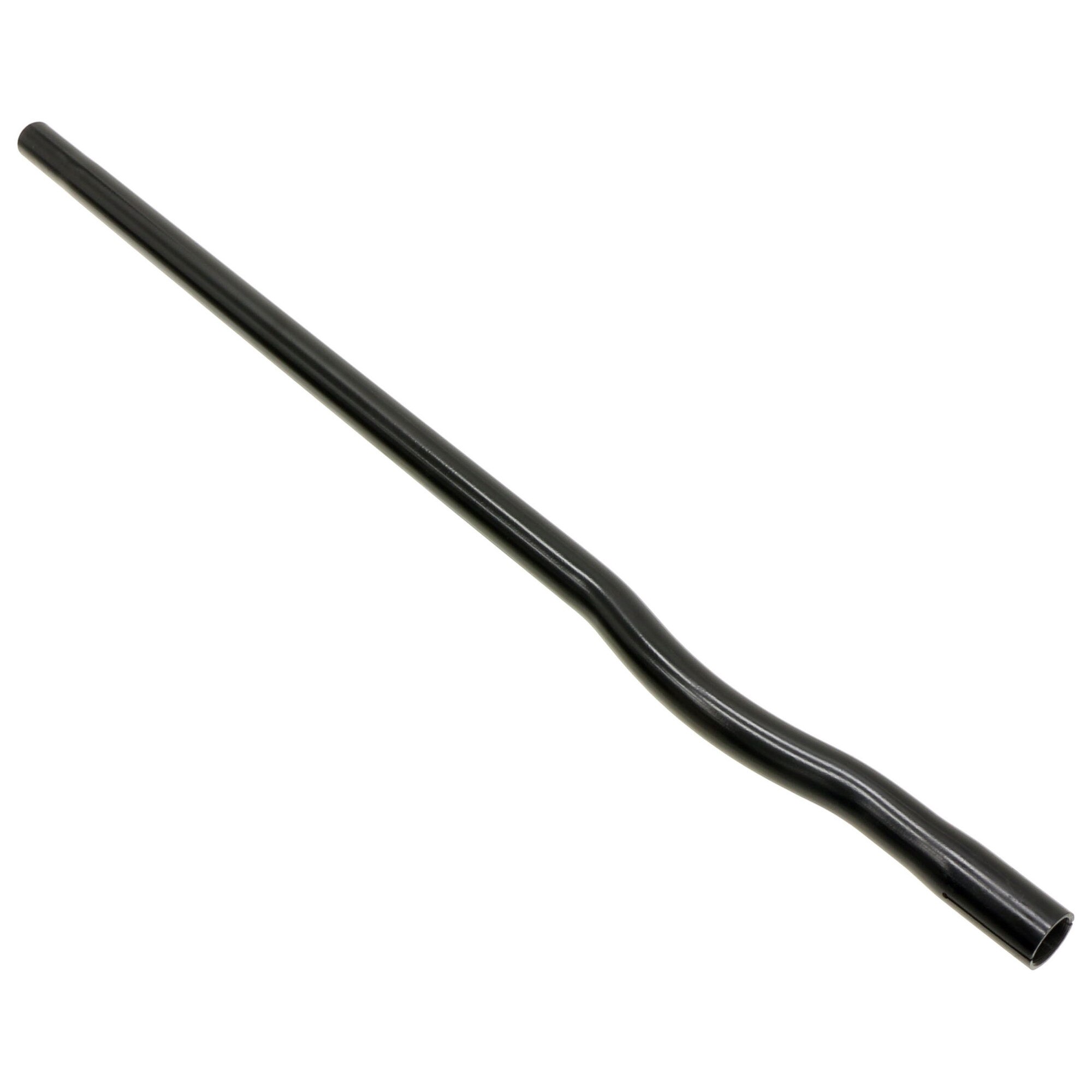

JK-9704TR-3 - JL/JT/JK Currectlync Tie Rod Tube (JL/JT Sport/Sahara w/ High Steer, All JK w/ stock knuckles)

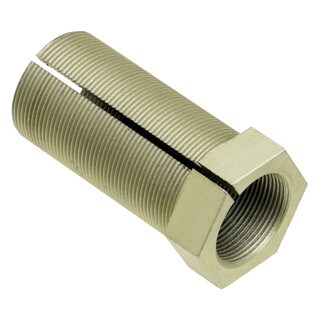

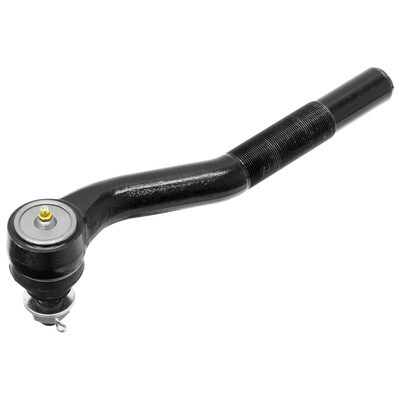

This RockJock Currectlync Tie Rod Tube is used in all (Sport, Sahara and Rubicon) models of JK Wrangler and JK Unlimited that are equipped with our Currectlync Steering system and stock steering knuckles, as well as JL Wrangler, JL Unlimited and JT Gladiator Sport and Sahara model vehicles equipped with RockJock High Steer Knuckles. Features include 42mm (1.654 in.) OD alloy steel construction, 1 1/8 in.-18 RH threads on the passenger’s side where our JK-9704TR-2 tie rod end installs and 1 3/8 in.-18 LH threads on the driver’s side where our JK-9704TR-4 tie rod end double adjuster installs.

Kit Fits:

• JK Wrangler Unlimited (4-door) – All Models w/ Currectlync Steering and stock knuckles
• JK Wrangler (2-door) – All Models w/ Currectlync Steering and stock knuckles
• JL Wrangler Unlimited (4-door) – Sport models w/ Currectlync Steering and RockJock High Steer Knuckle
• JL Wrangler (2-door) – Sport models w/ Currectlync Steering and RockJock High Steer Knuckle
• JT Gladiator – Sport models w/ Currectlync Steering and RockJock High Steer Knuckle

Kit Includes:

• (1) Tie Rod Tube

Rod Specs.:

• Alloy steel construction
• 45.710 in. Overall Length
• 42mm (1.654 in.) OD
• 1 3/8 in.-18 LH threads on the driver’s side
• 1 1/8 in.-18 RH threads on the passenger’s side

Notes:

• In stock knuckle/low steer applications, the dip in the tie rod tube points outward for diff cover clearance. In high steer application, the dip points downward, to the ground providing tie rod tube to pitman arm clearance.
• For use as a replacement part for RockJock Currectlync Steering Systems only – will not fit stock steering components.
• Finished in gloss black paint.
