CE-9162 - TJ/LJ/XJ/MJ/ZJ Front Shock Bar Pin Eliminator Kit

SKU CE-9162
$52.00

Details

The Front Shock Bar Pin Eliminator Kit for TJ Wrangler and Unlimited (LJ) eliminates a common weak link on the vehicle by upgrading the front lower shock mounts with JKS Bar Pin Eliminators.

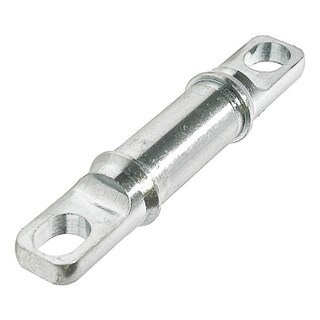

The standard bar pin design used by most manufacturers provides no lateral support of the shock absorber bushings. Excessive movement between the parts causes the bushings to distort, instead of deflecting impacts to the shock absorber as intended. As the bushings lose their integrity, annoying thumping or rattling sounds are often heard, and even felt, inside the vehicle cabin.

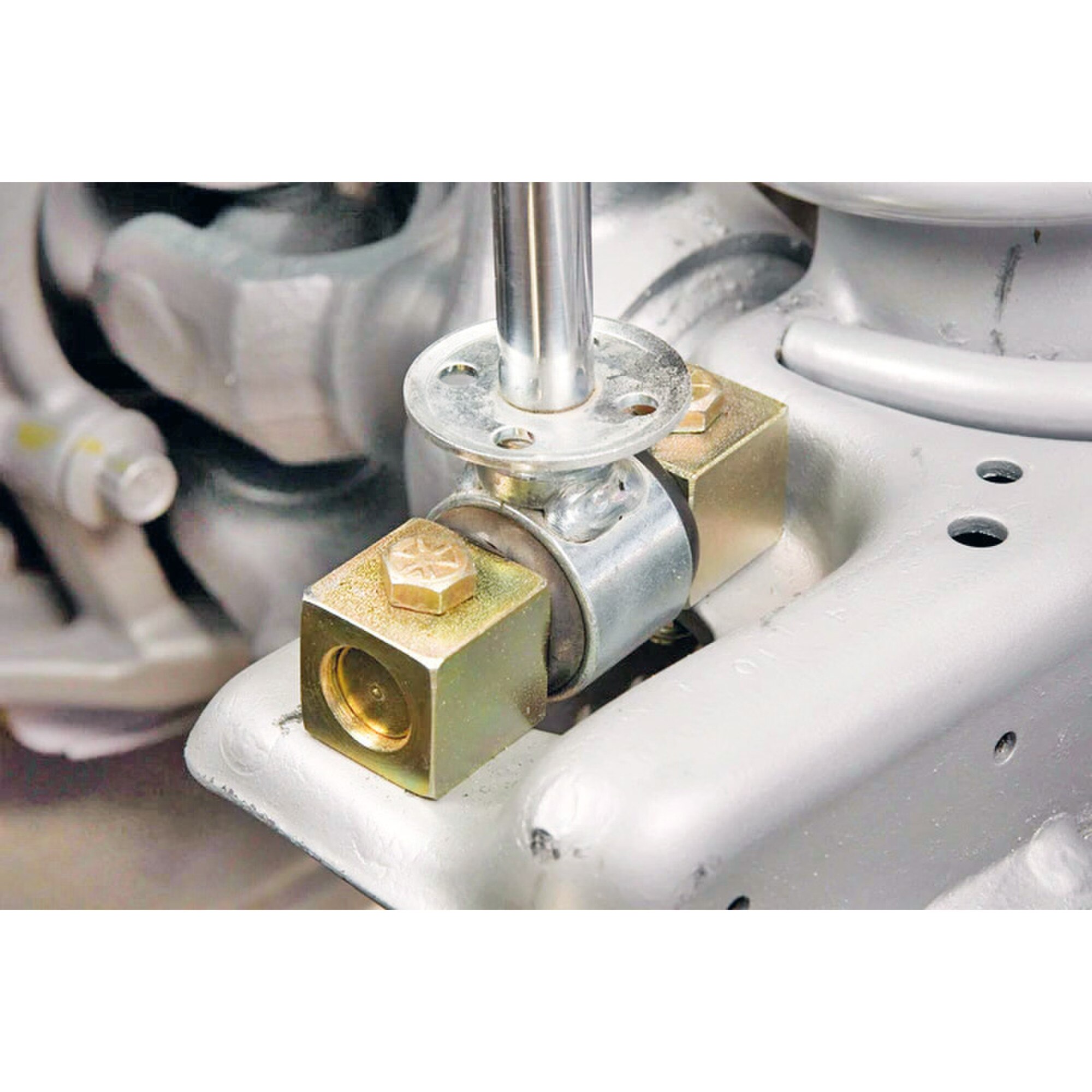

This solution provides a heavy duty cross pin and mount blocks to convert the shock mounting to a standard EB1 eyelet. The design prevents the transfer of noise and vibration caused by bushing movement. Shock absorber bushings are preloaded for better performance and longevity. Machined bushing surfaces reduce friction and wear. Retains the original mounting alignment to prevent stress on the shock absorbers and bushings. Provides almost 1/2 in. of additional down travel at shock absorber. Manufactured from premium grade steel and compatible with OE or aftermarket shock absorbers. Finished in gold zinc plating.


Kit Fits:

  • TJ Wrangler – All Models
  • TJ Wrangler Unlimited (LJ) – All Models


Kit Includes:

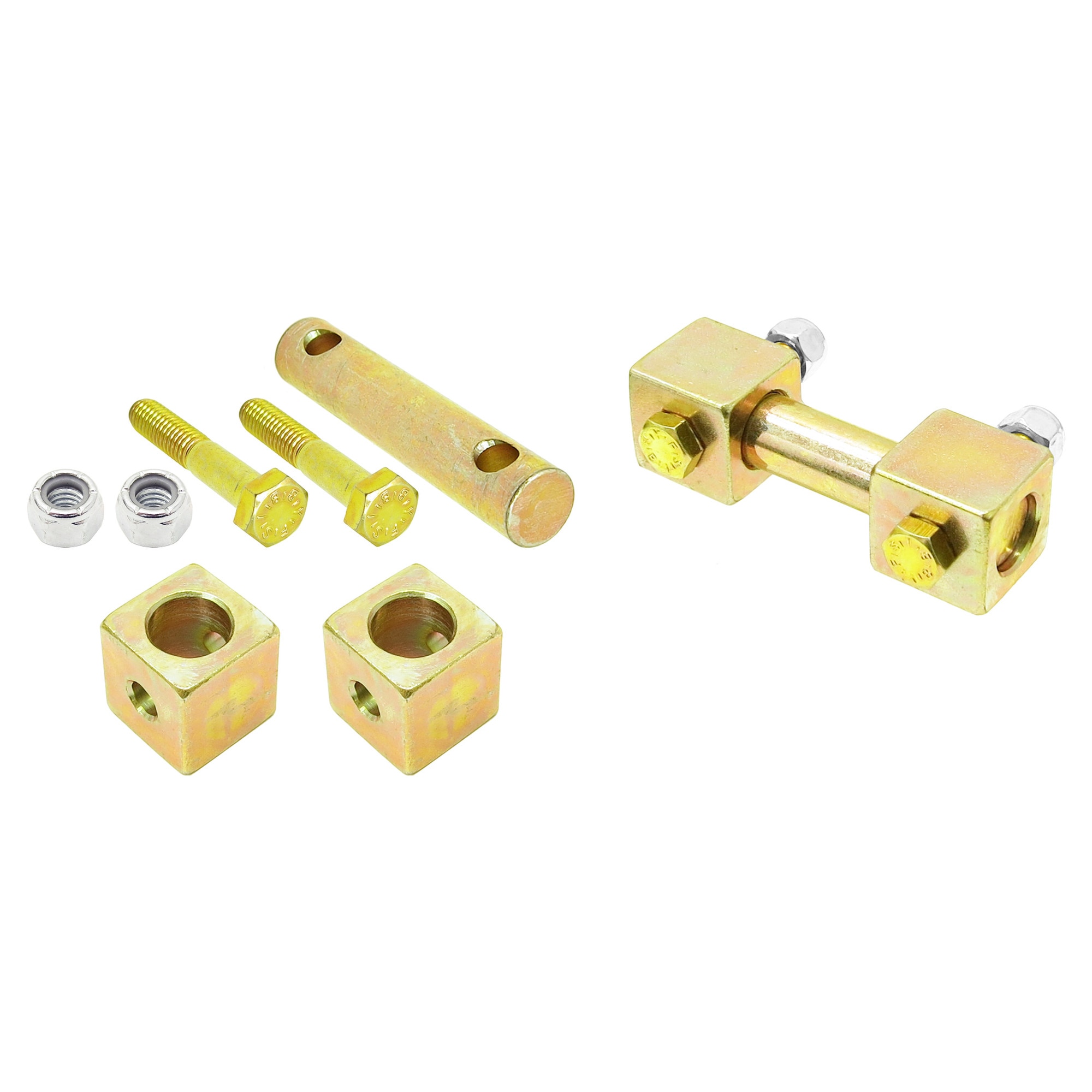

  • (2) Bar Pin Eliminator Assemblies
  • All necessary hardware

Notes:

  • Provides almost 1/2 in. additional down travel at the shock absorber.
  • Compatible with OE and aftermarket shock absorbers (not for use with Old Man Emu shocks).
