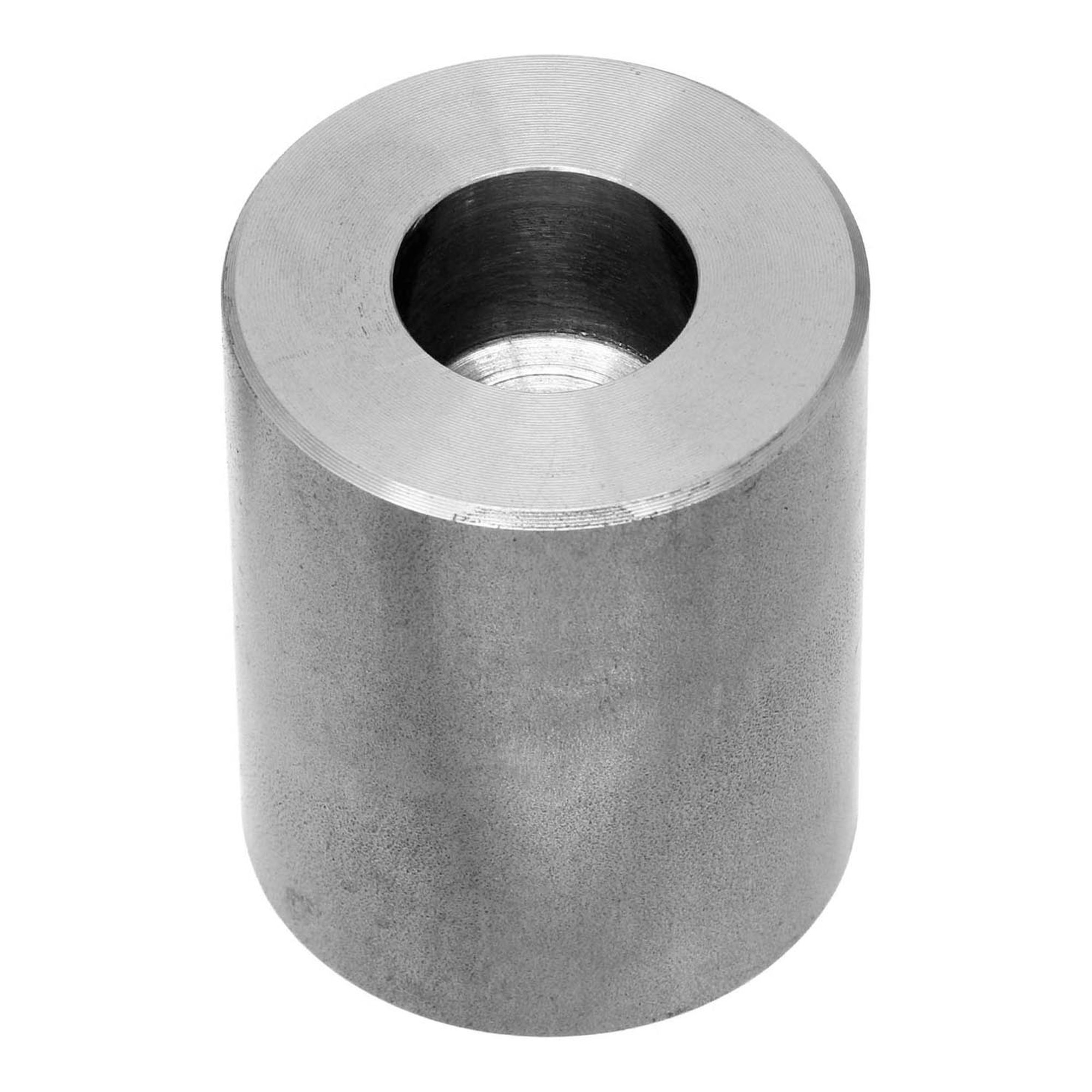

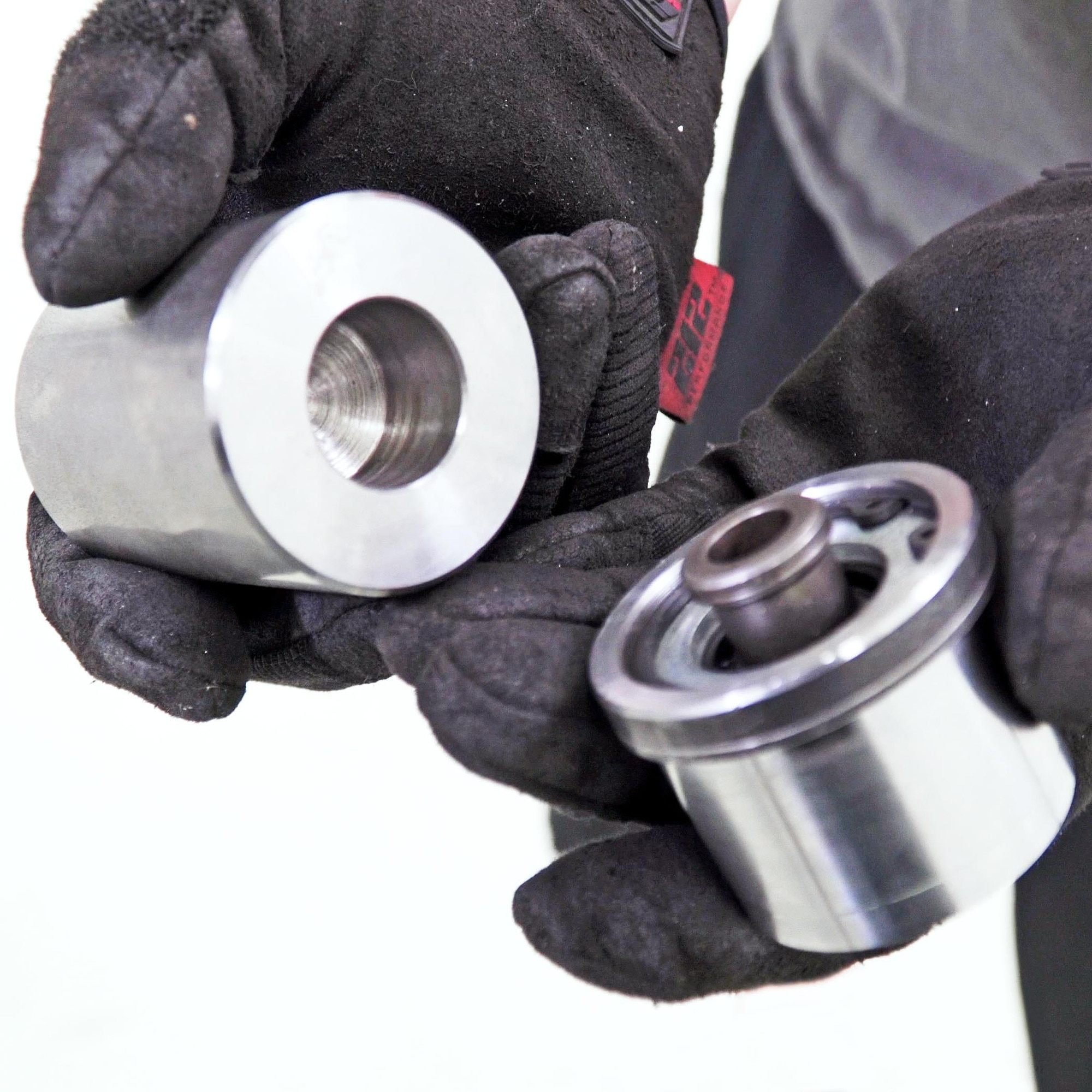

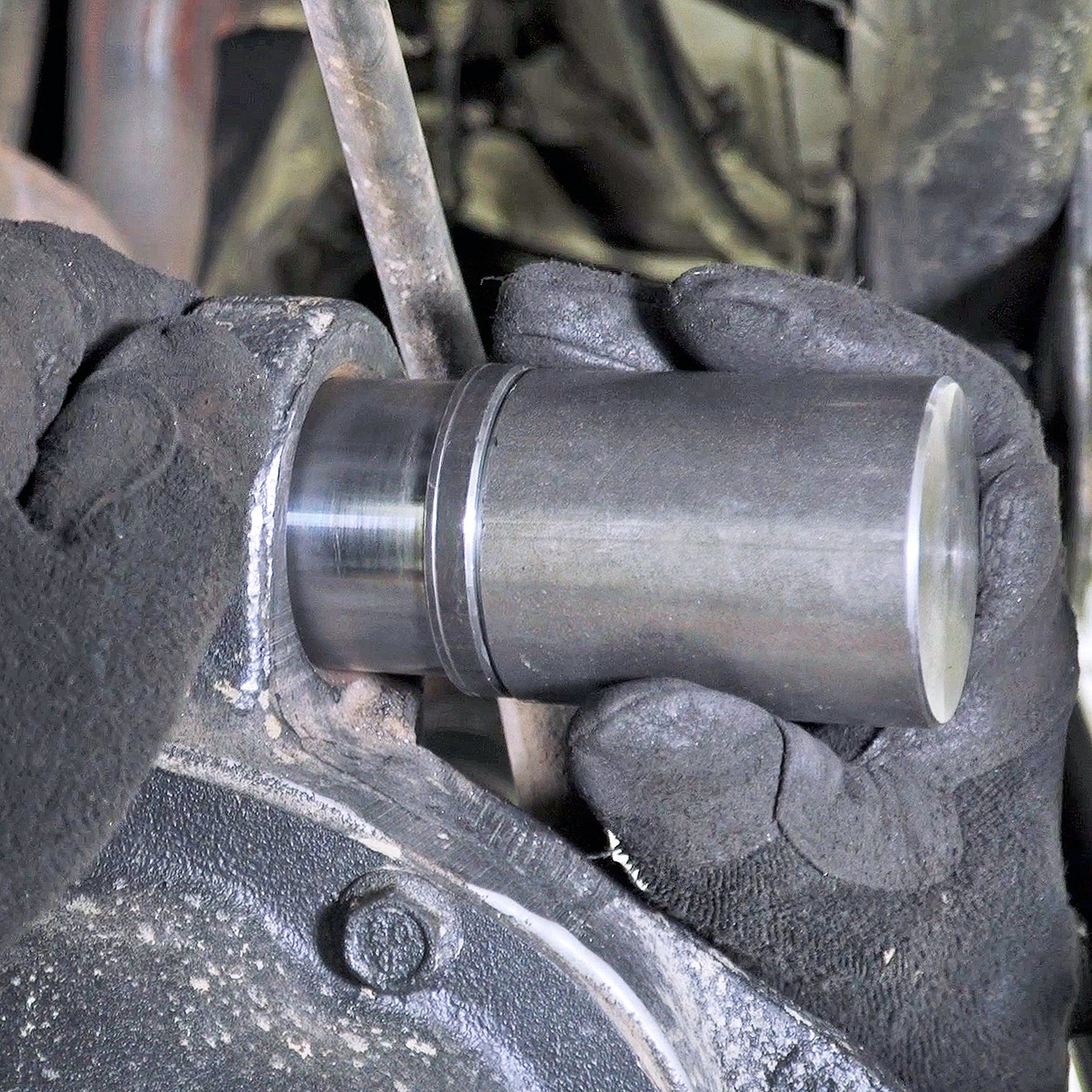

RockJock's Axle Housing Johnny Joint Installation Tool is machined from 2 in. OD steel bar stock and features a .938 in. ID bore. Tool is intended to fit over the pivot ball flange on an axle housing Johnny Joint and butt up against the Johnny Joint outer barrel providing a solid point for driving the joint into a front axle housing casting with a hammer.

Kit Fits:

• Included component in our CE-9102K TJ/LJ/XJ/MJ/ZJ axle housing Johnny Joint kit
• Included component in our CE-9102K1 TJ/LJ/XJ/MJ/ZJ axle housing Johnny Joint kit
• Included component in our CE-9102JK JK axle housing Johnny Joint kit

Component Specs.:

• OD  =  2.000 in.
• Height  =  2.500 in.
• Bore  =  .938 in. ID x .750 deep
• Material  =  12L14 steel
• Finish  =  raw steel

Notes:

• Not for use with JL/JT axle housing Johnny Joint kits! For the JL/JT tool, see:  RJ-530000-1 and RJ-530000-3
• Not for use for installing axle housing Uni-Balls! For the Uni-Ball tool, see:  RJ-530000-1 and RJ-530001-3
