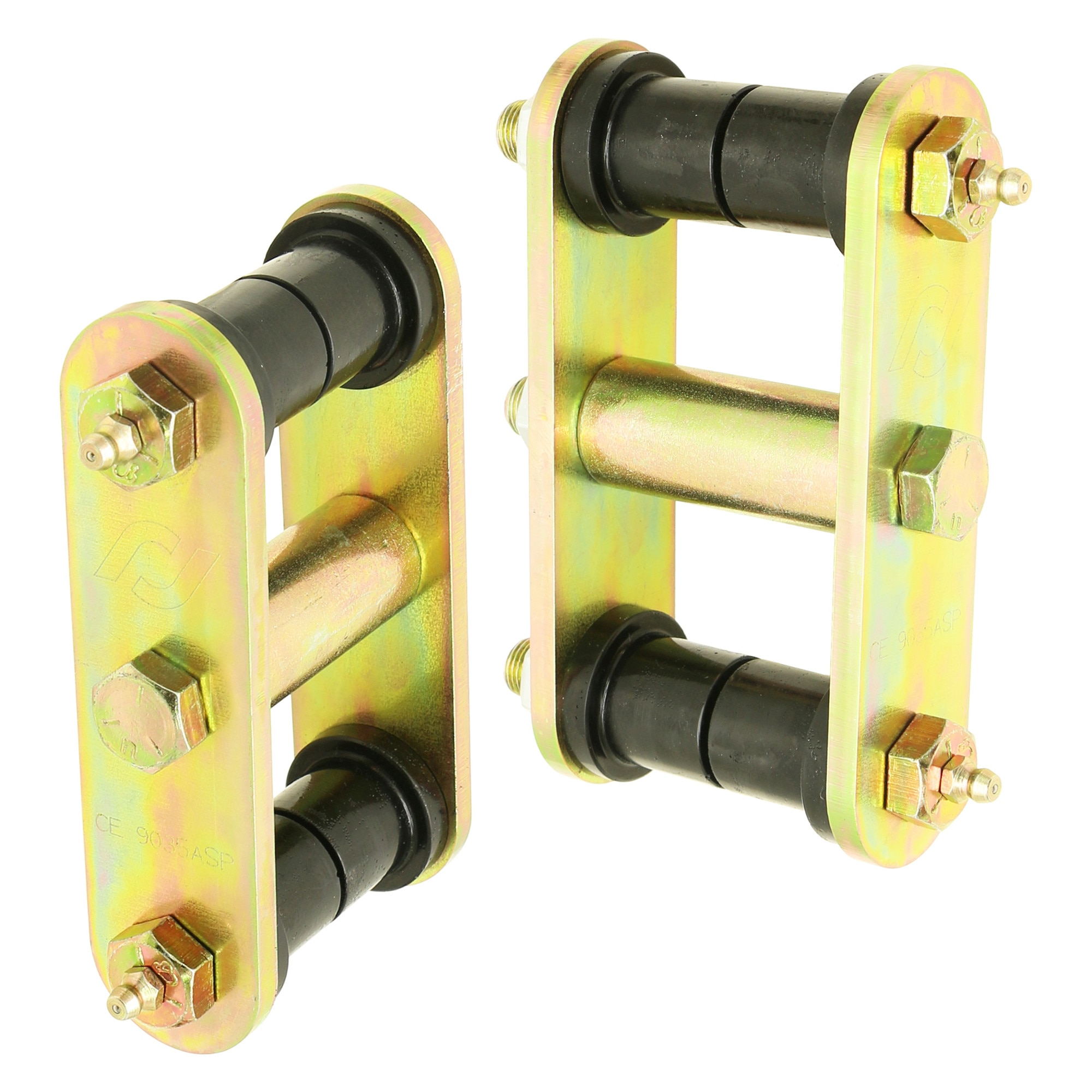

RockJock Greasable Heavy Duty Front Shackles have been a staple of the off-roading world for decades! If you are off-roading your CJ, the stock shackles and bushings are surely not up to the task.

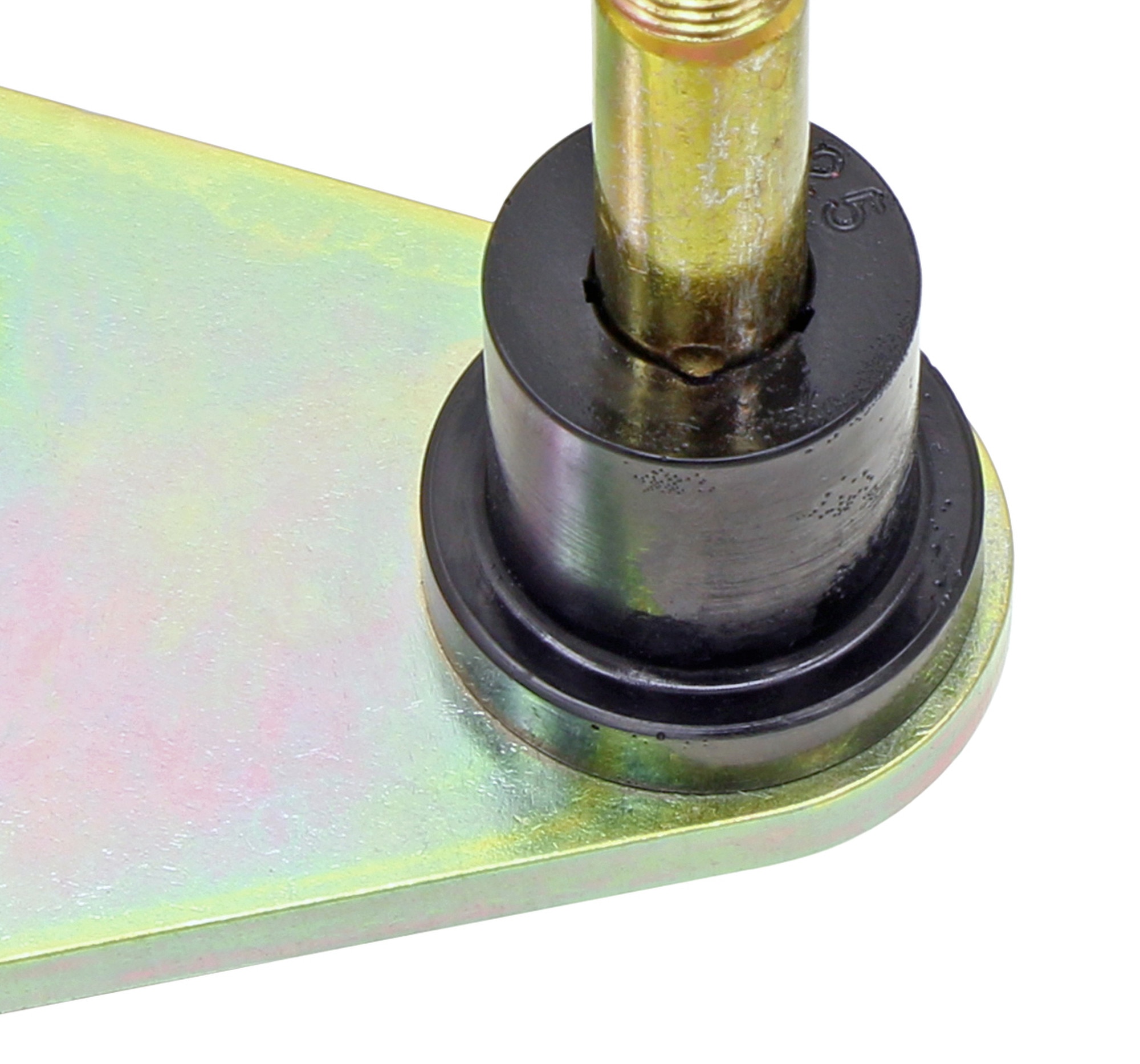

Our heavy duty shackles feature laser cut .250 in. steel side plates and a bolt-in center bar for maximum rigidity. The fluted Energy Suspension urethane bushings allow greasing of the shackles via our zerk-fitted greasable bolts, providing long life and quiet operation.

Kit Fits:

• 1976-1983 CJ-5
• 1976-1986 CJ-7
• 1981-1986 CJ-8 Scrambler

Kit Includes:

• Complete Shackle Assemblies (pair)

Notes:

• These shackles are a direct, bolt-on replacement for stock CJ shackles.

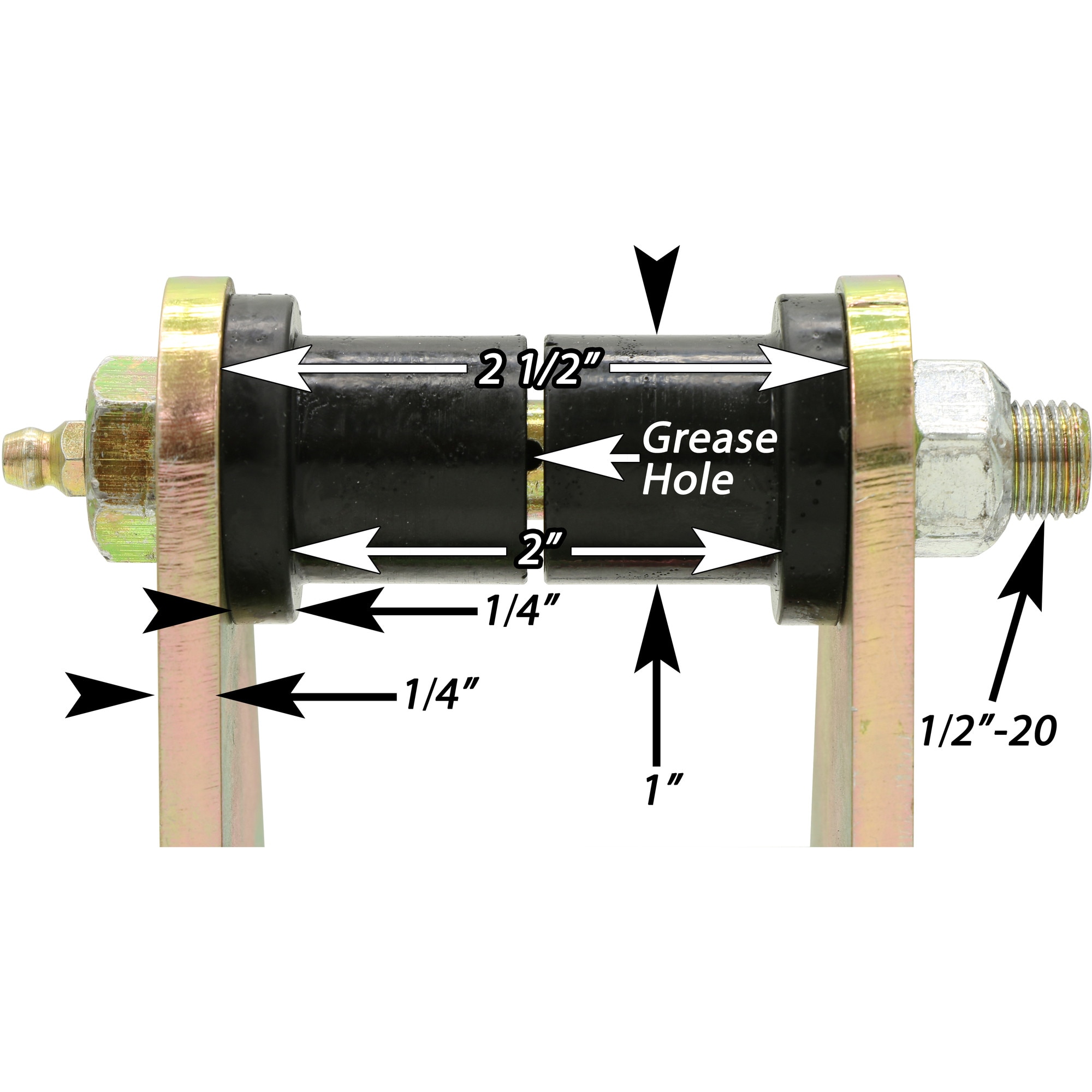

• Shackles measure 4.250 in. from center-to-center.
• We are not able to tell you how much lift – if any – that these shackles will provide, because we do not know what shackles your vehicle is currently equipped with.
  Rule of thumb: take the difference in length of your shackle’s C-C and our shackle’s 4.250 in. C-C, divide that number in half and that will be the approximate lift amount these shackles will provide.
• Components are finished in gold zinc plating.

Instruction Manual:

• CE-9035A Kit

Parts List:

• Side Plate:  CE-9035ASP
• Bushing (all locations):  CE-9075F1
• Steel Spacer:  CE-9035S2
• 1/2 in.-20 x 3 3/4 in. Long Greasable Hex Bolt:  CE-H0038
• 1/2 in.-20 x 3 3/4 in. Long Hex Bolt:  CE-H0018
• Stover Nut:  CE-92501A440
