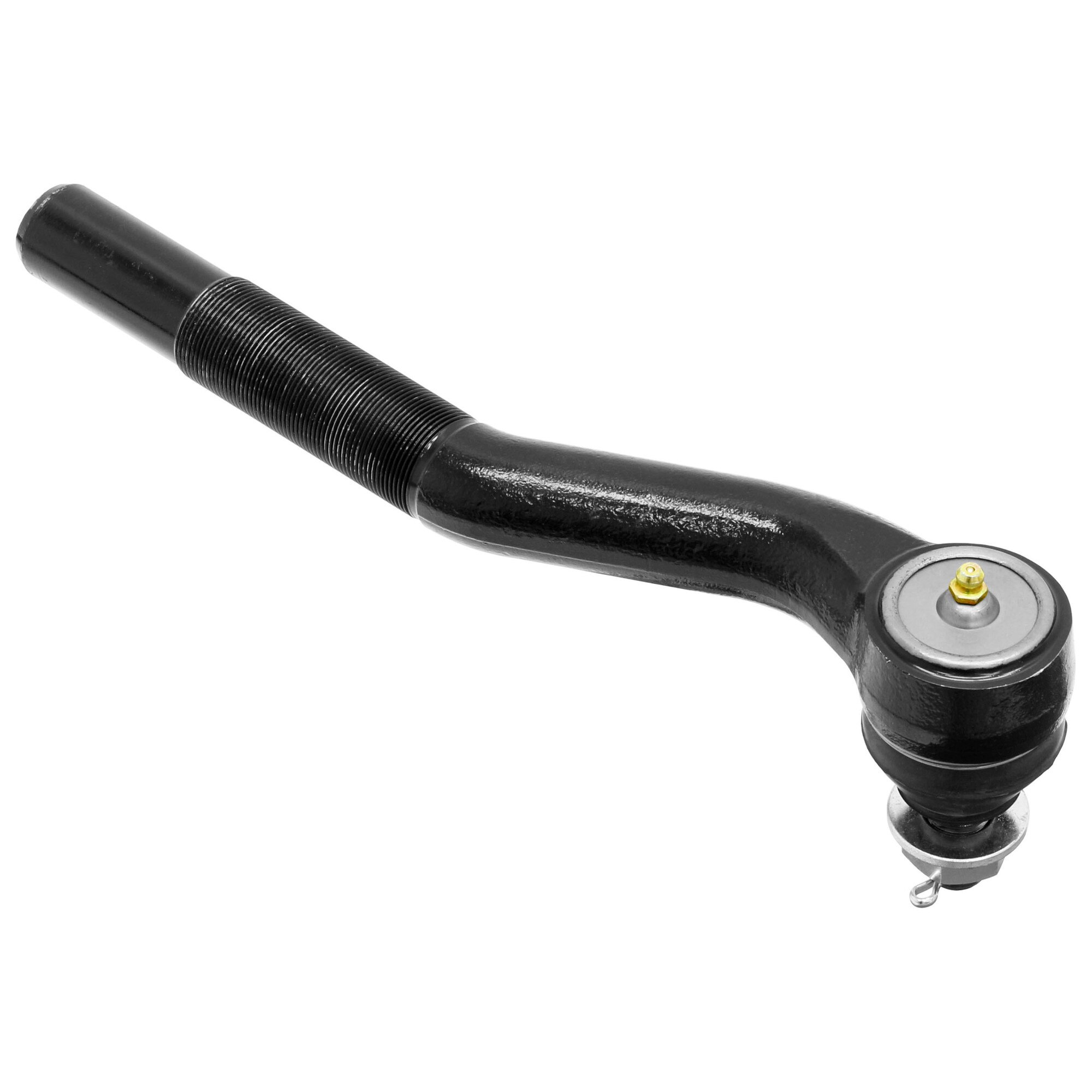

RJ-STRG-0212 - JL/JT Currectlync Tie Rod End (Passenger's Side)

This RockJock Currectlync Tie Rod End for our JL Wrangler, JL Unlimited and JT Gladiator steering system features Forged steel construction, an articulating tapered pin that installs into the vehicle’s passenger’s side steering knuckle and it’s 1 1/8 in.-18 RH threads thread into our RJ-STRG-1801 tie rod tube.

Kit Fits:

• JL Wrangler Unlimited (4-door) – All Models w/ Currectlync Steering
• JL Wrangler (2-door) – All Models w/ Currectlync Steering
• JT Gladiator – All Models w/ Currectlync Steering

Kit Includes:

• (1) Tie Rod End
• (1) Rubber Boot
• (1) Flanged Nut
• (1) Cotter Pin
• (1) Zerk Fitting

Rod End Specs.:

• 1 1/8 in.-18 RH Threads
• Threads are 4.100 in. Long
• End Tip Before Threads is 1.300 in. Long

Notes:

• For use as a replacement part for RockJock Currectlync Steering Systems only – not compatible with stock steering components.
• Finished in gloss black paint.

Parts List:

• Rod End Boot: JK-9703DLB
• Flanged Nut: RJ-502102-3
• Cotter Pin: CE-98338A190
• Rod End Zerk Fitting: CE-1103K21
