  • RJ-441110-101 - JL/JT Trac Bar and Steering Stabilizer Shock Relocation Bracket (High Steer)

RJ-441110-101 - JL/JT Trac Bar and Steering Stabilizer Shock Relocation Bracket (High Steer)

Details

Details

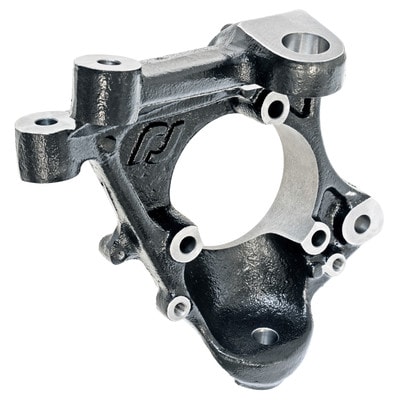

The RockJock Trac Bar and Steering Stabilizer Shock Relocation Axle Bracket Kit for JL Wrangler, JL Unlimited and JT Gladiator vehicles is designed specifically to be used in conjunction with our High Steer Knuckles.

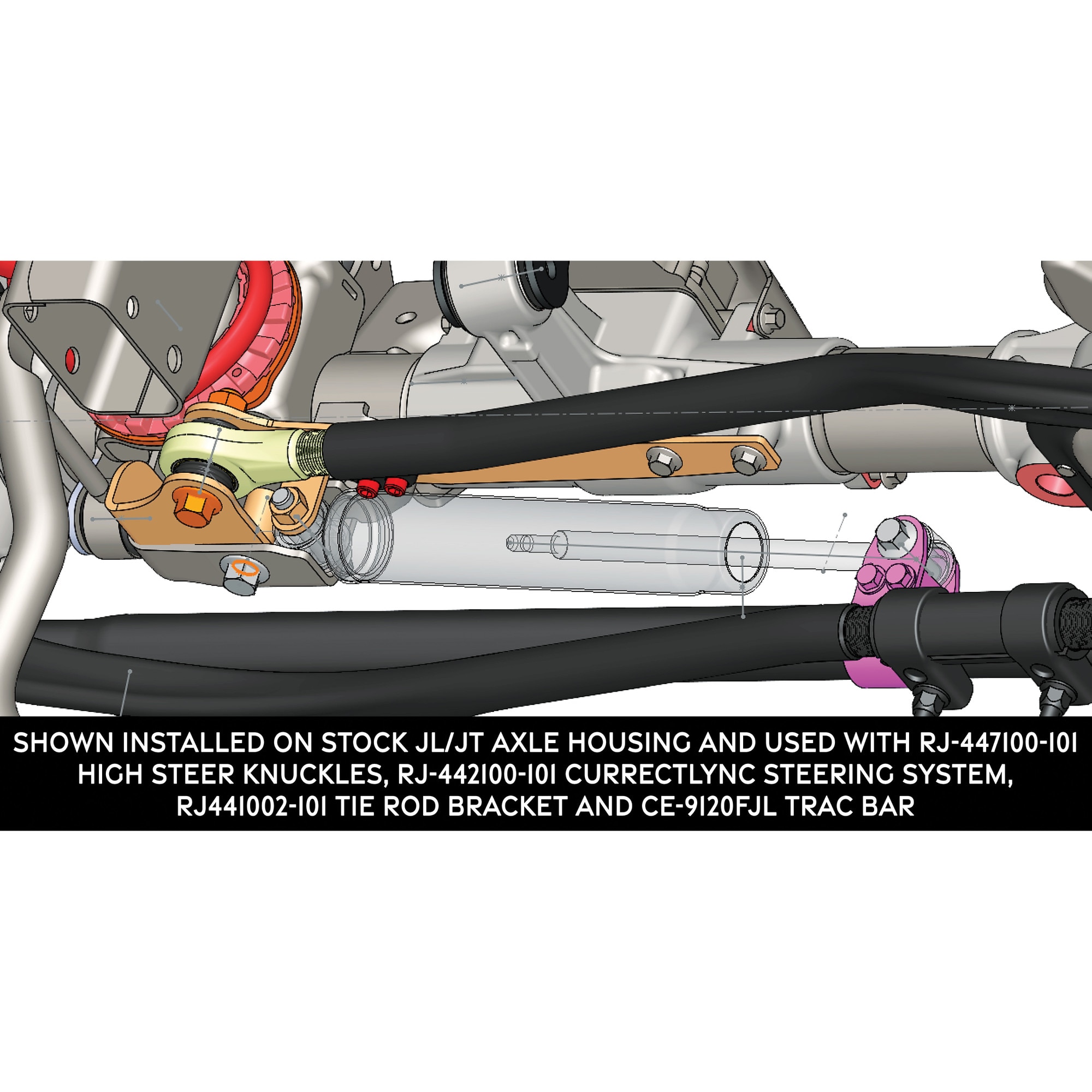

Given the dramatic changes in geometry high steer knuckles impose, this axle bracket easily bolts on to your factory axle and provides you with geometry correction for your trac bar, raising it's mounting point 2 in., to prevent you from incurring any bump steer after installing the high steer knuckles. The stabilizer shock mount portion of the bracket gives you an easy bolt up anchor point for your shock that sets the shock at a considerably higher position than stock, behind the raised tie rod, to protect it from rocks!

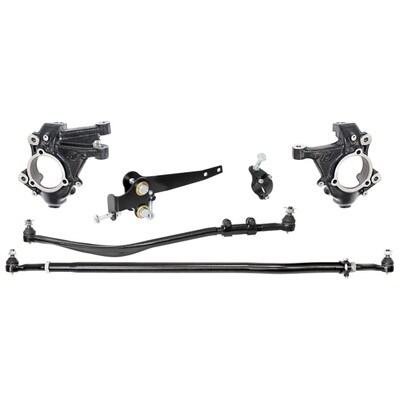

We recommend buying this bracket in our complete RJ-440001-101 High Steer Knuckle Kit so that you are ensured a complete system that includes everything you need to get the job done. The use of our RJ-9120FJLF forged, organically shaped front trac bar is also strongly encouraged, so that all components nest together for maximum up travel as engineered.
A picture is worth a thousand words, as they say! Please review this item’s photo gallery!


Kit Fits:

*Fits all listed vehicles below, granted they retain the factory front differential.
  • JL Wrangler Unlimited (4-door)
  • JL Wrangler (2-door)
  • JT Gladiator

Kit Includes:

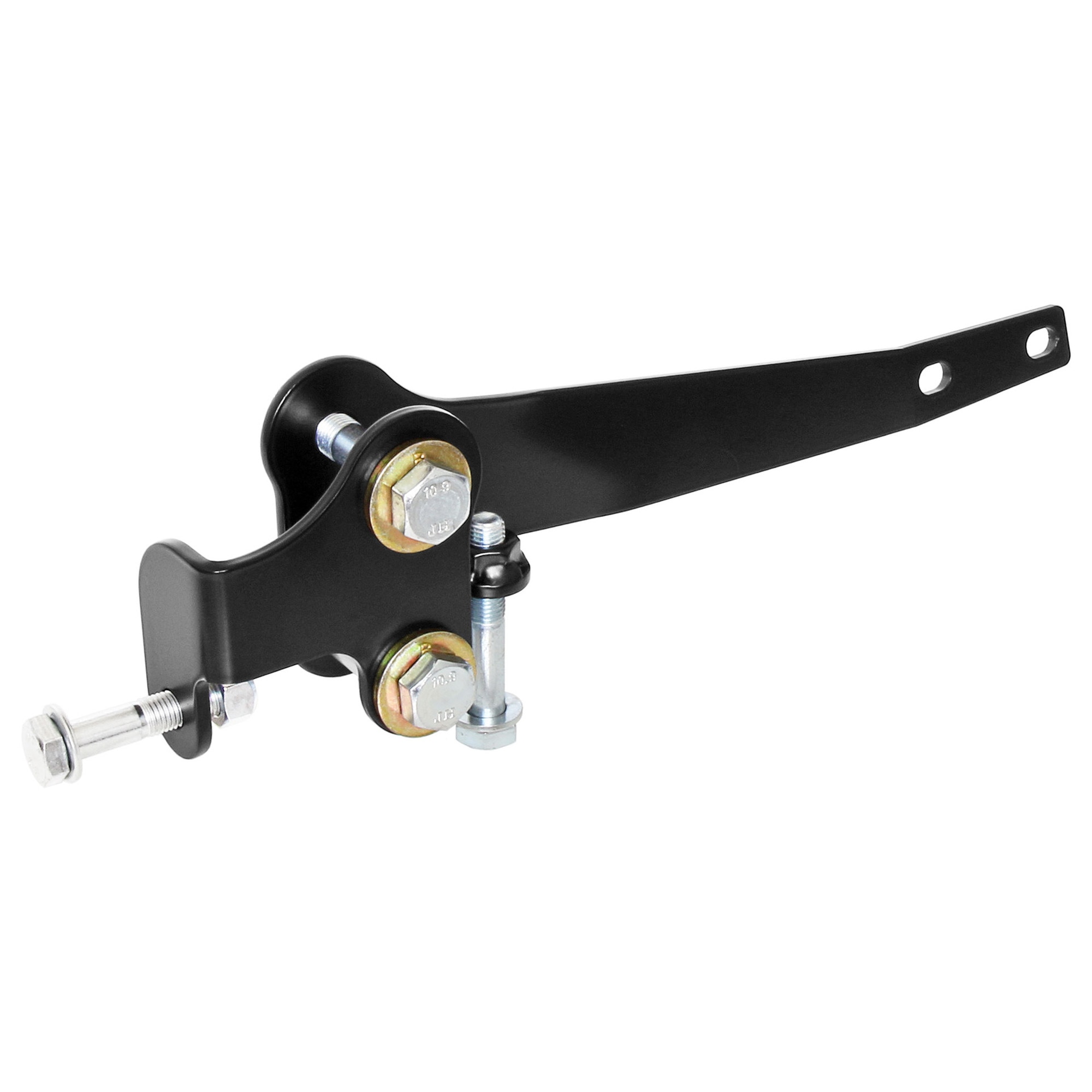

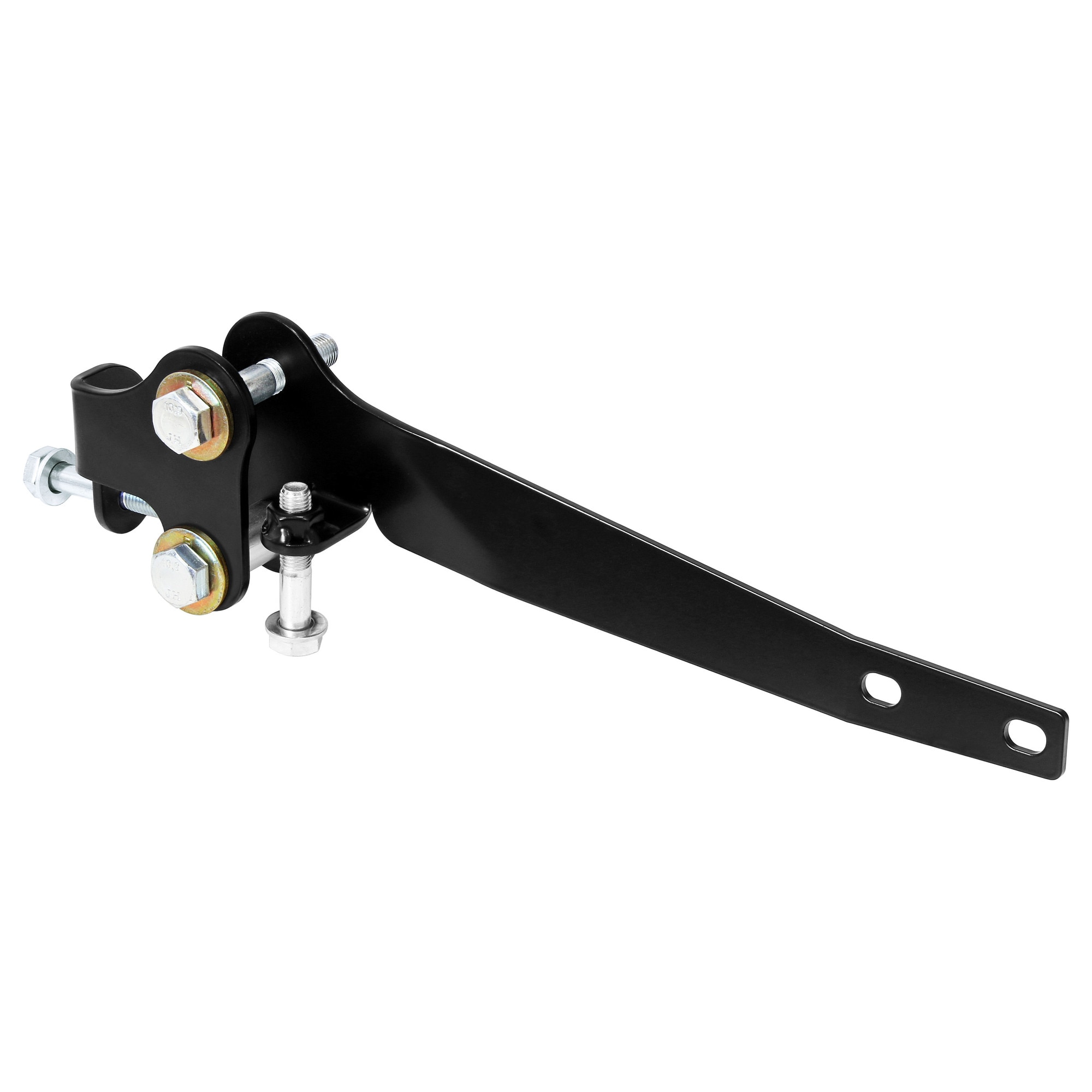

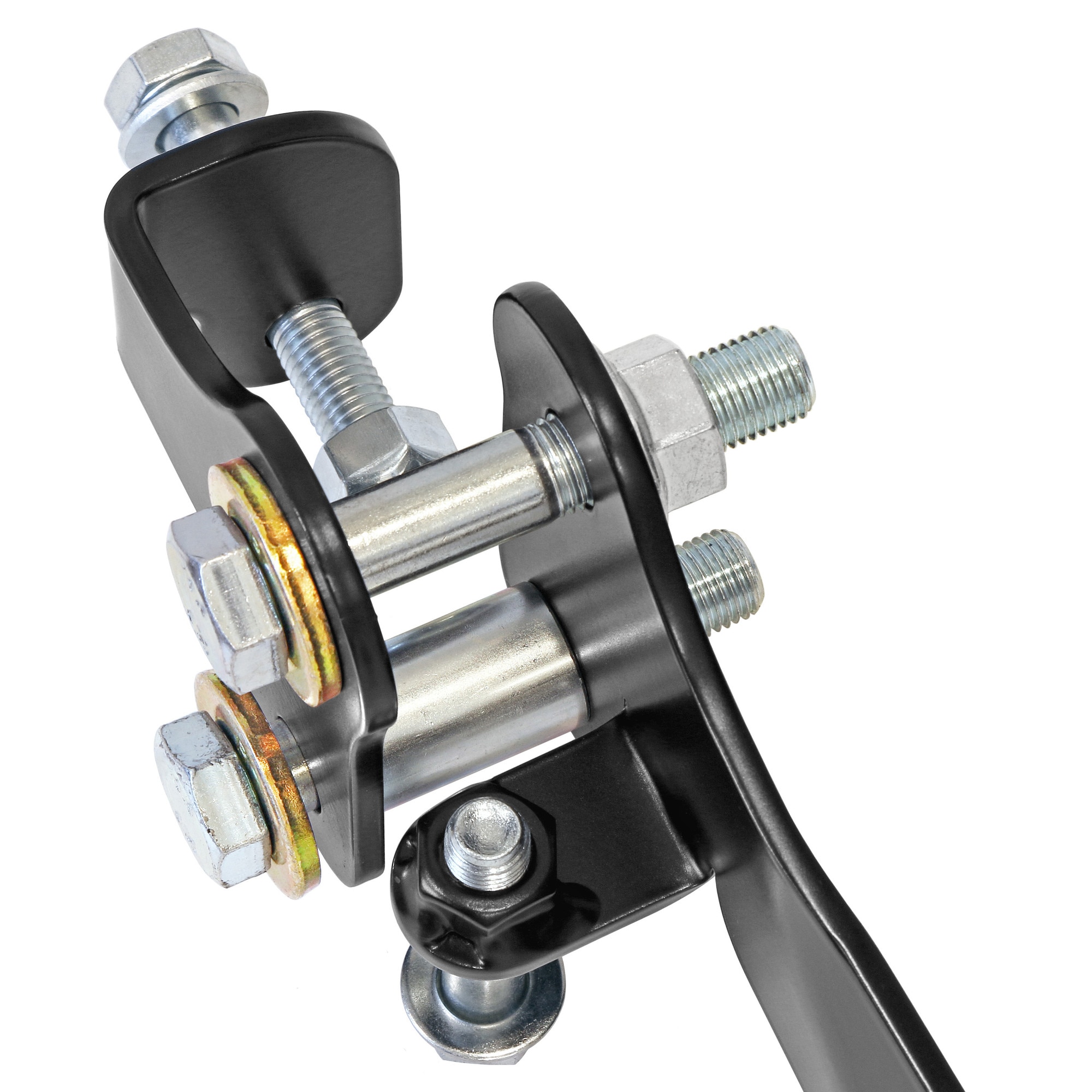

  • Trac Bar and Stabilizer Shock Relocation Bracket

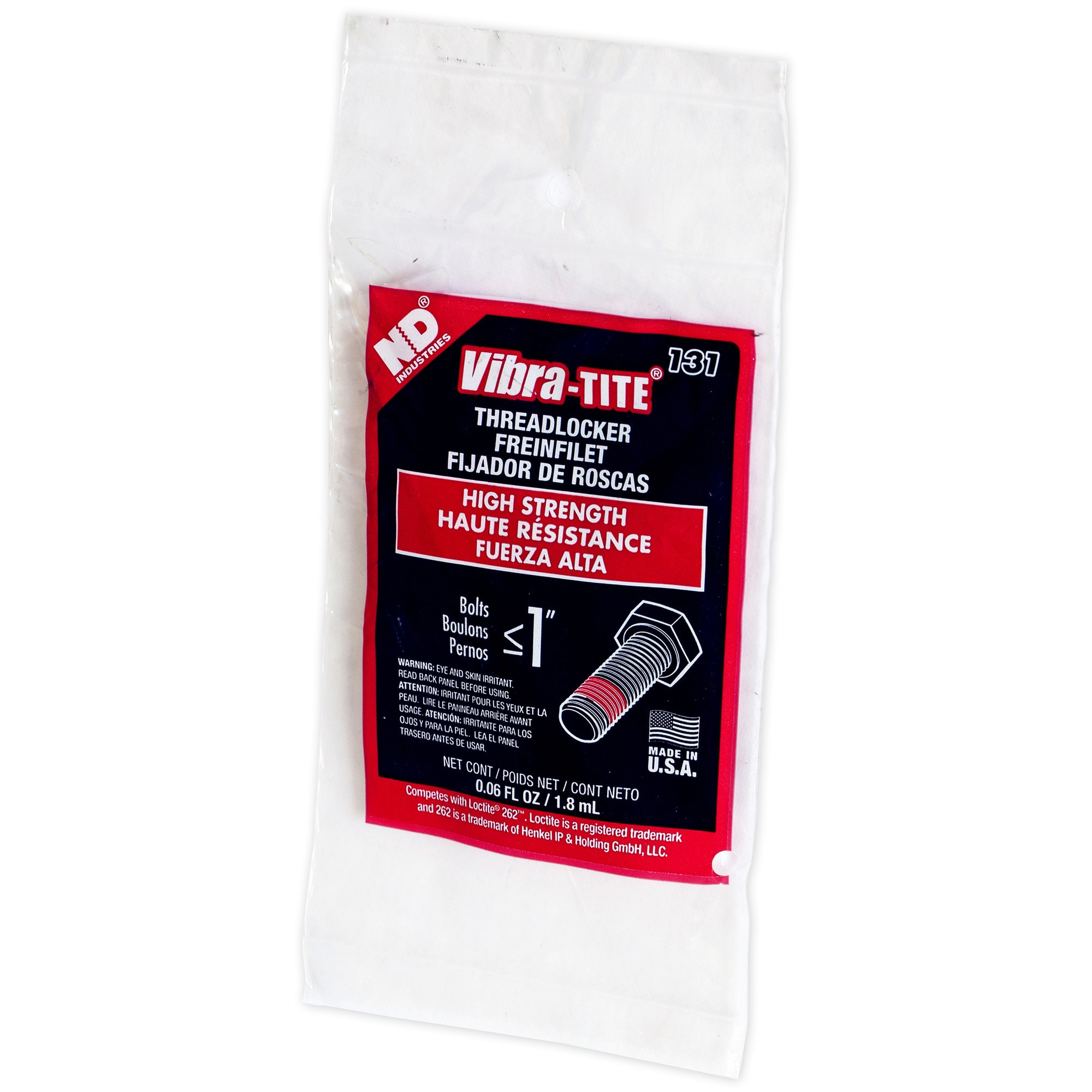

  • All necessary hardware

Fitment Specs.:

  • For use on any factory JL or JT front differential, in conjunction with our High Steer Knuckles
  • Relocates Trac Bar mounting hole 2 in. higher than stock
  • Moves stock Steering Stabilizer Shock mounting point from the tie rod to the axle (which requires relocation of the opposite end of the shock from the axle to the tie rod using our bracket kit)

Notes:

  • We recommend buying this bracket kit in our complete High Steer Knuckle Kit so that you are ensured a complete system that includes everything you need to get the job done.
  • For a successful finished install of this kit, we recommend the use of our tie rod clamp bracket at the opposite end of the shock, to relocate it’s mounting from the axle housing to the tie rod.
  • For best results, it is recommended that either a factory JL/JT stabilizer shock or, specifically, Bilstein’s B8 5100 series stock replacement shock, part number: shock be used.
  • This bracket does NOT work with pass-thru style stabilizer shocks!

Parts List:
