RJ-151000-101 - RockJock JT Mojave Suspension System (1.5 in. Lift)
Details
Details

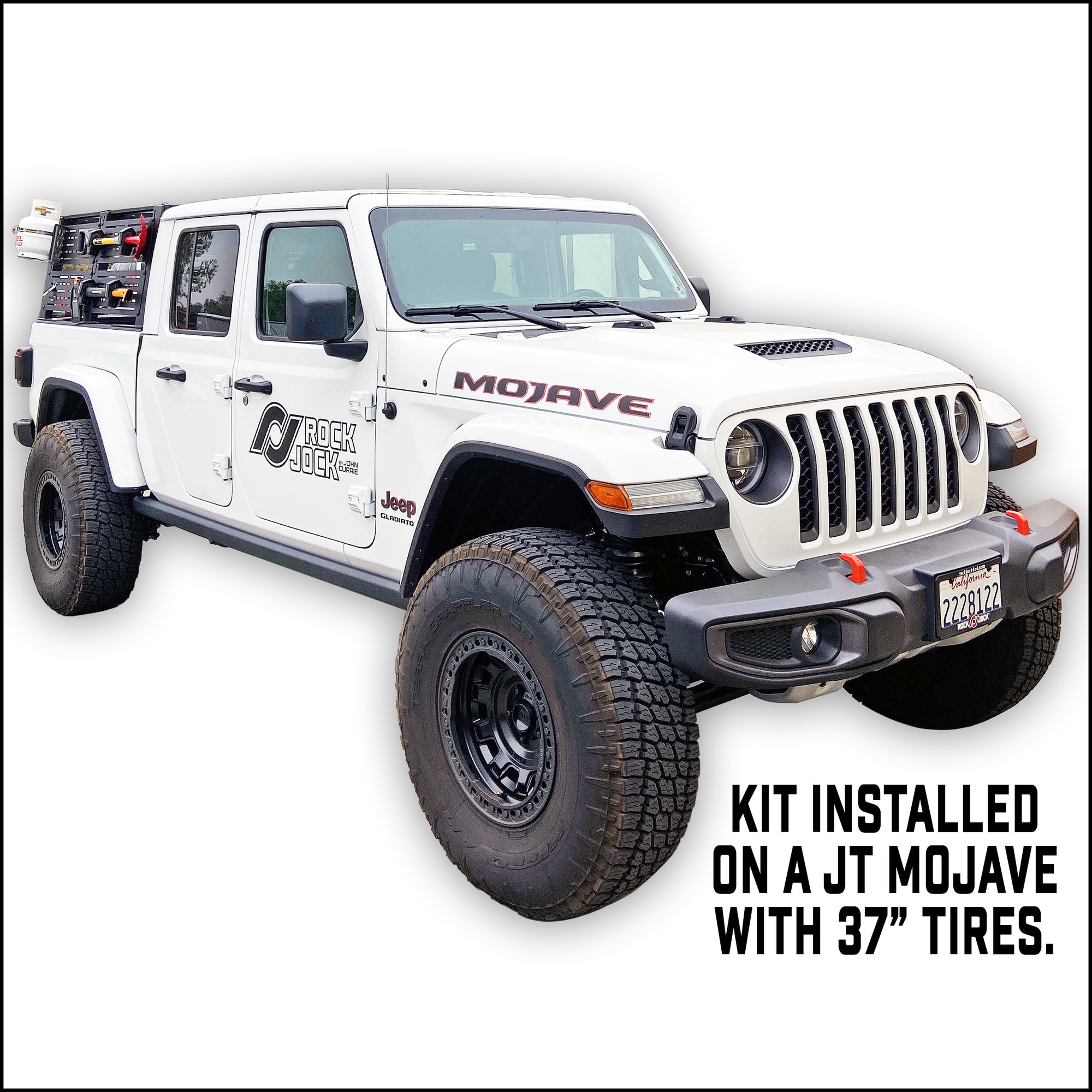

RockJock's JT Gladiator Mojave Edition 1 1/2 Inch Suspension Lift lifts the Mojave model enough to efficiently clear a 37 in. tire, while retaining all of the factory performance parts included in the JT Mojave package.
This kit retains the vehicle’s smooth, comfortable on-road ride, while the RockJock components feature high-quality, durable components that easily install and bump your vehicle’s height up – all in a complete, direct bolt-on kit.
Kit Fits:
- JT Gladiator – Mojave Model

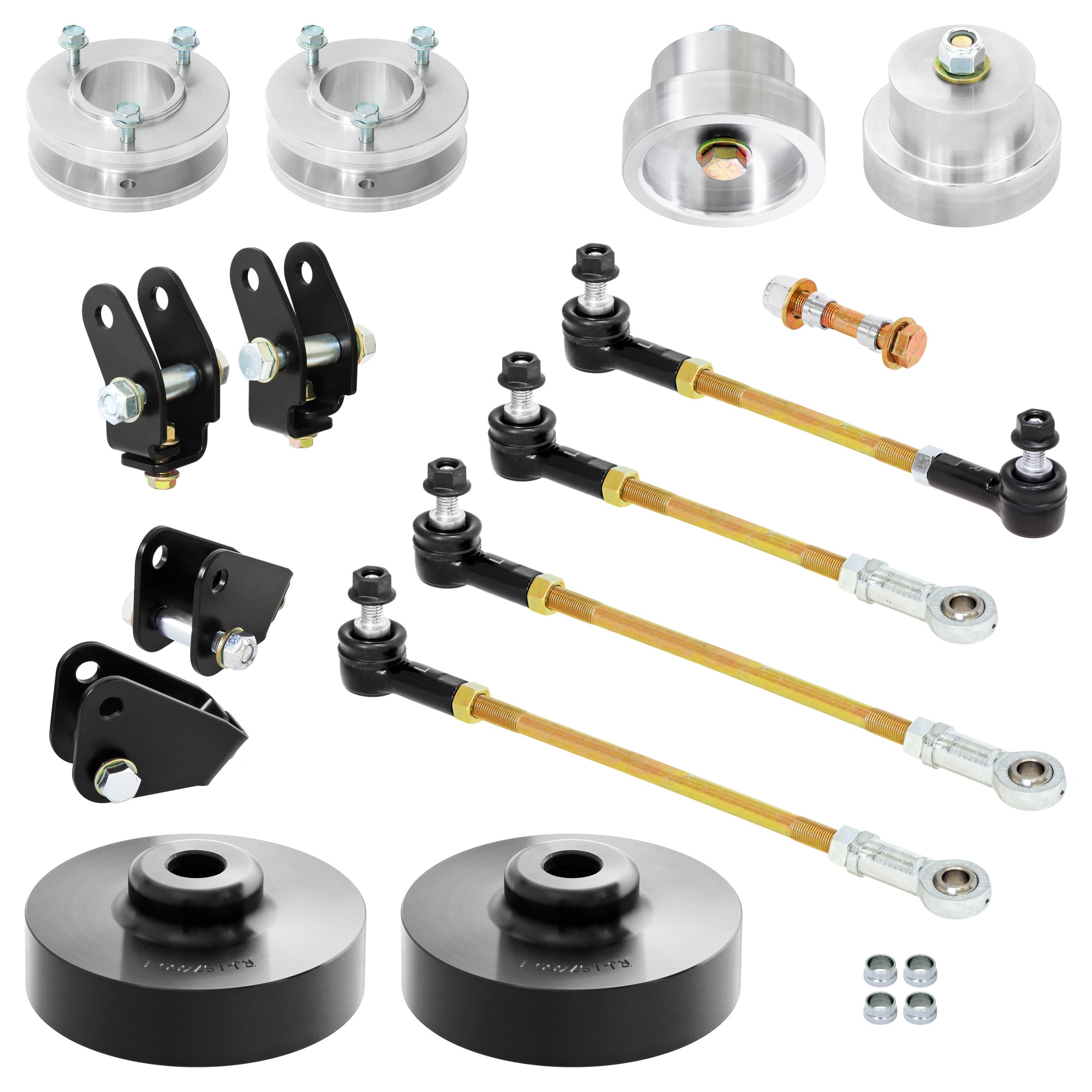

Kit Includes:
- Mojave Front Upper Air-Bump Stop Spacers
- Mojave Rear Upper Bump Stop Spacers
- Front Shock Relocators
- Rear Shock Relocators
- Rear Coil Spring Spacers
- Extended Front Sway Bar Links
- Extended Rear Sway Bar Links
- All Required Hardware
Lift Details:
- RockJock's JT Gladiator Mojave Suspension Kit provides 1.5 in. of suspension lift.
Tire Fitment:
- 37 in. tires – no inner fender modification necessary
Wheel Backspace:
- 4.5 in. wheel backspace is recommended for all tire sizes
Optional Add-On Components - Add-on components enable the RockJock Mojave Lift to be customized for increased off-road capabilities and tuning.
- – The most popular off-road sway bar on the market enhances off-road driving capabilities with balanced performance of front and rear suspension in rugged off-road conditions. Off-road traction is improved with increased suspension flex and by equalizing and distributing the weight of the vehicle over all four tires - without the overly loose feeling created by sway bar disconnects.
- – Install upper, lower or all 8 RockJock Johnny Joint control arms for maximum articulation and adjustability.
- – Restore and Improve factory geometry for a more pleasurable on-road driving experience.
- – Heavy duty adjustable length chromoly trac bars combine a precise fit with increased strength and adjustable length to perfectly center the axles under the vehicle. High-articulation Johnny Joint ends provide maximum durability and suspension flex and the optional rear trac bar bracket will restore rear trac bar geometry after a lift is installed.
Instruction Manual:
Parts List:
- Front Upper Air-Bump Stop Spacers (pair):
- Rear Upper Bump Stop Spacers (pair):
- Front Shock Relocators (pair):
- Rear Shock Relocators (pair):
- Rear Coil Spring Spacers (pair):
- Extended Front Sway Bar Link Rod:
- Front Sway Bar Link Hardware Pack:
- Extended Rear Sway Bar Link Rod:
- Rear Sway Bar Link Hardware Pack:
Media Hub
- Installation Instruction Manual:
