RJ-253202-103 - Sway Bar End Link Hardware Pack (JT stock rear sway bar)
Details

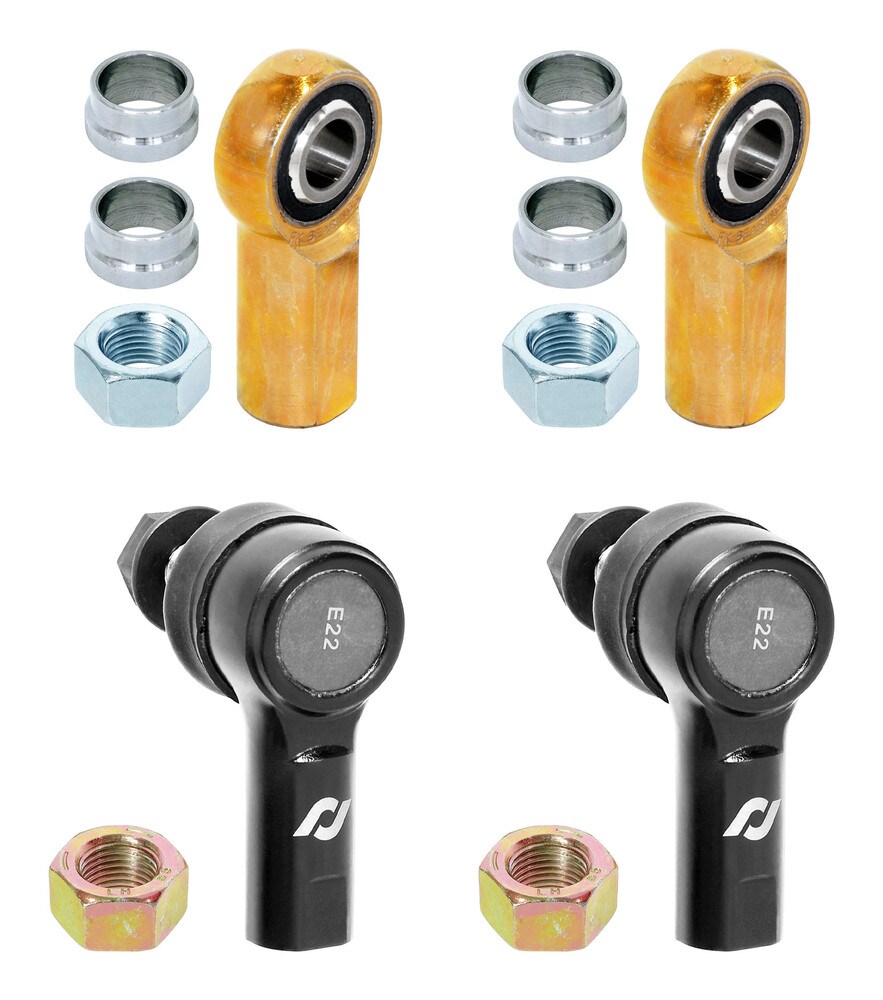

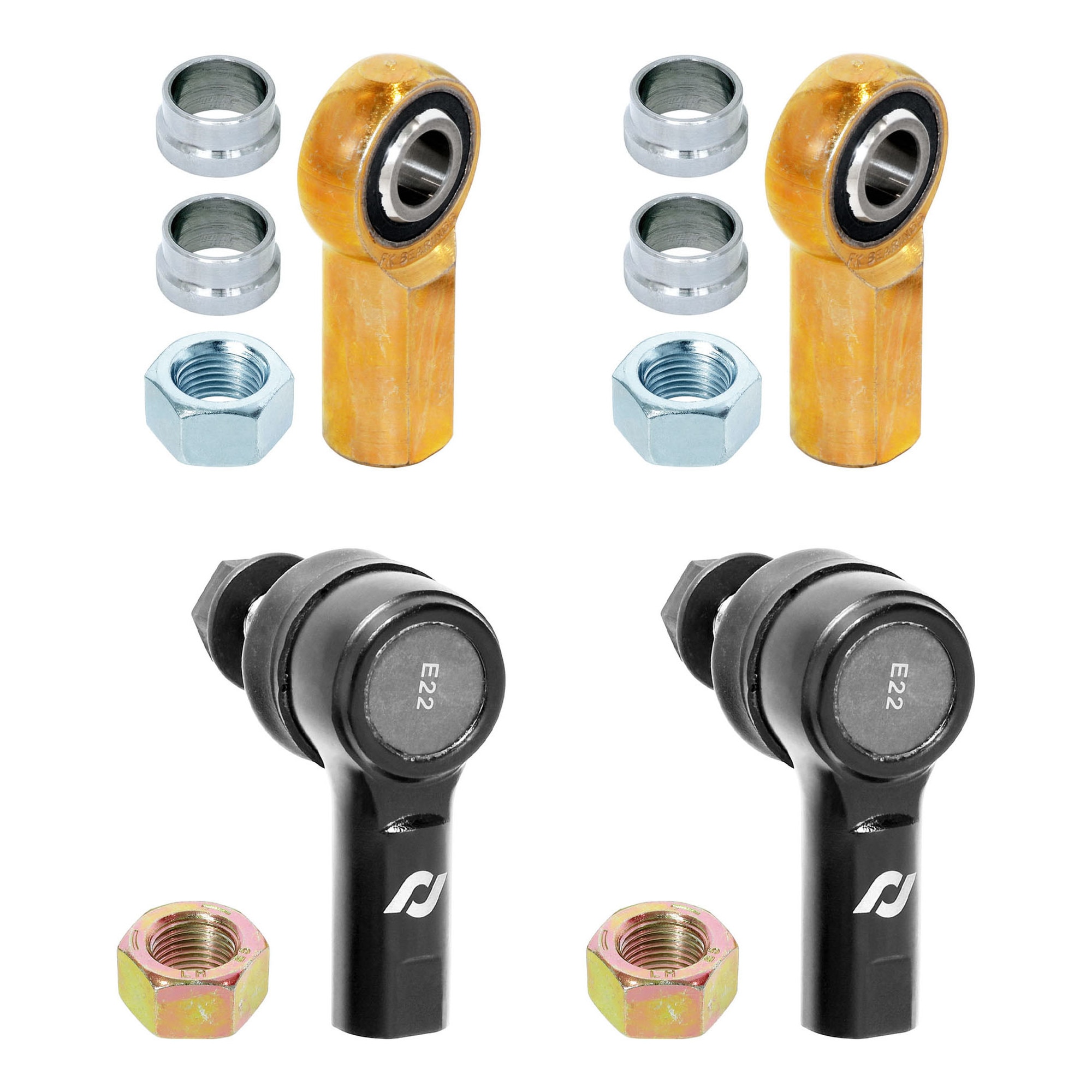

Sway Bar End Link Hardware Pack for JT Gladiator rear (w/o Antirock) includes 2 left hand thread sealed rod ends with locking nuts (connect to stock sway bar), 2 thru-bolt heim joints (for frame end of links), 4 heim joint misalignment spacers, 2 right hand and 2 left hand jam nuts.
Component Specs.:
- Sealed Rod End Female Threads = 1/2 in.-20 LH
- Sealed Rod End Stud Threads = 12mm-1.75
- Heim Joint Female Threads = 1/2 in.-20 RH
- Heim Joint Thru-Hole = 1/2 in. ID
- Misalignment Spacer = .515 in. ID x .690 in. OD x .238 in. tall
- Jam Nut Threads = 1/2 in.-20 RH/LH
Notes:
- Threaded stud length: = 1in. (making the sealed ends incompatible with 3/4 in. thick aluminum Antirock arms)
- Wrench flat: = 18mm wrench on sealed ends, 19mm wrench on heim joints
Parts List:
- Sealed Rod End (LH thread): RJ-527000-102
- Thru-Bolt Heim Joint (RH thread): CE-99006B
- 1/2 in.-20 Jam Nut (RH thread): CE-99002JN
- 1/2 in.-20 Jam Nut (LH thread): CE-H0020
- 1/2 in. ID Heim Misalignment Spacer: RJ-524200-1
