  • RJ-151404-103 - JT Gladiator Mojave Rear Shock Relocators

RJ-151404-103 - JT Gladiator Mojave Rear Shock Relocators

Details

Details

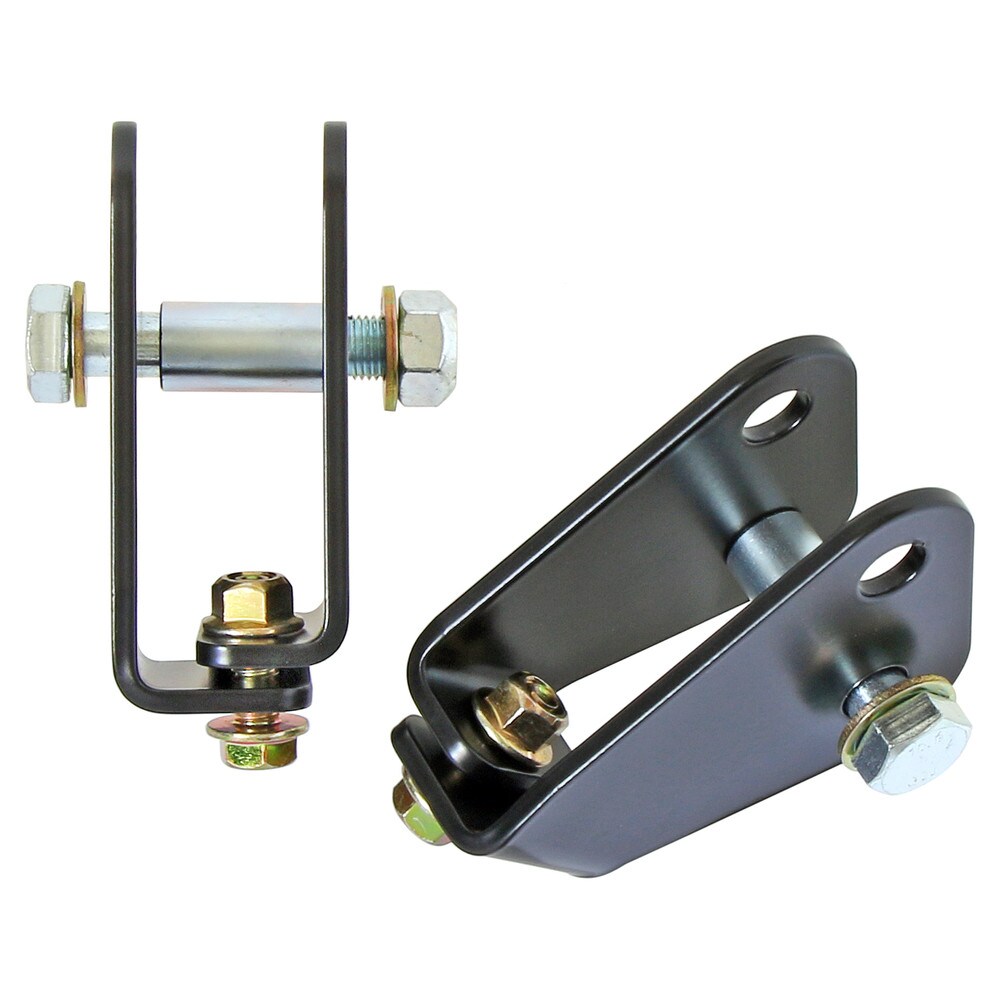

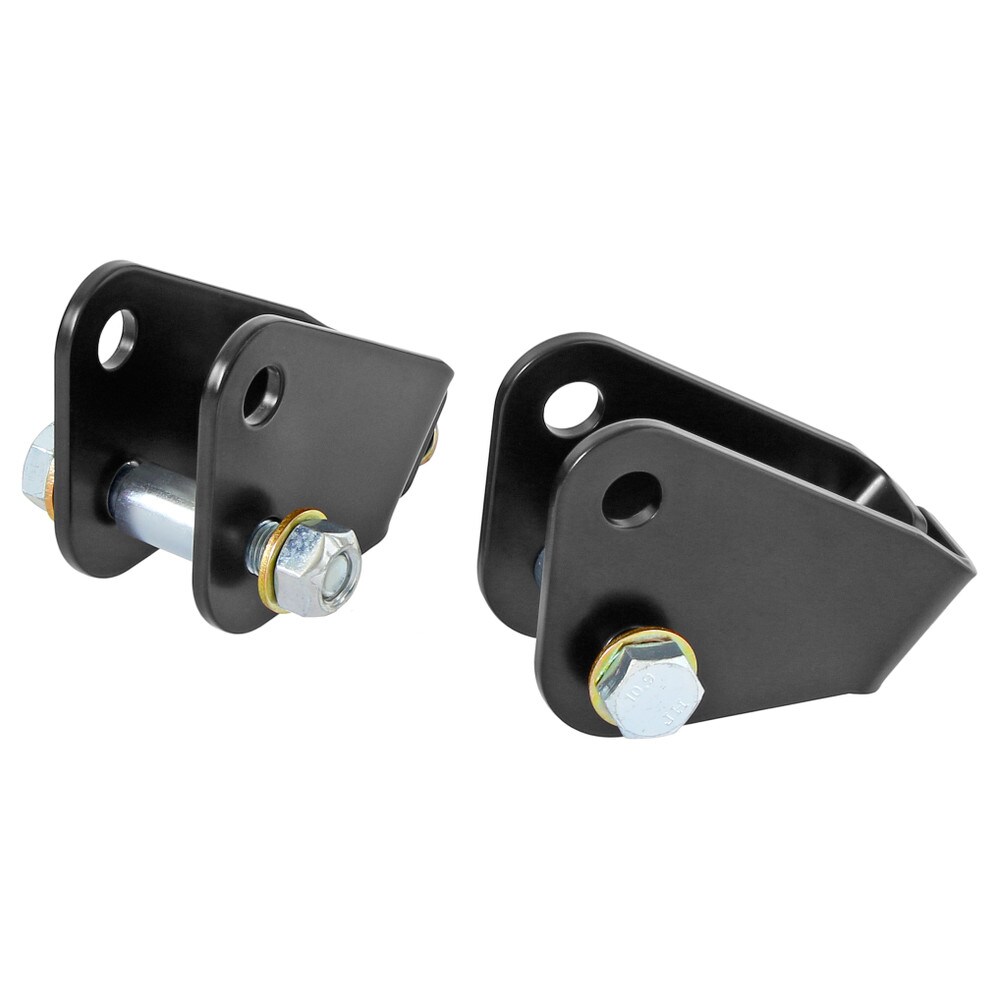

RockJock's JT Gladiator Mojave Rear Shock Relocator Brackets are designed for use with our 1 1/2 in. JT Mojave Spacer Lift Kit. These brackets allow you to retain your Mojave’s factory installed Fox shocks when installing the 1 1/2 in. lift.
Simply unbolt your shocks install these relocator brackets into the factory shock mounts on the axle housing and then reinstall your shocks into the relocator brackets!
Brackets are finished in semi-gloss black powder coat and include all necessary hardware.


Kit Fits:

  • JT Gladiator – All Models

Kit Includes:

  • (4)  Shock Mount Relocator Bracket Halves
  • All Necessary Hardware

Notes:

  • Function  =  These brackets allow you to retain your Mojave’s factory installed Fox shocks when installing the 1 1/2 in. lift.
  • Installation  =  Simply unbolt your shocks install these relocator brackets into the factory shock mounts on the axle housing and then reinstall your shocks into the relocator brackets!

Parts List:

  • Inner Left Bracket Half:  RJ-151404-1
  • Outer Left Bracket Half:  RJ-151404-3
  • Inner Right Bracket Half:  RJ-151404-2
  • Outer Right Bracket Half:  RJ-151404-4
  • Steel Spacer (.750 in. OD x .571 ID x 1.368 in. long):
  • 14mm-1.5 x 80mm Long Hex Bolt:
  • 14mm Flat Washer:
  • 14mm-1.5 Stover Nut:
  • 10mm-1.5 x 80mm:
  • 10mm-1.5 Flanged Stover Nut:
