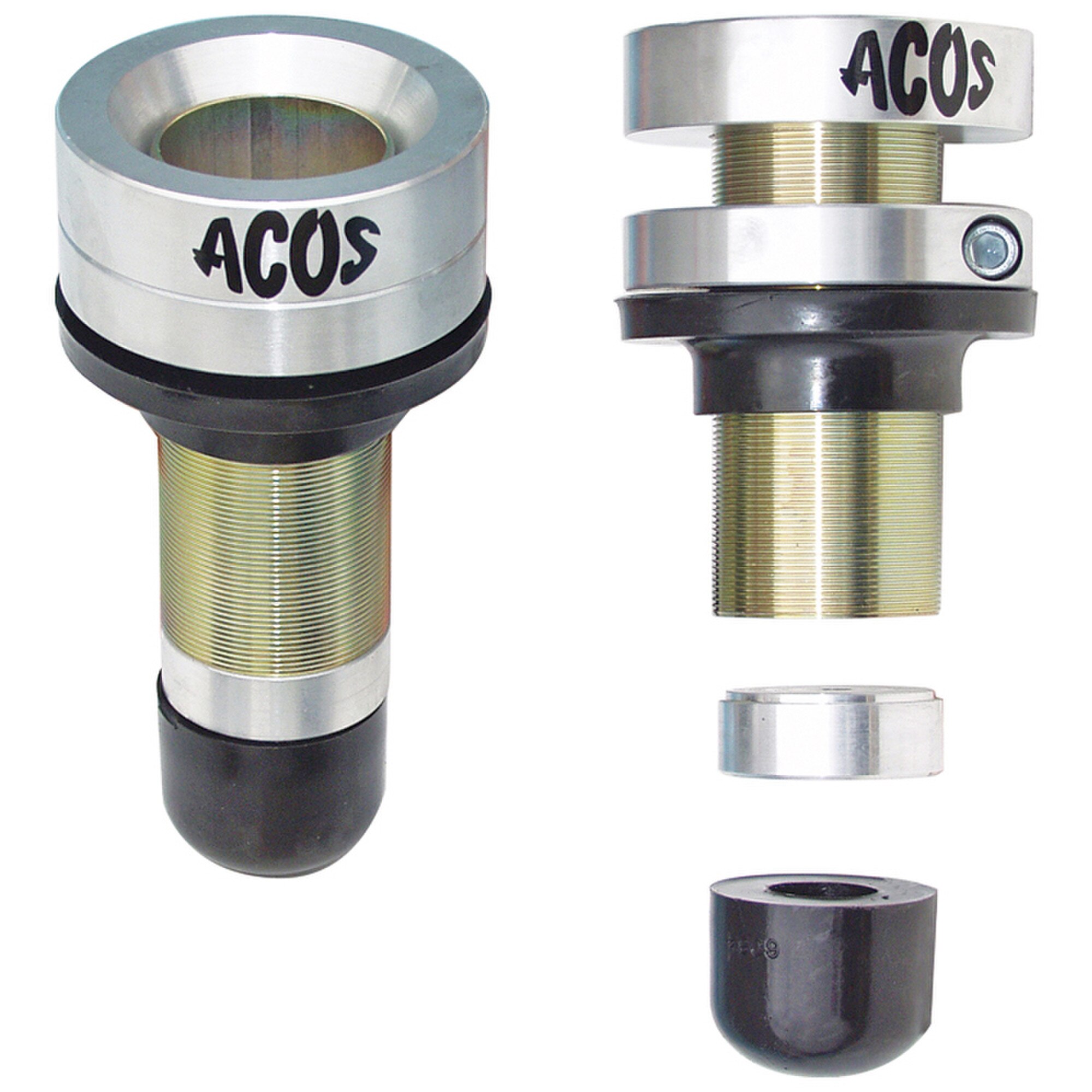

CE-ACOS - TJ/LJ/XJ/MJ/ZJ ACOS Front Adjustable Coil Spring Spacers



ACOS Front Adjustable Coil Spacers enable you to dial in the ride height on your Jeep TJ, LJ, XJ, MJ or ZJ. The range of ride height adjustment is from 1 1/2 in. to 3 3/4 in. - without taking apart suspension components!
ACOS adjustable coil spring spacers compensate for uneven load distribution and spring settling. They can save you from having to replace coil springs as you add equipment weight.
The high-tech, billet design looks great, too. Dura-Thane isolators prevent noise transfer.

Kit Fits:

  • 1997-2006 Jeep TJ Wrangler
  • 2004-2006 Jeep TJ Unlimited (LJ)
  • 1984-2001 Jeep XJ Cherokee
  • 1986-1992 Jeep MJ Comanche
  • 1993-1998 Jeep ZJ Grand Cherokee

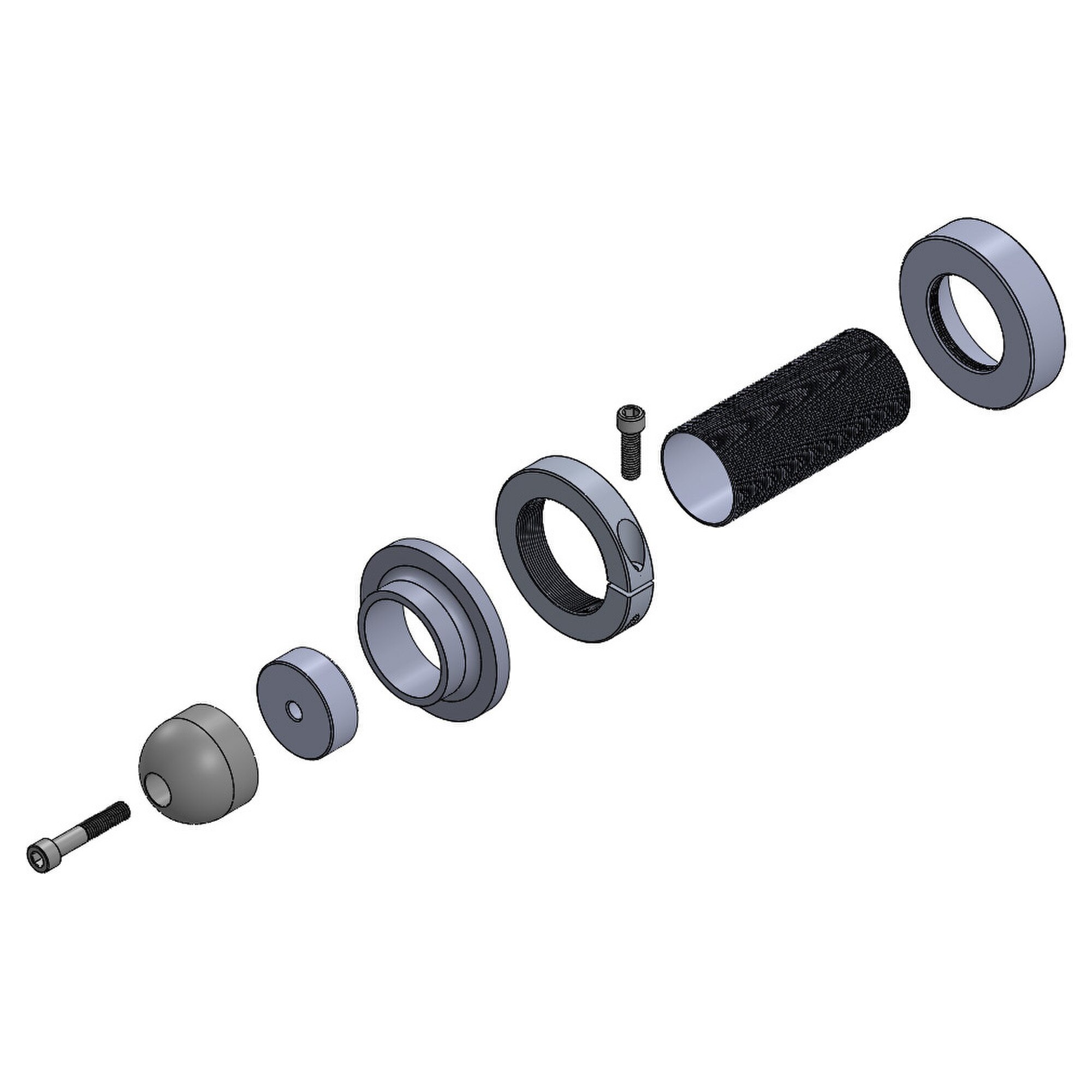

Kit Includes:

  • (2) Transfer Rings
  • (2) Adjuster Rings
  • (2) Threaded Tubes (gold)
  • (2) Isolator Pads
  • (2) Bump Stop Supports
  • (2) Bump Stops
  • (2) 10mm x 55mm Socket Head Allen Bolts

Adjustment Range:

  • Closed – 1 1/2 in. (note: merely installing on your vehicle immediately lifts it 1 1/2 in.)
  • Extended – 3 3/4 in. (maximum lift over stock)


  • Fits stock front upper bump stop frame mount on TJ/LJ/XJ/MJ/ZJ vehicles
  • Adjustable height design adapts to your vehicle and future modifications
  • Technically advanced design and billet construction dramatically enhances suspension appearance
  • Spherical bushings provide unrestricted 360 degrees of rotation and 11 degrees of misalignment capability
  • Most vehicles require additional parts or modifications to accommodate the immediate increase in ride height (extended front brake hoses, steering & trac bar adjustments)

Instruction Manual:
