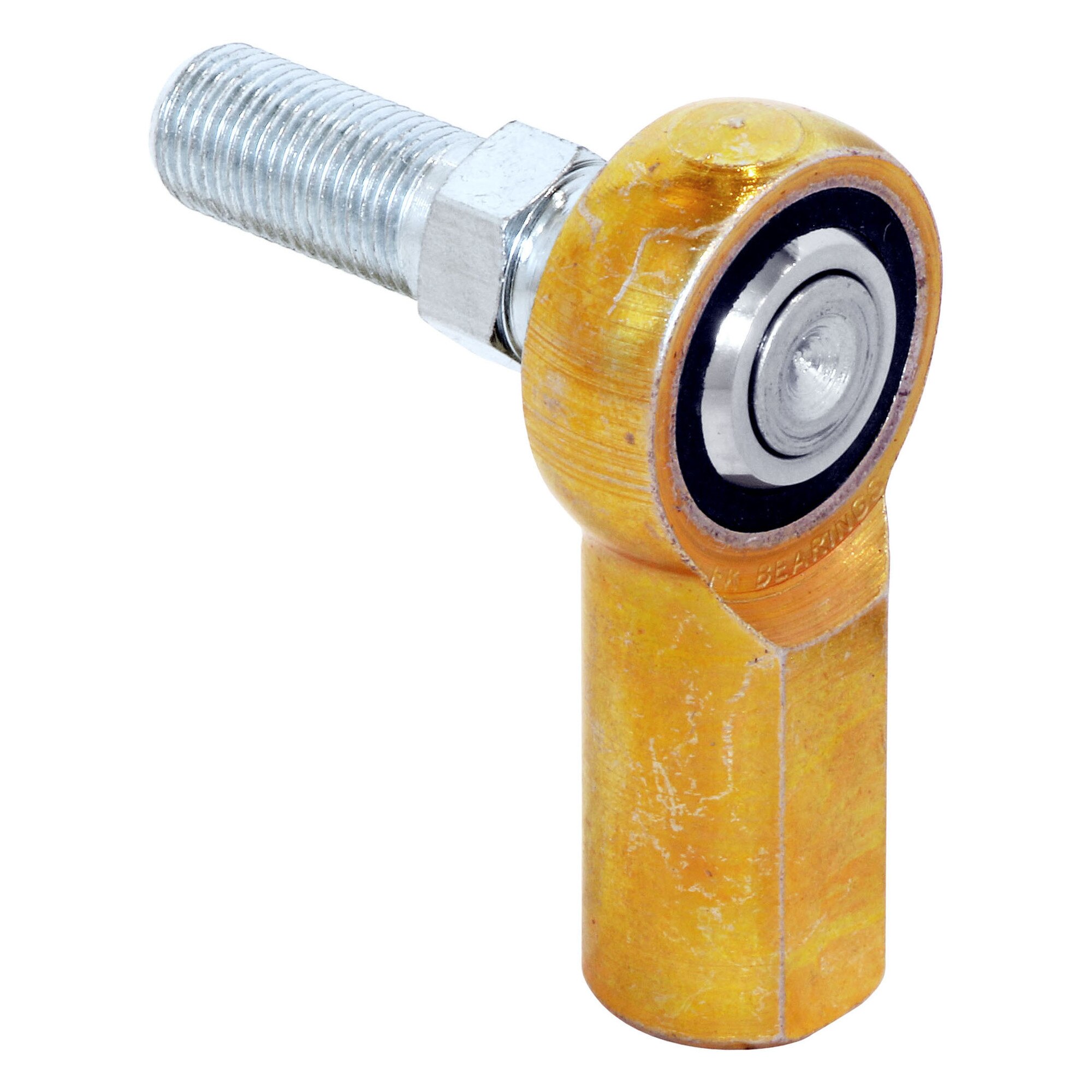

Studded Sway Bar End Link Heim Joints are available for universal use, or as a replacement part if you are replacing worn out heim joints on Antirock sway bar kit end links.

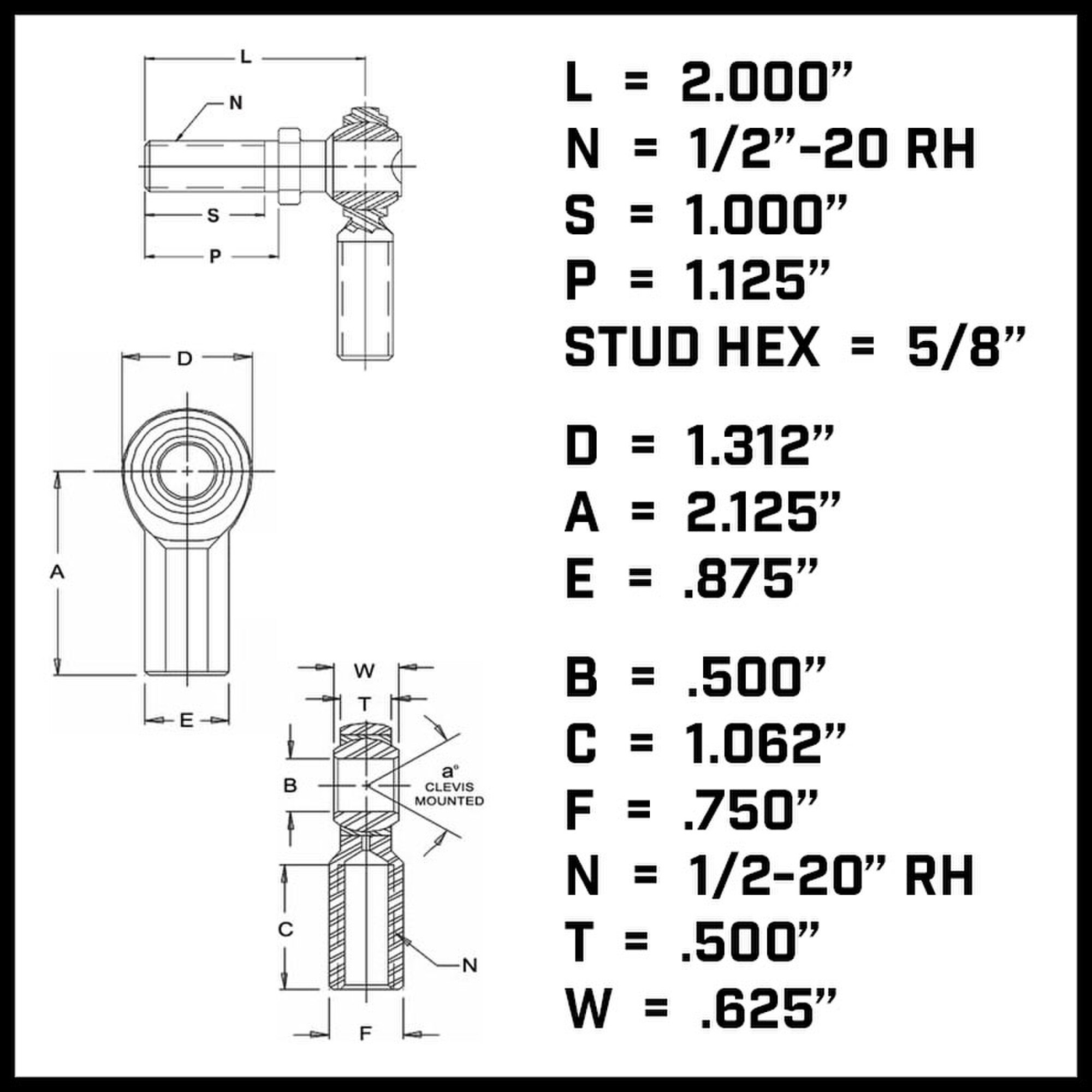

Component Specs.:

• Stud Travel  =  26 degrees from a neutral position (52 degrees overall)
• Female Thread  =  1/2 in.-20 RH
• Threaded Stud Threads  =  1/2 in.-20 RH
• Threaded Stud Length  =  1 1/8 in. (usable length)
• Threaded Stud Allen Size  =  6mm
• Hex on Stud  =  takes 5/8 in. wrench.
• Finish (body)  =  gold zinc plating
• Finish (stud)  =  clear zinc plating
