CE-9807RBSK - JK Rear Bump Stop Kit (3 in.)
Details
Details
RockJock's 3 Inch Rear Bump Stop Kit for all JK Wrangler and Unlimited models provides proper bump stop extension when using our JK lifted rear coil springs.
Spacers are CNC machined billet aluminum. Finish is semi-gloss black powder coat on the bump stops and clear zinc plating on the hardware.
Kit Fits:
- JK Wrangler Unlimited (4-door) – All Models
- JK Wrangler (2-door) – All Models

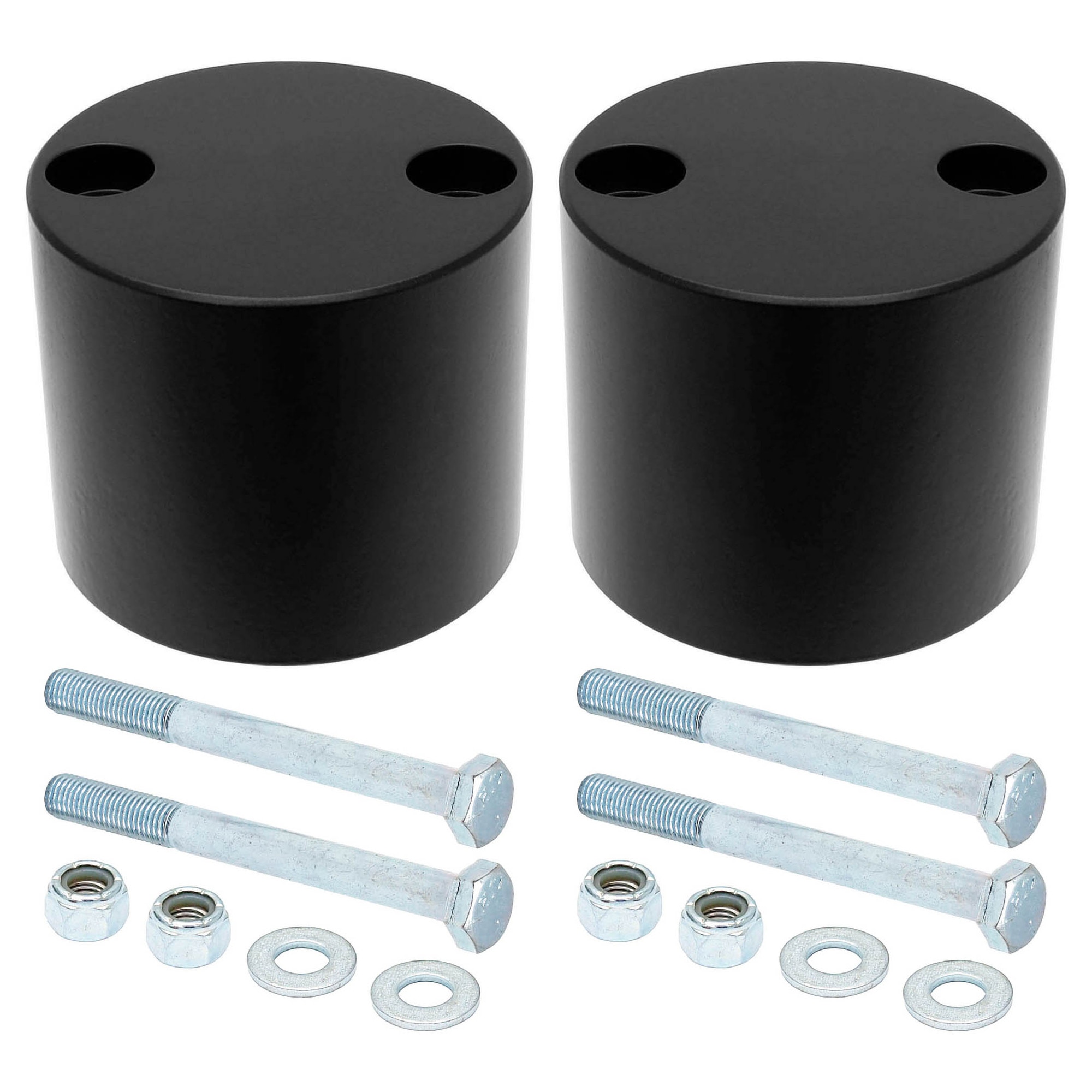

Kit Includes:
- (2) Aluminum bump stop spacers (fit right or left side)
- All Required Hardware
Component Specs.:
- Spacer Height 3.000 in.
- Spacer O.D. 3.500 in.
- Thru-Hole .328 in. (to accept a 5/16 in. bolt)
Notes:
- Intended for use with our CE-9132RP 4 in. lift JK Rear Coil Springs
- When installing this kit, consider also installing our CE-9807RRK Rear Coil Spring Retainer Kit
Parts List:
- Aluminum Bump Stop Spacer: CE-9807RBS
- 5/16 in.-24 x 3 1/4 in. Long Hex Bolt: CE-91247A124
- 5/16 in. Flat Washer: CE-90126A030
- 5/16 in.-24 Nyloc Nut: CE-97135A225
Media Hub
- Installation Instruction Manual: CE-9807RBSK
