CE-9807FBSK - JK Front Bump Stop Kit (3 in.)
Details
Details
RockJock's 3 Inch Front Bump Stop Kit for all JK Wrangler and Unlimited models provides proper bump stop extension when using our JK lifted front coil springs.
The polyurethane bump stop pucks provide a cushioned stop and the CNC machined billet aluminum spacers in the kit may be added to or subtracted from for fine tuning in custom applications. Finish on metal components is semi-gloss black powder coat and zinc plating on the hardware.
Kit Fits:
- JK Wrangler Unlimited (4-door) – All Models
- JK Wrangler (2-door) – All Models

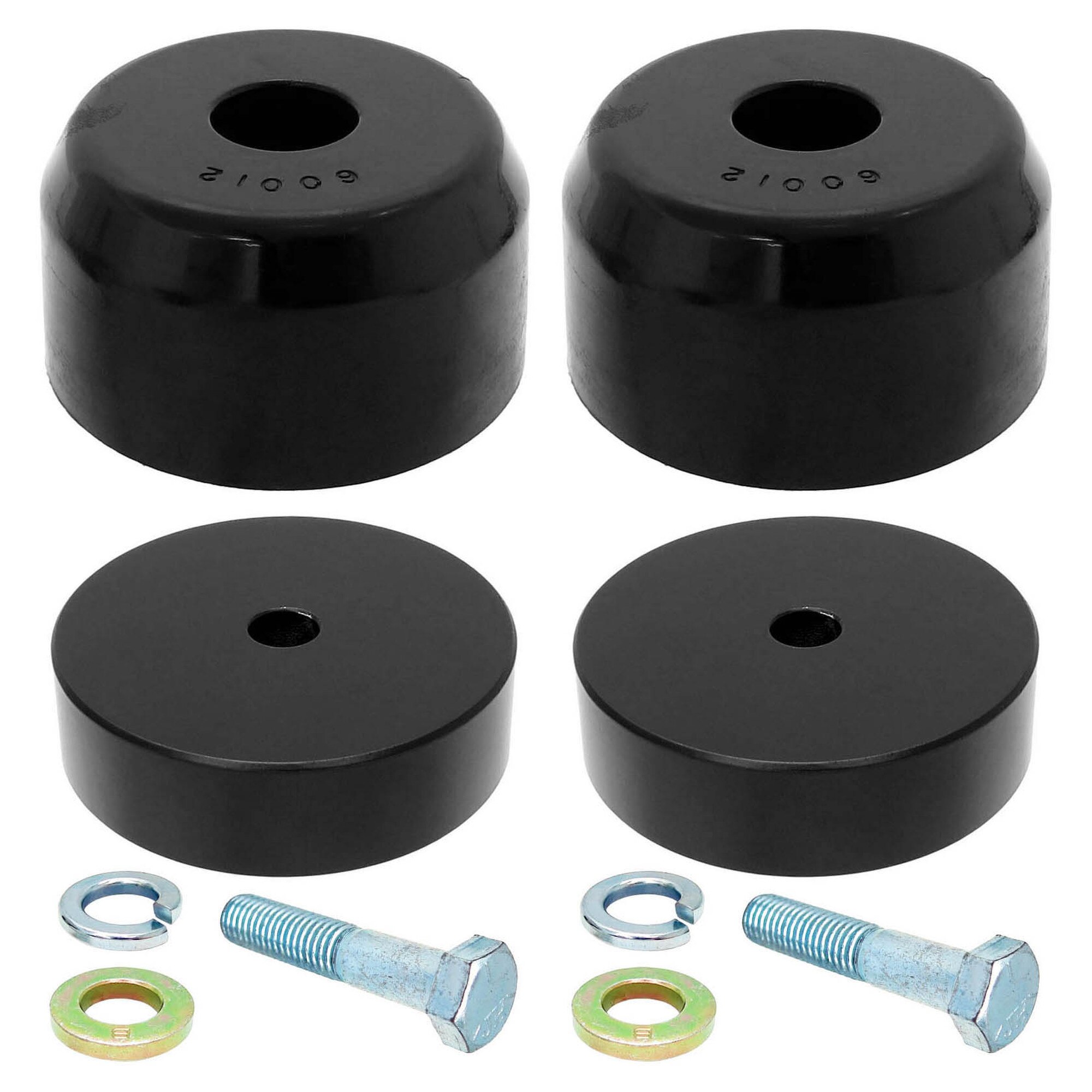

Kit Includes:
- (2) Urethane bump stop pucks (fit right or left side)
- (2) Aluminum bump stop spacers (fit right or left side)
- All Required Hardware
Component Specs.:
- Urethane Bump Stop Puck Height = 2.000 in.
- Urethane Bump Stop Puck O.D. = 3.735 in.
- Billet Aluminum Spacer Height = 1.000 in.
- Billet Aluminum Spacer Height O.D. = 3.500 in.
- Thru-Hole = .515 in. hole (to accept a 1/2 in. bolt)
Notes:
- Intended for use with our 4 in. lift JK Front Coil Springs
Parts List:
- Urethane Bump Stop Puck:
- Aluminum Bump Stop Spacer:
- 1/2 in.-13 x 2 1/2 in. Long Hex Bolt:
- 1/2 in. Flat Washer:
- 1/2 in. Lock Washer:
Media Hub
- Installation Instruction Manual:
