CE-9807RSRK - JK Rear Shock Mount Relocator Kit
Details

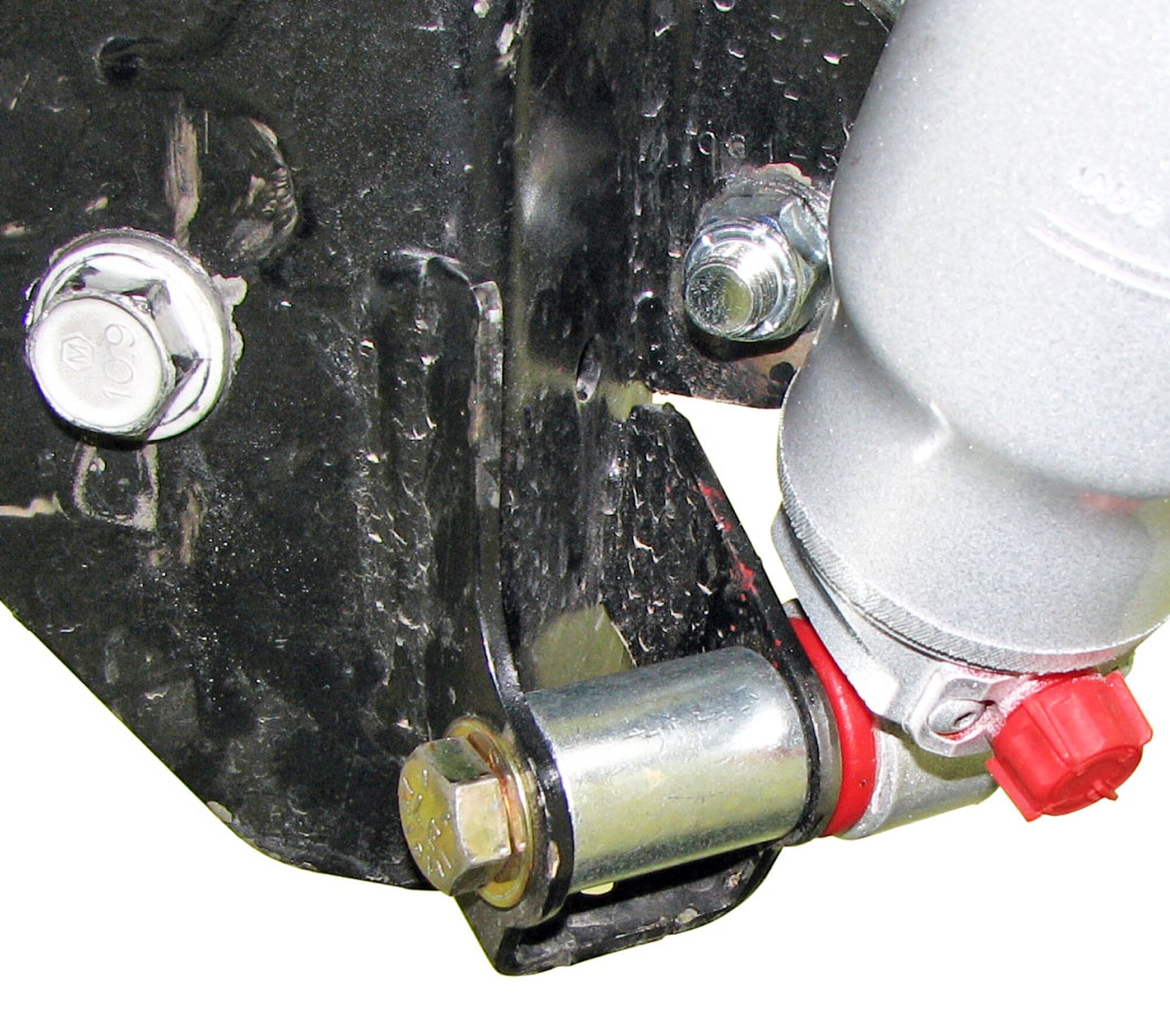

RockJock's Rear Shock Relocator Kit for the rear of JK Wranglers and Unlimiteds is designed for use in conjunction with factory differential housings. When a JK is lifted and a high-articulation suspension system, such as the RockJock Johnny Joint Suspension System is installed, the shocks are able to make contact with the side of the chassis upon dramatic articulation of the suspension. This can cause bending or breakage of the shocks. By tipping the bottom of the shocks outward, they are given the little extra clearance they need to not contact the chassis.
Again, this applies to suspension systems such as our bolt-on kit that features 4 standard length control arms mounted in stock chassis and differential brackets. This information and these components may or may not apply to any given long arm/long travel and triangulated suspension systems. Finish on all components is zinc plating.
Kit Fits:
- JK Wrangler Unlimited (4-door) – All Models
- JK Wrangler (2-door) – All Models

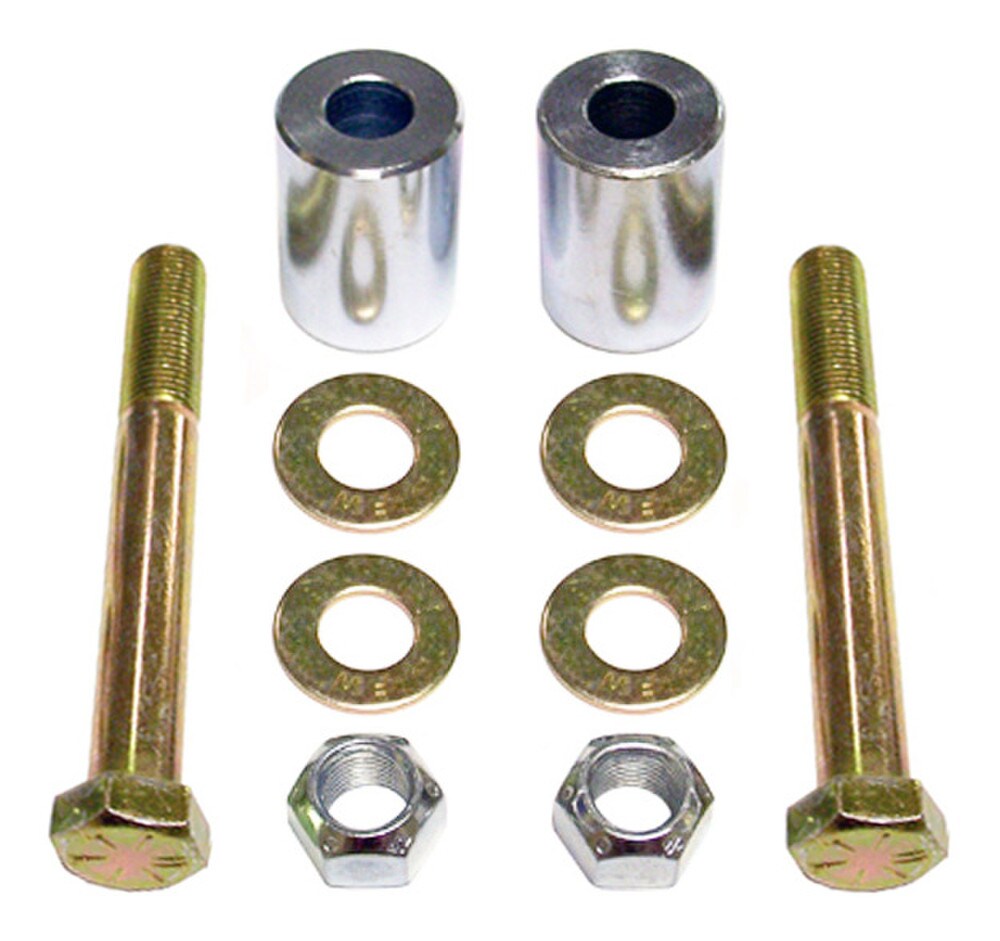

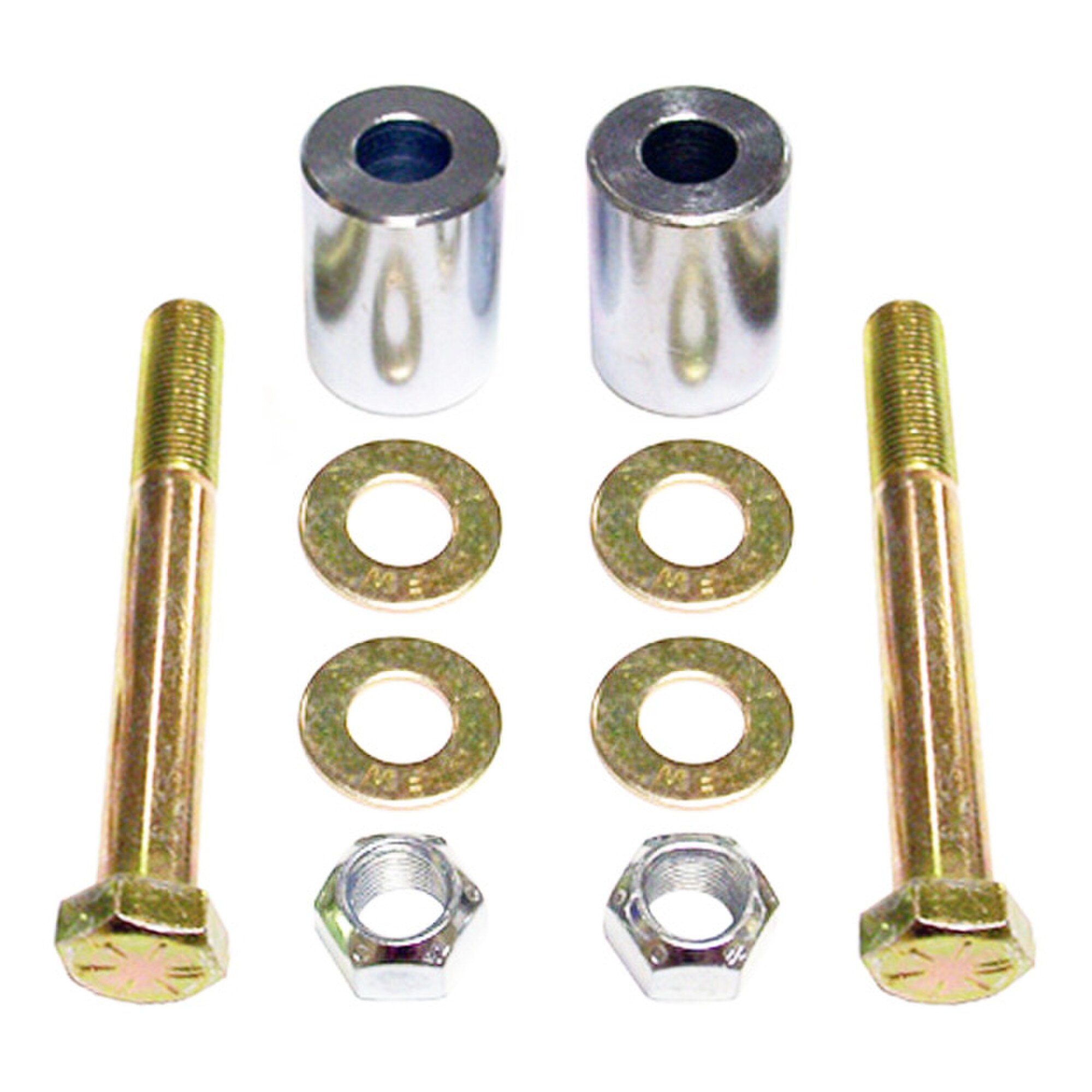

Kit Includes:
- (2) Steel Spacer Sleeves)
- All necessary hardware
Notes:
- This kit is intended for use on factory JK Dana 35 and Dana 44 rear differential housings only.
Instruction Manual:
Parts List:
- Steel Spacer Sleeves: CE-9807RSRS
- 1/2 in.-20 x 4 1/4 in. Long Hex Bolt: CE-H0043
- 1/2 in. Flat Washer: CE-H0014
- 1/2 in.-20 Stover Nut: CE-92501A440
