CE-9112SP-12 - 2" Johnny Joint®, Forged, 3/4" RH Thread (2.000" x .500" Ball)

2" Johnny Joint®, Forged, 3/4" RH Thread (2.000" x .500" Ball)
SKU: CE-9112SP-12
$60.00
PROP 65 WARNING:

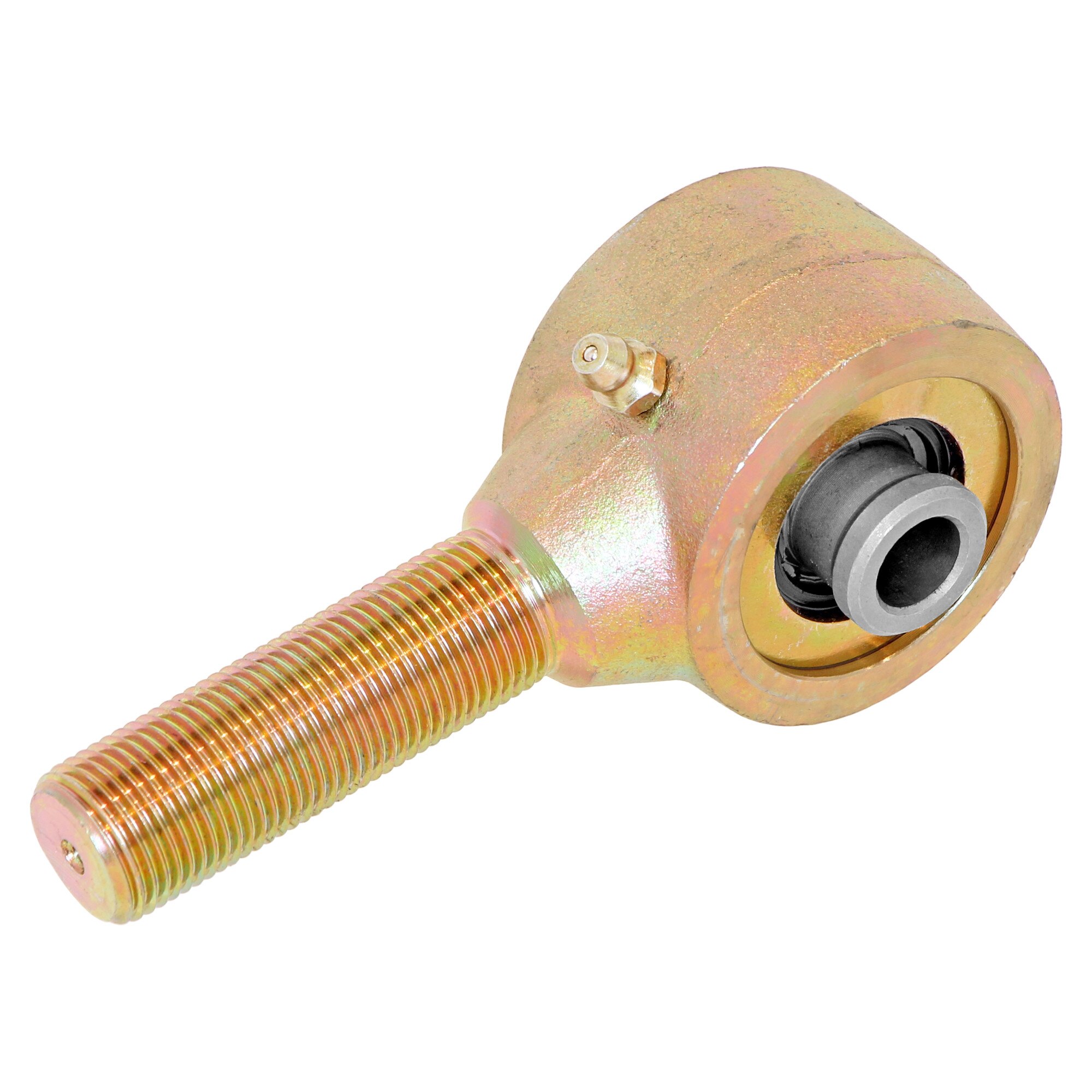

This forged 2" Johnny Joint® rod end from RockJock features a 1/2" thru bolt hole, a 2" mounting width, 2 1/4" of 3/4"-16 right hand threads on the shank and is greasable through the outer shell. Finished in gold zinc plating.

This forged 2" Johnny Joint® rod end from RockJock features a 1/2" thru bolt hole, a 2" mounting width, 2 1/4" of 3/4"-16 right hand threads on the shank and is greasable through the outer shell. Finished in gold zinc plating.

Products specifications
Body Type Forged Steel (Threaded)
Body Series 2.0 inch OD, Standard Body
Body Width 1.450 inches
Thread Size 3/4 inch, 16 TPI
Thread Direction Right Hand
Shank Length 2 1/4 inch
Mount Width 2.000 inches
Hole Diameter .500 inch (1/2)
Misalignment 29° Total
Lubrication Method External zerk fitting located on joint body
Body Finish Yellow zinc plating
Products specifications
Body Type Forged Steel (Threaded)
Body Series 2.0 inch OD, Standard Body
Body Width 1.450 inches
Thread Size 3/4 inch, 16 TPI
Thread Direction Right Hand
Shank Length 2 1/4 inch
Mount Width 2.000 inches
Hole Diameter .500 inch (1/2)
Misalignment 29° Total
Lubrication Method External zerk fitting located on joint body
Body Finish Yellow zinc plating
