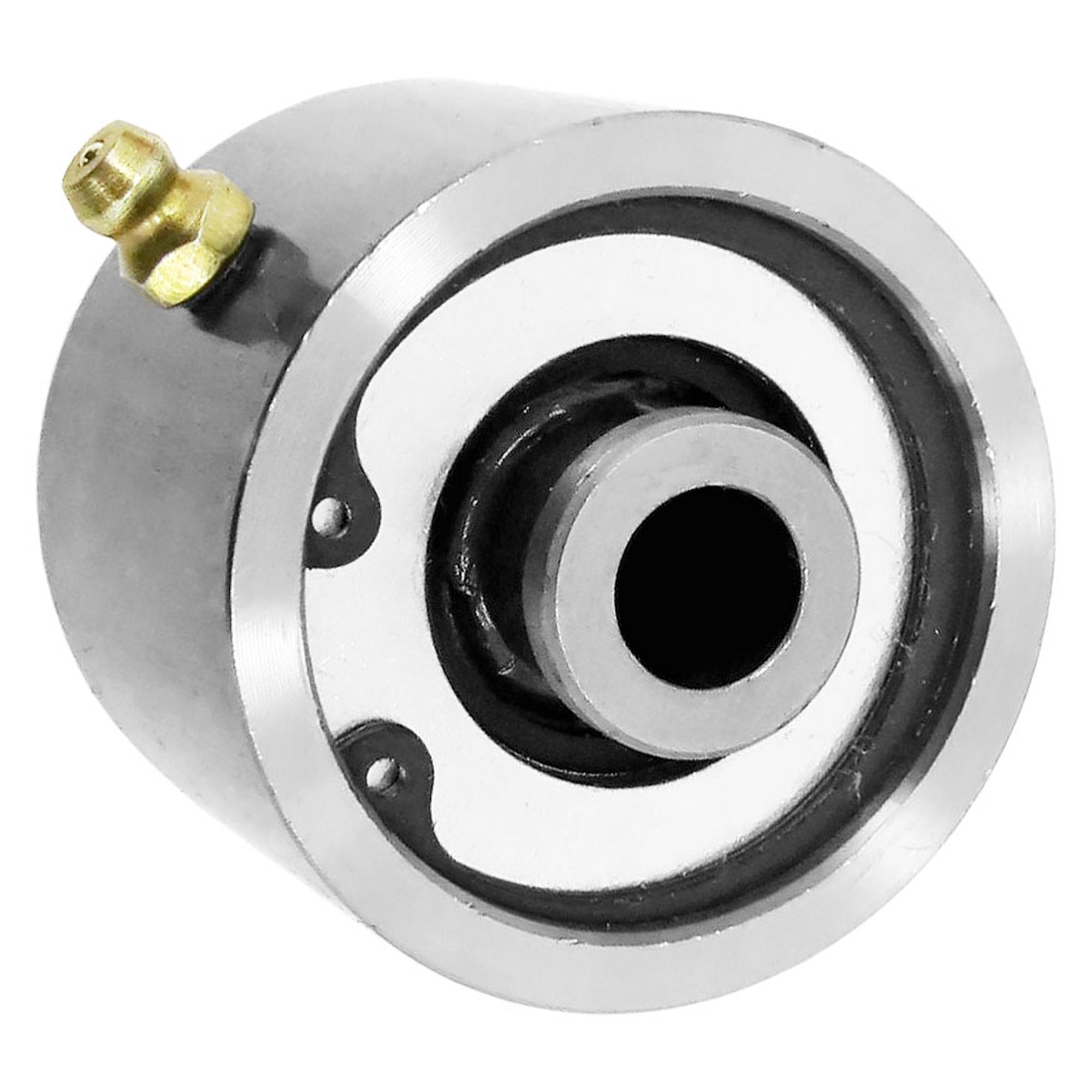

CE-9112P-12 - 2" Johnny Joint® Rod End - Externally Greased (2.000" x .500" Ball)

2" Johnny Joint® Rod End - Externally Greased (2.000" x .500" Ball)
SKU: CE-9112P-12
$51.00
PROP 65 WARNING:

For fabricators and suspension system builders. RockJock's Johnny Joints® offer 32 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint. The bushings in the Johnny Joint® rod ends are made with a high-density, "Tough 88" urethane that encases the inner ball. It is a very durable material, and is impervious to weather. The special center ball is heat-treated steel for extra strength, features a .500" thru bolt hole, and a 2" mounting width. The outer shell is .180" DOM tubing, and is fitted with a zerk fitting for external greasing. Retaining washers are heat-treated steel.

For fabricators and suspension system builders. RockJock's Johnny Joints® offer 32 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint. The bushings in the Johnny Joint® rod ends are made with a high-density, "Tough 88" urethane that encases the inner ball. It is a very durable material, and is impervious to weather. The special center ball is heat-treated steel for extra strength, features a .500" thru bolt hole, and a 2" mounting width. The outer shell is .180" DOM tubing, and is fitted with a zerk fitting for external greasing. Retaining washers are heat-treated steel.

Products specifications
Body Type Weld-on
Body Series 2.0 inch OD, Standard Body
Body Width 1.450 inches
Mount Width 2.000 inches
Hole Diameter .500 inch (1/2)
Misalignment 29° Total
Lubrication Method External zerk fitting located on joint body
Products specifications
Body Type Weld-on
Body Series 2.0 inch OD, Standard Body
Body Width 1.450 inches
Mount Width 2.000 inches
Hole Diameter .500 inch (1/2)
Misalignment 29° Total
Lubrication Method External zerk fitting located on joint body
