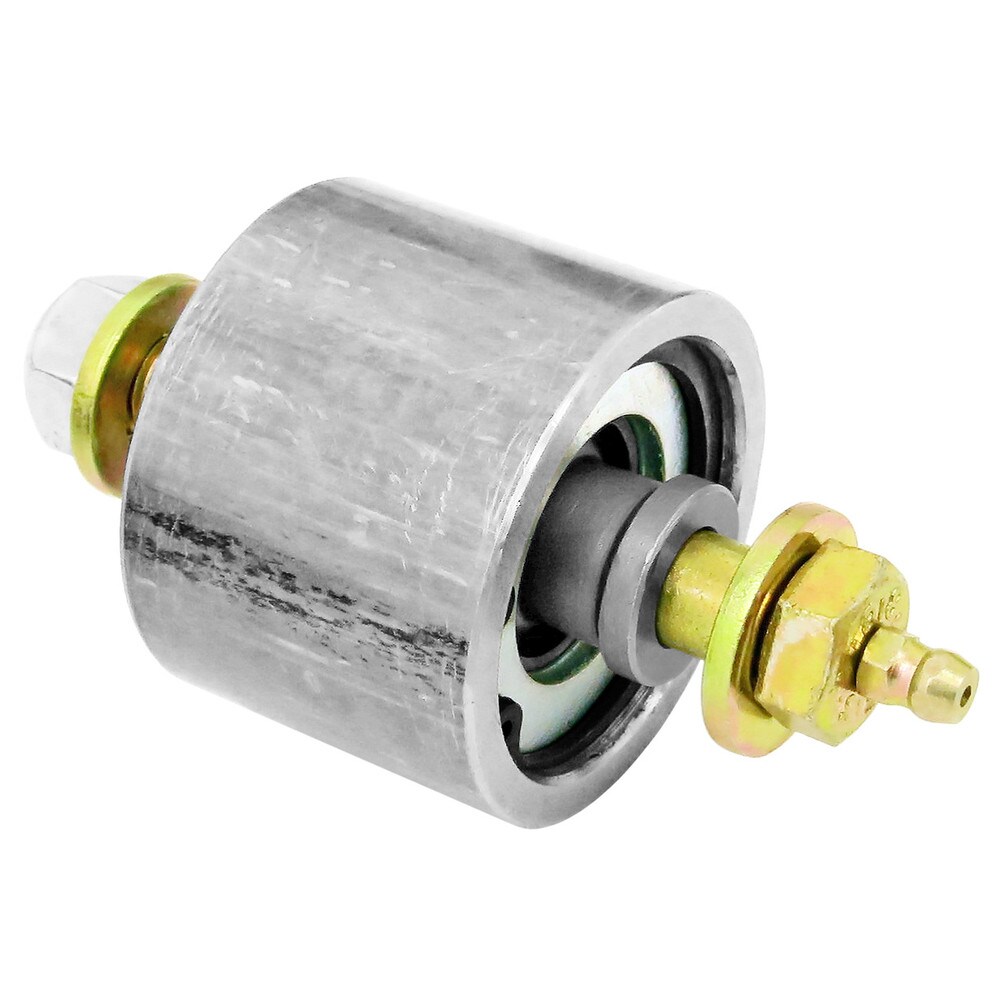

CE-9112-12 - 2" Johnny Joint® Rod End w/ Greasable Bolt (2" x .500" Ball)

2" Johnny Joint® Rod End w/ Greasable Bolt (2" x .500" Ball)
SKU: CE-9112-12
$57.00
PROP 65 WARNING:

RockJock's weld-on Johnny Joints® for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint® rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. The outer shell is weldable .180" wall machined DOM tubing. This specific joint is a 2" o.d. and features a 2" mounting width and a .500" thru bolt hole. Grade 8 greasable bolt with nut and washers included.

RockJock's weld-on Johnny Joints® for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint® rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. The outer shell is weldable .180" wall machined DOM tubing. This specific joint is a 2" o.d. and features a 2" mounting width and a .500" thru bolt hole. Grade 8 greasable bolt with nut and washers included.

Products specifications
Body Type Weld-on
Body Series 2.0 inch OD, Standard Body
Body Width 1.450 inches
Mount Width 2.000 inches
Hole Diameter .500 inch (1/2)
Misalignment 29° Total
Lubrication Method Internal, through ball center
Greasable Bolt 1/2 x 3 1/2 inch, 20 TPI
Products specifications
Body Type Weld-on
Body Series 2.0 inch OD, Standard Body
Body Width 1.450 inches
Mount Width 2.000 inches
Hole Diameter .500 inch (1/2)
Misalignment 29° Total
Lubrication Method Internal, through ball center
Greasable Bolt 1/2 x 3 1/2 inch, 20 TPI
