• CE-7011D - GM A-Body Currectrac Upper Control Arms (68-72)

CE-7011D - GM A-Body Currectrac Upper Control Arms (68-72)

Details

Details

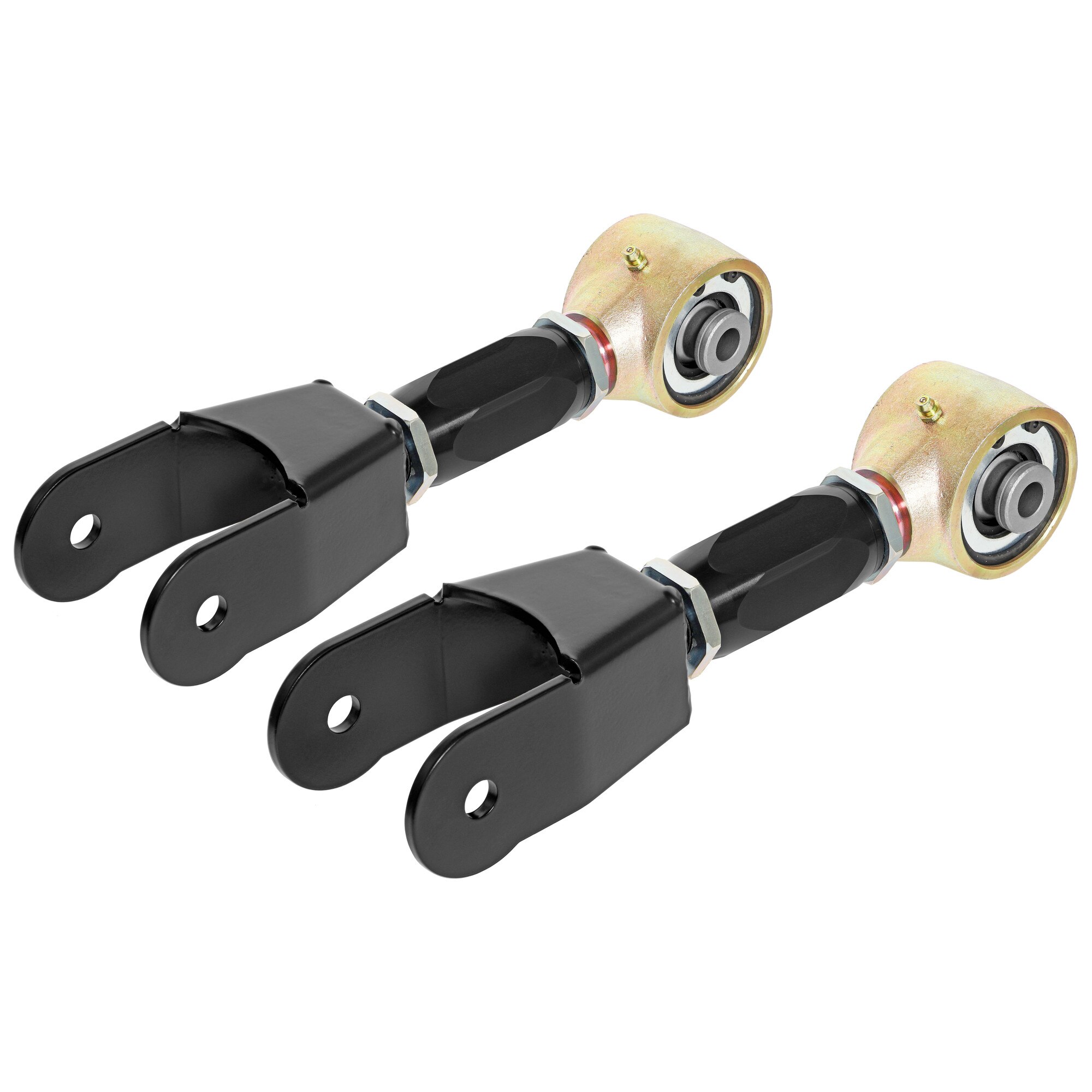

Currectrac Control Arms from John Currie Performance Group are the gold standard of aftermarket GM A-body control arms.
These arms bolt directly onto any 1968-1972 A-Body sedans, El Caminos or station wagons and offer full adjustability without either end of the arm having to be removed from the vehicle via their RH/LH thread, turnbuckle design.
Arms feature CNC machined billet aluminum, black anodized center adjusters, JCPG's greasable, urethane bushed Johnny Joint rod ends at the frame end and laser cut, heavy duty steel forks at the axle housing ends.

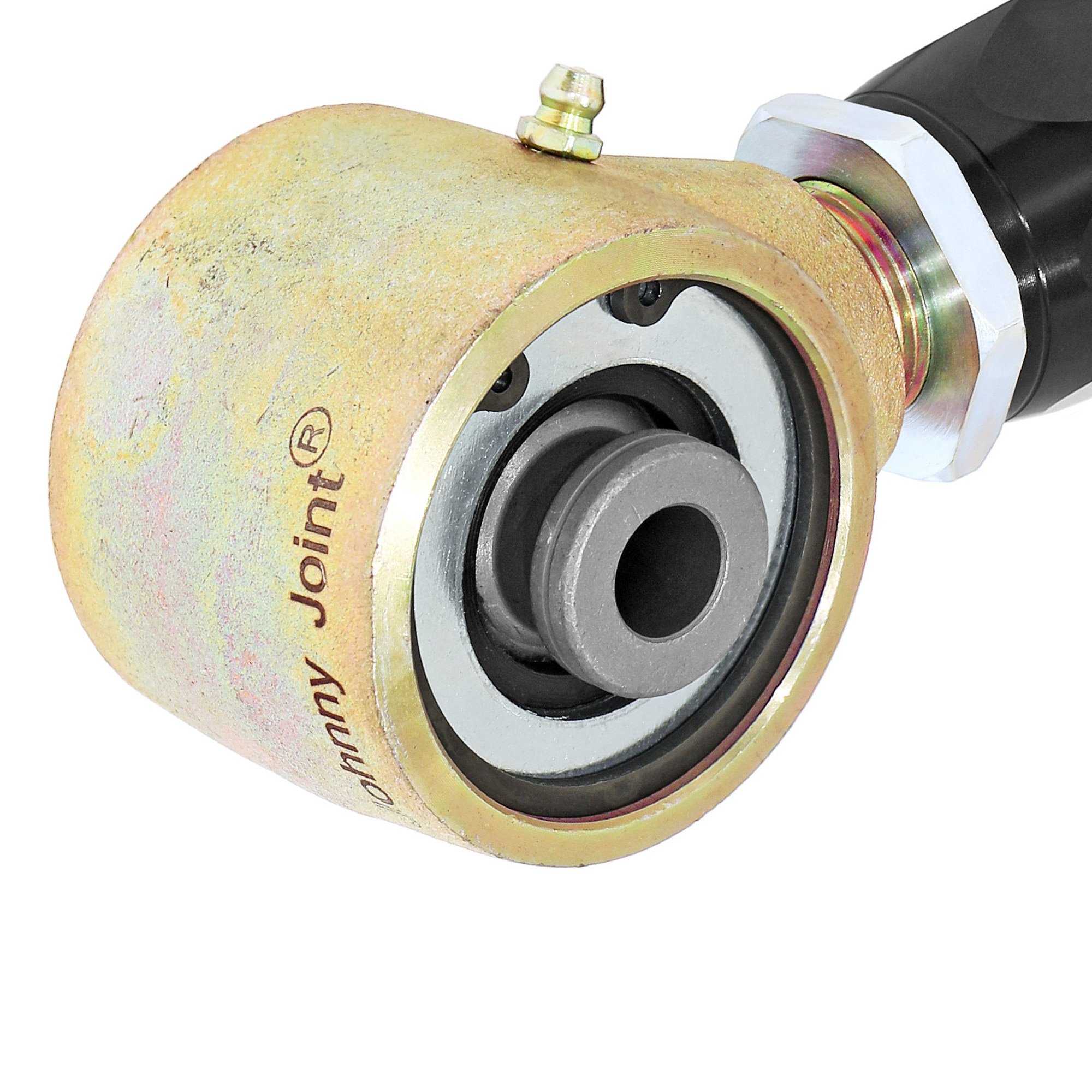

Johnny Joint rod ends offer 30 degrees of overall travel which allow this arm to have all the benefits of a urethane bushing while still allowing the suspension to articulate.
Arms are fully greasable via zerk fittings. Finish is gold zinc plating on the Johnny Joint adjuster end, black anodize on the center and semi-gloss black powder coat on the fork end.


Kit Fits:

  • Buick:  GS, Skylark (sedan and station wagon)
  • Chevrolet:  Chevelle (sedan and station wagon), El Camino, Monte Carlo
  • Oldsmobile:  442, Cutlass (sedan and station wagon)
  • Pontiac:  GTO, LeMans (sedan and station wagon), Grand Prix

Kit Includes:

  • 1968-1972 GM A-Body Rear Upper Control Arms (pair)

Adjustment Range:

  • Closed  =  9.420 in.
  • Open  =  10.795 in.

Component Specs.:

  • Construction (center adjuster)  =  CNC machined 1 1/2 in. solid 6061-T6 aluminum hex stock
  • Center Adjuster Length  =  3.125 in.
  • Center Adjuster Threads  =  1 in.-14 RH/LH

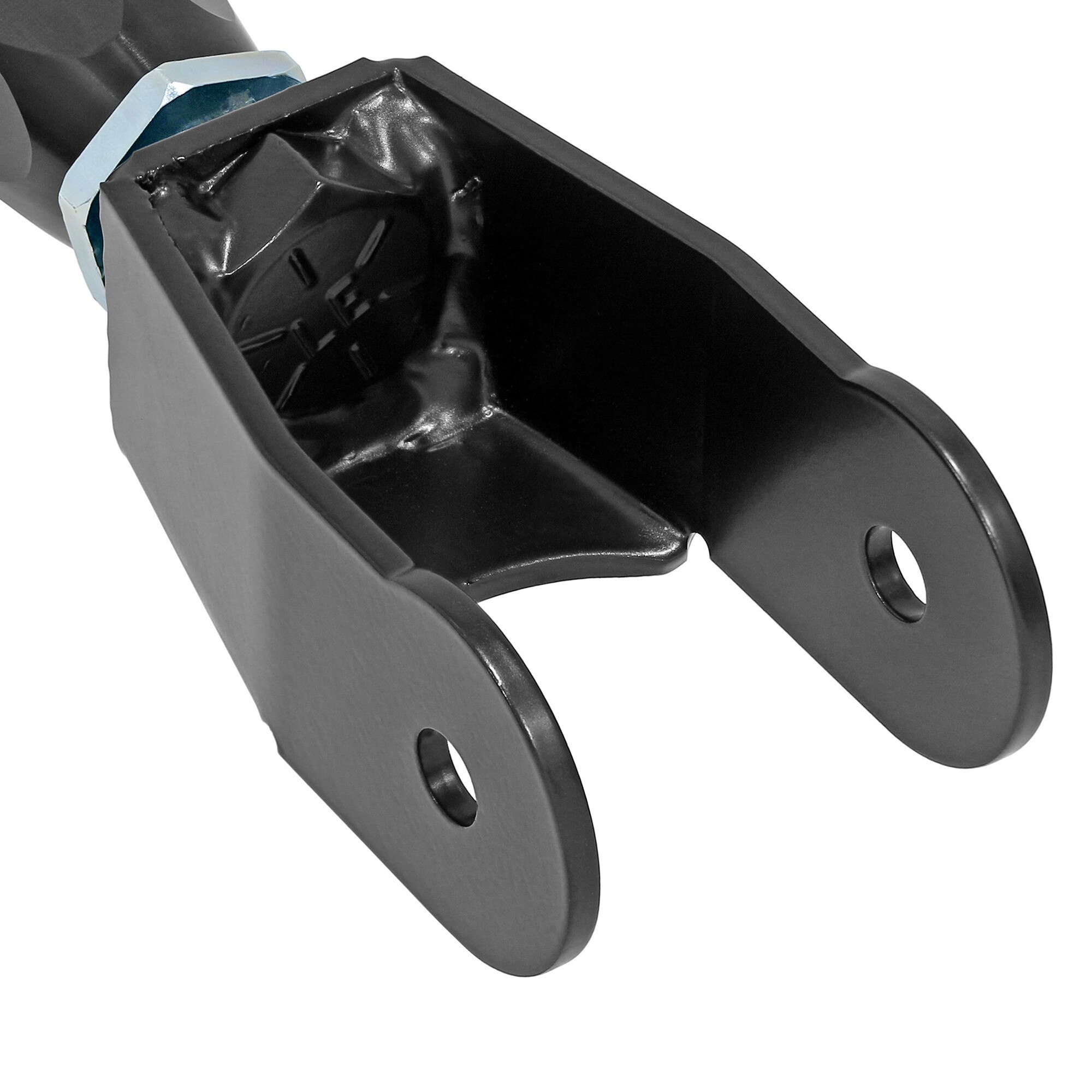

  • Construction (adjuster fork)  =  laser cut, formed and welded 3/16 in. steel
  • Adjuster Fork Threads  =  1 in.-14 RH
  • Adjuster Fork Thru-Hole  =  .510 in.
  • Johnny Joint Adjuster End Threads  =  1 in.-14 LH
  • Johnny Joint Adjuster End Thru-Hole  =  .515 in.

Notes:

  • Factory hardware is retained to attach arms to the axle and the frame
  • Johnny Joints require non-synthetic, hi-moly lube grease, such as our
  • Applicable Johnny Joint Tool for the Control Arms:

Parts List:


Media Hub


  • Installation Instruction Manual:
  • Watch:  Aldan American's product review video
  • Watch:  Aldan American's installation video
  • Watch how-to rebuild a Johnny Joint in 1 minute
  • Watch what grease to use in a Johnny Joint
