CE-7011LA - GM A-Body Currectrac Lower Control Arms (64-72)

Details

Details

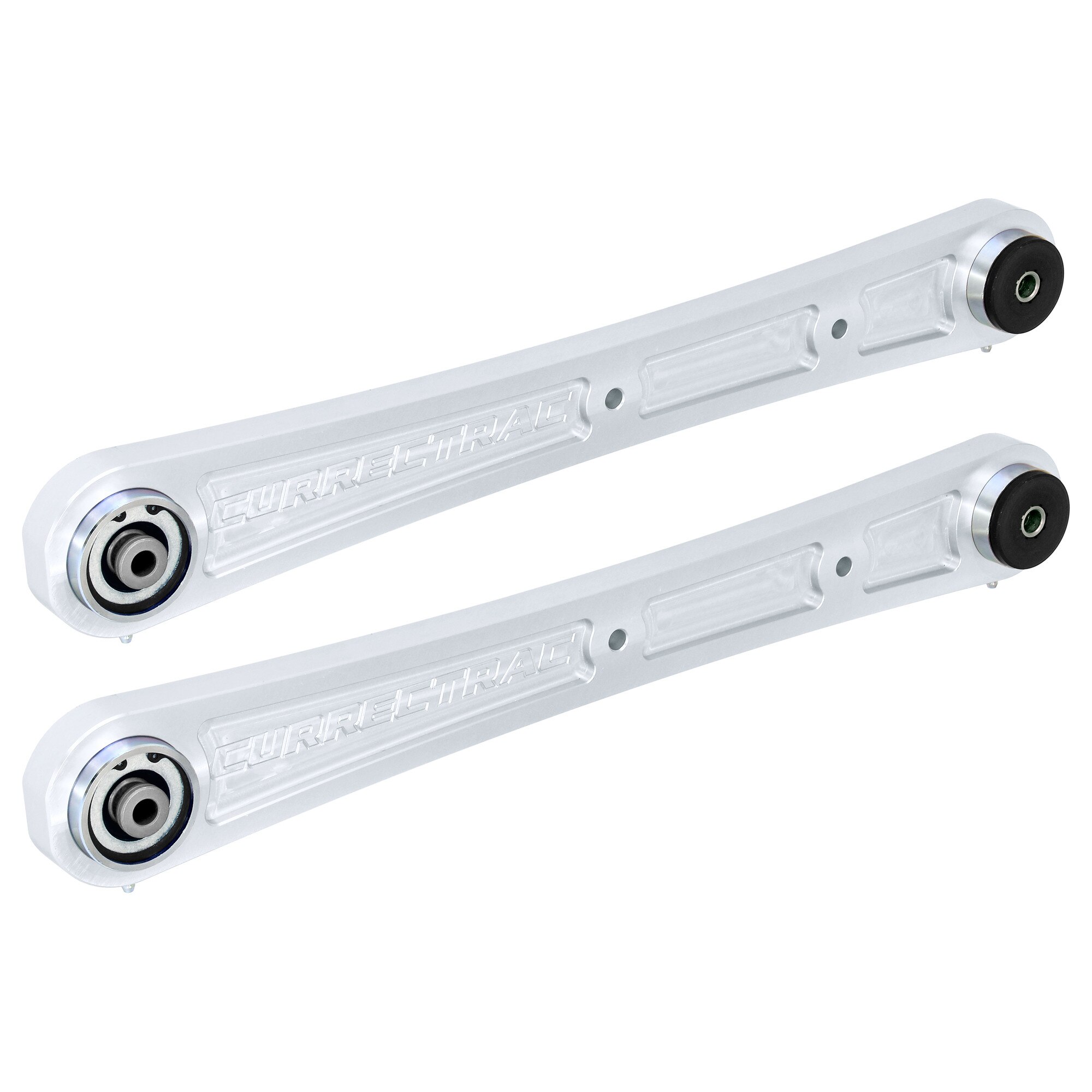

Currectrac Control Arms from John Currie Performance Group are the gold standard of aftermarket GM A-body control arms.
These arms bolt directly onto any 1964-1972 A-body sedans, El Caminos or station wagons and will allow for the installation of most any aftermarket control arm mounted sway bar, or reinstallation of factory SS sway bars.

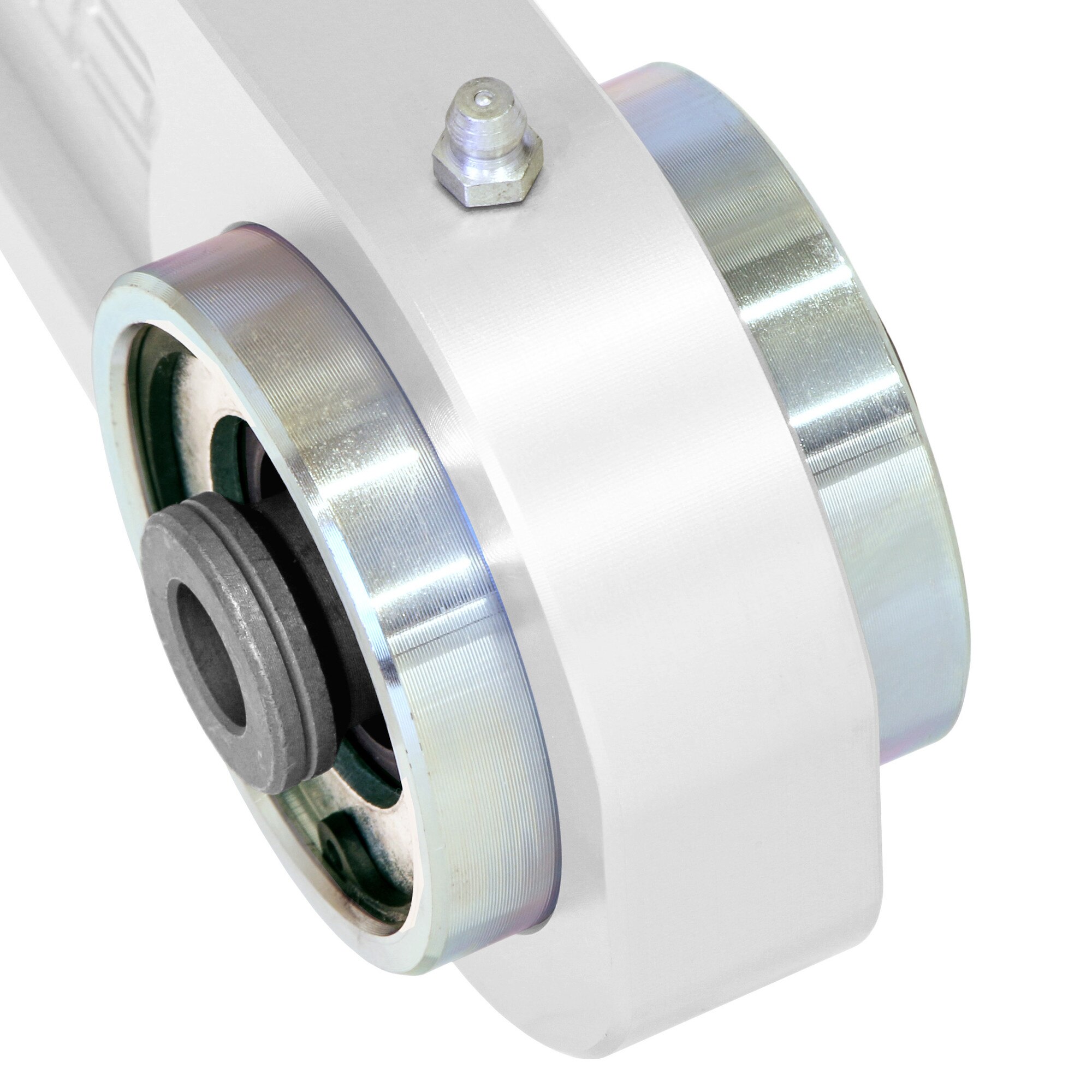

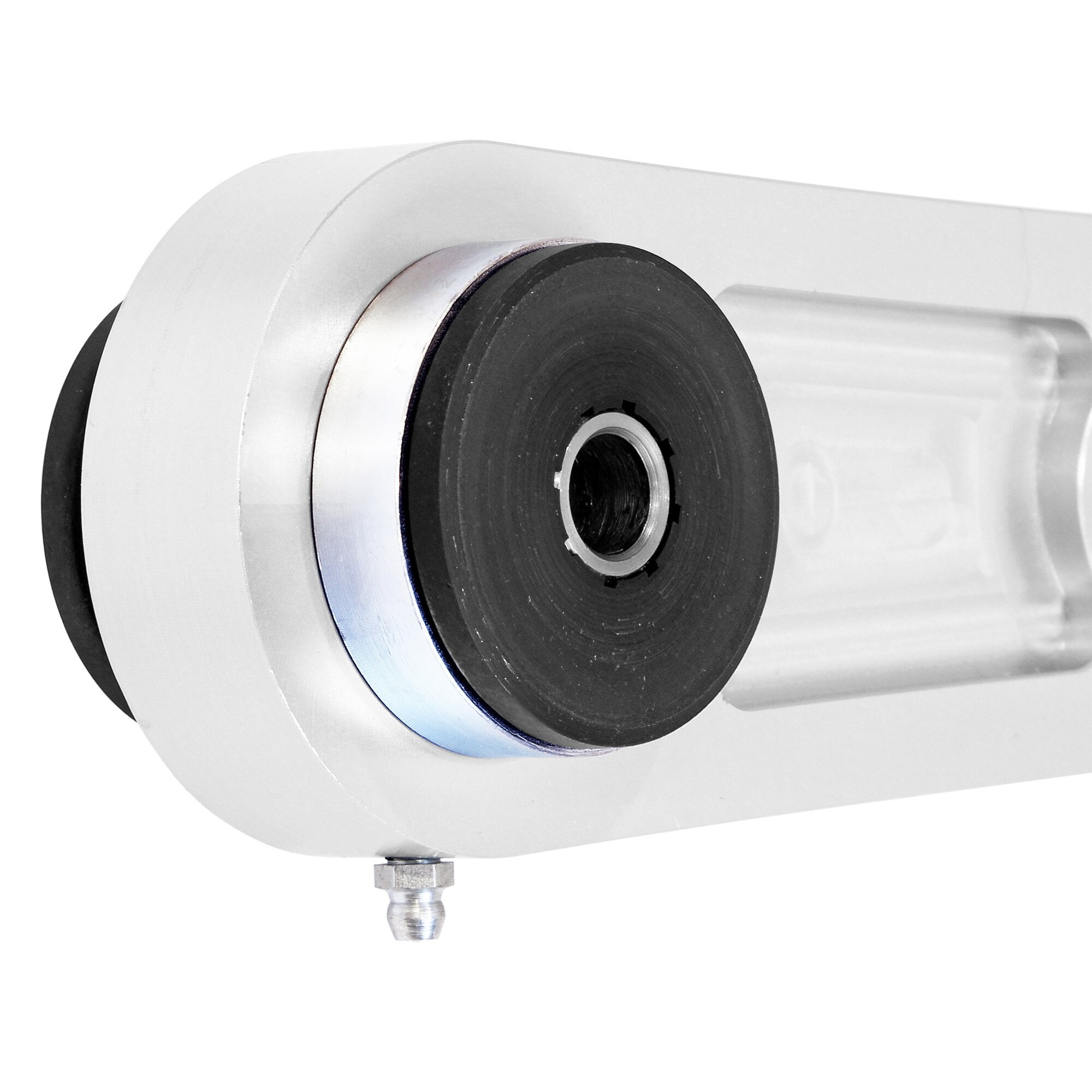

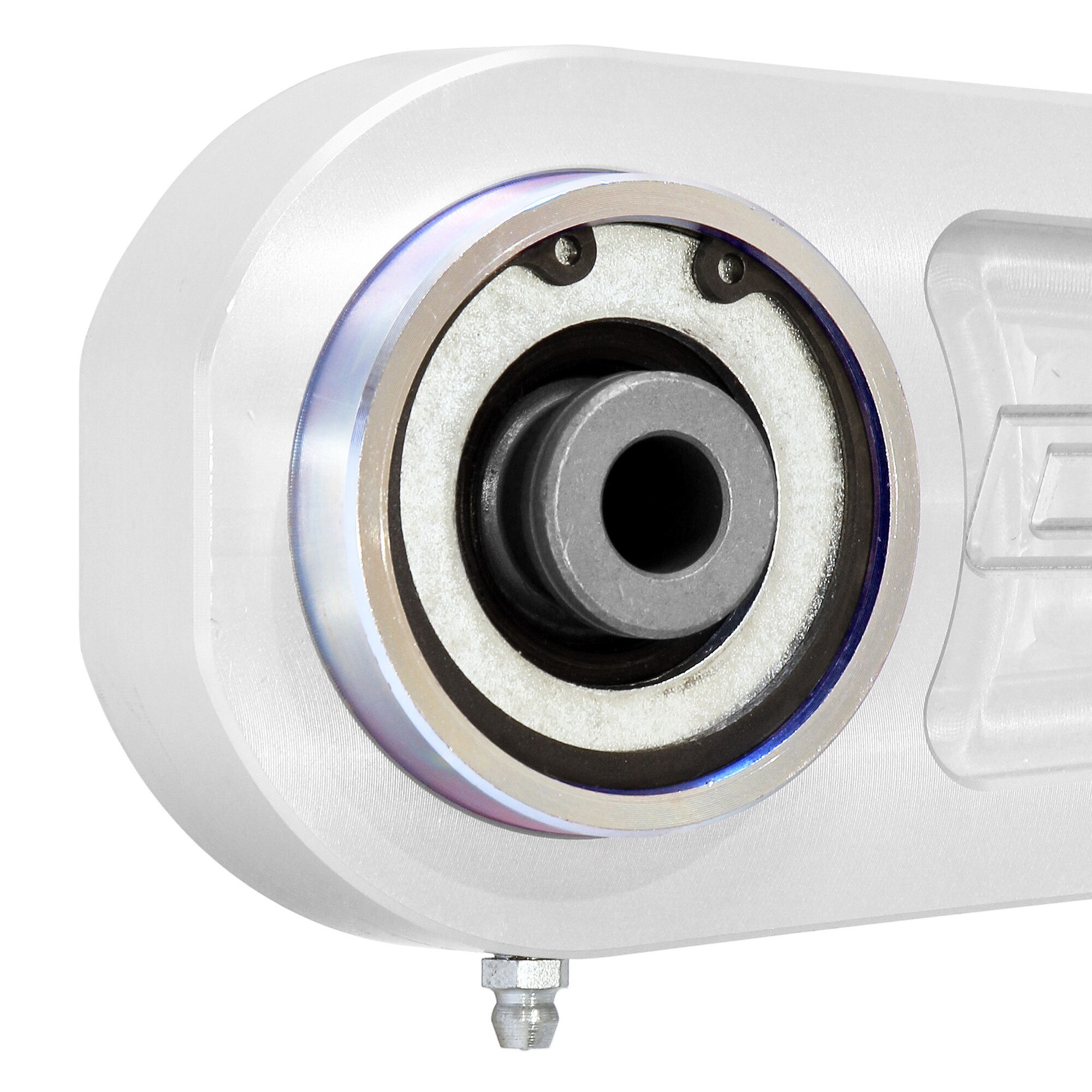

Arms are CNC machined billet aluminum, highlight machined and clear anodized to produce a beautiful finished product. One end of the arm features JCPG's greasable, urethane bushed Johnny Joint rod ends that offer 30 degrees of overall travel. The opposite ends of the arms feature a fluted, greasable urethane bushing.
Arms are fully greasable via zerk fittings.


Kit Fits:

  • Buick:  GS, Skylark (sedan and station wagon)
  • Chevrolet:  Chevelle (sedan and station wagon), El Camino, Monte Carlo
  • Oldsmobile:   442, Cutlass (sedan and station wagon)
  • Pontiac:  GTO, LeMans (sedan and station wagon), Grand Prix

Kit Includes:

  • 1964-1972 GM A-Body Rear Lower Control Arms (pair)

Component Specs.:

  • Construction  =  1 in. thick CNC machined 6061-T6 aluminum
  • Center to Center Dimension  =  22.1875 in.
  • Connection at front end of arm  =  articulating Johnny Joint rod end
  • Front end of arm thru-hole  =  .515 in.
  • Connection at back end of arm  =  urethane bushing with steel inner sleeve
  • Rear end of arm thru-hole  =  .515 in.
  • Sway Bar Mounting Hole Size  =  .438 in.
  • Arm Body Finish  =  clear anodizing
  • End Connection Barrels Finish  =  clear zinc plating

Notes:

  • Factory hardware is retained to attach arms to the axle and the frame
  • Sway bar mounting holes incorporated into the arms allow for the mounting of factory SS sway bars or aftermarket bars such as Hellwig, etc.
  • Johnny Joints require non-synthetic, hi-moly lube grease, such as our
  • Applicable Johnny Joint tool for the control arms:

Parts List:
