CE-7011C - GM A-Body Currectrac Upper Control Arms (64-67)
Details
Details

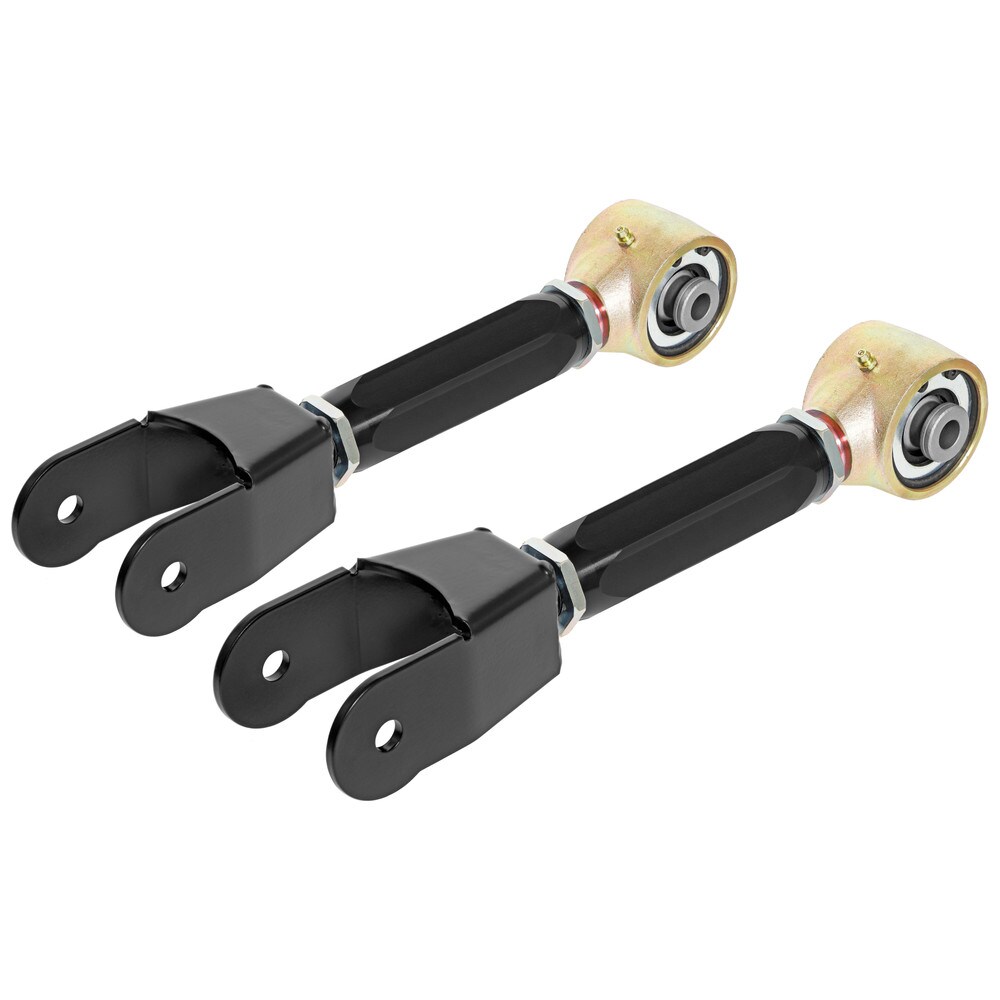

Currectrac Control Arms from John Currie Performance Group are the gold standard of aftermarket GM A-body control arms.
These arms bolt directly onto any 1964-1967 A-Body sedans, El Caminos or station wagons and offer full adjustability without either end of the arm having to be removed from the vehicle via their RH/LH thread, turnbuckle design.
Arms feature CNC machined billet aluminum, black anodized center adjusters, JCPG's greasable, urethane bushed Johnny Joint rod ends at the frame end and laser cut, heavy duty steel forks at the axle housing ends.

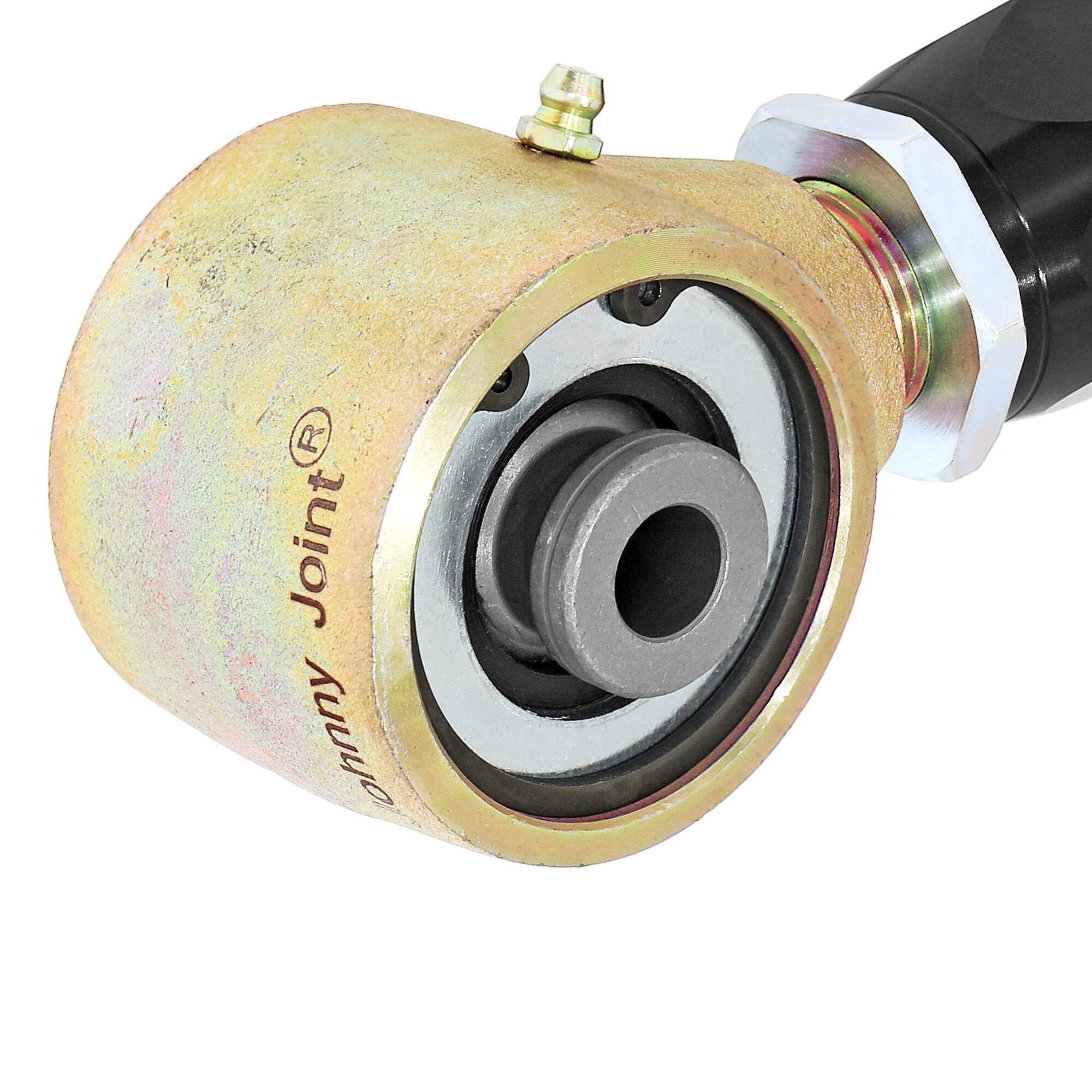

Johnny Joint rod ends offer 30 degrees of overall travel which allow this arm to have all the benefits of a urethane bushing while still allowing the suspension to articulate.
Arms are fully greasable via zerk fittings. Finish is gold zinc plating on the Johnny Joint adjuster end, black anodize on the center and semi-gloss black powder coat on the fork end.
Kit Fits:
- Buick: GS, Skylark (sedan and station wagon)
- Chevrolet: Chevelle (sedan and station wagon), El Camino
- Oldsmobile: 442, Cutlass (sedan and station wagon)
- Pontiac: GTO, LeMans (sedan and station wagon)
Kit Includes:
- 1964-1967 GM A-Body Rear Upper Control Arms (pair)
Adjustment Range:
- Closed = 11.710 in.
- Open = 13.380 in.
Component Specs.:
- Construction (center adjuster) = CNC machined 1 1/2 in. solid 6061-T6 aluminum hex stock
- Center Adjuster Length = 4.875 in.
- Center Adjuster Threads = 1 in.-14 RH/LH

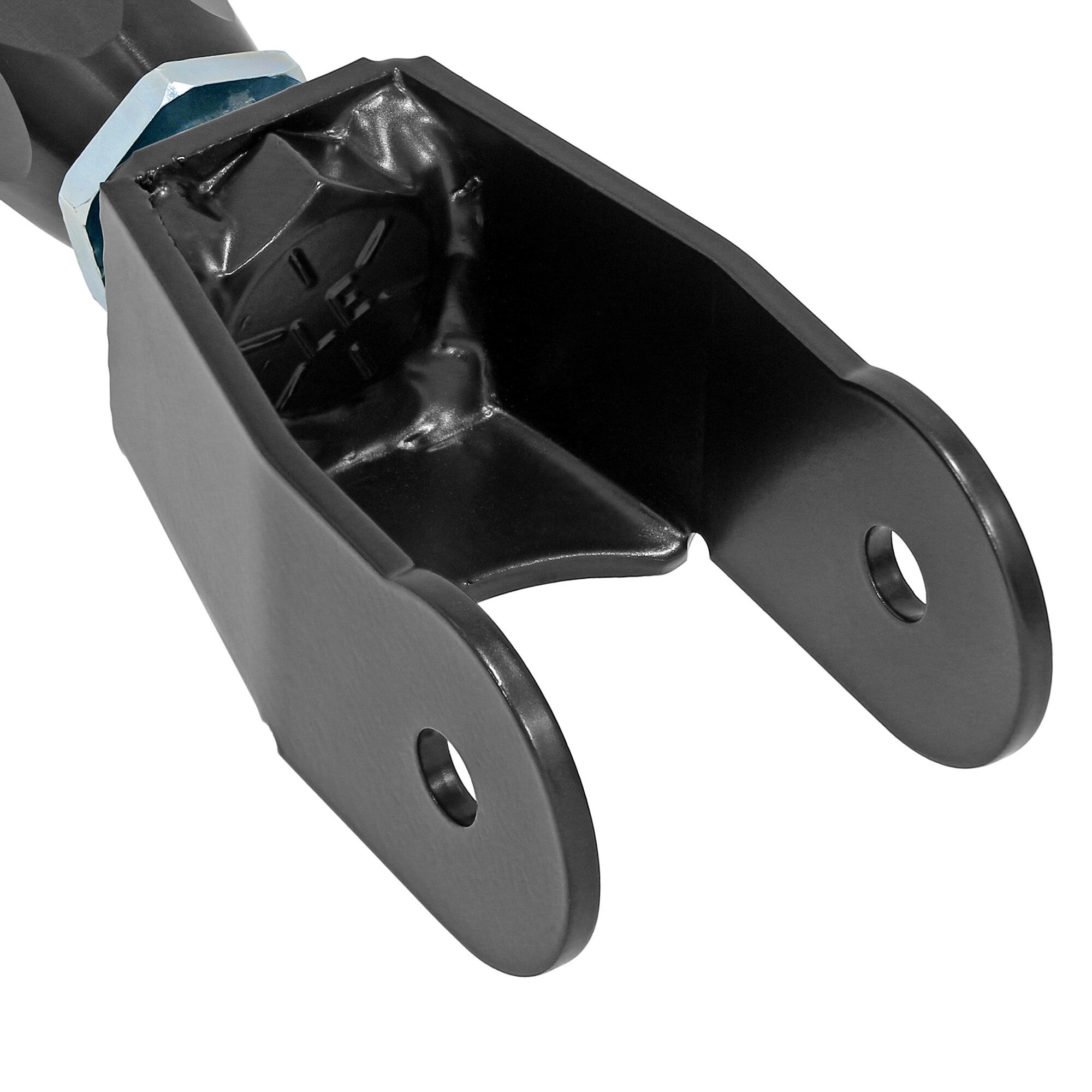

- Construction (adjuster fork) = laser cut, formed and welded 3/16 in. steel
- Adjuster Fork Threads = 1 in.-14 RH
- Adjuster Fork Thru-Hole = .510 in.
- Johnny Joint Adjuster End Threads = 1 in.-14 LH
- Johnny Joint Adjuster End Thru-Hole = .515 in.
Notes:
- Factory hardware is retained to attach arms to the axle and the frame
- Johnny Joints require non-synthetic, hi-moly lube grease, such as our
- Applicable Johnny Joint Tool for the Control Arms:
Parts List:
- Adjuster Fork:
- Center Adjuster Sleeve:
- Johnny Joint Adjuster End:
- 1 in-14 RH Jam Nut (thin):
- 1 in.-14 LH Jam Nut (thin):
- Johnny Joint Rebuild Kit:
- Johnny Joint Pivot Ball:
- Zerk Fitting (on Johnny Joint):
Media Hub
- Installation Instruction Manual:
- Watch: Aldan American's product review video
- Watch: Aldan American's installation video
- Watch how-to rebuild a Johnny Joint in 1 minute
- Watch what grease to use in a Johnny Joint
