• CE-7011D-BRKT - Fork Bracket (for GM A-Body Currectrac Control Arms)

CE-7011D-BRKT - Fork Bracket (for GM A-Body Currectrac Control Arms)

Details

Details

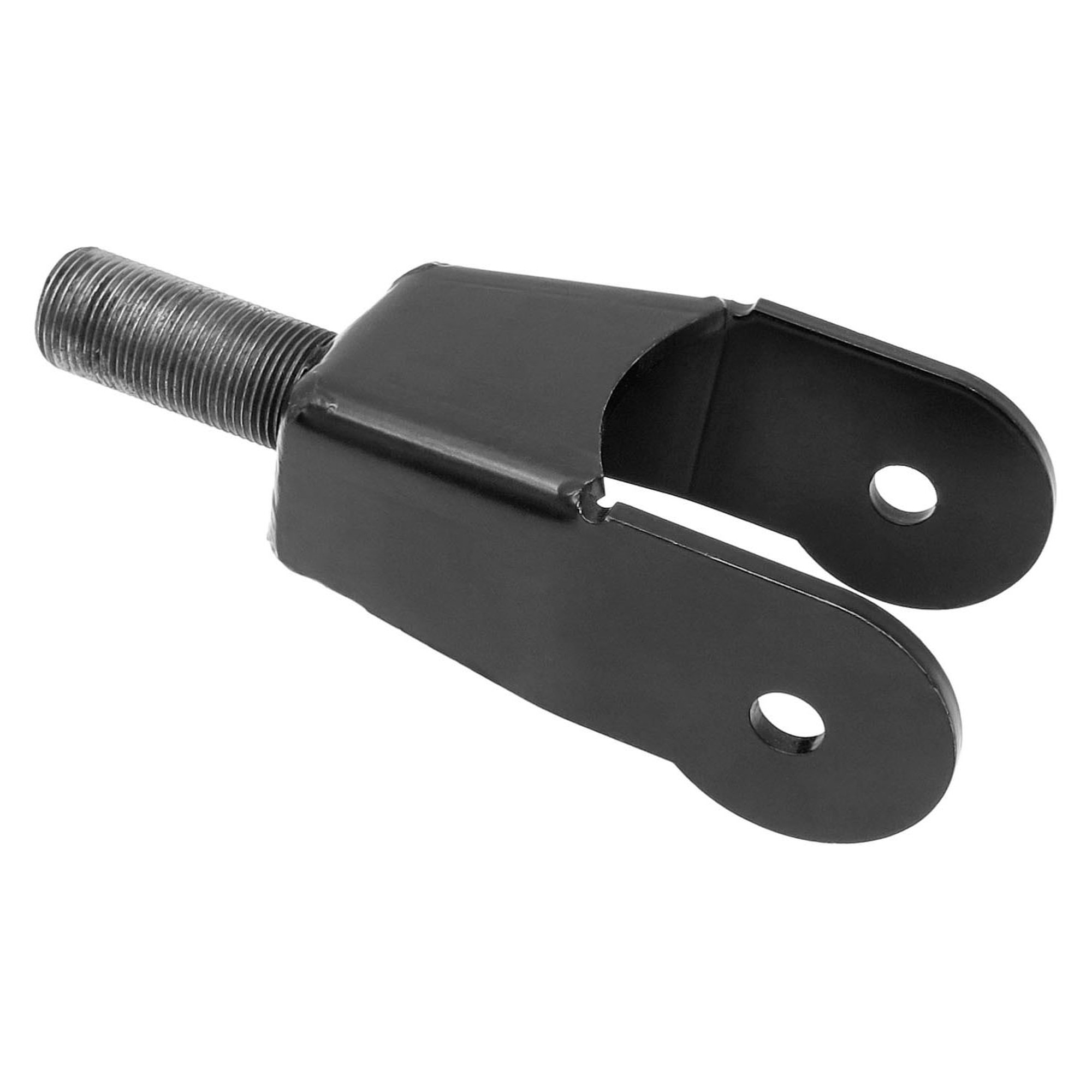

This is the laser cut fork bracket from our CE-7011C and CE-7011D 1964-1972 GM A-body Currectrac control arm sets. This bracket goes over the rearend housing bushing and is designed to work with the stock hardware. Features 2 1/4 in. of 1 in.-14 RH thread. Sold each.

RockJock’s Control Arm Fork Bracket is an included component in our 64-67 and GM A-body rear upper control arms at the location where the control arms attach to the rear axle housing Johnny Joints or bushings.
The inside dimension of the fork is designed to fit a bushing or Johnny Joint that is 2 in. wide with a 1/2 in. thru bolt (stock JL/JT/JK).
Fork is laser cut and formed 3/16 in. steel with a 1 in.-14 RH threaded fitment welded in. Finish is semi-gloss black powder coat.


Kit Fits:

  • Universal Application
  • Included in 64-67 GM A-body rear upper control arm sets
  • Included in 68-72 GM A-body rear upper control arm sets

Kit Includes:

  • (1)  Rear Upper Control Arm Fork Bracket

Component Specs.:

  • Material  =  laser cut and formed 3/16 in. steel, steel threaded weldment
  • Inside of Fork Dimension  =  2.520 in. x 1/2 in. thru-bolt
  • Overall Length  =  7.310 in. (tip to tip)
  • CL of Hole to End of Threads Length  =  5.250 in.
  • Thread Length  =  2.250 in.
  • Threads  =  1 in.-14 RH
  • Finish  =  semi-gloss black powder coat (threads masked)

Notes:

  • This Fork is an included component in all of our 64-67 and GM A-body rear upper control arm sets.
  • Fork is intended to bolt onto the 2.520 in. wide x 1/2 in. thru-hole bushings found on GM A-body rear axle housings, as well as the Johnny Joint replacements for the these bushings.
  • See for the applicable jam nut for this fork.
