CE-7011D-FORGED - Johnny Joint 2 1/2 in. End Forging (1 in.-14 LH Thread, Short Threads)

SKU CE-7011D-FORGED
$60.00

Details

RockJock's Johnny Joint Rod Ends have been a staple in the off road industry since 1996! Available universally for builders or found in our RockJock suspension components, John Currie’s proven formula provides a reliable, greasable, rebuildable joint that is capable of dramatic articulation in off-road applications, while still providing smooth, cushioned, quiet performance during on-road use.
Johnny Joints are available as a forged rod end with various RH and LH thread sizes from 3/4 in. up to a massive 1 1/2 in. thread! Additionally, weld-on versions of all Johnny Joints are available for fabricators.
Specialty joints, such as polished stainless steel, long body and bent forgings and application specific machined joints are all available for custom builder use.
All sizes of joints offer a standard or a narrow width joint body which provide different levels of overall articulation range (30 plus degrees on a standard body and up to 40 plus degrees on a narrow body). The narrow body’s 1 piece bushing will provide a slightly firmer ride.

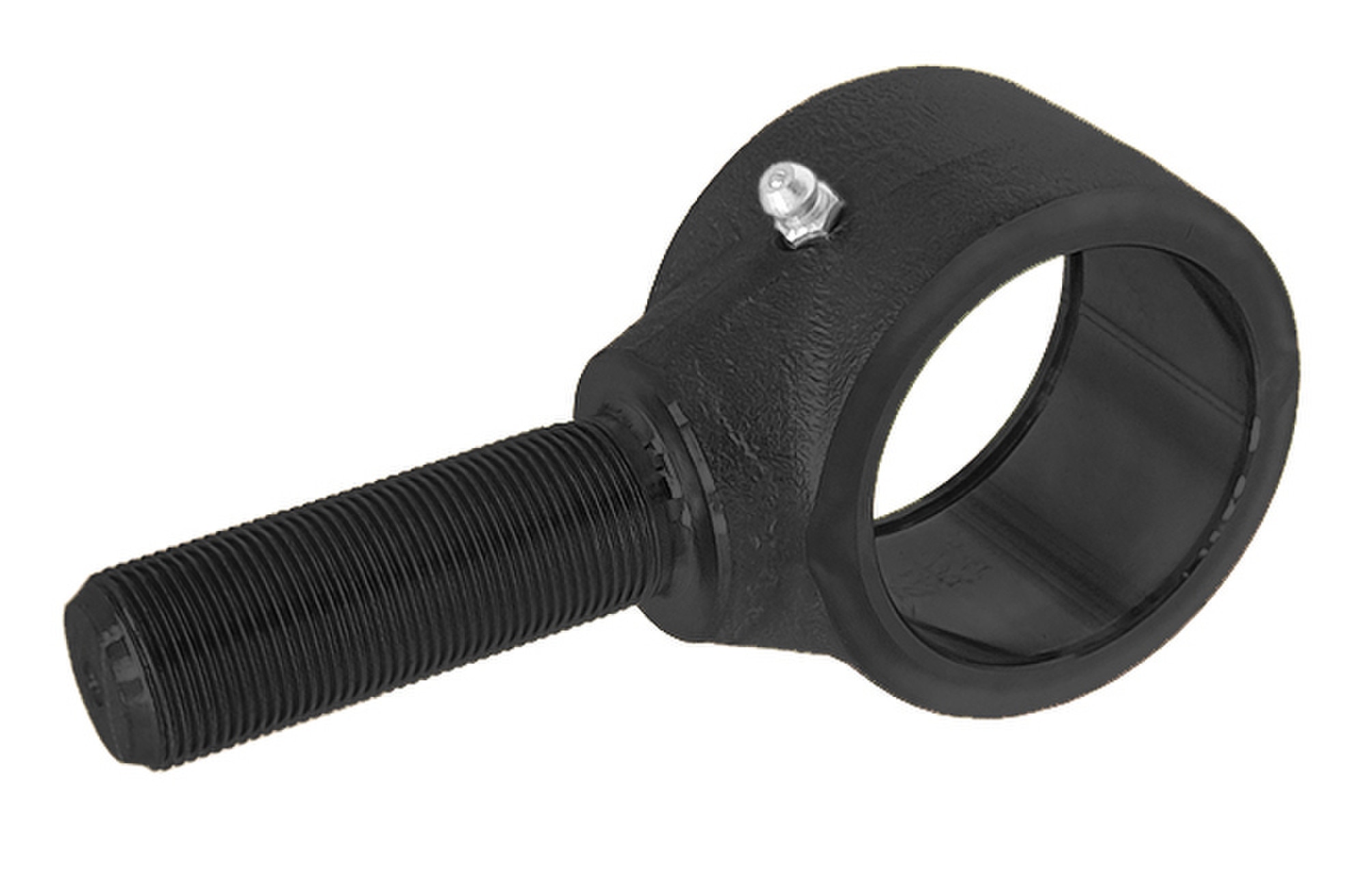

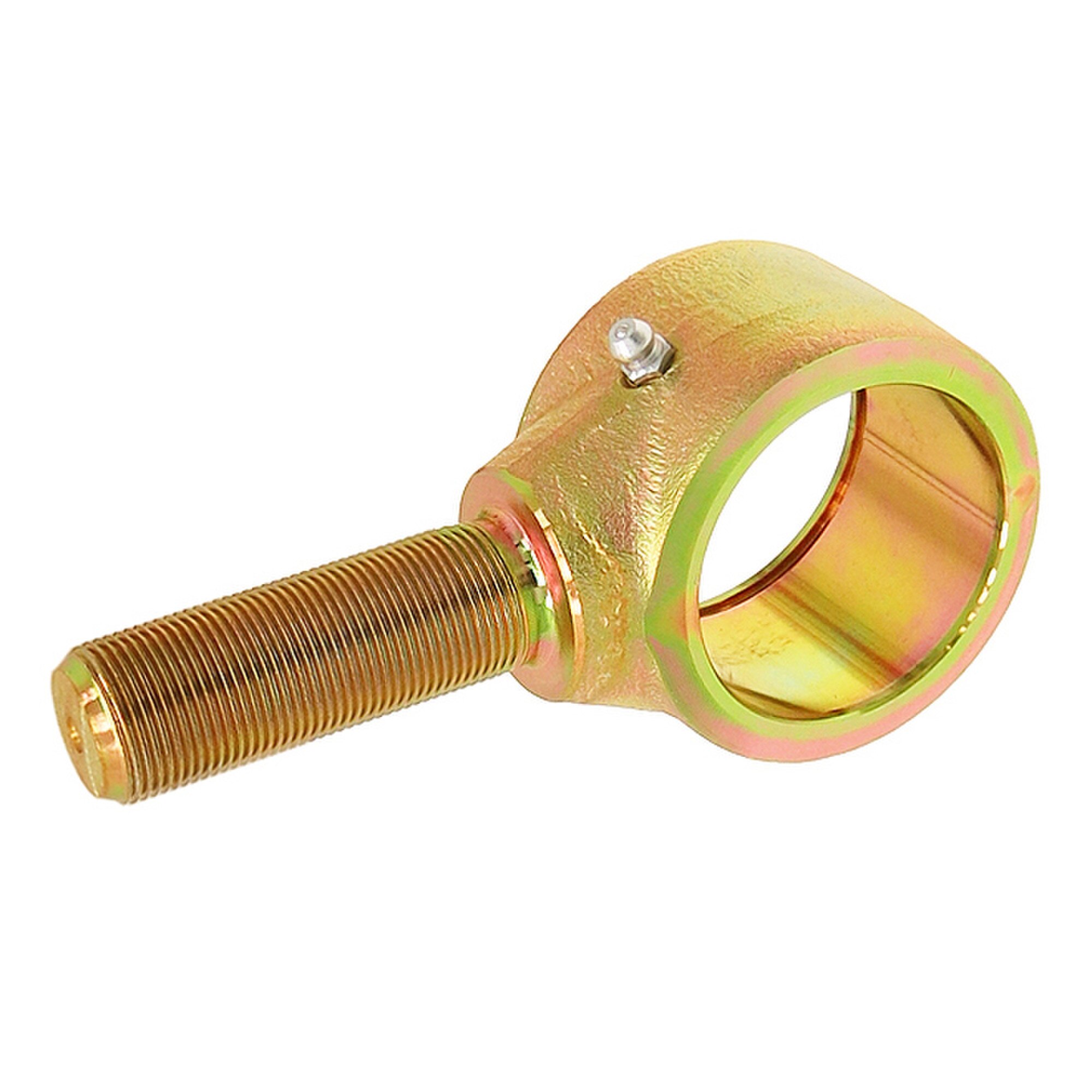

This Johnny Joint End Forging is a standard width, forged steel body that includes a 2 1/2 in. Johnny Joint barrel and 1.75 in. of 1 in.-14 LH threads.
The Johnny Joint barrel features a lip in one end of the bore that is the stop for the internals and a snap ring groove at the opposite end of the bore to retain the internals. Barrel accepts the 2 piece bushing style internals and will accept any 2 1/2 in. pivot ball that we make (2.365 in. width and wider).
Greasing is handled externally, via the installed 1/4 in.-28 zerk fitting.



End Forging Fits:

  • Universal Application
  • 68-72 GM A-body - Currectrac Control upper arms (CE-7011D)


End Forging Includes:

  • (1) Johnny Joint End Forging


End Forging Features:

  • Forged steel construction
  • 2 1/2 in. O.D. x 2 in. wide joint outer barrel
  • 1.75 in. of 1 in.-14 LH threads
  • 3.44 inches from CL of joint to end of threads
  • Accepts 2-piece bushing internals
  • Accepts any 2 1/2 in. pivot ball that we make (2.365 in. width and wider)
  • 1/4-28 in. zerk fitting for greasing

Notes:

  • In the application of our CE-7011D control arms, see CE-7011DJNL for the replacement jam nut
  • See CE-9113LJN if a standard Jam Nut is required
  • See CE-9113BL if a Weld-In Bung and Jam Nut are required
  • See RJ-576201-102 if a RockNut is required
  • Johnny Joints require non-synthetic, hi-moly lube grease such as our CE-9013G
  • Applicable Johnny Joint Tool for this Rod End: CE-9110T
  • *** IMPORTANT *** - joints require greasing at normal intervals, but they do not hold a lot of grease! Over greasing can cause damage to the joint. To prevent damage, use only a hand pump grease gun, do not expect the joint to take a lot of grease and DO NOT use pneumatic or electric grease guns!
